N3150MP/N3050MP
1
CHAPTER 1: INTRODUCTION
1.1 Before You Start
Thank you for choosing our product. Before you start installing the
motherboard, please make sure you follow the instructions below:
Prepare a dry and stable working environment with sufficient
lighting.
Always disconnect the computer from power outlet before
operation.
Before you take the motherboard out from anti-static bag,
ground yourself properly by touching any safely grounded
appliance, or use grounded wrist strap to remove the static
charge.
Avoid touching the components on motherboard or the rear
side of the board unless necessary. Hold the board on the
edge, do not try to bend or flex the board.
Do not leave any unfastened small parts inside the case after
installation. Loose parts will cause short circuits which may
damage the equipment.
Keep the computer from dangerous area, such as heat
source, humid air and water.
The operating temperatures of the computer should be 0 to
45 degrees Celsius.
To avoid injury, be careful of:
Sharp pins on headers and connectors
Rough edges and sharp corners on the chassis
Damage to wires that could cause a short circuit
1.2 Package Checklist
Serial ATA Cable x2
Rear I/O Panel for ATX Case x1
Installation Guide x1
Fully Setup Driver DVD x1
Note: The package contents may be different due to the sales region or models in which it was
sold. For more information about the standard package in your region, please contact your dealer
or sales representative.
Motherboard Manual
2
1.3 Motherboard Specifications
Specifications
CPU Support N3150MP: Intel® Celeron® N3150 processor
N3050MP: Intel® Celeron® N3050 processor
Memory
Supports Dual Channel DDR3L 1600(1.35V/1.5V)
2x DDR3L DIMM Memory Slot, Max. Supports up to 8 GB Memory
Each DIMM supports non-ECC 512MB/ 1/ 2/ 4/ 8 GB DDR3L module
* Please refer to www.biostar.com.tw for Memory support list.
Storage 2x SATA 6Gb/s Connector
Supports AHCI Mode
LAN Realtek RTL8111H
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
Audio Codec ALC662, 5.1 Channels, High Definition Audio
USB 6x USB 2.0 port (2 on rear I/Os and 4 via internal header)
4x USB 3.0 port (2 on rear I/Os and 2 via internal header)
Expansion Slots 1x PCIe 2.0 x16 Slot (x1 speed)
2x PCI x1 Slot
Rear I/Os
1x PS/2 Mouse
1x PS/2 Keyboard
1x VGA Port
1x Printer Port
1x Serial Port
1x LAN port
2x USB 3.0 Port
2x USB 2.0 Port
3x Audio Jack
Internal I/Os
2x SATA 6.0Gb/s Connector
1x 24-Pin Power Connector
2x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1x USB 3.0 Header (each header supports 2 USB 3.0 ports)
2x System Fan Connector
1x Front Panel Header
1x Front Audio Header
1x Clear CMOS Header
1x Serial Port Header
Form Factor microATX Form Factor, 226 mm x 195 mm
OS Support
Windows 7 (64bit)/ 8.1 (64bit)
Biostar reserves the right to add or remove support for any OS with or without
notice.
N3150MP/N3050MP
3

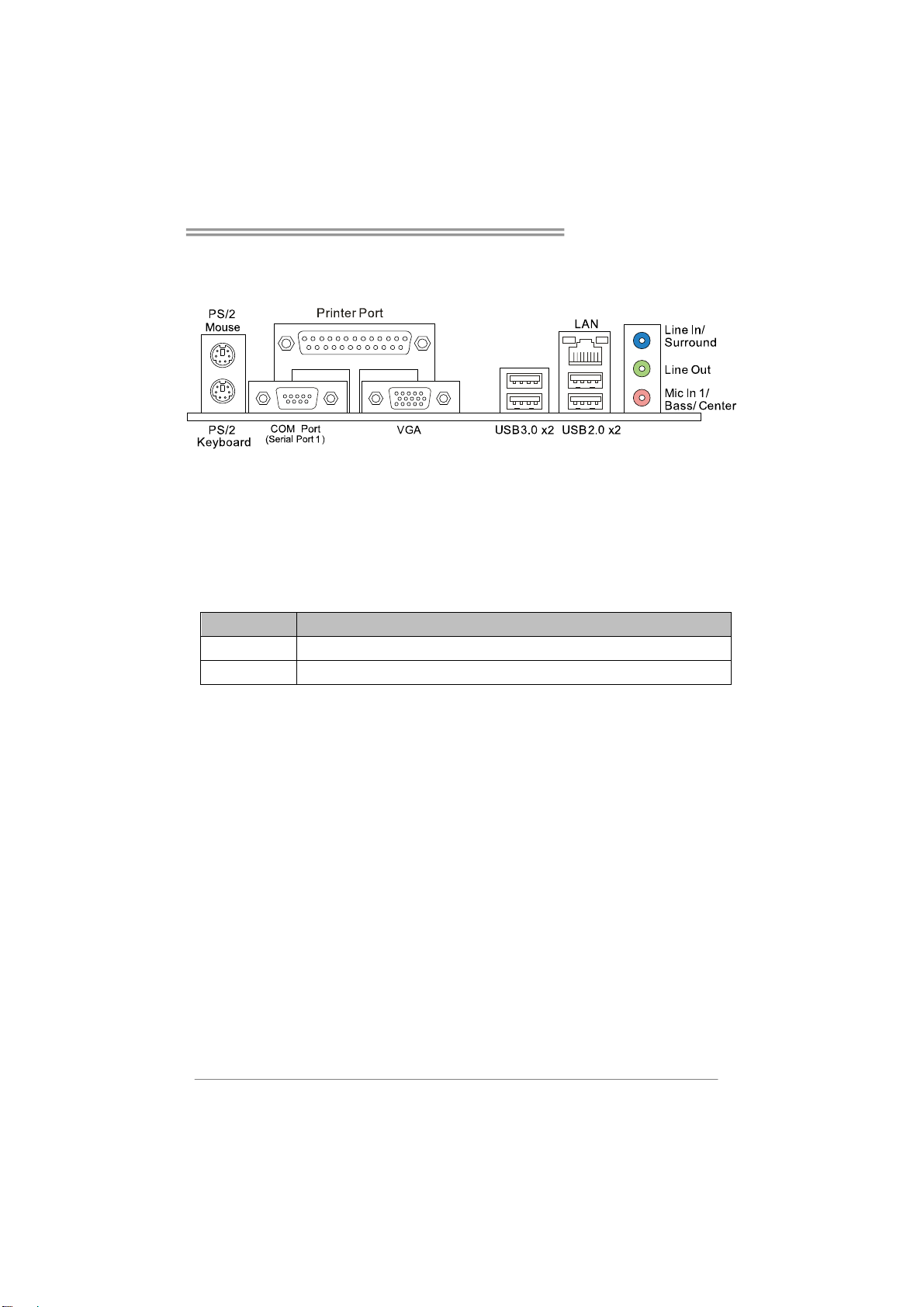

1.4 Rear Panel Connectors
Note 1: Since the audio chip supports High Definition Audio Specification, the function of
each audio jack can be defined by software. The input / output function of each audio jack
listed above represents the default setting. However, when connecting external microphone
to the audio port, please use the Line In (Blue) and Mic In (Pink) audio jack.
Note 2: Maximum resolution:
VGA: 1920 x 1200 @60Hz
1.5 Central Processing Unit (CPU)
The motherboard is equipped with an onboard Intel procrssor and a CPU cooler.
Model Name: Onboard CPU:
N3150MP Intel® Celeron® N3150 processor (Quad Core, 2M Cache, up to 2.08 GHz)
N3050MP Intel® Celeron® N3050 processor (Dual Core, 2M Cache, up to 2.16 GHz)
Motherboard Manual
4
1.6 Motherboard Layout
Note: ■represents the 1st pin.
N3150MP/N3050MP
5
CHAPTER 2: HARDWARE INSTALLATION

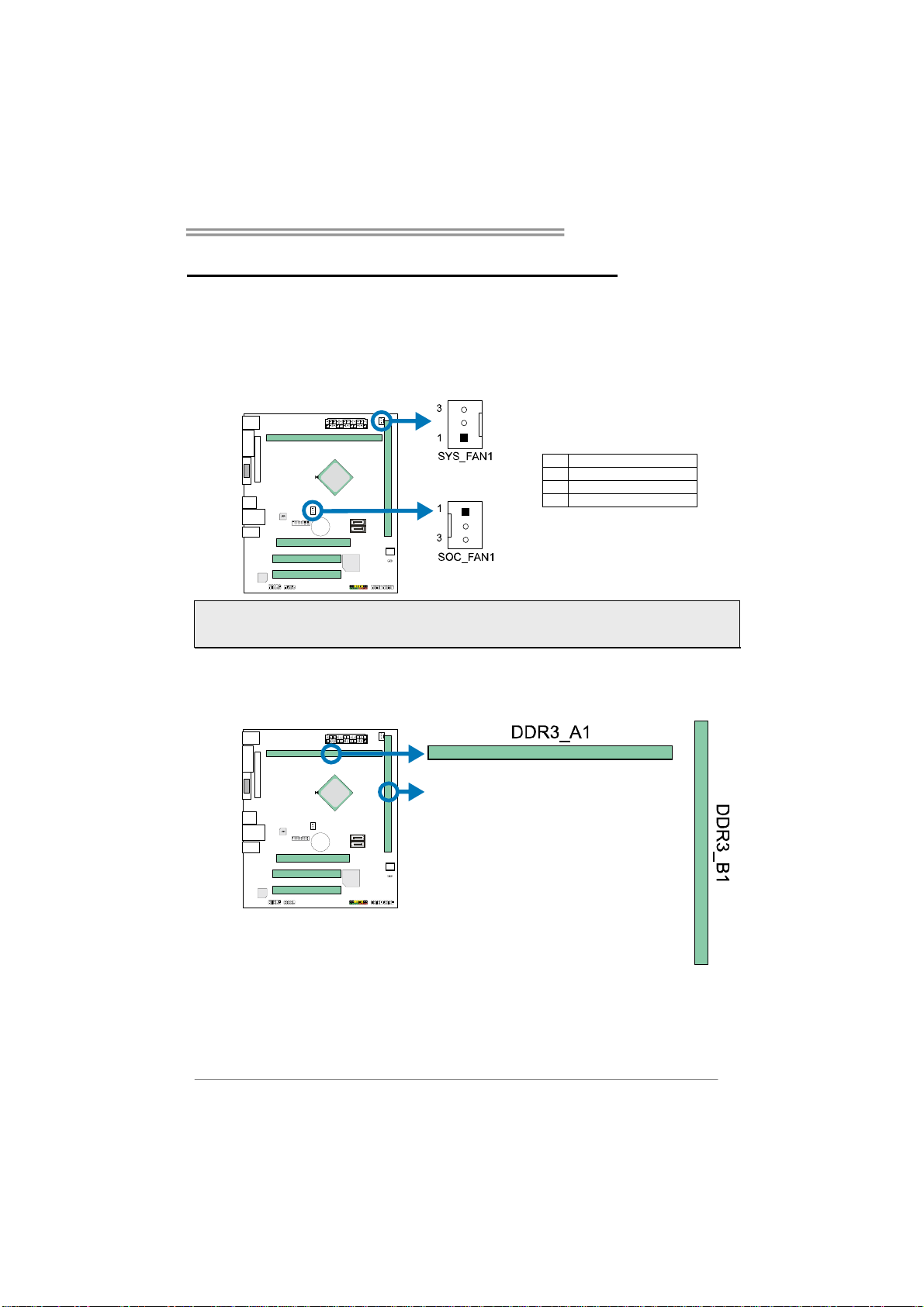

2.1 Connect Cooling Fans
These fan headers support cooling-fans built in the computer. The fan cable and
connector may be different according to the fan manufacturer. Connect the fan
cable to the connector while matching the black wire to pin#1.
SYS_FAN1/SOC_FAN1: Fan Header
Pin Assignment
1 Ground
2 +12V
3 FAN RPM rate sense
Note: When connecting with wires onto connectors, please note that the red wire is the positive
and should be connected to pin#2, and the black wire is Ground and should be connected to
GND.
2.2 Install System Memory
A. DDR3L DIMM Module (1.35V/1.5V)
Motherboard Manual
6
Step 1: Align a DIMM on the slot such that the notch on the DIMM matches the
break on the Slot.
Step 2: Insert the DIMM firmly into the slot until the retaining chip snap back in place
and the DIMM is properly seated.
Note1: The DIMM must be installed to DIMMA1(DDR3_A1) slot first.
Note2: If the DIMM does not go in smoothly, do not force it. Pull it all the way out and try again.
B. Memory Capacity
DIMM Socket Location DDR3L Module Total Memory Size
DIMMA1 512MB/1GB/2GB/4GB/8GB Max is 8GB
DIMMB1 512MB/1GB/2GB/4GB/8GB
C. Dual Channel Memory Installation
Please refer to the following requirements to activate Dual Channel function:
Install memory module of the same density in pairs, shown in the table.
Dual Channel Status DIMMA1 DIMMB1
Disabled O X
Enabled O O
(O means memory installed, X means memory not installed.)
Note: When installing more than one memory module, we recommend to use the same brand and
capacity memory on this motherboard.
N3150MP/N3050MP
7
2.3 Expansion Slots
PEX16_1: PCI-Express x16 Slot (Gen2 x1 speed)
-PCI-Express 2.0 compliant.
-Data transfer bandwidth up to 500MB/s per direction; 1GB/s in total.
PCI1/PCI2: Peripheral Component Interconnect Slots
-The PCI slots support cards used in PCs include: LAN cards, sound cards,
modems, TV tuner cards and other cards that comply PCI standard.
Install an Expansion Card
You can install your expansion card by following steps:
1. Read the related expansion card's instruction document before install the
expansion card into the computer.
2. Remove your computer's chassis cover, screws and slot bracket from the
computer.
3. Place a card in the expansion slot and press down on the card until it is
completely seated in the slot.
4. Secure the card’s metal bracket to the chassis back panel with a screw.
5. Replace your computer's chassis cover.
6. Power on the computer, if necessary, change BIOS settings for the
expansion card.
7. Install related driver for the expansion card.
Motherboard Manual
8
2.4 Jumper Setting
The illustration shows how to set up jumpers. When the jumper cap is placed on
pins, the jumper is “close”, if not, that means the jumper is “open”.
Pin opened Pin closed Pin1-2 closed
JCMOS1: Clear CMOS Jumper
The jumper allows users to restore the BIOS safe setting and the CMOS data.
Please carefully follow the procedures to avoid damaging the motherboard.
Pin 1-2 Open:
Normal Operation (default).
Pin 1-2 Close:
Clear CMOS data.
※Clear CMOS Procedures:
1. Remove AC power line.
2. Set the jumper to “Pin 1-2 close”, you can use a metal object like a
screwdriver to touch the two pins.
3. Wait for five seconds.
4. After clearing the CMOS values, be sure the jumper is “Pin 1-2 open”.
5. Power on the AC.
6. Load Optimal Defaults and save settings in CMOS.
Dieses Handbuch passt für folgende Modelle
1
Inhaltsverzeichnis
Andere Biostar Hauptplatine Handbücher
Biostar
Biostar H55 HD Bedienungsanleitung
Biostar
Biostar A770E3 Benutzerhandbuch
Biostar
Biostar P4 TDQ Bedienungs- und Montageanleitung
Biostar
Biostar M6VBA Bedienungsanleitung
Biostar
Biostar A68N-5200 Bedienungsanleitung
Biostar
Biostar B660GTQ Bedienungsanleitung
Biostar
Biostar M6TLC Bedienungsanleitung
Biostar
Biostar G965 MICRO 775 Benutzerhandbuch
Biostar
Biostar M6TZM Bedienungsanleitung
Biostar
Biostar K8NBD-S9 Handbuch
Biostar
Biostar TA870 - BIOS Benutzerhandbuch
Biostar
Biostar 865G MICRO 775 Benutzerhandbuch
Biostar
Biostar TA790GX XE - BIOS Benutzerhandbuch
Biostar
Biostar A770 A2+ Benutzerhandbuch
Biostar
Biostar H310MHD3 Bedienungsanleitung
Biostar
Biostar TZ590-BTC DUO Bedienungsanleitung
Biostar
Biostar P4TGE Bedienungsanleitung
Biostar
Biostar GAMING Z97W Benutzerhandbuch
Biostar
Biostar NF61S-M2 TE Benutzerhandbuch
Biostar
Biostar A740G M2L PLUS - BIOS 2 Benutzerhandbuch
Beliebte Hauptplatine Handbücher anderer Marken
Telit Wireless Solutions
Telit Wireless Solutions SL869-3DR Bedienungsanleitung
Gigabyte
Gigabyte GA-9IVDT Bedienungsanleitung
Texas Instruments
Texas Instruments ADS8372EVM Bedienungsanleitung
Commell
Commell MS-C73 Bedienungsanleitung
IBT Technologies
IBT Technologies MB860 Bedienungsanleitung
Nvidia
Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung
