NF560 A2G+/NF520 A2G+

CHAPTER 1: INTRODUCTION

1.1 BEFORE YOU START

Thank you for choosing our product. Before you start installing the

motherboard, please make sure you follow the instructions below:

Prepare a dry and stable working environment with

sufficient lighting.

Always disconnect the computer from power outlet

before operation.

Before you take the motherboard out from anti-static

bag, ground yourself properly by touching any safely

grounded appliance, or use grounded wrist strap to

remove the static charge.

Avoid touching the components on motherboard or the

rear side of the board unless necessary. Hold the board

on the edge, do not try to bend or flex the board.

Do not leave any unfastened small parts inside the

case after installation. Loose parts will cause short

circuits which may damage the equipment.

Keep the computer from dangerous area, such as heat

source, humid air and water.

1.2 PACKAGE CHECKLIST

HDD Cable X 1

Serial ATA Cable X 1

Rear I/O Panel for ATX Case X 1

User’s Manual X 1

Fully Setup Driver CD X 1

FDD Cable X 1 (optional)

USB 2.0 Cable X1 (optional)

S/PDIF out Cable X 1 (optional)

Note: The package contents may differ by area or your motherboard version.

Motherboard Manual

1.3 MOTHERBOARD FEATURES

NF560 A2G+ NF520 A2G+

CPU

Socket AM2 / AM2+

AMD Athlon 64 / Athlon 64 FX / Athlon 64 X2 /

Sempron / AM2+ processors

AMD 64 Architecture enables 32 and 64 bit

computing

Supports Hyper Transport and Cool=n=Quiet

Socket AM2 / AM2+

AMD Athlon 64 / Athlon 64 FX / Athlon 64 X2 /

Sempron / AM2+ processors

AMD 64 Architecture enables 32 and 64 bit

computing

Supports Hyper Transport and Cool=n=Quiet

FSB Support HyperTransport

Supports up to 1GHz Bandwidth

Support HyperTransport

Supports up to 1GHz Bandwidth

Chipset nVIDIA nForce 560 nVIDIA nForce 520

Super I/O

ITE 8716F

Provides the most commonly used legacy Super

I/O functionality.

Low Pin Count Interface

Environment Control initiatives,

H/W Monitor

Fan Speed Controller

ITE's "Smart Guardian" function

ITE 8716F

Provides the most commonly used legacy Super

I/O functionality.

Low Pin Count Interface

Environment Control initiatives,

H/W Monitor

Fan Speed Controller

ITE's "Smart Guardian" function

Main

Memory

DDR2 DIMM Slot x 4

Each DIMM supports 256/512/1024/2048 MB

DDR2

Max Memory Capicity 8G

Dual Channel Mode DDR2 memory module

Supports DDR2 533/667/800

Registered DIMM and ECC DIMM is not

supported

DDR2 DIMM Slot x 4

Each DIMM supports 256/512/1024/2048 MB

DDR2

Max Memory Capicity 8G

Dual Channel Mode DDR2 memory module

Supports DDR2 533/667/800

Registered DIMM and ECC DIMM is not

supported

IDE

Integrated IDE Controller

Ultra DMA 33 / 66 / 100 / 133 Bus Master Mode

supports PIO Mode 0~4,

Integrated IDE Controller

Ultra DMA 33 / 66 / 100 / 133 Bus Master Mode

supports PIO Mode 0~4,

SATA

Integrated Serial ATA Controller

Data transfer rates up to 3.0 Gb/s.

SATA Version 2.0 specification compliant.

Integrated Serial ATA Controller

Data transfer rates up to 3.0 Gb/s.

SATA Version 2.0 specification compliant.

LAN

Realtek RTL8111C / RTL8102E (optional)

10 / 100 Mb/s / 1Gb/s auto negotiation (Gigabit

bandwidth is for Realtek RTL8111C only)

Half / Full duplex capability

Realtek RTL8111C / RTL8102E (optional)

10 / 100 Mb/s / 1Gb/s auto negotiation (Gigabit

bandwidth is for Realtek RTL8111C only)

Half / Full duplex capability

NF560 A2G+/NF520 A2G+

NF560 A2G+ NF520 A2G+

Sound

ALC888 (Ver 5.x) / ALC662 (Ver 6.x)

7.1 channels audio out (ALC888)

5.1 channels audio out (ALC662)

Supports HD Audio

ALC888 (Ver 5.x) / ALC662 (Ver 6.x)

7.1 channels audio out (ALC888)

5.1 channels audio out (ALC662)

Supports HD Audio

PCI slot x3 PCI slot x3

PCI Express x16 slot x1 PCI Express x16 slot x1

Slots

PCI Express x 1 slot x2 PCI Express x 1 slot x2

Floppy Connector x1 Floppy Connector x1

Printer Port Connector x1 Printer Port Connector x1

IDE Connector x1 IDE Connector x1

SATA Connector x4 SATA Connector x4

Front Panel Connector x1 Front Panel Connector x1

Front Audio Connector x1 Front Audio Connector x1

CD-in Connector x1 CD-in Connector x1

S/PDIF out Connector x1 S/PDIF out Connector x1

CPU Fan Header x1 CPU Fan Header x1

System Fan Header x1 System Fan Header x1

USB Connector x3 USB Connector x3

CMOS clear Header x1 CMOS clear Header x1

Power Connector (24pin) x1 Power Connector (24pin) x1

On Board

Connector

Power Connector (4pin) x1 Power Connector (4pin) x1

Back Panel

I/O

PS/2 Keyboard x1

PS/2 Mouse x1

Serial Port x1

LAN port x1

USB Port x4

Audio Jack (Ver 5.x) x6

Audio Jack (Ver 6.x) x3

PS/2 Keyboard x1

PS/2 Mouse x1

Serial Port x1

LAN port x1

USB Port x4

Audio Jack (Ver 5.x) x6

Audio Jack (Ver 6.x) x3

Board Size 200 mm (W) x 293 mm (L) 200 mm (W) x 293 mm (L)

Special

Feature RAID 0 / 1 / 0+1 / 5 support RAID 0 / 1 / 0+1 support

OS Support

Windows 2000 / XP / VISTA

Biostar Reserves the right to add or remove

support for any OS with or without notice.

Windows 2000 / XP / VISTA

Biostar Reserves the right to add or remove

support for any OS with or without notice.

Motherboard Manual

1.4 REAR PANEL CONNECTORS (FOR VER 5.X)

PS/2

Mouse

PS/2

Keyboard

COM1 USBX2USBX2

LAN

Line In

Line Out

Mic In

Center

Rear

Side

1.5 REAR PANEL CONNECTORS (FOR VER 6.X)

PS/2

Mouse

PS/2

Keyboard

COM1 USBX2USBX2

LAN Line In/

Surround

Line Out

Mic In 1/

Bass/ Center

NF560 A2G+/NF520 A2G+

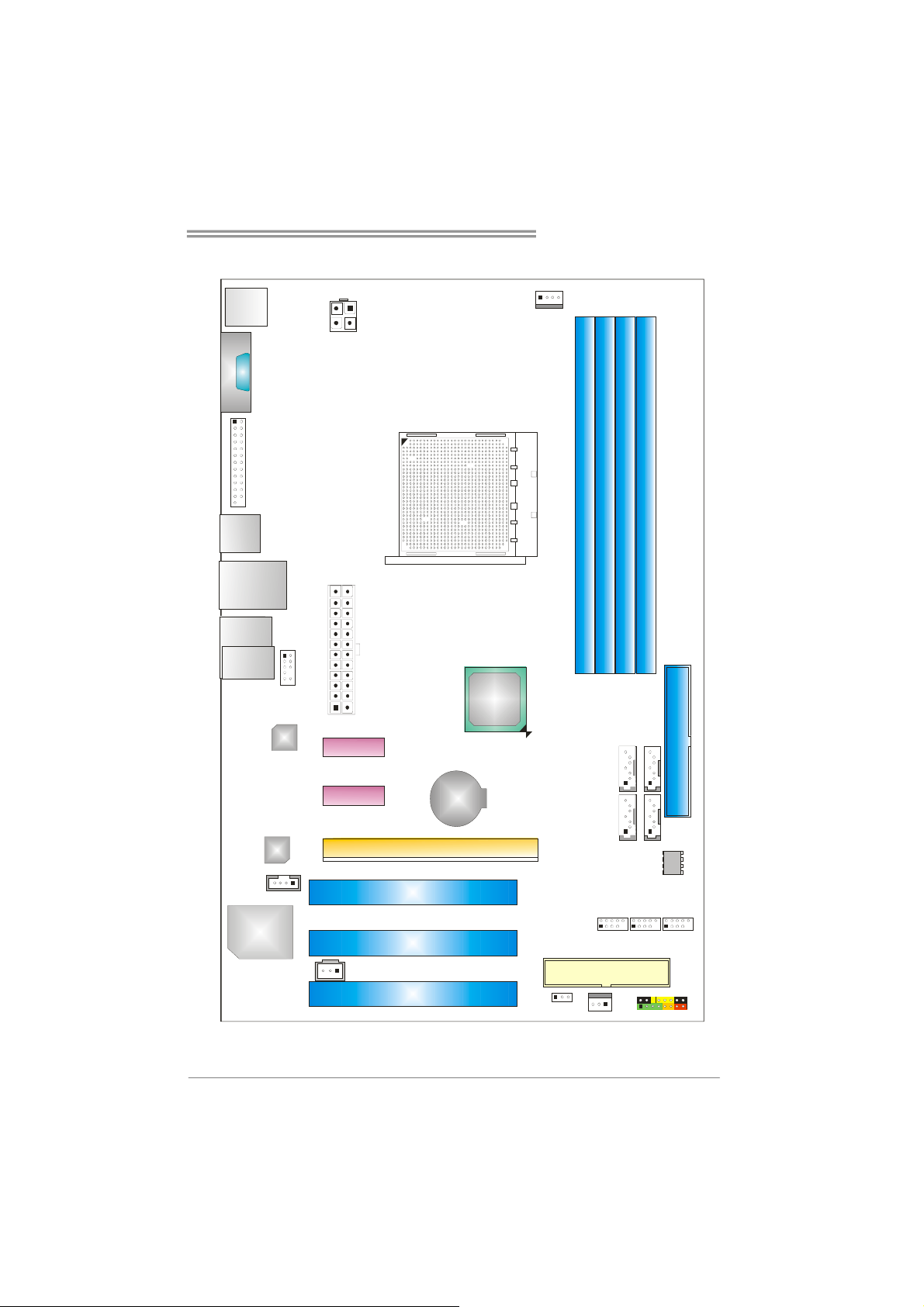

1.6 MOTHERBOARD LAYOUT

JKBMS1

JUSB1

JUSBLAN1

PEX1_2

PEX16_1

PCI2

FDD1

BAT1

JCOM1

Codec

PCI3

DIMMA1

DIMMB1

DIMMB2

DIMMA2

Socket A M2

Super I/O

PEX1_1

PCI1

LAN

JATXPWR2

JCFAN1

JPRNT1

JATXPWR1

JUSB2 JUSB3 JUSB4

JCMOS1

JSFAN1 JPANEL1

JSPDIF_OUT1

JCDIN1

SATA1 SATA2

IDE1

JAUDIO2

(for Ver 5.x)

JAUDIO1

(for Ver 6.x)

JAUDIOF1 nForce

520 / 560

SATA3 SATA4

BIOS

Note: represents the 1■st pin.

Motherboard Manual

CHAPTER 2: HARDWARE INSTALLATION

2.1 INSTALLING CENTRAL PROCESSING UNIT (CPU)

Step 1: Remove the socket protection cap.

Step 2: Pull the lever toward direction A from the socket and then raise the

lever up to a 90-degree angle.

Step 3: Look for the white triangle on socket, and the gold triangle on

CPU should point forwards this white triangle. The CPU will fit

only in the correct orientation.

NF560 A2G+/NF520 A2G+

Step 4: Hold the CPU down firmly, and then close the lever toward direct

B to complete the installation.

Step 5: Put the CPU Fan on the CPU and buckle it. Connect the CPU

FAN power cable to the JCFAN1. This completes the installation.

Note: Please update the BIOS to the latest version while using AM2+ CPUs. Due to the latest CPU

transition, you may encounter the situation that the new system failed to boot while using new

AM2+ CPUs. In this case, please install one standard AM2 CPU to boot your system, and

update the latest BIOS from our website for AM2+ CPUs support.

Motherboard Manual

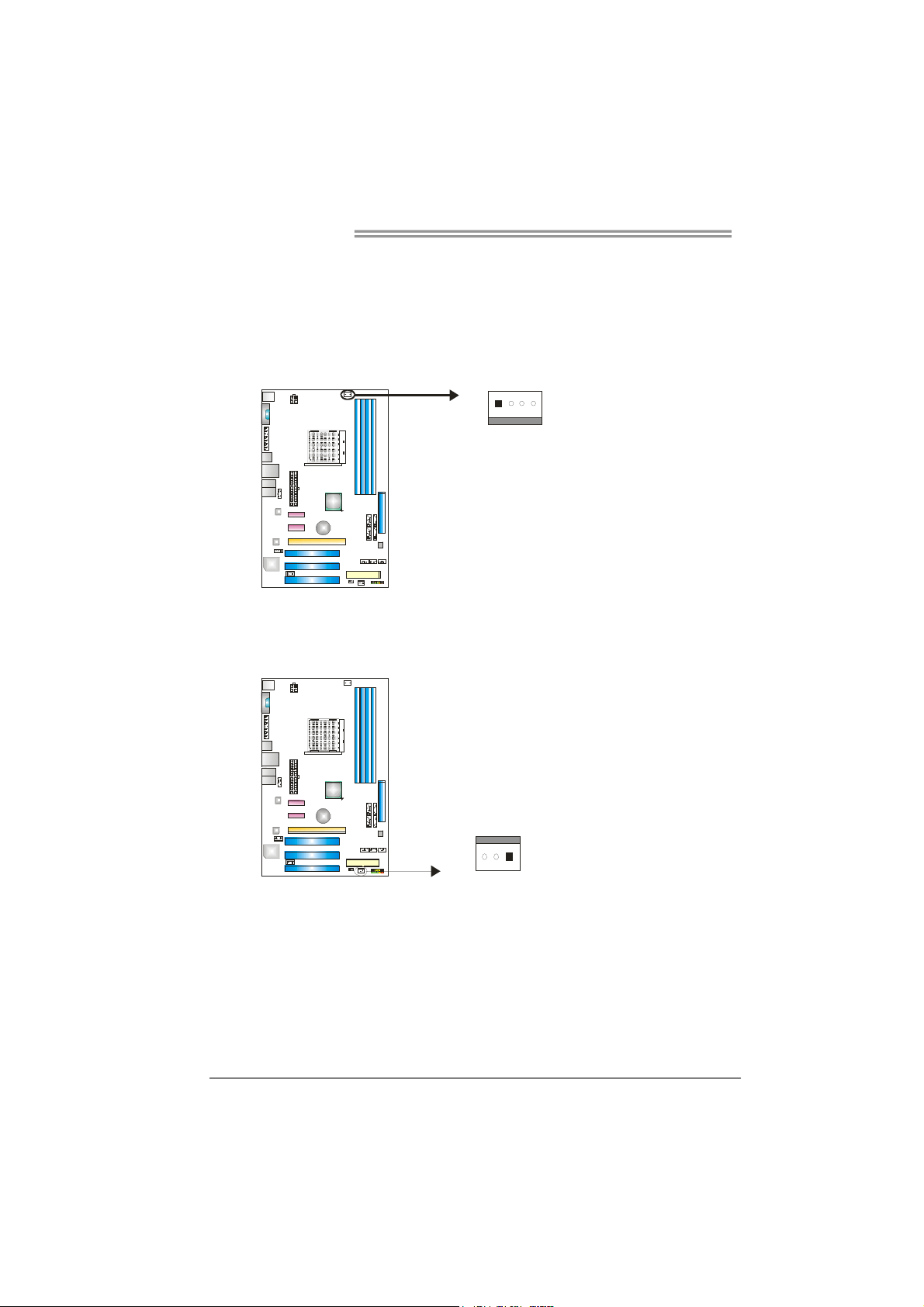

2.2 FAN HEADERS

These fan headers support cooling-fans built in the computer. The fan

cable and connector may be different according to the fan manufacturer.

Connect the fan cable to the connector while matching the black wire to

pin#1.

JCFAN1: CPU Fan Header

Assignment

1 Ground

2 +12V

3FANRPM

rate sense

4Smart Fan

Control

JSFAN1: System Fan Header

Assignment

1 Ground

2 +12V

3 FAN RPM rate

sense

Note:

The JCFAN1 supports 4-pin head connector, and JSFAN1supports 3-pin head connector.

When connecting with wires onto connectors, please note that the red wire is the positive

and should be connected to pin#2, and the black wire is Ground and should be

connected to GND.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Biostar Hauptplatine Handbücher

Biostar

Biostar M5SAA Anleitungen und Rezepte

Biostar

Biostar A10N-9830E Bedienungsanleitung

Biostar

Biostar BIPV10-IAP Benutzerhandbuch

Biostar

Biostar K8NHA Grand Benutzerhandbuch

Biostar

Biostar GF8200 M2G PLUS - BIOS Bedienungsanleitung

Biostar

Biostar M6TSB Bedienungsanleitung

Biostar

Biostar M5SAA Bedienungsanleitung

Biostar

Biostar A960D+V3 Bedienungsanleitung

Biostar

Biostar B450GT Bedienungsanleitung

Biostar

Biostar G41D3B Benutzerhandbuch

Biostar

Biostar TF8200 A2 PLUS - BIOS Benutzerhandbuch

Biostar

Biostar M6TWL Bedienungsanleitung

Biostar

Biostar H61B Bedienungsanleitung

Biostar

Biostar B360-BTC PRO 2.0 Bedienungsanleitung

Biostar

Biostar B560GTQ Bedienungsanleitung

Biostar

Biostar P4M800-M7 A Bedienungsanleitung

Biostar

Biostar B660GTQ Bedienungsanleitung

Biostar

Biostar U8568 Pro Bedienungsanleitung

Biostar

Biostar TA790GXB A2 PLUS - BIOS Bedienungsanleitung

Biostar

Biostar H81MHV3 3.0 Bedienungsanleitung

Biostar

Biostar J 00MH Series Benutzerhandbuch

Biostar

Biostar TB150 PRO Bedienungsanleitung

Biostar

Biostar P4TGV-R Bedienungsanleitung

Biostar

Biostar J1800NHP Benutzerhandbuch

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
