TA970XE UEFI BIOS Manual

UEFI BIOS Setup

Introduction

The purpose of this manual is to describe the settings in the AMI UEFI BIOS Setup

program on this motherboard. The Setup program allows users to modify the basic

system configuration and save these settings to NVRAM.

UEFI BIOS determines what a computer can do without accessing programs from a

disk. This system controls most of the input and output devices such as keyboard,

mouse, serial ports and disk drives. BIOS activates at the first stage of the booting

process, lo ading and executing the operating sys tem. Some additional features, s uch

as virus and password pro tectio n or chips et fine-tuning op tions are also included in

UEFI BIOS.

The rest of this manual will to guide you through the options and settings in UEFI

BIOS Setup.

Plug and Play Support

This AMI UEF I BIOS suppo rts the P lug and Play Vers ion 1.0A spec ification.

EPA Green PC Support

This AMI UEFI BIOS s uppo rts Vers ion 1. 03 of the EPA Green PC spec ification.

ACPI Support

AMI ACP I UEFI BIOS suppo rt Vers io n 1. 0/2.0 of Advanced Configuration and

Power interface specification (ACPI). It provides ASL code for power

management and device configuration capabilities as defined in the ACPI

specification, developed by Microsoft, Intel and Toshiba.

PCI Bus Support

This AMI UEFI BIOS also supports Version 2.3 of the PCI (Peripheral Component

Interconnect) local bus spec ific a tion.

DRAM Support

DDR3 SDRAM (Double Data Rate III Synchronous DRAM) is supported.

TA970XE UEFI BIOS Manual

Supported CPUs

This AMI UEFI BIOS supports the AMD CPU.

Using Setup

When starting up the computer, press

<Del> during the Power-On Self-Test

(POST) to enter the UEFI BIOS setup

utility.

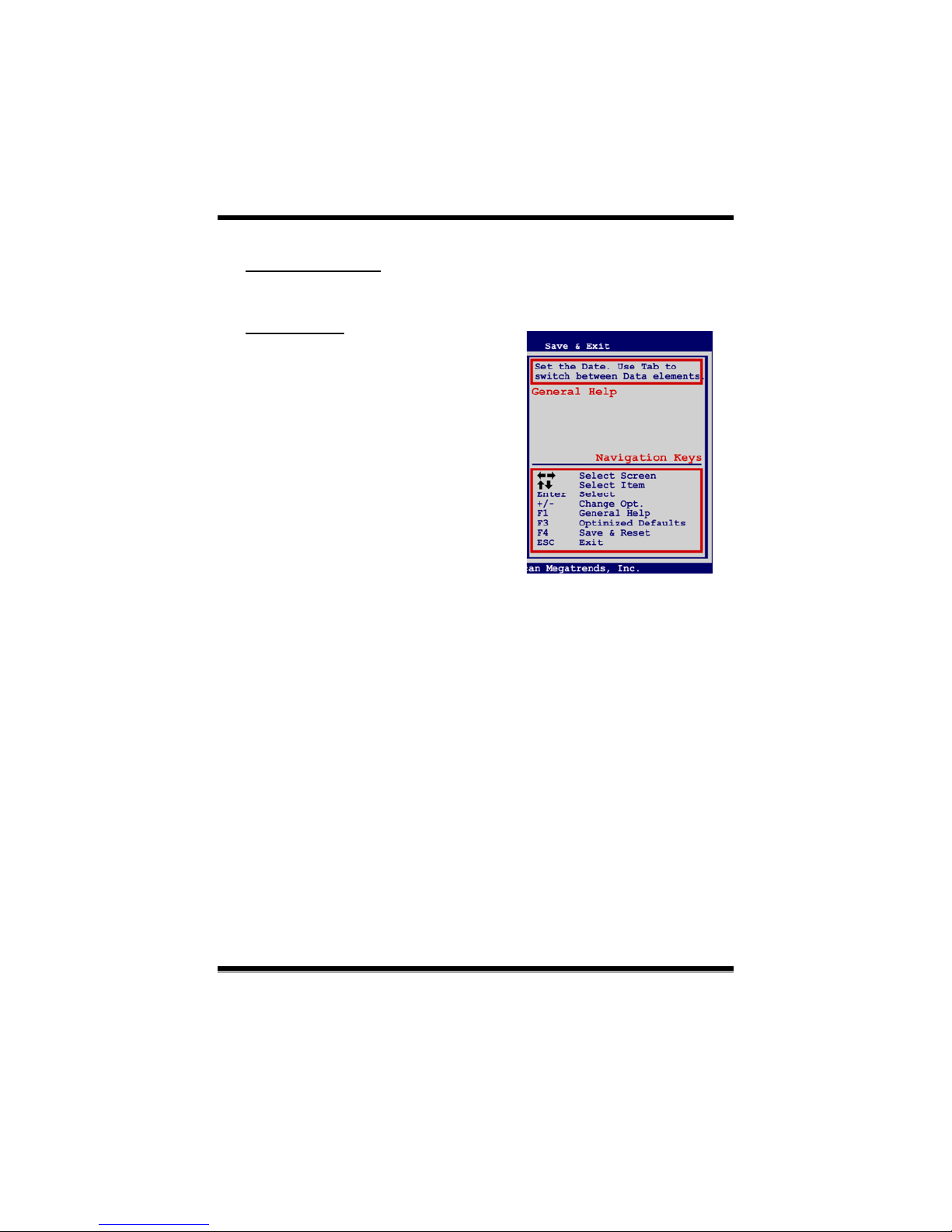

In the UEFI BIOS setup utility, you will

see General Help description at the top

right corner, and this is providing a brief

description of the selected item.

Navigation Keys for that particular menu

are at the bottom right corner, and you can

use thes e keys to select item and c hange

the settings.

Notice

zThe default UEFI BIOS settings apply for most conditions to ensure optimum

performance of the motherboard. If the system becomes unstable after changing

any s ettings, please load the default settings to ensure s ystem’s compatibility and

stability. Use Load Setup Default under the Exit Menu.

zFor better system performance, the UEFI BIOS firmware is being continuously

updated. The UEFI BIOS information described in this manual is for your reference

only. The actual UEFI BIOS information and settings on board may be slightly

different from this manual.

zThe content of this manual is subject to be changed without notice. We will not be

responsible fo r any mistakes fo und in this user’s manual and any s ystem damage that

may b e c aused by wrong-settings.

TA970XE UEFI BIOS Manual

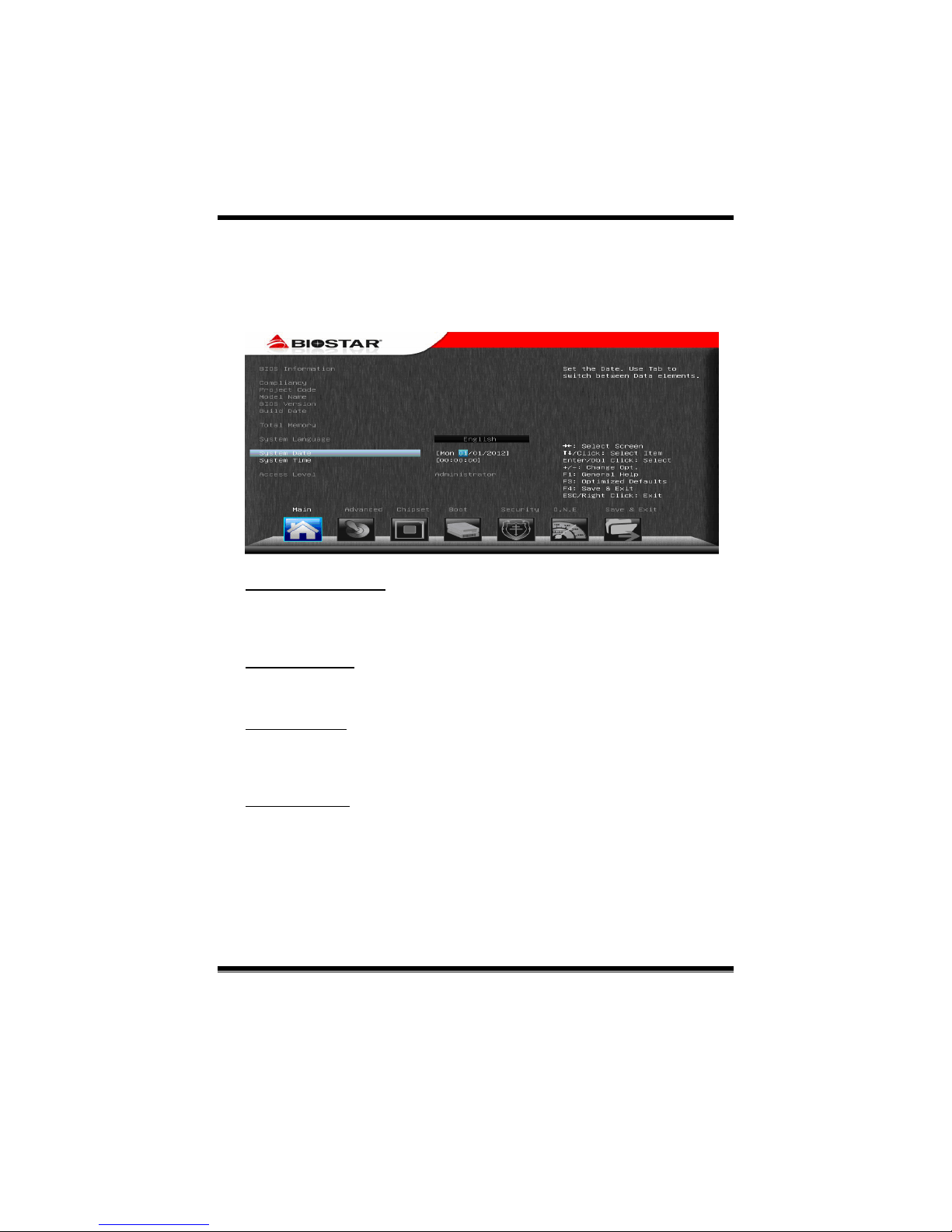

1 Main Menu

Onc e you enter AMI UEFI BIOS Setup Utility, the Main Menu will appear on the

screen providing an overview of the basic system information.

BIOS Information

Shows system information including UEFI BIOS version, Project Code, Model

Name, Build Date, etc.

Total Memor y

Shows system memory s ize, VGA shard memory will be excluded.

System Date

Set the system date. Note that the ‘Day’ automatically changes when you set the

date.

System Time

Set the system internal c lock.

TA970XE UEFI BIOS Manual

2 Advanced Menu

The Advanced Menu allows you to configure the settings of CPU, Super I/O, Power

Management, and other system devices.

Notice

zBeware of that setting inappropriate values in items of this menu may cause

system to malfunction.

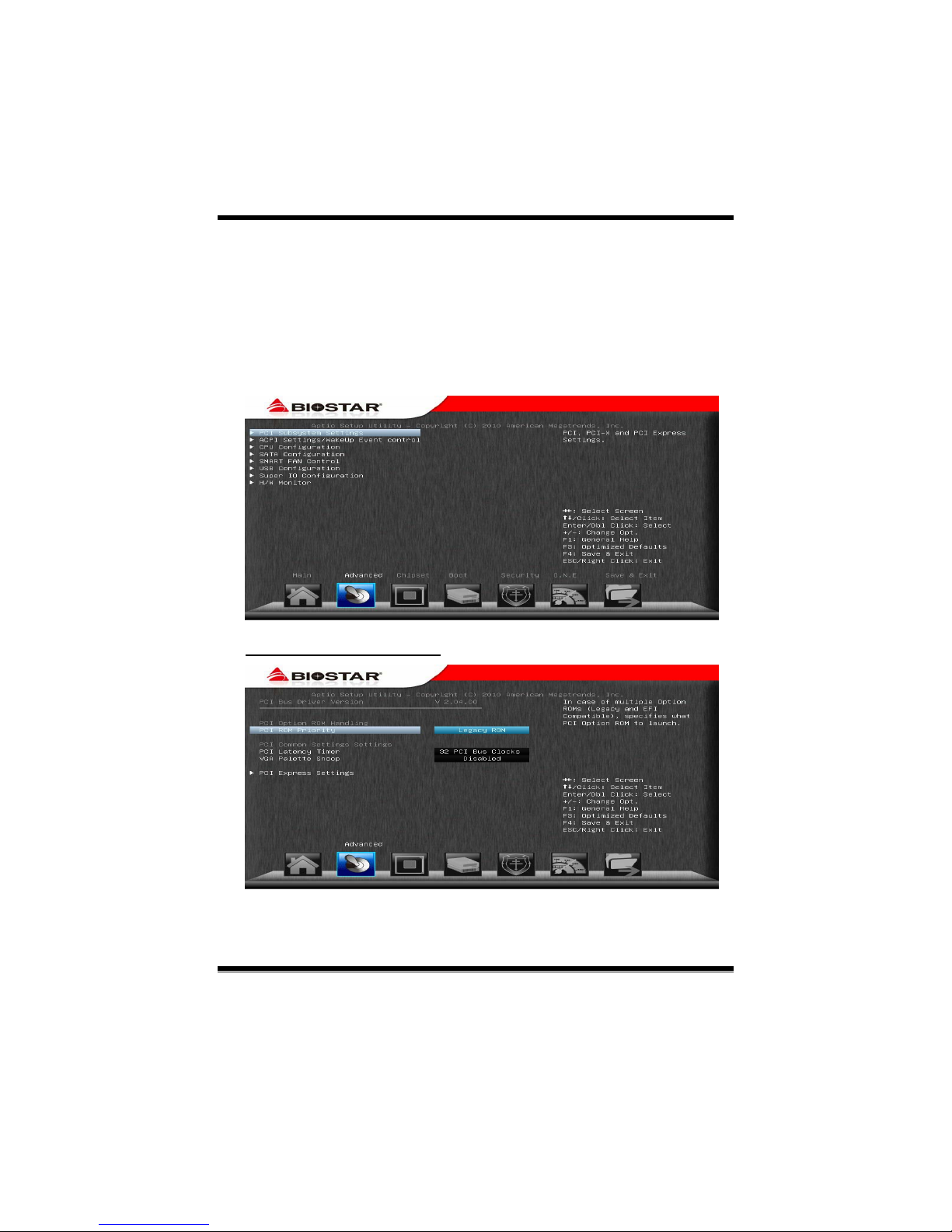

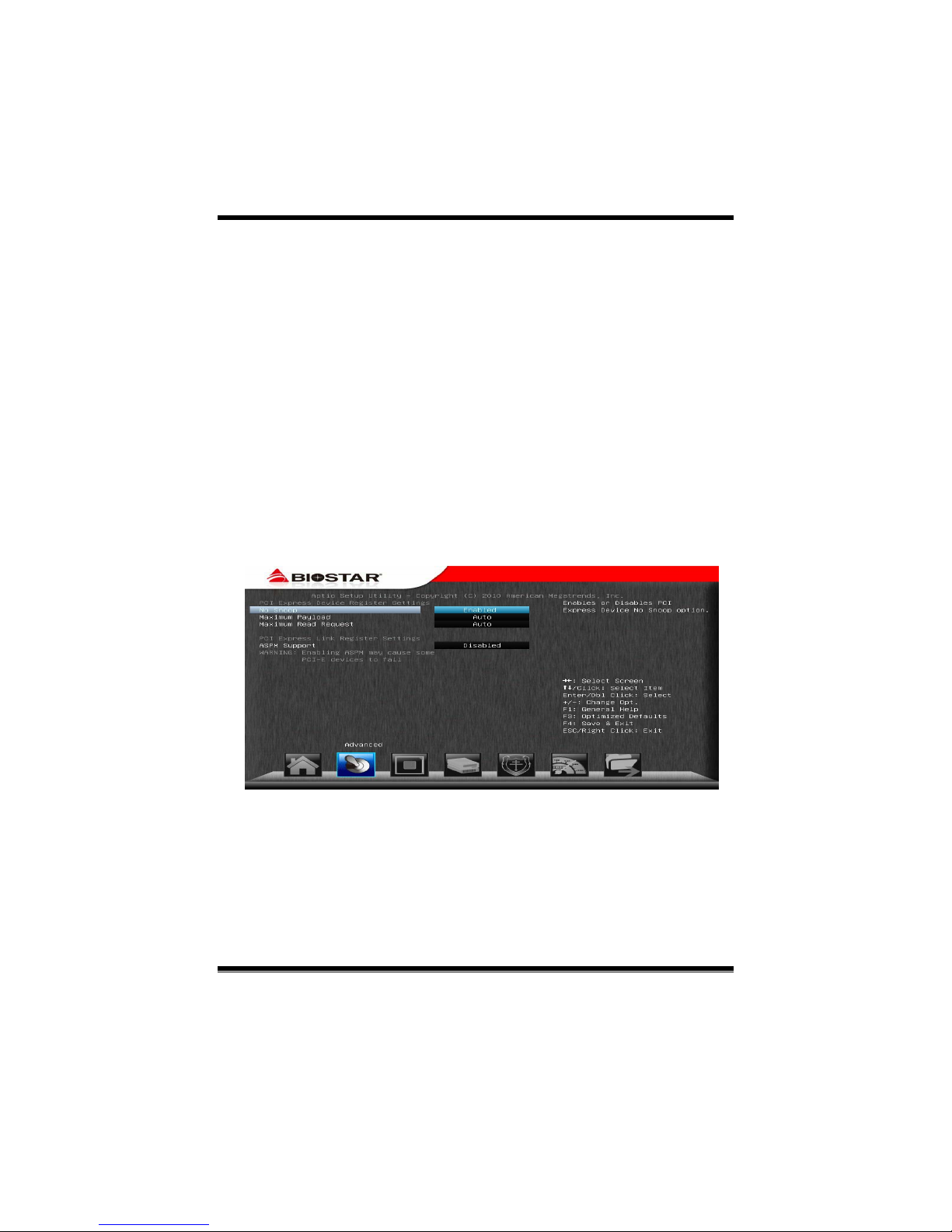

PCI Su bs ystem Settings

TA970XE UEFI BIOS Manual

PCI ROM Priority

In case of multiple option ROMs (Legacy and EFI Compatible), this item spec ifies

what PCI Option ROM to launc h

Options: Legacy ROM (Default) / EFI Compatible ROM

PCI Latency Timer

This item sets the value to be programmed into PCI Latency Timer Register.

Optio ns: 32 PCI Bus Clocks (Default) / 64 PCI Bus Clocks / 96 PCI Bus Cloc ks /

128 PCI Bus Clocks / 160 PCI Bus Clocks / 192 PCI Bus Clocks / 224

PCI Bus Clocks / 248 PCI Bus Cloc ks

VGA Palette Snoop

This item enables or disables VGA Palette Registers Snooping.

Options: Disabled (Default) / Enabled

PCI Express Settings

No Snoop

This item enables or disables PCI Express Device No Snoop option.

Options: Enabled (Default) / Disabled

TA970XE UEFI BIOS Manual

Maximum Payload

This item sets Maximum Payload of PCI Express Device or allows System BIOS to

select the value.

Options: Auto (Default) / 128 Bytes / 256 Bytes / 512 Bytes / 1024 Bytes / 2048

Bytes / 4096 Bytes

Maximum Read Request

This item sets Maximum Read Request Size of PCI Express Device or allows

System BIOS to select the value.

Options: Auto (Default) / 128 Bytes / 256 Bytes / 512 Bytes / 1024 Bytes / 2048

Bytes / 4096 Bytes

ASPM Support

This item sets the ASPM Level: Force LO – Force all links to LO State; Auto –

BIOS auto co nfigures; Dis abled – Disables ASPM.

Options: Disabled (Default) / Auto / Force L0s

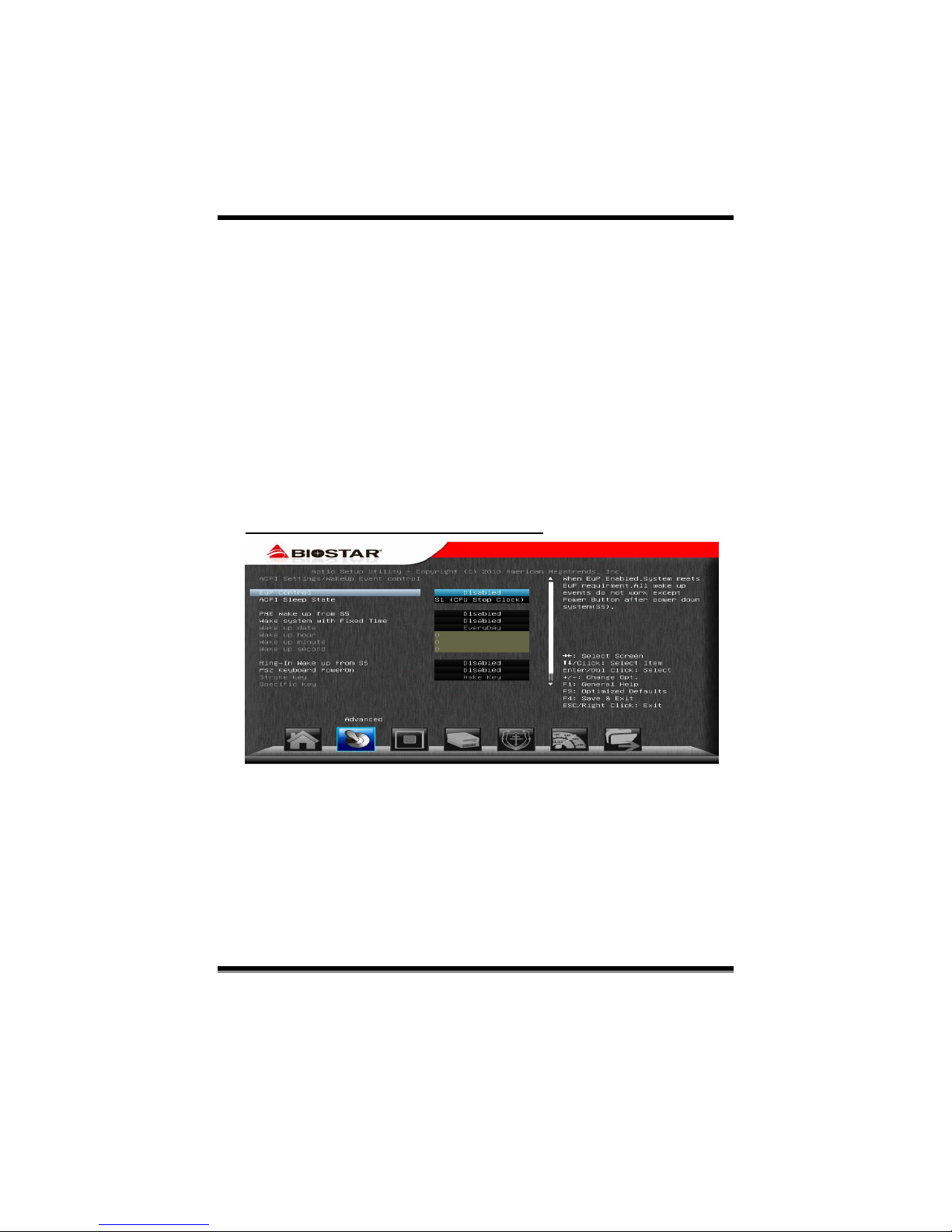

ACPI Settings/WakeUp Event control

EuP Control

When EuP is enabled, the system will meet EuP requirement.

Options: Disabled (Default) / Enabled

TA970XE UEFI BIOS Manual

ACPI Sleep State

This item selects the highest ACPI sleep state the system will enter when the

SUSPEND button is pressed.

Options: S1 (CPU Stop Clock) (Default) / Suspend Disabled / S3 (Suspend to

RAM)

PME Wake up from S5

The item enables the s ystem to wake from S5 using P ME event.

Options: Disabled (Default) / Enabled

Wake system with Fixed Time

This item enables or disables the system to wake on by alarm event. When this item

is enabled, the system will wake on the hr::min::s ec specified.

Options: Disabled (Default) / Enabled

Wake up date

You can choose which date the system will boot up.

Wake up hour / Wake up minute / Wake up second

You can choos e the system boot up time, input ho ur, minute and seco nd to specify.

Ring-In Wake up from S5

This item enables the system to wake from S5 using Ring-In event.

Options: Disabled (Default) / Enabled

PS2 Keyboard PowerOn

This item allows you to control the keyboard power on function.

Options: Disabled (Default) / Any Key / Stroke Key / Specific Key

Stroke Keys Selected

This item will show only when Keyboard PowerOn is set “Stroke Key.”

Optio ns: Wake Key (Default) / Power Key / Ctrl+F1 / C trl+F2 / Ctrl+F3 /

Ctrl +F4 / Ctrl+F5 / Ctrl+F6

TA970XE UEFI BIOS Manual

Specific Key Enter

This item will s how only when Keyboard PowerOn is set “Specific Key.” Press

Enter to set Specific key.

PS2 Mouse PowerOn

This item allows you to control the mouse power on function.

Options: Disabled (Default) / Enabled

USB Device Wakeup from S3/S4

This item allows you to enable or disabled the US B res ume from S3/S4 function.

Options: Disabled (Default) / Enabled

CPU Configuration

C1E

This item allows you to configure the Enhanced Halt State (C1E) function, which

may reduce the po wer consumption of your system when the system is id le.

Options: Disabled (Default) / Enabled

SVM

This item allows you to enable AMD virtualization in CPU. This secure virtual mode

will let your run multiple OS (guest) on the same physical hardware by decoupling

OS and physical hardware with the hypervisor layer.

Options: Enabled (Default) / Disabled

TA970XE UEFI BIOS Manual

PowerNow

This item allows you to enable or disable the generation of ACPI_PPC, _PSS, and

_PCT objects.

Options: Enabled (Default) / Disabled

HTC limit

This item allows you to enable / disable HTC limit.

Options: Enabled (Default) / Disabled

HTC temperature limit

This item allows you to set HTC temperature limit. Range: 70℃ - 95℃

Options: 90 (Default)

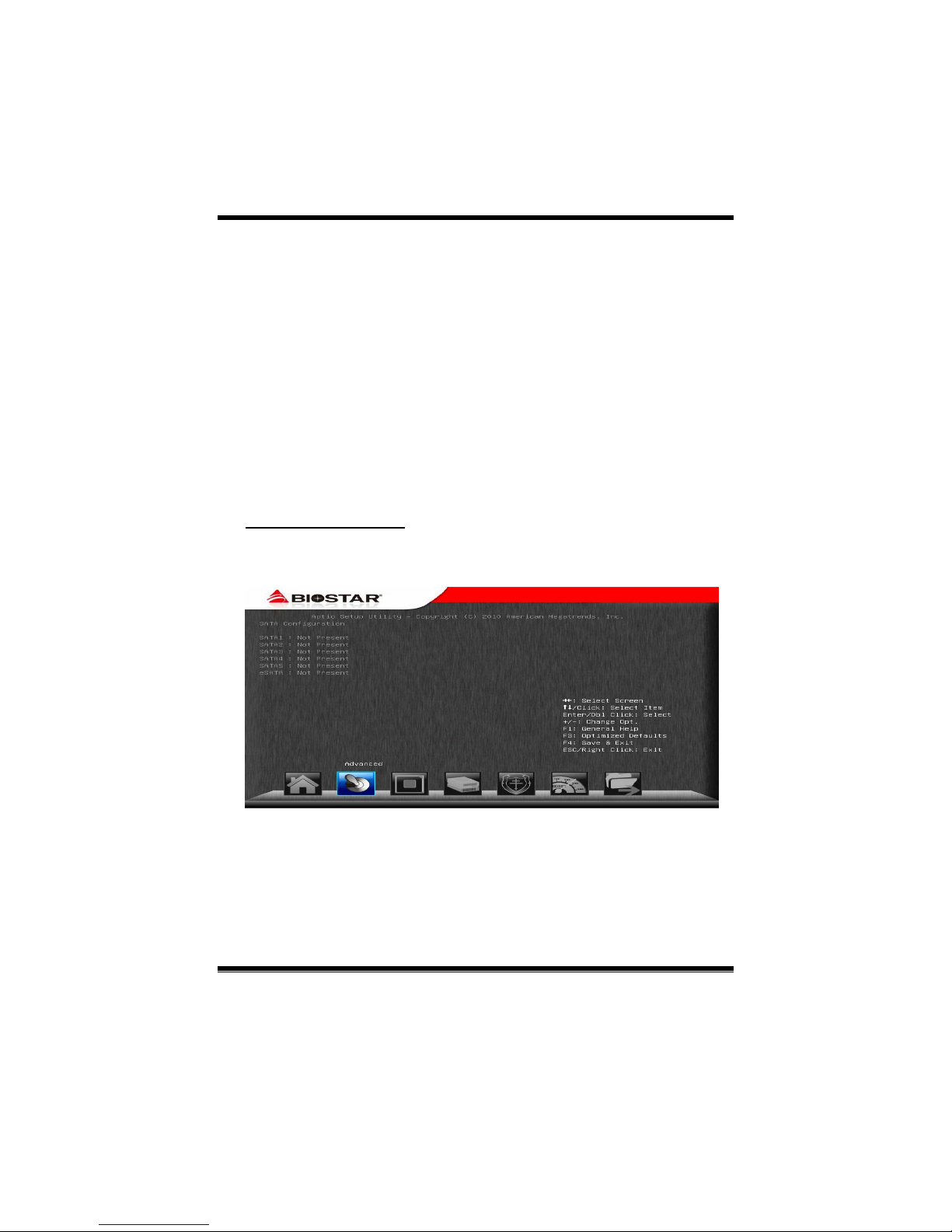

SATA Configuration

The BIOS will automatically detect the presence of SATA d evices. There is a

sub-menu for each SATA device. Select a device and press <Enter> to enter the

sub-menu for detailed options.
