BIXOLON SLP-TX400 Installations- und Betriebshandbuch
Windows Driver Manual
Label Printer
Rev. 1.03
SLP-TX400 / TX400E
SLP-TX403 / TX403E
http://www.bixolon.com
SLP-TX400x/TX403x
Rev. 1.03
- 2 -
■Table of Contents
1. Manual Information..........................................................................................................3
2. Operating System (OS) Environment...............................................................................3
3. Windows Driver Preparation............................................................................................3
4. Windows Driver Installation..............................................................................................4
4-1 Installing on Windows XP/2003 Server.......................................................................4
4-1-1 Via Serial or Parallel port......................................................................................4
4-1-2 Via USB................................................................................................................8
4-2 Installing Windows VISTA/2008 Server/7/8...............................................................14
4-2-1 Via Serial or Parallel...........................................................................................14
4-2-2 Via USB..............................................................................................................18
5. Detailed Windows Driver Settings..................................................................................22
5-1 Printing Preferences.................................................................................................22
5-2 Adding new paper size..............................................................................................23
6. Specifications.................................................................................................................25
6-1 Resolution.................................................................................................................25
6-2 Paper Size................................................................................................................25
SLP-TX400x/TX403x
Rev. 1.03
- 3 -
1. Manual Information
This Windows Driver Installation Manual provides information on installation, detailed
specifications, and usage of the printer’s Windows Driver according to PC operating
system (OS).
We at BIXOLON maintain ongoing efforts to enhance and upgrade the functions and
quality of all our products. In following, product specifications and/or user manual content
may be changed without prior notice.
2. Operating System (OS) Environment
The following operating systems are supported for usage.
Microsoft Windows XP (32bit, 64bit)
Microsoft Windows 2003 Server (32bit, 64bit)
Microsoft Windows VISTA (32bit, 64bit)
Microsoft Windows 2008 Server (32bit, 64bit)
Microsoft Windows 2008 Server R2(64bit)
Microsoft Windows 7 (32bit, 64bit)
Microsoft Windows 8 (32bit, 64bit)
Microsoft Windows 2012 Server
3. Windows Driver Preparation
The Windows Driver is included in the enclosed CD, and Latest file versions can be
downloaded from the Bixolon website.
(www.bixolon.com)
The installation file name is SLP-TX40x_Vx.x.xx.exe
eg ) SLP-TX400_V4.6.78.exe, SLP-TX403_V4.6.78.exe
SLP-TX400x/TX403x
Rev. 1.03
- 4 -
4. Windows Driver Installation
4-1 Installing on Windows XP/2003 Server
4-1-1 Via Serial or Parallel port
1) Double-click the Windows Driver installation file.

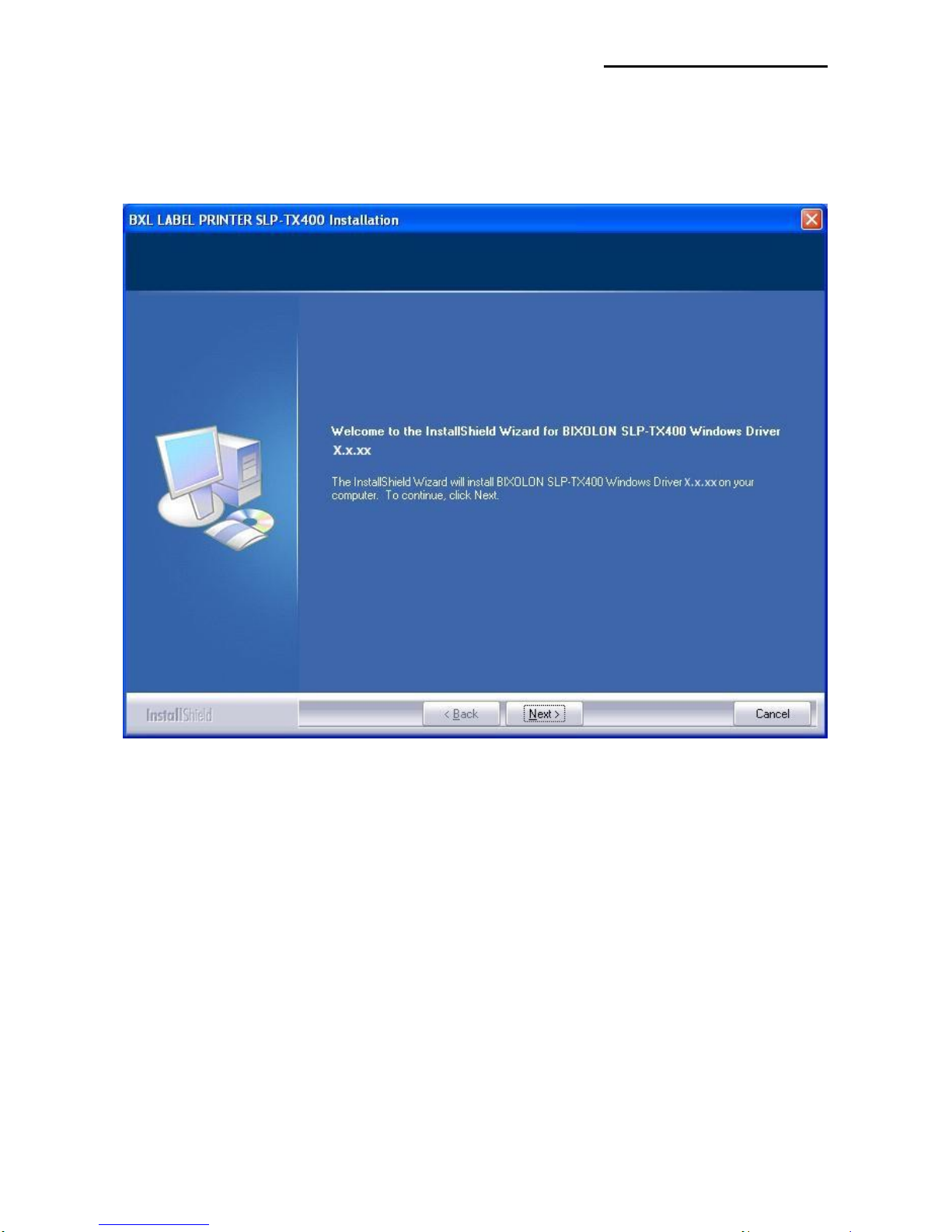

2) Click the “Next” button.
SLP-TX400x/TX403x
Rev. 1.03
- 5 -

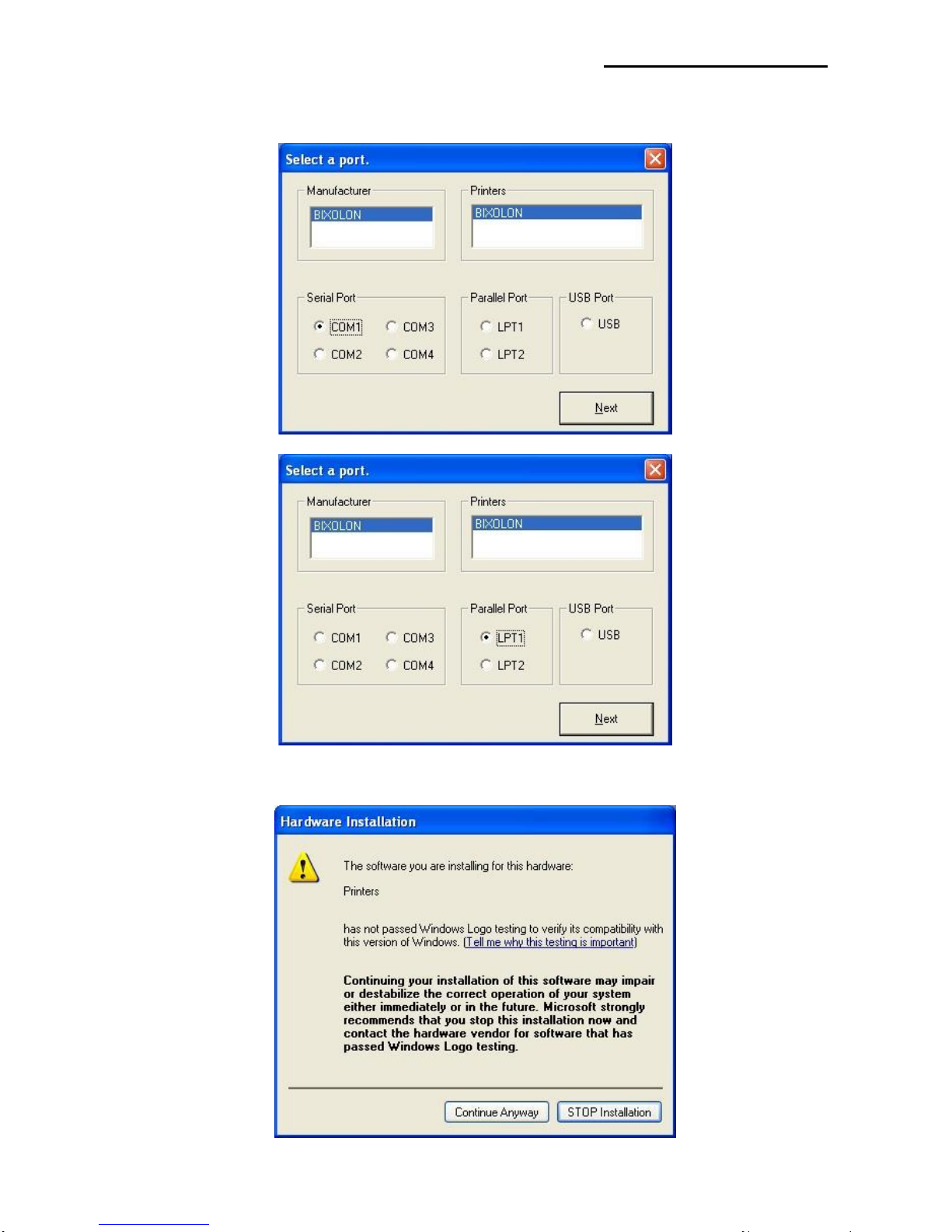

3) Select the COM or LPT (Which one you want to use) port to be used and click
the “Next” button.
4) When the following message box appears, click the “Continue Anyway” button.
SLP-TX400x/TX403x
Rev. 1.03
- 6 -

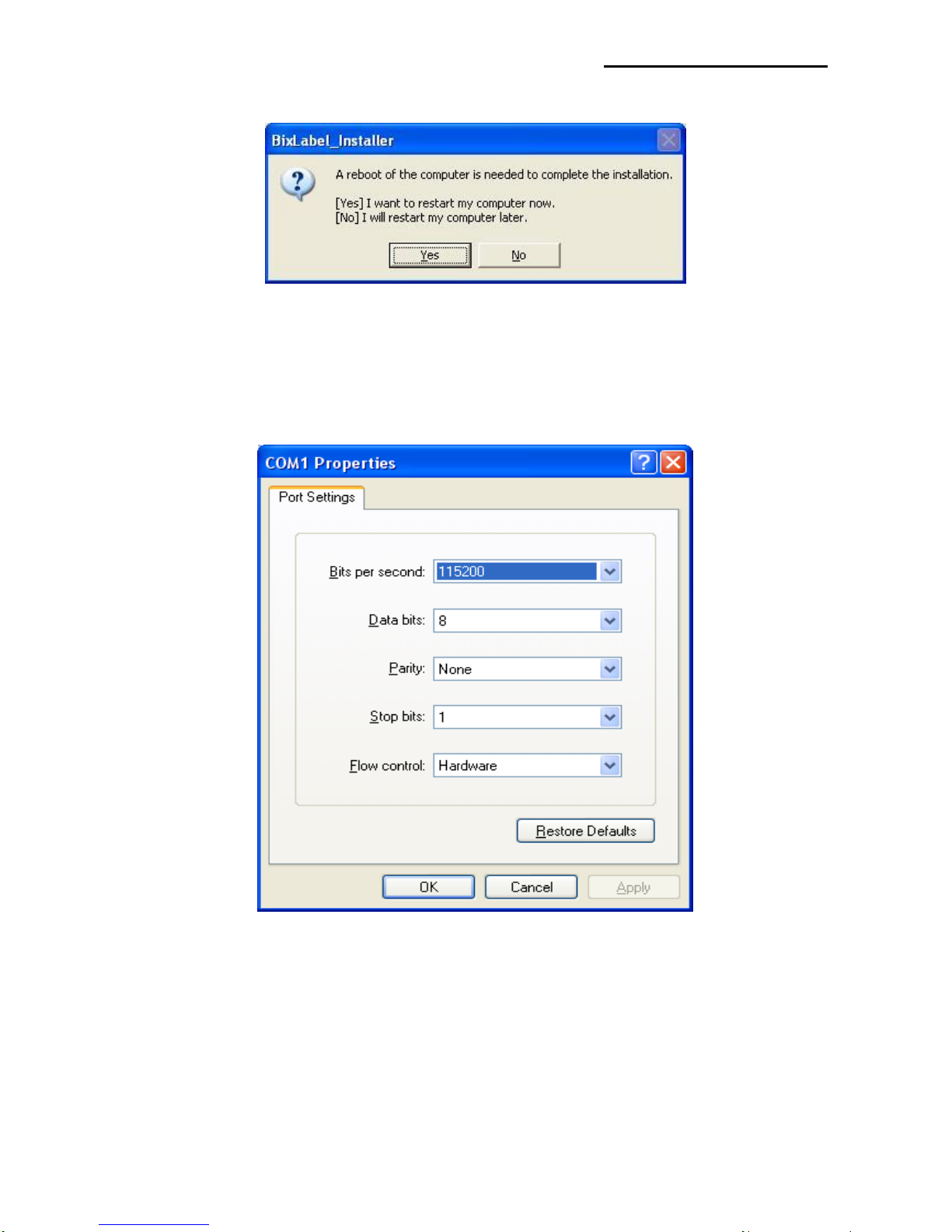

5) Clicking the ”Yes” button will reboot the PC.
6) Open the printer properties window in the Windows OS.
7) Click the “Port Settings” button in the ”Ports” tab.
8) Match the communication settings to those of the printer.
(The communication settings of the printer can be performed by conducting a self-test.)
SLP-TX400x/TX403x
Rev. 1.03
- 7 -

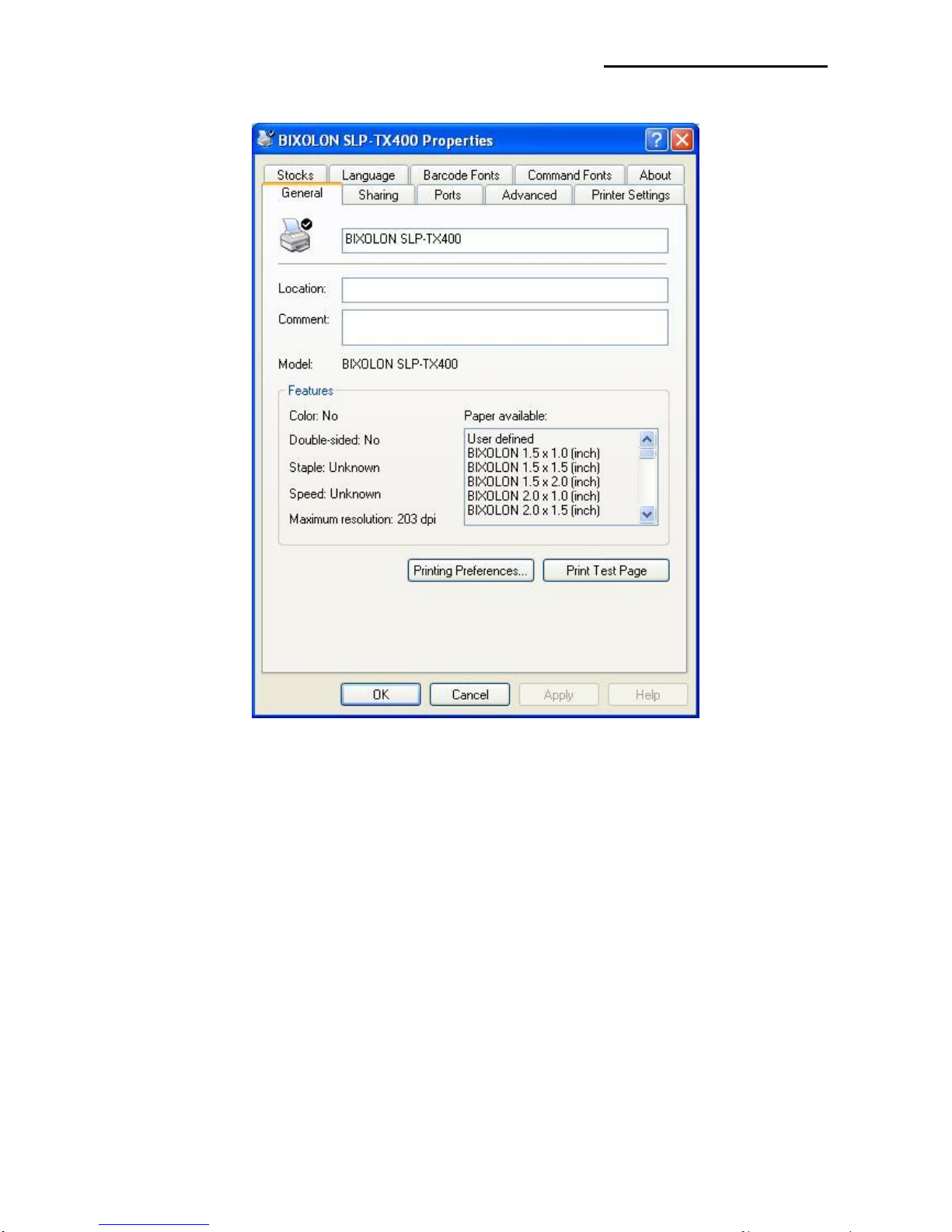

9) Click the “Print Test Page” button and check printing status.
10) Proper installation of the driver is indicated if the test page is printed normally.
SLP-TX400x/TX403x
Rev. 1.03
- 8 -
4-1-2 Via USB
1) Double-click the Windows Driver installation file.
2) Click the “Next” button.
SLP-TX400x/TX403x
Rev. 1.03
- 9 -

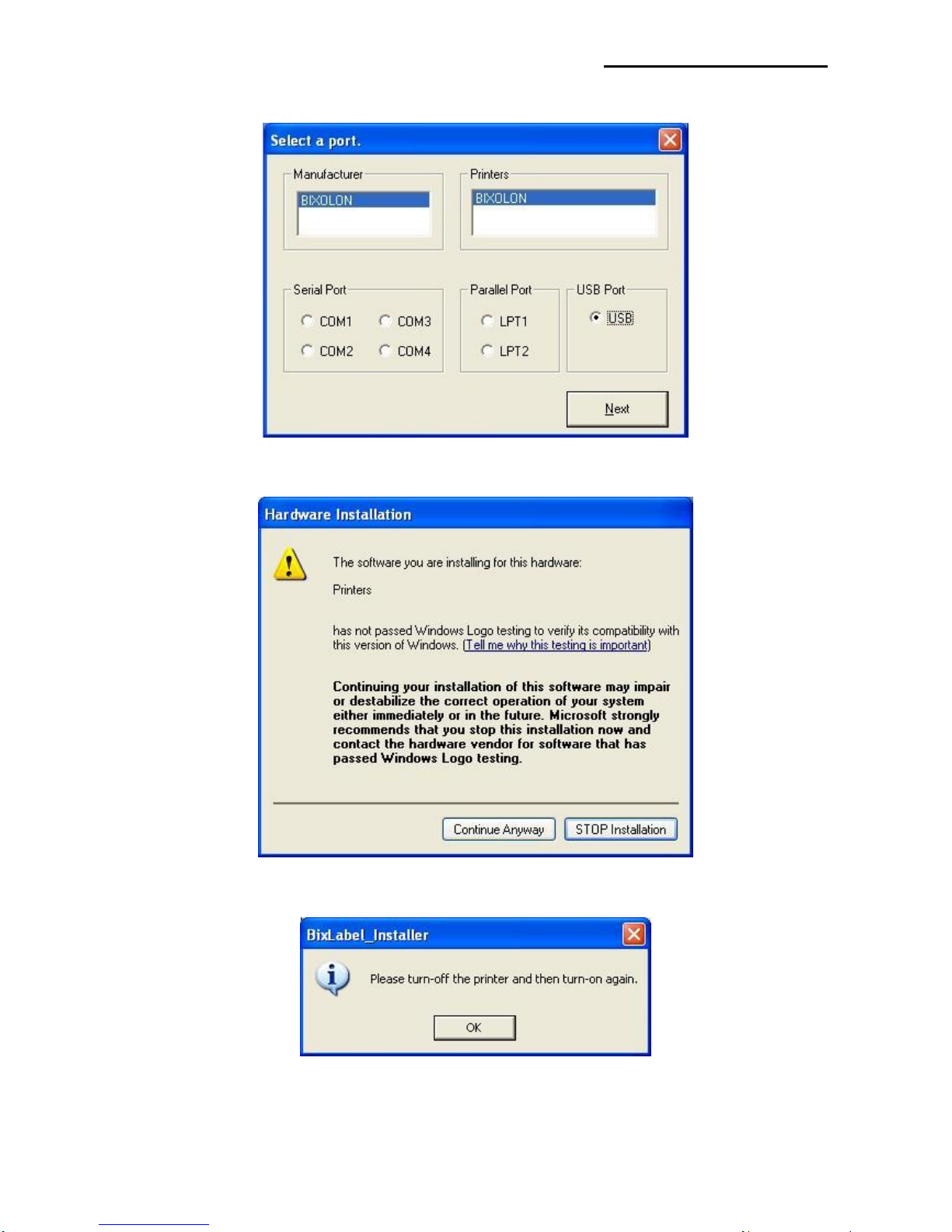

3) Select USB and click the ”Next” button.
4) When the following message box appears, click the “Continue Anyway” button.
5) Click the ”OK” button.
6) Turn on the printer.
SLP-TX400x/TX403x
Rev. 1.03
- 10 -

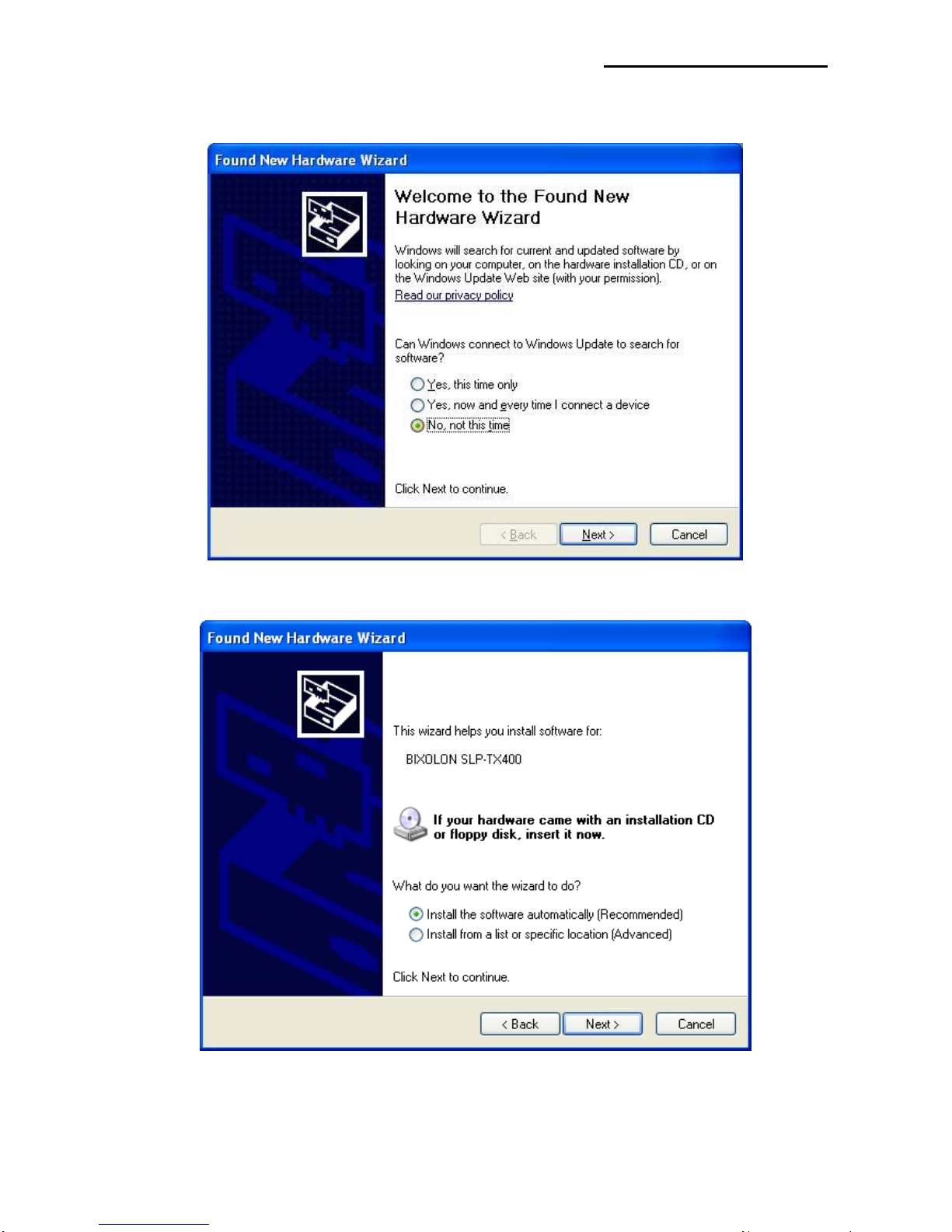

7) When the New Hardware Wizard appears for the installation of the Windows Driver,
select the option as shown below and click the “Next” button.
8) Click the “Next” button.
