Catalog No. VEC1086BBD-CA

INSTRUCTION MANUAL

SAVE THIS MANUAL FOR FUTURE REFERENCE.

6. Be extra cautious to reduce the risk of dropping a metal tool onto battery.This might

cause sparks or short-circuit the battery or other electrical part, which can cause an

explosion.

7. Remove personal metal items such as rings, bracelets, necklaces and watches when

working with a lead-acid battery. A lead-acid battery can produce a short-circuit current

high enough to cause a severe burn.

8. Use charger for charging a LEAD-ACID battery only. It is not intended to supply power

to a low-voltage electrical system other than in a starter-motor application. Do not use

the battery charger for charging dry-cell batteries that are commonly used with home

appliances. These batteries may burst and cause injury to persons and damage

property.

9. NEVER ATTEMPT TO CHARGE A FROZEN BATTERY.

Power Cord Safety

This appliance has a polarized plug (one blade is wider than the other) as a safety feature.

This plug will fit into a polarized outlet only one way. If the plug does not fit fully into the outlet,

reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat

this safety feature.

Preparing to Charge

1. Determine voltage of battery to be charged by referring to the vehicle manual.

2. If it is necessary to remove battery from vehicle to charge, or to clean terminals, always

remove grounded terminal from battery first. Make sure all accessories in the vehicle

are off, so as not to cause an arc.

3. Clean battery terminals. Do not allow corrosion to come in contact with eyes.

4. Add distilled water in each cell until battery acid reaches level specified by battery

manufacturer. This helps purge excessive gas from cells. Do not overfill. For a battery

without cell caps (maintenance free), carefully follow manufacturer's charging

instructions.

5. Study all battery manufacturer’s specific precautions, such as removing or not

removing cell caps while charging, and recommended rates of charge.

6. Area around battery should be well ventilated while battery is being charged. Gas can

be forcefully blown away by using a piece of cardboard or other nonmetallic material

as a fan.

7. Make sure the initial charging rate does not exceed battery manufacturer’s

requirement.

Charger Location

1. Locate charger as far away from battery as cables permit.

2. NEVER place charger directly above battery being charged; gases from battery will

corrode and damage charger.

3. NEVER allow battery acid to drip on charger when reading gravity or filling battery.

4. NEVER operate charger in a closed-in area or restrict ventilation in any way.

5. Marine batteries must be removed and charged on shore.

6. Do not set a battery on top of charger.

DC Connection Precautions

1. Connect and disconnect DC output clamps only after removing AC cord from electric

outlet.

2. Never allow clamps to touch each other.

3. Attach clamps to battery chassis as indicated in “Battery Installed in Vehicle” steps 5

and 6, and in “Battery Outside of Vehicle” steps 2, 4 and 5.

Follow these steps when the battery is installed in a vehicle. A spark near the battery

may cause an explosion. To reduce risk of a spark near the battery:

1. Position AC and DC cords to reduce risk of damage by hood, door, or moving engine

part.

2. Stay clear of fan blades, belts, pulleys, and other parts that can cause injury to

persons.

3. Check polarity of battery posts. POSITIVE (POS, P, +) battery post usually has larger

diameter than NEGATIVE (NEG, N, –) post.

I M P O R TANT SAFETY INSTRUCTIONS

WARNINGS

1. RISK OF EXPLOSIVE GAS MIXTURES — WORKING IN VICINITY OF A LEAD-

ACID BATTERY IS DANGEROUS. BATTERIES GENERATE EXPLOSIVE GASES

DURING NORMAL BATTERY OPERATION. FOR THIS REASON, IT IS OF UTMOST

IMPORTANCE THAT EACH TIME BEFORE USING YOUR CHARGER, YOU READ

THIS MANUAL AND FOLLOW THE INSTRUCTIONS EXACTLY.

2 . To reduce risk of battery explosion, follow these instructions and those published

by the battery manufacturer and manufacturer of any equipment you intend to use

in vicinity of battery. Review cautionary markings on these products and on

e n g i n e .

3 . This equipment employs parts (switches, relays, etc.) that produce arcs or sparks.

Therefore, if used in a garage or enclosed area, the unit MUST be placed not less

than 18 inches above the floor.

Battery Safety

1. Use of an attachment not recommended or sold by the battery charger manufacturer

may result in a risk of fire, electric shock, or injury to persons.

2. To reduce risk of damage to electric plug and cord, pull by plug rather than cord when

disconnecting charger.

3. An extension cord should not be used unless absolutely necessary. Use of an improper

extension cord could result in a risk of fire and electric shock, and will void warranty.

If an extension cord must be used, make sure:

a. that pins on plug of extension cord are the same number, size, and shape as those

of plug on charger;

b. that extension cord is properly wired and in good electrical condition; and

c. that wire size is AWG#16 (16 gauge) for 100 feet and AWG#14 for distances over

100 feet.

4. Do not operate charger with damaged cord or plug — take to a qualified technician for

replacement of the plug or cord immediately.

5. Do not operate charger if it has received a sharp blow, been dropped, or otherwise

damaged in any way; take it to a qualified service technician.

6. Do not disassemble charger; take it to a qualified service technician when service or

repair is required. Incorrect re-assembly may result in a risk of electric shock or fire,

and will void warranty.

7. To reduce risk of electric shock, unplug charger from outlet before attempting any

maintenance or cleaning. Turning off controls without unplugging will not reduce this

risk.

8. Do not expose charger to rain, snow or use when wet.

Personal Safety

1. Another person should be within range of your voice or close enough to come to your

aid when you work near a lead-acid battery.

2. Fresh water and soap should be nearby in case battery acid contacts skin, clothing, or

eyes.

3. Wear complete eye protection and clothing protection. Avoid touching eyes while

working with a battery.Acid, acid particles or corrosion may get into eyes. Immediately

flood eye with cold water (Eye Wash Station) for at least 15 minutes and seek medical

attention immediately.

4. If battery acid contacts skin or clothing, wash immediately with soap and water. If

redness, pain or irritation occurs, seek immediate medical attention.

NEVER smoke or allow a spark or flame in vicinity of battery or engine.

IMPORTANT SAFETY INFORMATION, SAVE THESE

INSTRUCTIONS

TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND

THIS INSTRUCTIONAL MANUAL. THIS MANUAL CONTAINS IMPORTANT

INFORMATION REGARDING THE OPERATION AND WARRANTY OF THIS

PRODUCT. PLEASE RETAIN FOR FUTURE REFERENCE.

I N T R O D U C T I O N

Thank

you

for selecting

the Black & Decker 6 Amp / 4 Amp / 2 Amp Smart Battery Charger.

With proper

care and

use, it will give you years

of dependable

service. This

battery

charger

has

high

charge

rate of up

amps, and low charge rate

of 2 amps. It

designed

for

charging

only 12-volt lead-acid batteries — conventional automotive, maintenance-free,

marine deep

cycle

and gel — used

cars, farm equipment,

boats, RVs

and SUVs, lawn

mowers/garden

tractors, motorcycles, personal watercraft, snowmobiles, ATVs

and various

a p p l i c a t i o n s .

Smart Battery

Chargers feature 3-stage, high-efficiency charging technology, built-in

microprocessor control that ensures fast, safe and

complete

charging

of serviceable

b a t t e r i e s .

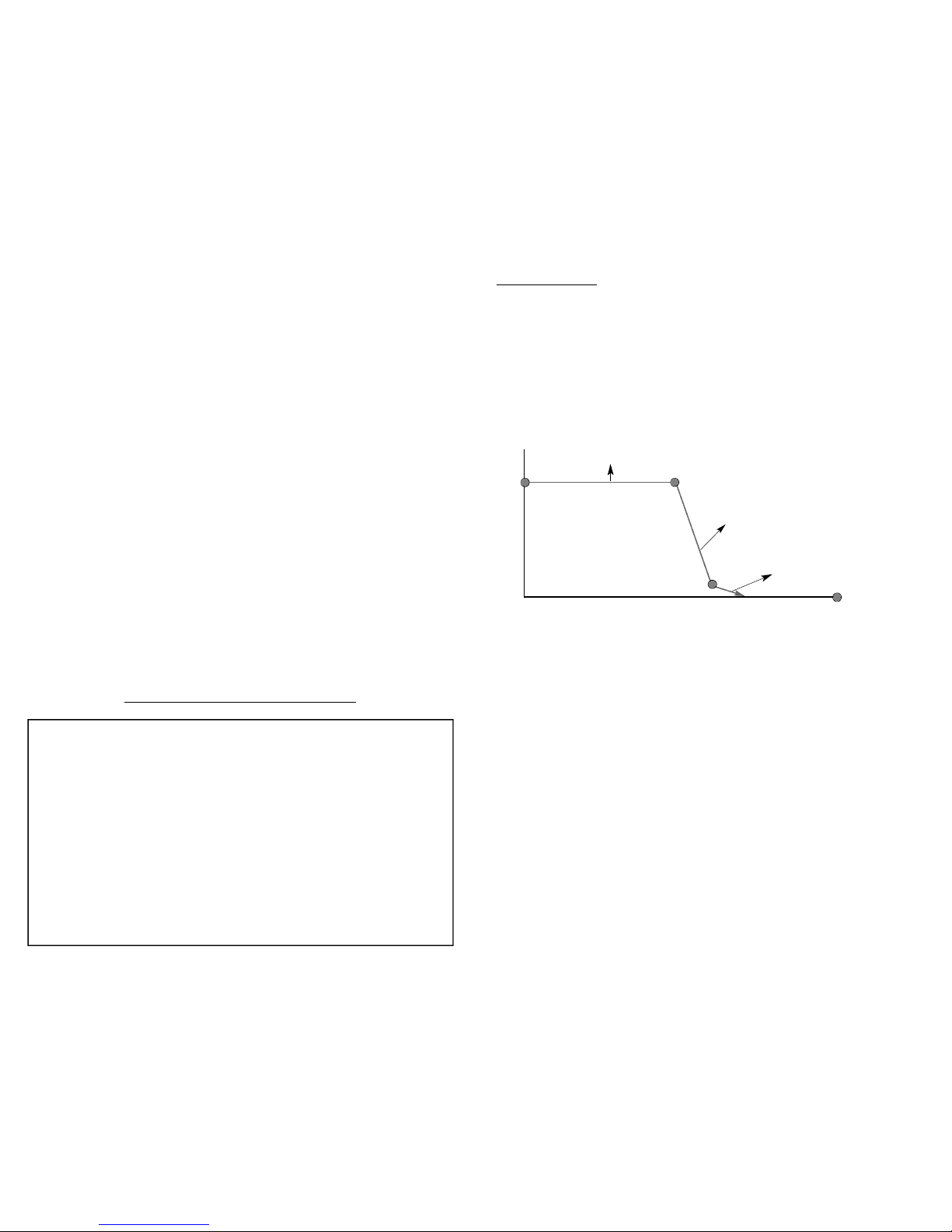

C h a rge Curv e

Stage One — Rapid Start

Charge at

6 amps delivers

maximum charging amperage

to “wake up” any

serviceable 12 volt

battery and allows for

quick

engine starting in

just

8 minutes (based on

a midsize vehicle battery

50% charge

level). When

battery reaches a maximum safe predetermined voltage, the charger will

automatically

signal a "beep"

and move into Stage 2 of

the

charging process.

Stage

Two — Absorption Charge maintains

the maximum

possible charge at

constant,

safe,

predetermined voltage.

During the phase,

voltage absorption

regulation charge, the

charging

voltage

remains

constant,

while

the actual

charging

BEEP BEEP

OFF BEEP

STAGE THREE

CHARGING

COMPLETE

STAGE ONE

STAGE TWO

4 . Determine which post of battery is grounded (connected) to the chassis. If negative post

is grounded to chassis (as in most vehicles), see 5. If positive post is grounded to the

chassis, see 6.

5. For negative-grounded vehicle, connect POSITIVE (RED) clamp from battery charger

to POSITIVE (POS, P, +) ungrounded post of battery. Connect NEGATIVE (BLACK)

clamp to vehicle chassis or engine block away from battery. Do not connect clip to

carburetor, fuel lines, or sheet-metal body parts. Connect to heavy gauge metal part of

the frame or engine block.

6. For positive-grounded vehicle, connect NEGATIVE (BLACK) clamp from battery

charger to NEGATIVE (NEG, N, –) ungrounded post of battery. Connect POSITIVE

(RED) clamp to vehicle chassis or engine block away from battery. Do not connect clip

to carburetor, fuel lines or sheet-metal body parts. Connect to a heavy gauge metal

part of the frame or engine block.

7. When disconnecting charger, disconnect AC cord, remove clamp from vehicle chassis,

and then remove clamp from battery terminal.

8. Do not charge the battery while the engine is operating.

9. See operating instructions for length of charge information.

Follow these steps when the battery has been removed from a vehicle. Aspark near

the battery may cause an explosion. To reduce risk of a spark near the battery:

1. Check polarity of battery posts. POSITIVE post (marked POS,P, +) usually has a larger

diameter than the NEGATIVE battery post (marked NEG, N, –).

2. Attach a 24-inch (minimum length) 6 AWG insulated battery cable to the NEGATIVE

battery post (marked NEG, N, –).

3. Connect the POSITIVE (RED) battery clamp to the POSITIVE battery post (marked

POS, P, + or red).

4. Stand as far back from the battery as possible, and do not face battery when making

final connection.

5. Carefully connect the NEGATIVE (BLACK) charger clamp to the free end of the battery

cable connected to the NEGATIVE terminal.

6. Set the charge rate to appropriate setting according to battery size.

7. When disconnecting charger, always do so in reverse sequence of connecting

procedure and break first connection while as far away from battery as practical.

Note: A marine (boat) battery must be removed and charged on shore. To charge it

on board requires equipment specially designed for marine use. This unit is

NOT designed for such use.

SAVE THESE INSTRUCTIONS

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the interference

by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

•Consult the dealer or an experienced radio/TV technician for help.

Modifications not authorized by the manufacturer void user’s authority to operate this device.

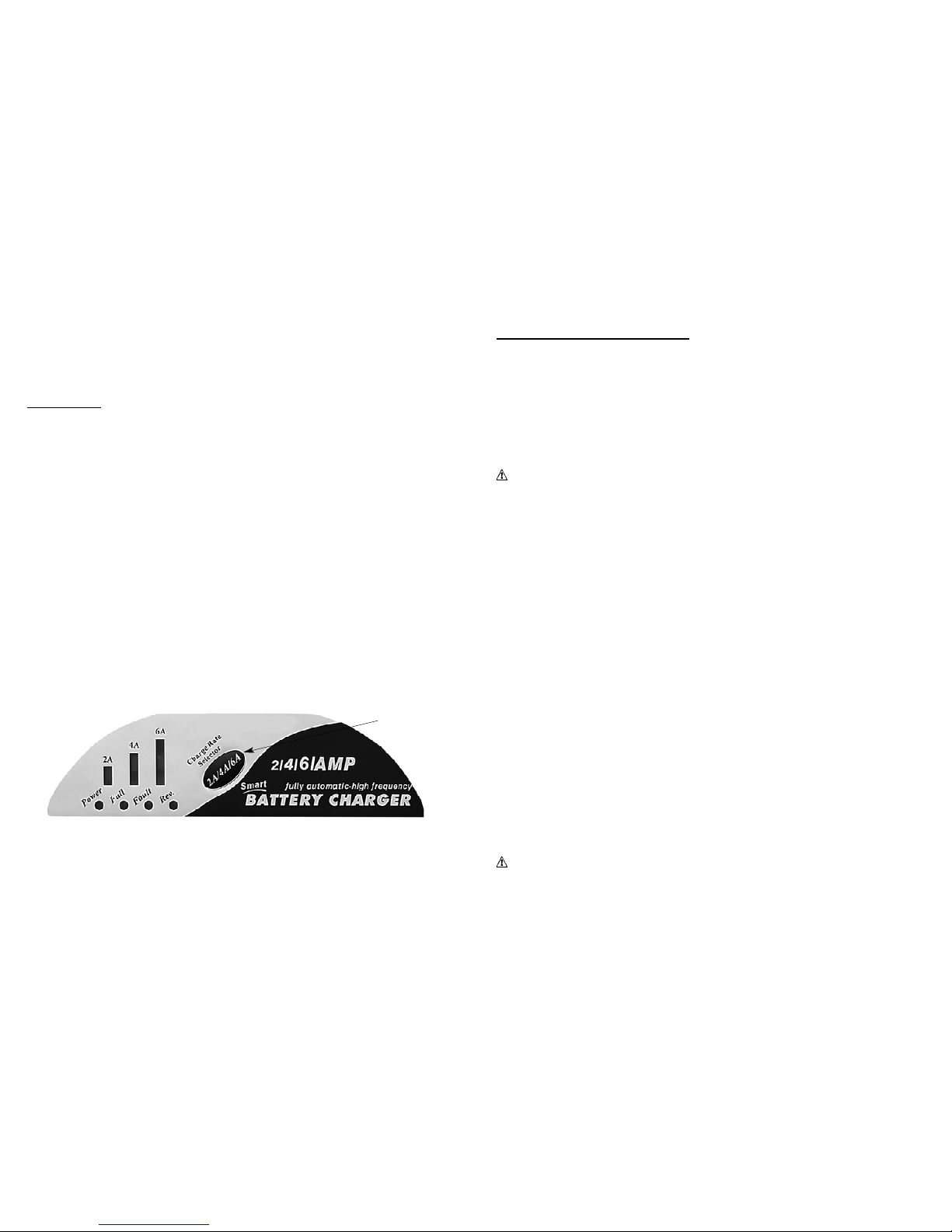

Fault — Lights when the battery is not connected properly or not chargeable.

R e v. (Reverse Polarity) — Lights when clamps are incorrectly connected to battery

terminals.

O P E R ATING INSTRUCTIONS

Ensure that all installation and operating instructions and safety

precautions are understood and carefully followed by anyone installing or

using the charger. Follow the steps outlined in the “Important Safety

Instructions” at the front of this manual.

Charge Rate Selection

After charger clamps are correctly connected, plug the charger into a 120 volt A C

outlet. The power indicator light will light. Select the proper charge current rate

based on battery size.

WA R N I N G

If FA U LT indicator lights, the connection to the battery terminals is bad.

Follow the steps outlined in “Important Safety Instructions” at the front of this

m a n u a l .

If Rev. Polarity indicator also lights, the RED (POSITIVE) and B L A C K

( N E G AT I V E ) clamps are incorrectly connected to battery terminals. Follow the

steps outlined in “Important Safety Instructions” at the front of this manual.

Charging the Battery

1 . Press Charge Rate Selector 2A/4A/6A button once to begin charging at the

2 amp rate; the unit sounds a beep and the charging current LED lights.

2 . Pressing the Charge Rate Selector 2A/4A/6A button again advances charging

rate to 4 amps, and pressing once more advances charging rate to 6 amps.

(Pressing the button again will turn OFF the charger output.) This selection

a n d actual battery charge rate are monitored by the microprocessor and the

u n i t will stop charging if the selected rate is too fast or too slow for battery size

or condition.

As the battery nears full charge capacity, the unit’s output will automatically drop

to a lower charge rate.

3 . The FUL LED lights when the battery is fully charged.

4 . Disconnect the AC power cord first, then the N E G AT I V E clamp, and finally the

POSITIVE clamp.

Automatic Float Charging

Automatic Float Charging is ideal for maintaining a fully charged battery.

1 . Keep the 120 volt AC power and battery connected after battery is fully charged.

2 . The charger monitors the battery and tops it off as needed.

WA R N I N G

If battery size is not known, charge at the 2 Amp rate. DO NOT overcharge

batteries.

current is reduced to allow for the maximum proper internal chemical energy transfer.

At the end of Stage 2, the charger will automatically move into Stage 3 charge mode.

Stage Three — To p - O f f Charge voltage is automatically maintained and reduced to

a predetermined level while current is adjusted for a safe, effective battery charge.

At the conclusion of Stage 3, the unit will BEEP signaling the completion of the

charging cycle.

The Automatic Float Charge feature is ideal for maintaining a battery. It

automatically “tops off” a battery as needed, to keep it fully charged all the time.

F E AT U R E S

• This unit has three charge rate settings, accessed by the Charge Rate Selector

2 A / 4 A / 6 A b u t t o n :

a ) 2 amps: smaller batteries, as in lawn mowers, snowmobiles, motorcycles, etc.

b ) 4 amps: mid-sized batteries, as in small cars

c ) 6 amps: automobile batteries and light trucks

• Automatic float charge monitoring

• Microprocessor-controlled for proper operation and for fault detection

• Charge rate LEDs

•H i g h - f r e q u e n c y, switch-mode operation for pure DC output

• Rapid charging three-stage output

• Heavy-duty cables and clamps are corrosion-resistant

• Connect to side or top-mount battery terminals

• Rugged case, plus sturdy carry handle

• Self-storage of cables and clamps

• Ideal during winter season when vehicle's starting performance is reduced by cold

or extreme weather conditions

• Single beep tone indicates a button is pressed or a mode change occurs

C o n t r ols and Indicators

The Charge Rate Selector 2A/4A/6A button allows the user to select the charger

rate based on battery size. This selection and actual battery charge rate are

monitored by the microprocessor and the unit will stop charging if the rate is too fast

or too slow for battery size or condition.

Below the Charge Rate LEDs are a series of four LEDs that light on the following

c o n d i t i o n s :

P o w e r — Lights when unit is connected to a 120 volt AC electric outlet.

Full — Lights when charging is complete.

CHARGE RATE

SELECTOR

BUTTON

T R O U B L E S H O O T I N G

Fault LED Lit

The following conditions may light the FA U LTL E D :

• Poor connection to battery (or frame).

• Charging too fast — decrease charge rate by pressing the Charge Rate Selector

2 A / 4 A / 6 A button to select a lower rate.

• Charging too slowly - battery is large and did not complete charging in 24 hours.

Press the Charge Rate Selector 2A/4A/6A button to select a faster rate.

• Shorted battery cell — check battery.

• Open battery cell — check battery.

• Internal shorted battery cell — take your battery to a certified automotive service

center for evaluation.

• Internal overheat in charger — make sure fan is not blocked.

Reverse

Polarity LED Lit

• Incorrect

polarity

—

follow the

steps outlined

in “Important

Safety

Instructions” at

the front

of this

manual.

Battery Not Accepting a Charge

•

Make sure that

the charger is plugged into

a “live” 110/120 volt AC outlet

and

Power LED is lit.

• Unplug the

charger

and check

battery connections

ensure that

there is a good

connection

at the battery

terminal and/or

vehicle chassis.

• Check that

the correct charge

rate was selected

for

the battery being

charged.

• Ensure

enough charging time was allowed to charge

battery.

Charging a Very Cold Battery

the battery to be charged is

extremely

cold (in temperatures

below freezing

—

0ºC/32ºF),

cannot accept a high rate of charge, so the

initial charge rate will

s l o w. The rate of

charge will increase as the battery warms.

N E V E R attempt

charge a frozen

battery.

S P E C I F I C AT I O N S

Input: 120 volts AC, 110 watts

Output: 12 volts DC, 2/4/6 amps

A P P R O X I M ATE CHARGING TIMES

The 2/4/6 Amp 12 Volt Smart Battery Charger will automatically adjust the charge

rate as the battery becomes charged and stop when the battery is fully charged.

Deep cycle batteries may require longer charging time.

For estimates of the time it takes to charge a battery, refer to the following table.

Percent of charge

in battery 7 5 % 5 0 % 2 5 % 0 %

at 2 amp rate 7 HRS 14 HRS NR* N R *

at 4 amp rate 3.5 HRS 7 HRS 10.5 HRS 14 HRS

at 6 amp rate 2.5 HRS 4.7 HRS 7 HRS 9.2 HRS

*NR = Not recommended at 2 amps — use a higher charge rate.

The times shown in the table above are approximate and refer to a 50 A h

automotive battery. For example, a 50 Ah (12 volt) battery is discharged (50%). How

long should it be charged at the 6 amp rate? See the chart above under “50%” and

“at 6 amp rate.”

In most cases, battery charging times will vary depending on the size, age and

condition of the battery. Smaller batteries should be charged at a lower rate

( 2 amps) and an extra hour added to charge time.

CARE AND MAINTENANCE

With proper care and minimal maintenance, the

6 Amp / 4 Amp / 2 Amp Smart

Battery Charger

will provide years of dependable service. For maximum

performance, manufacturer recommends:

• After each use, clean the battery charger clamps — be sure to remove any battery

fluid that will cause corrosion of the copper clamps.

• Clean the outside case of the charger with a soft cloth and, if necessary, mild soap

s o l u t i o n .

• Do not allow liquid to enter the charger. Do not operate when charger is wet.

• Keep the charger cords loosely coiled during storage to prevent damage to the

c o r d s .

WA R N I N G S

• There are no user-serviceable parts in this unit.

• Do not open the unit.

In the event

of malfunction,

must

be returned to

manufacturer for professional testing and repair. OPENING THE UNIT WILL

VOID THE

MANUFACTURER’S WA R R A N T Y.

BLACK DECKER ACCESSORIES GARAGE ACCESSORIES

Inhaltsverzeichnis

Andere Black & Decker Akkuladegerät Handbücher

Black & Decker

Black & Decker CCC3000 Bedienungsanleitung

Black & Decker

Black & Decker BC2WBD Bedienungsanleitung

Black & Decker

Black & Decker BM3B Bedienungsanleitung

Black & Decker

Black & Decker 2 Amp 12 Volt Bedienungsanleitung

Black & Decker

Black & Decker charger Bedienungsanleitung

Black & Decker

Black & Decker BDV090 Bedienungsanleitung

Black & Decker

Black & Decker BDC2A Bedienungsanleitung

Black & Decker

Black & Decker 2 AMP CHARGE RATE AUTOMATIC BATTERY... Bedienungsanleitung

Black & Decker

Black & Decker PI100SB Bedienungsanleitung

Black & Decker

Black & Decker BM3B Bedienungsanleitung

Black & Decker

Black & Decker 4/10/20/40 Amp 12 Volt Smart Battery Charger WITH 110 AMP ENGINE START, ALTERNATOR VOLTAGE CHECK AND BATTERY RECONDITION... Bedienungsanleitung

Black & Decker

Black & Decker L2AFC Bedienungsanleitung

Black & Decker

Black & Decker RD091216 Bedienungsanleitung

Black & Decker

Black & Decker Smart Battery Charger Bedienungsanleitung

Black & Decker

Black & Decker BDCCF18 Bedienungsanleitung

Black & Decker

Black & Decker BDV090AU Bedienungsanleitung

Black & Decker

Black & Decker BCS25EB Bedienungsanleitung

Black & Decker

Black & Decker BM800BD Bedienungsanleitung

Black & Decker

Black & Decker LCS12FC Bedienungsanleitung

Black & Decker

Black & Decker LCS12 Bedienungsanleitung

Black & Decker

Black & Decker BC6BDW Bedienungsanleitung

Black & Decker

Black & Decker PIUSB Bedienungsanleitung

Black & Decker

Black & Decker VEC1089ABD Bedienungsanleitung

Black & Decker

Black & Decker 2 AMP CHARGE RATE AUTOMATIC BATTERY... Bedienungsanleitung

Beliebte Akkuladegerät Handbücher anderer Marken

AA Portable Power Corp

AA Portable Power Corp Universal Smart Charger Bedienungsanleitung

Enelion

Enelion Vertica Bedienungsanleitung

RCA

RCA CHU6 Bedienungsanleitung

ANSMANN

ANSMANN ALCT 6/24-10 Bedienungsanleitung

Hitachi

Hitachi UC 18YRSL Fehlerbehebungshandbuch

Olympus

Olympus B-20 LPC Bedienungsanleitung

Exibel

Exibel ZH1708143 Bedienungsanleitung

Lenmar

Lenmar Mach 1 Bedienungsanleitung

CTEK

CTEK MXS 5.0 Bedienungsanleitung

ABB

ABB HT842379 Bedienungsanleitung

Nitecore

Nitecore Superb Charger SC4 Bedienungsanleitung

Renogy

Renogy RBC2125DS-21W Bedienungsanleitung

Braun

Braun BWC02M Bedienungsanleitung

CTEK

CTEK MXS 3.6 Bedienungsanleitung

Trinity

Trinity DPD Bedienungsanleitung

Hulkman

Hulkman Sigma 1 Bedienungsanleitung

IKEA

IKEA koppla Bedienungsanleitung

AKG

AKG WMS400 CU 400 Bedienungsanleitung
