BLACK NOISE SAM-C Bedienungsanleitung
Thank you for purchasing of SAM-C.
SAM-C is our first 0HP module and stand for :
Splitter aka multiples
Attenuator
Merger aka mixer
Crossfader
For our first 0HP module, we wanted to take advantage of the benefits of passive modules. But we also wanted
to incorporate as many features as possible.The result is SAM-C, a small module that takes up no space in your
rack and can perform many simple but useful utility functions.
For more information on how to use SAM-C please consult the following page which details the different
functions. You can also consult the BOM and the build instructions directly from the Resources page of our
website.
Thank you
Plug you rack power to the main and power you
rack.
5
If the LEDs above the output light up you module
is ready, if not please contact us at :
contact@blacknoisemdodular.com
4
BLACK NOISE warrants is products to be free of defects in materials or workmanship and to be conform
with the specifications at the time of shipment for a period of two years from the date of purchase.
During that period any malfunctionning or damaged units will be repaired, service and calibrated into your
workshop. This warranty does not cover any problems resulting from damages during shipping, incorrect
installation or power supply, abusive treatement, or any other obvious user-inflicted fault.
If your product warranty is passed, it still can be serviced as long as parts are available in our workshop. We
reserve the right to charge for labor, parts and transit expenses where applicable.
Before sending your product to our workshop please contact us for RMA and details. Any unsolicited parcel
will be rejected and or returned. The postage to our workshop is on the customer. The return of your module
is on us. BLACK NOISE can not take any responsability for damages caused during transport.
Warranty
SAM-C

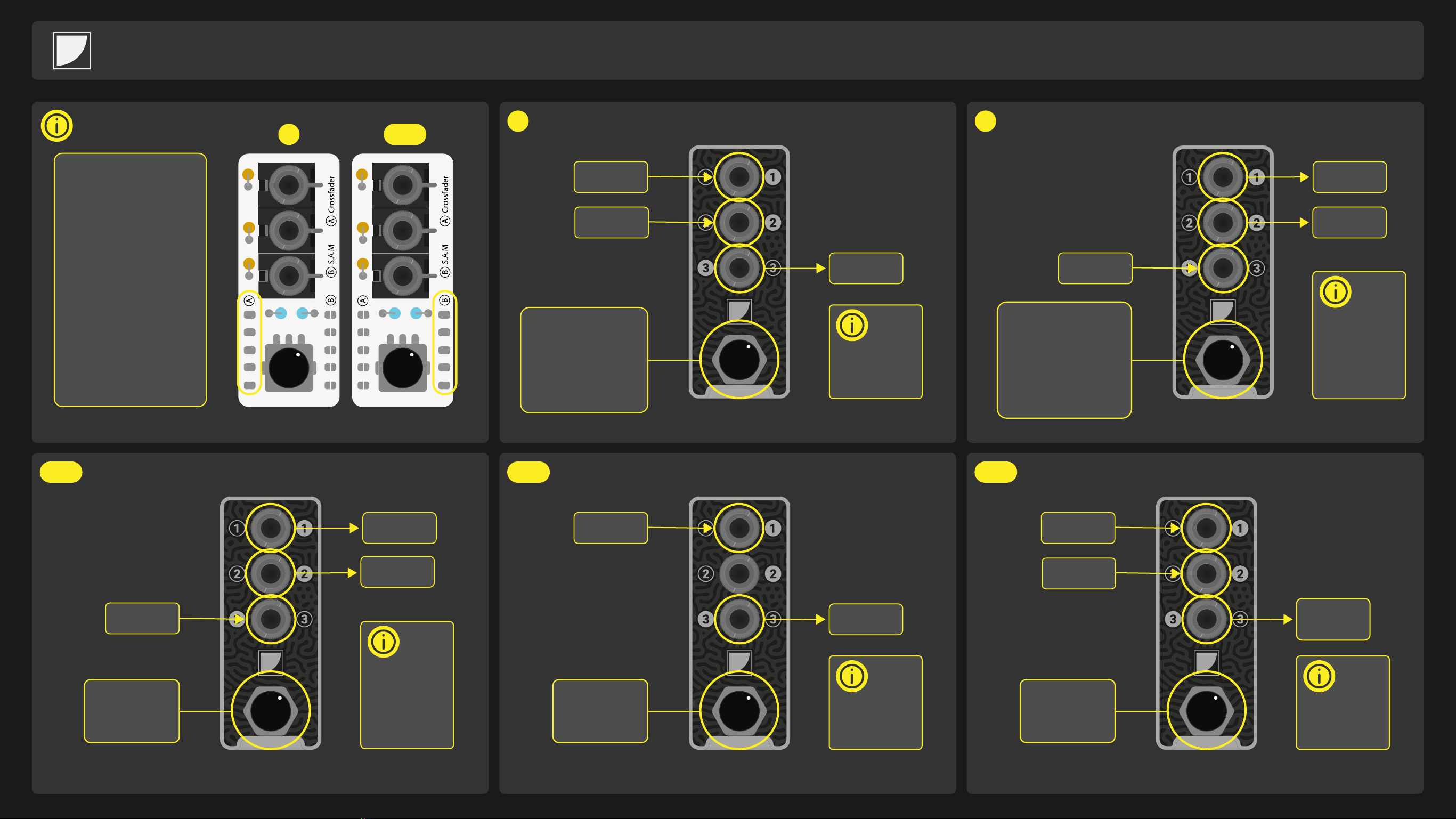

Introduction 01
SAM Attenuator
SAM Splitter multiples
SAM SAM SAM
CC 2:1 Crossfader 2 inputs 1 output
Crossfader
CC 1:2 Crossfader 1 input 2 outputs
Crossfader
SAM Merger mixer
To work as splitter
SAM-C must be
configured as SAM
for more
information please
see section ...
To work
as Merger
SAM-C
must be
configured as SAM
for more
information please
see section ...
To work
as
Attenuator
SAM-C
must be configured
as SAM for more
information please
see section ...
INPUT
OUTPUT 1
OUTPUT 2
Control the
amplitude of the
input. Turn it
clockwise for
attenuate signal.
INPUT 1
INPUT 2
MIX
OUTPUT
Control the
amplitude of the
input. Turn it
clockwise for
attenuate signal.
INPUT 1
INPUT 2
OUTPUT
Control the mix between the
two inputs.
Fully Counterclockwise you
will have 100% of input 2.
Full Clockwise you will have
100% of input 1.
In between you will have a
mix of both input 1 and 2.
INPUT
OUTPUT 1
OUTPUT 2
Control to which ouput the
input will be send
Fully Counterclockwise you
will have 100% of the input on
output 2.
Full Clockwise you will have
100% of the input on output 1.
In between will be mix
between the two outputs.
INPUT
OUTPUT 2
Control the
amplitude of the
input. Turn it
clockwise for
attenuate signal.
To work as
Crossfader SAM-C
must be configured
as SAM for more
information please
see section ...
To work as
Crossfader
SAM-C
must be
configured as SAM
for more information
please see section ...
SAMC
SAM-C has two modes:
Acrossfader
BS.A.M.
To configure your module as a
crossfader, make sure the A
jumpers-pads are soldered, the
B jumpers-pads must not be
soldered. You can use desolde-
ring wire to remove the solder
from the jumpers-pads.
To configure your module, the
S.A.M B jumpers-pads must be
soldered bridged and the A
jumpers-pads must be
unsoldered.
You can use desoldering wire to
remove the solder from the
jumpers-pads.
SAM-C
Overview 02
