Parts & Assembly
MODEL
Before proceeding, make certain
that you read and understand the
Owner’s Manual included with
your griddle.
Hazardous fire or explosion may
result if instructions are ignored.
It is the consumer’s responsibility
to see that the griddle is prop-
erly assembled, installed, and
maintained. Failure to follow the
instructions in this manual could
result in bodily injury and/or
property damage.
SAFETY ALERT KEY
Read and follow all of the notices
found throughout the manual.
INSTALLER/ASSEMBLER:
Leave these instructions with consumer.
CONSUMER:
Keep this manual for future reference.
TO REGISTER your Blackstone product please go to
www.blackstoneproducts.com/register-griddle
Model Number _____________________________
Serial Number______________________________
Date Purchased ____________________________
!DANGER
Indicates an imminently
hazardous situation which, if not
avoided, will result in death or
serious injury.
!WARNING
Indicates the possibility of serious
bodily injury if the instructions
are not followed.
!CAUTION
Indicates a potentially
hazardous situation which, if not
avoided, may result in minor or
moderate injury.
Tailgater Combo | Parts & Assembly
PARTS & ASSEMBLY
ILLUSTRATED PARTS LIST
01. Body (1 piece) 02. Grill box (1 piece) & Grill grates
(2 pieces)
03. Griddle top (1 piece)
04. Hood (1 piece) & Grill box clip
(2 pieces)
05. Flame tamper (1 piece) 06. Air vent (1 piece) & Themometer
( 1 piece) & Handle (1 peice)
07. Hinge pin (2 pieces) & Pin clip (2
pieces) & Spacing ring (2 pieces)
08. Control knob (2 pieces) &
Ignition button (1 piece)
09. Leg extensions (4 pieces)
10. Grease cup (2 pieces) 11. M4x12 Bolt (1 piece) & M6 Nut
(2 pieces)
12. M8x19 Bolt (2 pieces)
13. Small thumbscrew (4 pieces) 14. Regulator Hose (1 piece) NOT INCLUDED - 20Lb Propane
Tank & AA Battery
Tailgater Combo | Parts & Assembly
01
ASSEMBLY INSTRUCTIONS
Please read all instructions thoroughly before proceeding. Make sure all
the plastic packing material is removed before assembling
Find a large, clean area to assemble your griddle. Please refer to the parts list
and assembly diagrams as necessary.
TOOLS NEEDED: Phillips Head
Screwdriver & Adjustable Wrench
STEP 01
Place the griddle body on a smooth at surface. Unfold the legs by pulling
on the locking knob. Then, attach the four (4) leg extensions to your desired
height with four (4) thumbscews, one on each leg.
Locking Knob
Tailgater Combo | Parts & Assembly
02
!CAUTION
Two people are recommended for
the assembly of this product.
!WARNING
The manufacturer has made every
eort to eliminate any sharp
edges. However, you should
handle all components with care
to avoid accidental injury.
Some parts may contain sharp
edges, especially as noted
in these instructions. Wear
protective gloves if necessary.
!WARNING
The use of alcohol, prescription
or non-prescription drugs may
impair the consumer’s ability
to properly assemble or safely
operate the appliance.
STEP 02
Place griddle upright. Attach the two (2) control knbs by pushing them onto
the connections on the griddle body, screw on the ignition button, and place
the griddle top on to the right side of the body. The four feet on the bottom of
the griddle top will t into corresponding hole.
STEP 03
Add the thermometer by using the included wing nut screwed from the
inside of the hood. Attach the air vent to the hood with one (1) M4X12 bolt
from the top and secured with one (1) M4 nut from the inside.
STEP 04
Attach the handle to the hood with two (2) M8x19 bolts from the inside of
the hood.
Insert one AA battery (not included)
into the battery socket with the
positive terminal facing out, and
then screw on the Ignition Button
until tight, be careful not to over
tighten.
Tailgater Combo | Parts & Assembly
03
STEP 05
Connect the hood to the grill box by lining up the back hinges. Secure the
hinges by inserting one (1) spacing ring over the outside of the hinge holes.
Then, push one (1) hinge pin through the holes in the hinge and spacing
pin. The hinge pin will t through the hinge holes and the holes in the
spacing ring. Secure the hinge pin with one (1) pin clip. Repeat process on the
other hinge.
STEP 06
Place the assembled grill box onto the unit. Then, use two (2) grill box clips to
secure the grill box to the unit.
Tailgater Combo | Parts & Assembly
04
NEED HELP? Call Blackstone Information
Center for missing parts, assembly or and
operation questions: 435-252-3030
or email us at:
support@blackstoneproducts.com
STEP 07

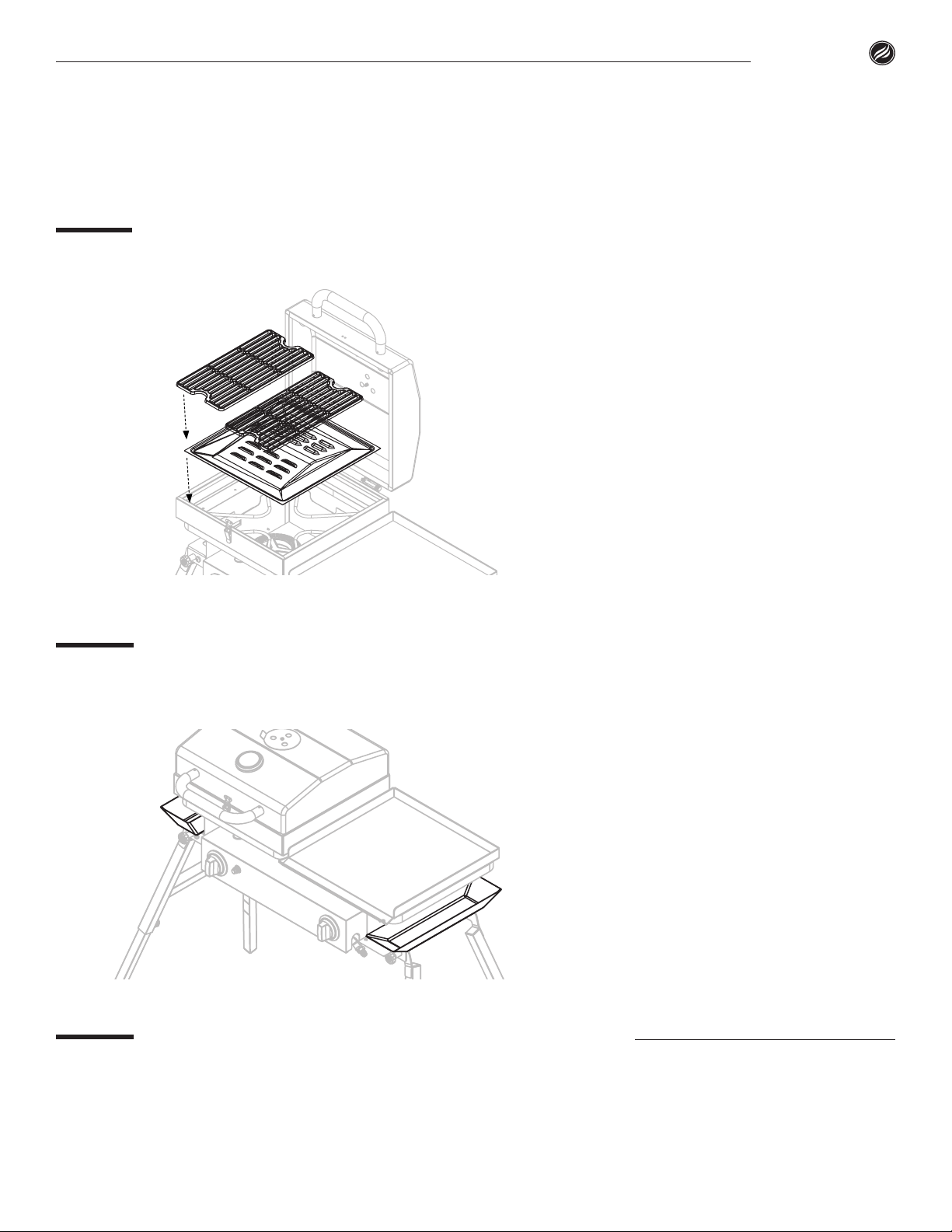

Insert the ame tamper and the two (2) grill grates into the grill box.
STEP 08
Hang the grease cups on both sides of the unit directly below the
grease runo.
STEP 09
Proceed to seasoning instructions (pg 18) in the Owner’s Manual. Enjoy
cooking outdoors on your Blackstone Tailgater Combo!
