36" GRIDDLE
COOKING STATION
Parts & Assembly
MODEL
Before proceeding, make certain
that you read and understand the
Owner’s Manual included with
your griddle.
Hazardous fire or explosion may
result if instructions are ignored.
It is the consumer’s responsibility
to see that the griddle is prop-
erly assembled, installed, and
maintained. Failure to follow the
instructions in this manual could
result in bodily injury and/or
property damage.
SAFETY ALERT KEY
Read and follow all of the notices
found throughout the manual.
INSTALLER/ASSEMBLER:
Leave these instructions with consumer.
CONSUMER:
Keep this manual for future reference.
TO REGISTER your Blackstone product please go to
www.blackstoneproducts.com/register-griddle
Model Number _____________________________
Serial Number______________________________
Date Purchased ____________________________
!DANGER
Indicates an imminently
hazardous situation which, if not
avoided, will result in death or
serious injury.
!WARNING
Indicates the possibility of serious
bodily injury if the instructions
are not followed.
!CAUTION
Indicates a potentially
hazardous situation which, if not
avoided, may result in minor or
moderate injury.
36” Griddle Cooking Station | Parts & Assembly
PARTS & ASSEMBLY
ILLUSTRATED PARTS LIST
01. Griddle body (1 piece) 02. Griddle top & hood (1 piece) 03. Le side shelf (1 piece) & Right
side shelf (1 piece)
04. Hood handle (1 piece) 05. Drawer handle (2 pieces) &
Cabinet handle (1 piece)
06. Garbage bag holder (1 piece) &
Paper towel holder (1 piece)
07. Caster Wheel (2 pieces) 08. Wheel (2 pieces) 09. Grease cup (1 piece)
10. Washer (4 pieces) 11. Mica sheet (2 pieces) 12. Gray M6X57 bolt (4 pieces)
13. Gray M6X12 bolt (8 pieces) &
Black M6X12 bolt (6 pieces)
14. Small thumbscrew (1 piece) NOT INCLUDED - 20lb LP Gas Tank
& AA Battery
36” Griddle Cooking Station | Parts & Assembly
01
ASSEMBLY INSTRUCTIONS
Please read all instructions thoroughly before proceeding. Make sure all
the plastic packing material is removed before assembling
Find a large, clean area to assemble your griddle. Please refer to the parts list
and assembly diagrams as necessary.
Griddle assembly involves large components; therefore, it is advised to have
two people assemble the unit.
TOOLS NEEDED: Phillips Head
Screwdriver & Adjustable Wrench
STEP 01
With the help of another person, remove the griddle body from the packaging
and lay it upside down on a smooth at surface. Unscrew the bolt and nut
from the wheels and attach them to the le side of the griddle base. Next lock
the caster wheels and use a wrench to tighten them into the right side of the
griddle base.
36” Griddle Cooking Station | Parts & Assembly
02
!CAUTION
Two people are recommended for
the assembly of this product.
!WARNING
The manufacturer has made every
eort to eliminate any sharp
edges. However, you should
handle all components with care
to avoid accidental injury.
Some parts may contain sharp
edges, especially as noted
in these instructions. Wear
protective gloves if necessary.
!WARNING
The use of alcohol, prescription
or non-prescription drugs may
impair the consumer’s ability
to properly assemble or safely
operate the appliance.
STEP 02
With the help of another person, pick up the griddle body and set it on its
wheels. Attach the cabinet handle to the cabinet door with two (2) black
M6X12 bolts.
STEP 03
Attach the handle to the lower drawer with two (2) black M6X12 bolts. Attach
the handle to the upper drawer with two (2) black M6X12 bolts.
36” Griddle Cooking Station | Parts & Assembly
03
STEP 04

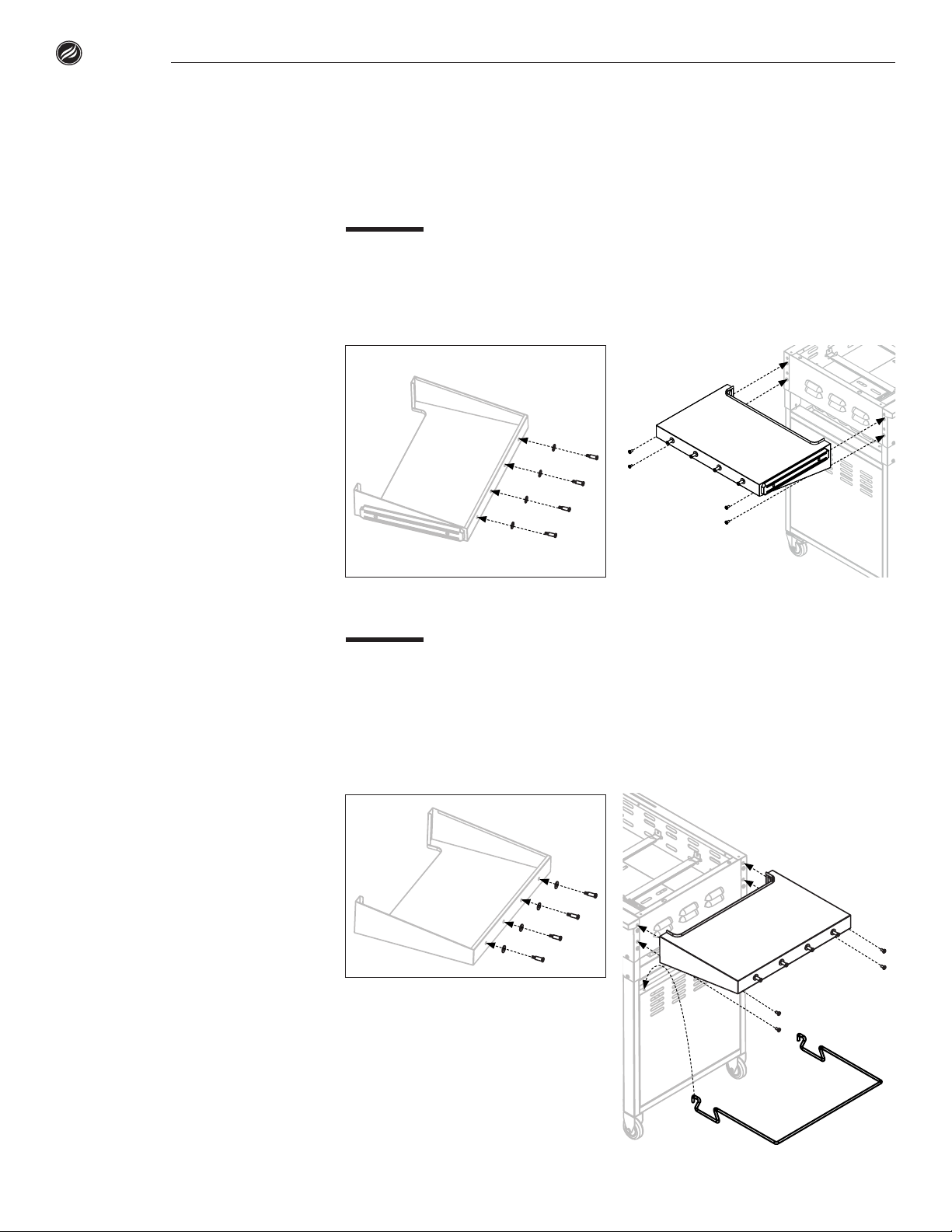

Assemble the le side shelf by rst unscrewing the four (4) metal pegs and
washers from the backside of the side shelf. Then, attach the four (4) metal
pegs and four (4) washers to the front of the side shelf. Then, attach the le
side shelf with four (4) gray M6X12 bolts to the griddle body.
STEP 05
Unscrew the four metal pegs and four (4) washers from the back of the right
side shelf and attach them to the front. Attach shelf to the right side of the
griddle body with four (4) gray M6X12 bolts. Then place the garbage bag
holder into the corresponding holes in the griddle body.
36” Griddle Cooking Station | Parts & Assembly
04
STEP 06
Remove the small thumbscrew, rotate paper towel holder to the outward
position. Replace and tighten small thumbscrew to lock the paper towel
holder in place.
STEP 07
With the help of another person, place the griddle top and hood on to the
griddle body by aligning the four pins to the holes on top of the unit. Make
sure the pins are fully seated in the holes on the top. Then place the grease
cup at the rear of the unit.
36” Griddle Cooking Station | Parts & Assembly
05
NEED HELP? Call Blackstone Information
Center for missing parts, assembly or and
operation questions: 435-252-3030
or email us at:
support@blackstoneproducts.com
North Atlantic Imports LLC | 1073 West 1700 North Logan, UT 84321 | Blackstoneproducts.com
STEP 08
Attach the handle on to the griddle hood with four (4) M6X20 bolts and four
(4) washers from the inside of the hood and two (2) mica sheets from the top.
STEP 09
Proceed to seasoning instructions in the Owner’s Manual. Enjoy cooking
outdoors on your Blackstone 36" Pro Series Griddle Cooking Station!
Insert one AA battery (not included)
into the battery socket with the
positive terminal facing out, and
then screw on the Ignition Button
until tight, be careful not to
over tighten.
36” Griddle Cooking Station | Parts & Assembly
