Blackfin Lamina PLUS Ring Bedienungsanleitung
5
Blackfin Lamina PLUS Ring
12
Press the lenses into the rims already mounted on the frame. Do not heat up the acetate rims.
B4
cut
3
4
B4

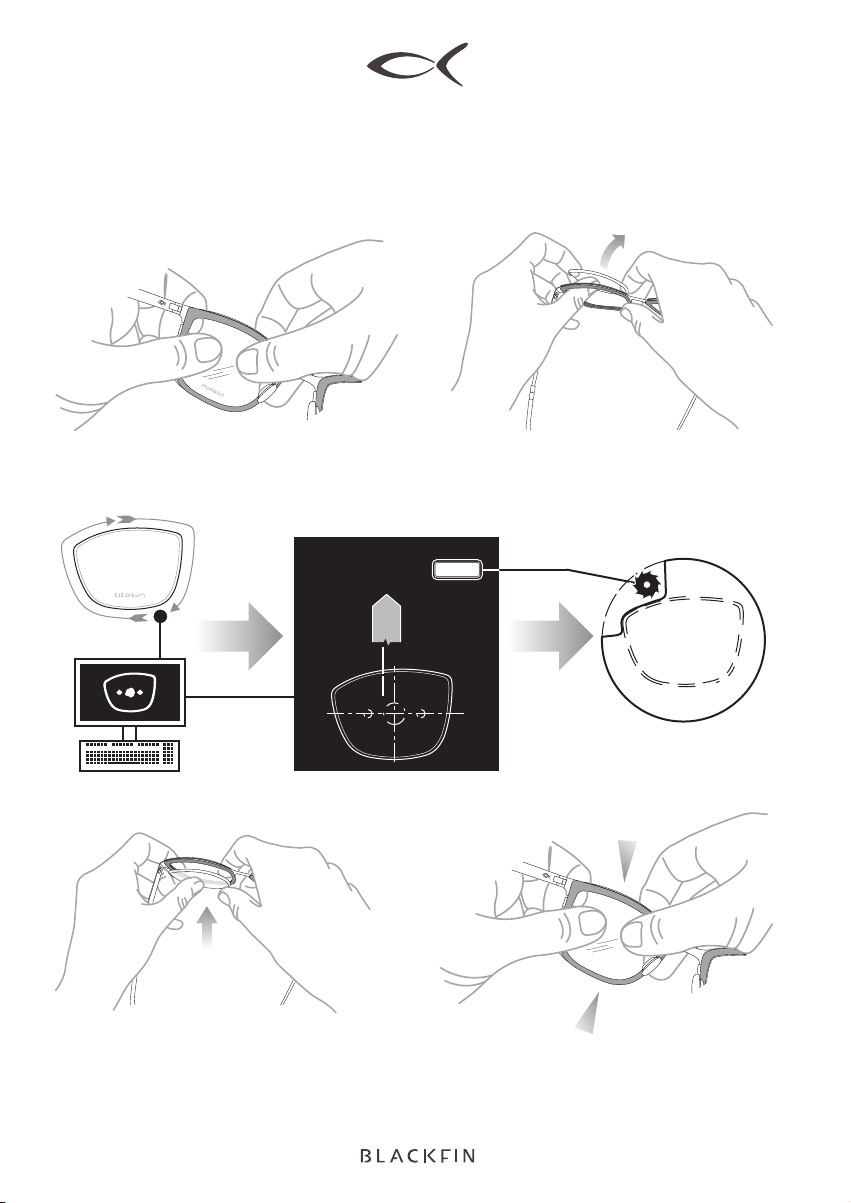

Prescription Lenses Installation
Push out the presentation lenses from ring.
1DOC 11 V1
The Blackfin® word mark, the fish logo, the Titanum logo, the neomadeinitaly® word mark and the neomadeinitaly logo are registered trademarks owned by Pramaor Srl.
Copyright © 2018 All rights are reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted
in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without prior permission of Pramaor Srl.

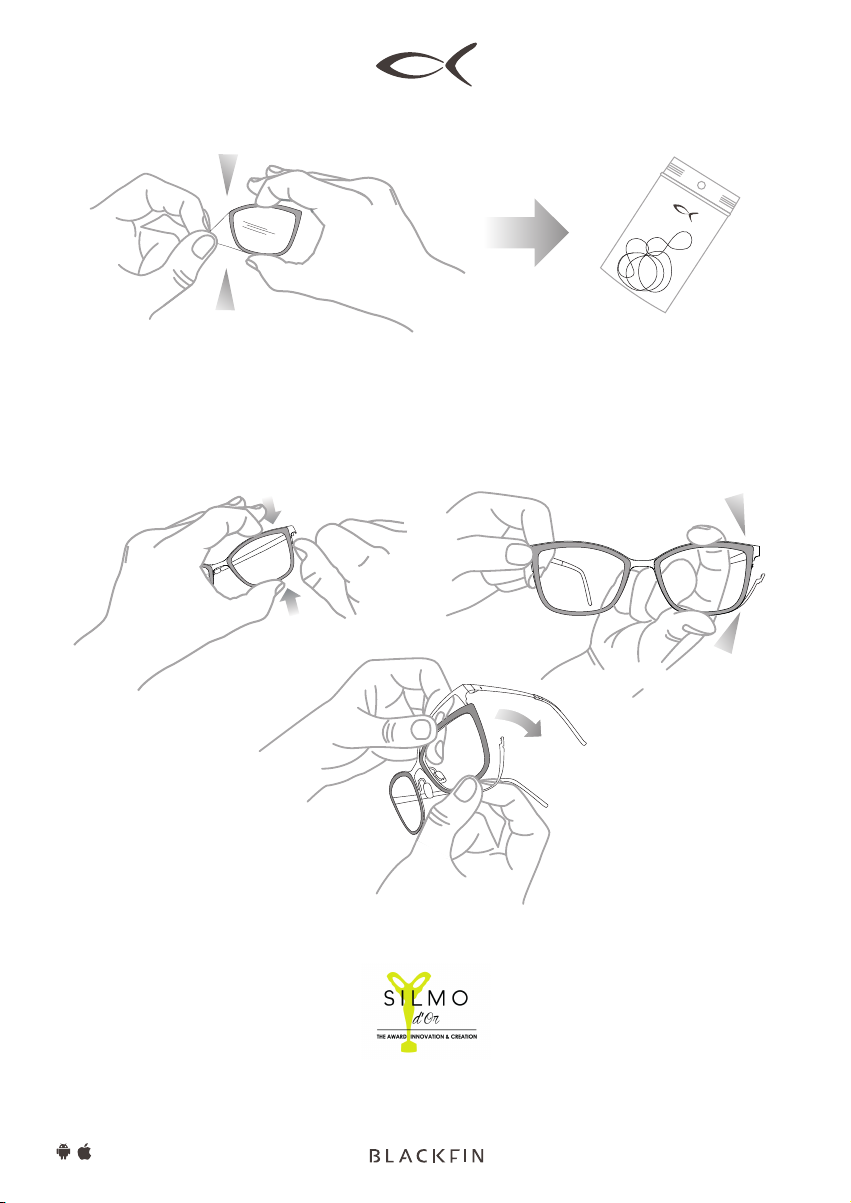

Each acetate ring is delivered with an elastic ring, already mounted inside the groove, that
ensures the required tension for the hooking of the patented Sharklock® rimlock.
If required, replacement rings are provided in a specific bag.
Open the Sharklock ® rimlock by pressing the hook upwards while holding the frame firmly.
Remove the acetate ring.
B
C
A
WARNING, IMPORTANT:
ACETATE RING REMOVING:
(not required for lenses installation)
Download online
www.blackfin.eu/app
