Blomberg DHP 24400W Bedienungsanleitung

To prevent accidents and/or machine

damage, read these instructions before

installation or use. Use the dryer only

as instructed in this owner’s guide and

installation instructions manual included

with your dryer. Keep this guide for future

reference

DHP 24400W

DHP 24412W

Owner’s Guide & Installation Instructions

Front-Loading Dryer

2960311018_EN/210515.0939

Please read this user manual first!

Dear Customer,

Thank you for prefering a Blomberg product. We hope that your product which has been manufactured with high

quality and technology will give you the best results. We advise you to read through this manual and the other

accompanying documentation carefully before using your product and keep it for future reference. If you transfer

the product to someone else, give its manual as well. Pay attention to all details and warnings specified in the user

manual and follow the instructions given therein.

Use this user manual for the model indicated on the cover page.

Explanation of symbols

Throughout this user manual the following symbols are used:

CImportant information or useful hints about

usage.

AWarning for hazardous situations with

regard to life and property.

BWarning against electric shock.

Warning against hot surfaces.

Warning against fire hazard.

Packaging materials of the product are

manufactured from recyclable materials in

accordance with our National Environment

Regulations.

Do not dispose of the packaging wastes with the domestic waste or other wastes, discard them to the dedicated

collection points designated by the local authorities.

1 Important Safety Instructions 4

2 Your Dryer 8

2.1 Overview ..................................................8

2.2 Package Contents.....................................9

3 Installation Instructions 10

3.1 Electrical connection ...............................10

3.2 Grounding Instructions ............................11

3.3 Appropriate installation location ...............11

3.4 Minimum Installation Clearances..............12

3.5 Use on top of a washing machine.............12

3.6 Adjusting the feet....................................13

3.7 Destroying packaging material.................13

3.8 Connecting to the drain ...........................13

4 Preparation 14

4.1 Laundry suitable for drying in the dryer ....14

4.2 Laundry not suitable for drying in the dryer14

4.3 Preparing laundry for drying ....................14

4.4 Things to be done for energy saving.........14

4.5 Correct load capacity...............................15

5 Operating the product 16

5.1 Control panel ..........................................16

5.2 Screen symbols ......................................16

5.3 Preparing the machine ............................17

5.4 Program selection...................................17

5.5 Main programs .......................................17

5.6 Extra programs .......................................17

5.7 Program selection and consumption table 19

5.8 Auxiliary functions ...................................20

5.9 Warning symbols ....................................20

5.10 End duration.........................................20

5.11 Starting the program .............................21

5.12 Child Lock ............................................21

5.13 Changing the program after it is started .21

5.14 Canceling the program..........................21

5.15 Program end ........................................22

6 Maintenance and cleaning 23

6.1 Cleaning Lint Filter / Loading Door Inner

Surface ........................................................23

6.2 Cleaning the sensor ...............................23

6.3 Cleaning the filter drawer .......................24

6.4 Cleaning the evaporator ..........................26

7 Troubleshooting 27

TABLE OF CONTENTS

4 / 28 EN

Dryer / User Manual

1Important Safety Instructions

AWARNING: To reduce

the risk of fire, electric

shock, or personal

injury when using

this appliance, follow

the basic precautions

including the following:

• Read all instructions before using

the appliance. Otherwise, there may

be the risk of personal injury or

material damage. Additionally, any

warranty and reliability commitment

will become void.

AThis product has been

designed for home use

only.

• The appliance must be operated

at temperatures between +5°C and

+35°C.

• The appliance must not be

installed behind a lockable door,

a sliding door or a door with the

hinges on the opposite side to that

of the tumble dryer.

• Do not install or store this

appliance where it will be exposed

to weather.

• Do not tamper with the controls.

• Do not repair or replace any

part of the appliance or attempt

any servicing unless specifically

recommended in the user-

maintenance instructions or in

published user-repair instructions

that you understand and have the

skills to carry out.

• Unplug the machine when it is

not in use.

• Never wash the appliance with

water! There is the risk of electric

shock!

• Never touch the plug with wet

hands.

• Never pull from the cable to

unplug the machine.

• Do not operate the appliance if

the power cord or plug is damaged.

• Never attempt to repair the

machine yourself.

• For malfunctions that cannot

be solved by information in the

operating manual: Turn off and

unplug the appliance and call an

authorized service..

• This appliance must be

grounded. In the event of

malfunction or breakdown,

grounding will reduce the risk

of electric shock by providing

a path of least resistance for

electric current. This appliance is

equipped with a cord having an

equipment-grounding conductor

and a grounded plug. The plug must

be plugged into an appropriate

outlet that is properly installed and

grounded in accordance with all

local codes and ordinances.

5 / 28 EN

Dryer / User Manual

BWARNING: Improper

connection of the

equipment-grounding

conductor can result

in a risk of electric

shock. Check with a

qualified electrician or

service representative

or personnel if you are

in doubt as to whether

the appliance is properly

grounded.

• Power cord plug must be within

easy reach after installation.

• To reduce the risk of fire or

electric shock, do not use extension

cords, multi-plugs or an adapter

to connect the dryer to electrical

mains.

• Do not modify the plug provided

with the appliance: if it will not fit

the outlet, have a proper outlet

installed by a qualified electrician.

• If the power supply cord is

damaged, it must be replaced by

the manufacturer, its service agent

or similarly qualified persons in

order to avoid an electrical hazard.

• The appliance must not be

operated unless it is repaired! There

is the risk of electric shock!

• Ventilation openings in the base

must not be obstructed by carpets,

etc.

• Exhaust air must not be

discharged into a flue used for

exhausting fumes from appliances

burning gas or other fuels.

• Adequate ventilation must

be provided to avoid the back

flow of gases into the room from

appliances burning other fuels,

including open fires.

• Do not dry articles that have

been previously cleaned in, washed

in, soaked in or spotted with

gasoline, dry-cleaning solvents

or other flammable or explosive

substances as they give off vapors

that could ignite or explode.

• Do not use the tumble dryer if

industrial chemicals have been used

for cleaning.

• Do not dry unwashed items in

the tumble dryer.

• Do not place items exposed to

cooking oils in your dryer. Items

contaminated with cooking oils may

contribute to a chemical reaction

that could cause a load to catch

fire.

• Items such as foam rubber (latex

foam), shower caps, waterproof

textiles, rubber-backed articles and

clothes or pillows fitted with foam

rubber pads should not be dried in

the tumble dryer.

• Do not use fabric softeners or

products to eliminate static unless

recommended by the manufacturer

of the fabric softener or product.

• The appliance may only be used

for the drying of textiles that are

marked accordingly.

• Undergarments that contain

metal reinforcements should not be

placed in a tumble dryer. Damage

6 / 28 EN

Dryer / User Manual

to the tumble dryer can result if the

metal reinforcement come loose

during drying.

• Before loading check all

garments for lighters, coins, metal

pieces, needles, etc.

• Fabric softeners, or similar

products, should be used

as specified by the fabric

softener’s instructions. The use

of fabric softener sheets is not

recommended.

• The final part of a tumble dryer

cycle occurs without heat (the

cool-down cycle) to ensure that

the items are left at a temperature

that ensures the items will not be

damaged.

AWARNING: Never stop

the tumble dryer before

the end of the drying

cycle unless all items

are quickly removed

and spread out dissipate

heat.

• Do not reach into the appliance if

the drum is moving.

• Do not allow children to play

on or in the appliance.Close

supervision of children is necessary

when the appliance is used near

children.

• Young children should be

supervised to ensure that they do

not play with the appliance.

• Keep pets away from the

appliance during the drying cycle.

• Before the appliance is removed

from service or discarded, remove

the door to the drying compartment.

• Close the loading door when you

leave the area where the machine is

located.

• This appliance is not intended for

use by persons (including children)

with reduced physical, sensory

or mental capabilities, or lack of

experience and knowledge, unless

they are supervised or have been

given instructions concerning the

use of the appliance by a person

responsible for their safety.

• Clean lint filter before or after

each load.

• Keep area around the exhaust

vent and adjacent surrounding

areas free from the accumulation of

lint, dust, and dirt.

• The interior of the appliance

and exhaust ductwork should be

cleaned periodically by qualified

service personnel.

• Never use the dryer without the

lint filter.

• At times when your dryer is not in

use or after the laundry is taken out

following the completion of drying

process, turn off by using the On/

Off button. In cases when the On/

Off button is on (while the dryer is

energized), keep the door of the

dryer closed.

7 / 28 EN

Dryer / User Manual

• For power saving in models with

lamps, at times when your dryer is

not in use, keep the door closed if

the On/Off button is pressed (if the

dryer is energized).

SAVE THESE INSTRUCTIONS

Model Heat Pump Dryer with electronic

sensor control

Height (in) 33 1/2

Witdth (in) 23 1/2

Depth (in) 24 3/4

Height adjustment of feet (in) 1/5

Net weight (lbs) 121

Voltage / Frequency 208-240V ~ 60 Hz

Connected load 900 W - 4 A

Technical Specifications

8 / 28 EN

Dryer / User Manual

1. Top panel

2. Control panel

3. Loading door

4. Kick plate opening tab

5. Ventilation grids

6. Adjustable feet

7. Kick plate

8. Type label

9. Lint filter

10. Power cable

2.1 Overview

2Your Dryer

9 / 28 EN

Dryer / User Manual

2.2 Package Contents

12 3 4

1. Water drain hose (2951261600)

2. Filter drawer spare sponge (2964840100)

3. User Manual (2960311018)

4. Drain connector (2828040100)

10 / 28 EN

Dryer / User Manual

3Installation Instructions

AWARNING - Risk of fire

• The clothes dryer (“appliance‘) installation must be

performed by a qualified installer.

• Install the appliance according to the

manufacturer’s instructions and local codes.

• Do not install a clothes dryer with flexible plastic

venting materials. If flexible metal (foil type) duct

is installed, it must be of a specific type identified

by the ap pliance manufacturer as suitable for use

with clothes dryers. Flexible venting materials are

known to collapse, be easily crushed, and trap lint.

These conditions will obstruct the clothes dryer’s

airflow and increase the risk of fire.

• To reduce the risk of severe injury or death,

follow all installation instructions.

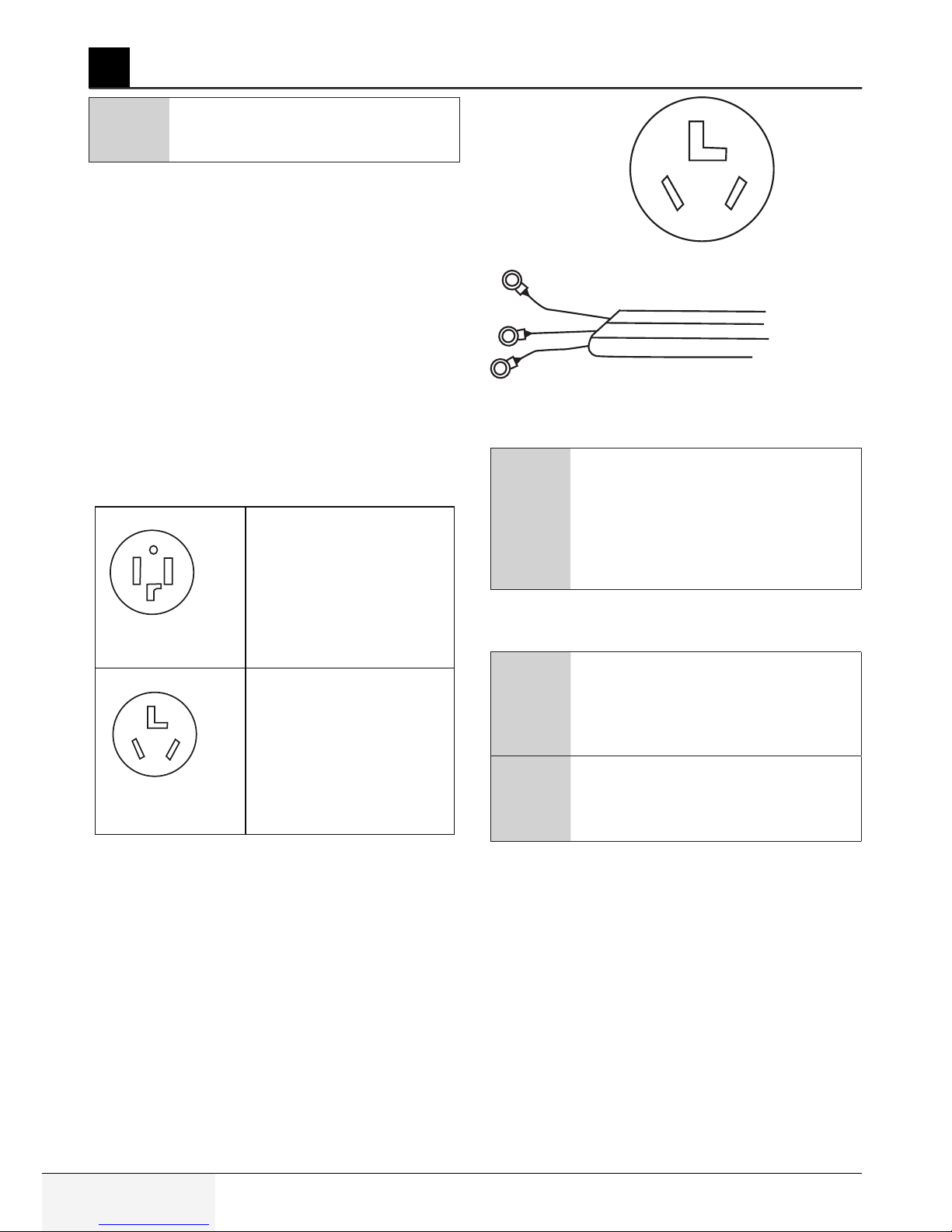

3.1 Electrical connection

Connect the appliance to a grounded outlet protected by

a fuse or circuit breaker of suitable capacity.

4-wire receptacle

(14 -30R)

3-wire receptacle

(10 -30R)

If yo u have 3-wir e receptacle, like

this , a 3-wire dryer cord mu st be

purchased locall y.

Dryer shipped with cord to ﬁt this

type 4 -wire receptacle

3-Wire Electrical Connection

If your receptacle is a 3-wire receptacle as shown

below, you must obtain a 3-wire dryer cord. A dryer

cord can usually be found at your local hardware

supply, electrical supply or home center. Cord should

have closed loop or upturned end wire terminating

connectors. The cord kit must be marked “For Use with

Clothes Dryers”.

3- wire receptacle

( 10-30R)

Typical 3- Wire Dryer Cord 240V/30 amp

NEMA 10-30 Type SRDT

If the dryer is installed in a mobile home,

recreational vehicles, new branch-circuit

installations or in areas where local

codes do not permit grounding through

the neutral conductor, only a 4-wire

power supply cord shall be used.

To change the cord:

1. Make sure that the dryer is not plugged into any

power outlet.

BDO NOT plug end of dryer power cord

into a live receptacle before connecting

dryer power cord to dryer terminals and

closing junction/splitter box as described

below.

BDO NOT repair old power supply cords.

Power cord must be changed only by a

qualified person. There is a risk of electric

shock!

2. Remove the screw from the cover of the junction box

located at the top rear of the dryer.

3. Remove the red, white and black wire from the

terminal block.

4. Remove the green ground wire from the ground

terminal.

5. Loosen the strain relief clamp holding the 4-wire

cable.

6. Thread the 4-wire cable out through the strain relief

clamp.

7. Thread the new 3-wire dryer cord through the strain

relief clamp.

8. Attach the power cord Ground conductor (the center

wire) to the terminal labeled N. Connect the

terminal labeled N and the Ground terminal labeled

G. Tighten the terminals so that they securely hold

the conductors.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Blomberg Trockner Handbücher

Blomberg

Blomberg DV 16540 NBL00 Bedienungsanleitung

Blomberg

Blomberg TKF 7431 A Bedienungsanleitung

Blomberg

Blomberg DHP24404W Bedienungsanleitung

Blomberg

Blomberg DV 17540 NBL00 Bedienungsanleitung

Blomberg

Blomberg DV 17540 NBL00 Bedienungsanleitung

Blomberg

Blomberg TKF 7451 AG 50 Bedienungsanleitung

Blomberg

Blomberg TKF 8431 A Bedienungsanleitung

Blomberg

Blomberg TAF 7239 Bedienungsanleitung

Blomberg

Blomberg TKF 8439 Anleitung zur Verwendung

Blomberg

Blomberg TROCKNER TKF 7330 A Bedienungsanleitung

Blomberg

Blomberg TKF 7454 WE 30 Bedienungsanleitung

Blomberg

Blomberg TKF 8451 AG 50 Bedienungsanleitung

Blomberg

Blomberg LTS2932W Bedienungsanleitung

Blomberg

Blomberg LTP 2832W Bedienungsanleitung

Blomberg

Blomberg TKF 7431 A Bedienungsanleitung

Blomberg

Blomberg DV 17600 W Bedienungsanleitung

Blomberg

Blomberg LTH3842W Bedienungsanleitung

Blomberg

Blomberg LTK38020W Bedienungsanleitung

Blomberg

Blomberg TKF 8451 SGC 30 Bedienungsanleitung

Blomberg

Blomberg DV 16540 Service-Handbuch

Blomberg

Blomberg TKF 8451 ZGC 50 Bedienungsanleitung

Blomberg

Blomberg TKF 7231 Bedienungsanleitung

Blomberg

Blomberg TKF 8431 Bedienungsanleitung

Blomberg

Blomberg DV 16540 NBL00 Bedienungsanleitung

Beliebte Trockner Handbücher anderer Marken

Bosch

Bosch WTA79200GB Bedienungsanleitung

Amana

Amana W10233410A Bedienungsanleitung

Miele

Miele TWH 780 WP Bedienungsanleitung

Asko

Asko T760 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Bedienungsanleitung

Bosch

Bosch Logixx 10 WTB76556GB Technisches Datenblatt

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Bedienungsanleitung

Electrolux

Electrolux EW2H328R2 Bedienungsanleitung

Beko

Beko DS8433RX1M Bedienungsanleitung

Dawlance

Dawlance Spinner DS 6000 C Bedienungsanleitung

Electrolux

Electrolux TP5080TW Bedienungsanleitung

AEG

AEG TR838P4OB Bedienungsanleitung

Indesit

Indesit IDV 75 Bedienungsanleitung

Infiniton

Infiniton SD-DG85C Bedienungsanleitung

BOMANN

BOMANN WT 5019 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Bedienungsanleitung

Asko

Asko T793C Bedienungsanleitung

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Bedienungsanleitung
