Blomberg KGM 9680 Bedienungsanleitung

Instruction manual

KGM 9680

Frost Free Combi

Fridge Freezer

Please read this manual first!

Dear Customer,

We hope that your product, which has been produced in modern plants and

checked under the most meticulous quality control procedures, will provide you

an effective service.

For this, we recommend you to carefully read the entire manual of your product

before using it and keep it at hand for future references.

This manual

• Will help you use your appliance in a fast and safe way.

• Read the manual before installing and operating your product.

• Follow the instructions, especially those for safety.

• Keep the manual in an easily accessible place as you may need it later.

• Besides, read also the other documents provided with your product.

Please note that this manual may be valid for other models as well.

Symbols and their descriptions

This instruction manual contains the following symbols:

CImportant information or useful usage tips.

AWarning against dangerous conditions for life and property.

BWarning against electric voltage.

This product is supplied with the selective sorting symbol for waste electrical

and electronic equipment (WEEE).

This means that this product must be handled pursuant to European Directive

2002/96/EC in order to be recycled or dismantled to minimise its impact on

the environment. For further information, please contact your local or regional

authorities.

Electronic products not included in the selective sorting process are potentially

dangerous for the environment and human health due to the presence of

hazardous substances.

Recycling

CONTENTS

1 Your refrigerator 4

2 Warnings 5

ELECTRICAL REQUIREMENTS......... 6

WARNING! THIS APPLIANCE MUST BE

EARTHED.......................................... 6

ENERGY SAVING TIPS...................... 7

3 Installation 8

TRANSPORTATION INSTRUCTIONS. 8

REPLACING THE INTERIOR LIGHT

BULB ............................................. 10

REVERSING THE DOORS............... 11

Reversing the doors ........................ 13

4 Before operating 14

Final Check ..................................... 14

5 Using your refrigerator 15

TEMPERATURE CONTROL AND

ADJUSTMENT................................. 15

SUGGESTED ARRANGEMENT OF

FOOD IN THE FRIDGE/FREEZER .... 16

STORING FROZEN FOOD............... 17

FREEZING FRESH FOOD................ 17

Icematic and ice storage container ..18

MAKING ICE CUBES....................... 18

DEFROSTING.................................. 19

6 Maintenance and

cleaning 20

7 Do’s and Don’ts 21

8 How To Obtain Service 23

9 Guarantee Details 24

1Your refrigerator

1. Thermostat knob

2. Interior Light

3. Adjustable body shelves

4. Defrost water collection

channel - Drain tube

5. Crisper cover

6. Crisper

7. Icebank

8. Icebank tray

9. Deep-freeze compartment

10. Adjustable front feet

11. Fridge compartment door shelves

12. Dairy compartment

13. Egg holders

14. Bottle shelter wire

15. Wine rack

16. Fridge compartment

17. Freezer compartment

CFigures that take place in this instruction manual are schematic and may not

correspond exactly with your product. If the subject parts are not included in the

product you have purchased, then it is valid for other models.

Congratulations on your choice of a BLOMBERG quality Appliance which has

been designed to give you service for many years.

2Warnings

•DO NOT connect your appliance to

the electricity supply until all packing

and transit protectors have been

removed.

• Leave to stand for at least 4

hours before switching on to allow

compressor oil to settle if transported

horizontally.

• If you are discarding an old

refrigerator with a lock or latch fitted

to the door, disable the lock/latch,

ensure that it is left in a safe condition

to prevent the entrapment of young

children.

• This fridge/freezer must only be used

for its intended purpose i.e the storing

and freezing of edible foodstuff.

• Do not dispose of the appliance on

a fire. At BLOMBERG, the care and

protection of our environment is an

ongoing commitment. This appliance

which is among the latest range

introduced is particularly environment

friendly. Your appliance contains non

CFC / HFC natural substances in the

cooling system (Called R600a) and in

the insulation (Called cyclopentane)

which are potentially flammable

if exposed to fire. Therefore, take

care not to damage, the cooling

circuit / pipes of the appliance in

transportation and in use. In case of

damage do not expose the appliance

to fire or potential ignition source and

immediately ventilate the room where

the appliance is situated.

• We suggest you contact your local

authority for disposal information and

facilities available.

• See Installation Instructions on on

page 9 for information on suitable

location.

• To obtain the best possible

performance and trouble free operation

from your appliance it is very important

to carefully read these instructions.

• On delivery, check to make sure that

the product is not damaged and that

all the parts and accessories are in

perfect condition.

• Ensure that the plug remains readily

accessible. Do not use multiple

adapter bar or extension cable.

• Failure to observe these instructions

may invalidate your right to free service

during the guarantee period.

• Keep ventilation openings, in the

appliance enclosure or in the built-in

structure, clear of obstruction.

• Do not use mechanical devices

or other means to accelerate the

defrosting process, other than those

recommended by the manufacturer.

• Do not damage the refrigerant circuit.

• Do not use electrical appliances

inside the food storage compartments

of the appliance, unless they are

of the type recommended by the

manufacturer.

• We suggest you keep these

instructions in a safe place for easy

reference.

• This appliance is not intended for use

by persons (including children) with

reduced physical, sensory or mental

capabilities, or lack of experience

and knowledge, unless they have

been given supervision or instruction

concerning use of the appliance by a

person responsible for their safety.

• Children should be supervised to

ensure that they do not play

with the appliance.

ELECTRICAL

REQUIREMENTS

Before you insert the plug into the wall

socket make sure that the voltage and

the frequency shown on the rating

plate inside the appliance corresponds

to yourelectricity supply.

Rating label is on the left hand side of

fridge inner liner.

We recommend that this appliance be

connected to the mains supply via a

suitable switched and fused socket.

The appliance must be positioned so

that the plug is accessible.

Should the mains lead of the appliance

become damaged or should it need

replacing at any time, it must be

replaced by a special purpose made

mains lead which can only be obtained

from a BLOMBERG Authorised Service

Agent.

WARNING! THIS APPLIANCE

MUST BE EARTHED

If the fitted moulded plug is not

suitable for your socket, then the plug

should be cut off and an appropriate

plug fitted. Destroy the old plug which

is cut off as a plug with bared cord

could cause a shock hazard if inserted

into a socket elsewhere in the house.

The moulded plug on this appliance

incorporates a 13 A fuse. Should

the fuse need to be replaced an

ASTABEAB approved BS 1362 fuse

of the same rating must be used. Do

not forget to refit the fuse cover. In the

event of losing the fuse cover the plug

must not be used until a replacement

fuse cover has been fitted. Colour

of the replacement fuse cover must

be the same colour as that visible on

the pin face of the plug. Fuse covers

are available from any good electrical

store.

IMPORTANT! FITTING A

DIFFERENT PLUG

As the colours of the wires in the

mains lead of this appliance may

not correspond with the coloured

markings identifying the terminals in

your plug proceed as follows: (See

diagram).

1. Connect the green-yellow or green

(Earth) wire to the terminal in the plug

marked ‘E’ or with the symbol or

coloured green and yellow or green.

2. Connect the blue (Neutral) wire to

the terminal in the plug marked ‘N’ or

coloured black.

3. Connect the brown (Live) wire to

the terminal in the plug marked ‘L’ or

coloured red.

With alternative plugs a 13 A fuse must

be fitted either in the plug or adaptor

or in the main fuse box. If in doubt

contact a qualified electrician.

FITTED WITH

BS 1362 13A FUSE ALWAYS

FIT BS 1362 REPLACEMENT

CARTRIDGE FUSE

GREEN &

YELLOW

GREEN

BLUE

BLACK

BROWN

RED

22mm.

6mm.

6mm. 32mm.

12mm.

FUSE

CORD GRIP

ENERGY SAVING TIPS

1- Ensure your appliance is installed in

a well ventilated area.

2- Ensure the time between buying

chilled/frozen food and placing them

in your appliance is kept at minimum,

particularly in summer. We recommend

you use a cool bag or a special carrier

bag to carry frozen food.

3- Do not leave the door (s) of your

appliance open longer than necessary

and ensure they are closed properly

after each opening.

4- Defrost frozen food in the fridge

compartment, so that frozen food acts

as an ice pack to assist cooling in the

fridge.

3Installation

TRANSPORTATION

INSTRUCTIONS

1. The appliance should be

transported only in a vertical upright

position. The packing as supplied

must be intact during transportation.

2. If during the course of transport

the appliance has to be transported

horizontally, it must only be laid on its

right hand side when standing in the

frontof the appliance. After bringing

it to upright position,it must not be

operated for at least 4 hours to allow

the system to settle.

3. Failure to comply with the

above instructions could result in

damage occuring to the appliance.

The manufacturer will not be held

responsible if these instructions are

disregarded.

4. The appliance must be protected

against rain, moisture and other

atmospheric influences.

5. When positioning your appliance

take care not to damage your flooring,

pipes, wall coverings etc. Do not move

the appliance by pulling by the door or

handle.

6. Empty any water in the drain

tray before moving. See section

‘Defrosting’ and ‘Care & cleaning’ for

further information.

7. Make sure that the defrost water

pipe at the back of the product is fixed

to the plastic evaporating pan on the

top of the compressor, to avoid defrost

water spillage on the floor.

IMPORTANT : Care must be taken

while cleaning / carrying the appliance

to avoid touching the bottom of the

condenser metal wires at the back of

the appliance as you might injure your

fingers and hands.

Do not attempt to sit or stand on top

of your appliance as it is not designed

for such use. You could injure yourself

or damage the appliance.

“IMPORTANT: Make sure that

mains cable is not caught under the

appliance during and after carrying

/ moving the appliance, to avoid

the mains cable becoming cut or

damaged.”Do not allow children to

play with the appliance or tamper with

the controls.

BLOMBERG declines to accept any

liability should the instructions not be

followed.

INSTALLATION INSTRUCTIONS

1. The space in the room where the

appliance is installed must not be

smaller than 10 cubic metres.

2. This appliance is designed to

operate at temperatures specified

in the table below is equipped with

Advanced Electronic Temperature

Control System [AETCS] which

ensures that at the advised setting [4

- four on the knob] the frozen food in

the freezer will not defrost even if the

ambient temperature falls as low as

-15 °C. When first installed the product

MUST NOT be placed in low ambient

temperatures because the freezer will

not reduce to it’s standard operating

temperature. Once it has reached its

steady operating state it can be re-

located. So you may then install your

appliance in a garage or an unheated

room without having to worry about

frozen food in the freezer being spoilt.

However at low ambient temperatures

mentioned above, fridge contents are

likely to freeze, so check and consume

food in the fridge accordingly. When

the ambient temperature returns to

normal, you may change the knob

setting to suit your needs.

CIf the ambient temperature is

below 0°C, the food in the fridge

compartment will freeze.So, we

recommend you don’t use the fridge

compartment in such low ambient

conditions. You can continue using the

freezer compartment as usual.

3. Make sure that sufficient room is

provided around the appliance to

ensure free air circulation. Fit the two

plastic wall spacers supplied with the

appliance to the condenser on the

back of the appliance by rotating 1/4

turn.

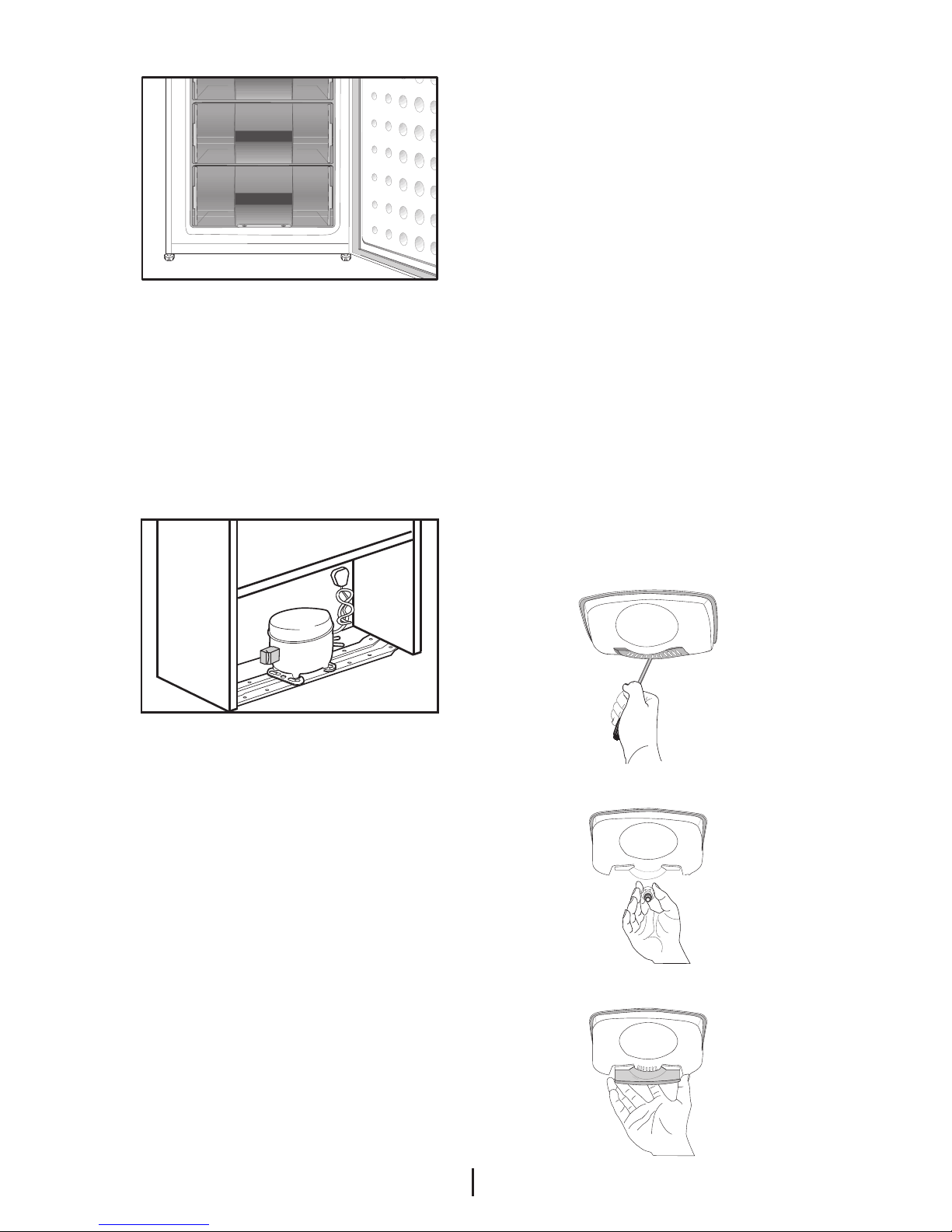

(See Diagram).

4. The fridge/freezer should be located

on a smooth surface. The two front

feet can be adjusted as required. To

ensure that your appliance is standing

upright adjust the two front feet by

turning clockwise or anti-clockwise,

until the product is in firm contact with

the floor. Correct adjustment of feet

avoids excessive vibration and noise.

5. Refer to cleaning and care section

to prepare your appliance for use.

A special receptacle is supplied to

store the mains plug during transit.

The receptacle is fixed at the back

of the cabinet, on the side of the

compressor. (See diagram) Gently

remove the plug from the receptacle.

Never pull the mains cord, you may

damage the appliance. In the case

of transportation, ensure you locate

the plug in the receptacle provided to

avoid transit damage.

REPLACING THE INTERIOR

LIGHT BULB

Should the light fail to work, proceed

as follows.

1. Switch off at the socket outlet and

pull out the mains plug.

• You may find it useful to remove

shelves for easy access.

2. Use a flat tipped screwdriver to

remove the light diffuser cover by

inserting the blade in each of the two

recesses to prise off each side.

3. First check that the bulb hasn’t

worked loose by ensuring it is screwed

securely in the holder. Replace the

plug and switch on. If the bulb works,

replace the light cover by inserting the

rear lug and pushing up to locate the

front two lugs.

4. If the light still fails to work, switch

off at the socket outlet and pull out

the mains plug. Replace the bulb with

a new 15 watt (max) screw cap (SES)

bulb.

5. Carefully dispose of the burnt-out

light bulb immediately. Replacement

light bulb can easily be obtained from

a good local electrical or DIY store.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Blomberg Kühlschrank Handbücher

Blomberg

Blomberg DNE 1870 Bedienungsanleitung

Blomberg

Blomberg KFD 9952 XA+ Bedienungsanleitung

Blomberg

Blomberg BRFB1812SSL Bedienungsanleitung

Blomberg

Blomberg KNM4760XN Bedienungsanleitung

Blomberg

Blomberg SND 9700 Bedienungsanleitung

Blomberg

Blomberg DNE 9887 X A+ Bedienungsanleitung

Blomberg

Blomberg FNT 9683 N Bedienungsanleitung

Blomberg

Blomberg KQD 1253 XN-KQD1254XN Bedienungsanleitung

Blomberg

Blomberg SSM 9550 A+ Bedienungsanleitung

Blomberg

Blomberg SSM1420XN Bedienungsanleitung

Blomberg

Blomberg BRSBS 2130 Bedienungsanleitung

Blomberg

Blomberg SND 9680 XA+ Bedienungsanleitung

Blomberg

Blomberg SSM 1450 I A++ Bedienungsanleitung

Blomberg

Blomberg BRFB 1150 Bedienungsanleitung

Blomberg

Blomberg KND23675V Bedienungsanleitung

Blomberg

Blomberg DSM 1510 i Bedienungsanleitung

Blomberg

Blomberg TSM 1551 Bedienungsanleitung

Blomberg

Blomberg KFD 9952 PXD Bedienungsanleitung

Blomberg

Blomberg KWD 1330 X Bedienungsanleitung

Blomberg

Blomberg KNM 9860 XA+ Bedienungsanleitung

Blomberg

Blomberg SST4455VI Bedienungsanleitung

Blomberg

Blomberg KNE4554EVI Bedienungsanleitung

Blomberg

Blomberg BRFB1044WH Bedienungsanleitung

Blomberg

Blomberg DNE 9650 Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
