BluEye PRO Bedienungsanleitung
USER MANUAL
REV C
2
In the package
Blueye Pro underwater drone
Transport Case Reel w/tether
Power magnet
Blueye Surface unit (installed in reel)
Controller
Blueye Charger
Power supply
Charging cable for drone
USB charger
Charging cable for surface unit / controller
Universal mount
Battery (installed in drone)
Hex keys and torx keys
Silicone grease
Spare o-rings
Pin spanner
Spare propellers
3
Drone
The drone is safe to submerge in water to a depth of 305 m / 1000 ft.
Handle
Vertical thruster
Slot for universal mount
Charging port
Camera
Lateral thruster
LED lights and power on/off sensor
Forward thruster
Battery lid
Battery lid screw
Tether shackle
Salt water ballast weight (remove
when diving in fresh water)
Universal mount
4

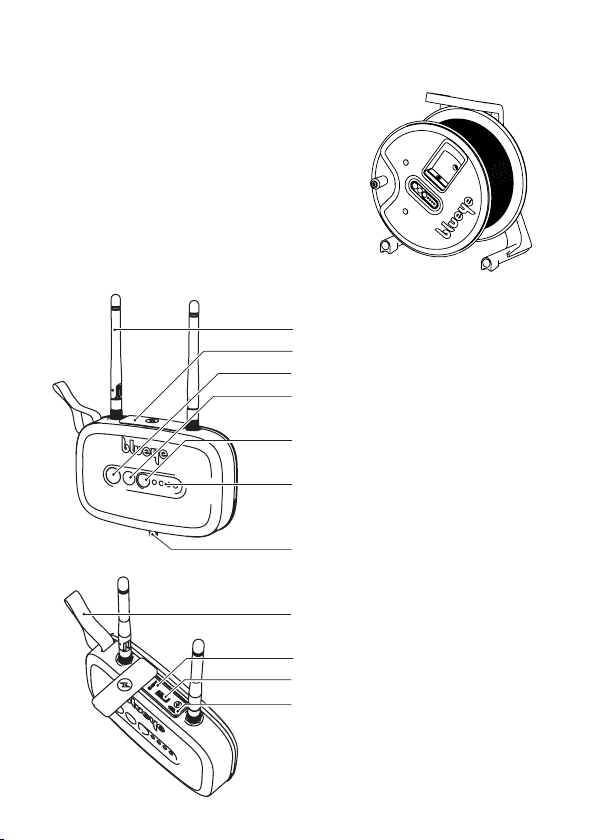

Surface Unit
Antenna
The Blueye Surface Unit(S.U.) is installed
inside the tether reel. All S.U. buttons and
cable ports are accessible through openings
in the front cover on the reel. If you need
to separate the S.U. from the reel, use the
included tools to unscrew the reel cover.
Rubber connector lid
Connection status indicator
Battery check button
Battery level indicator
Tether connector
Securing strap
Reset button
USB accessory port
Charging port (Micro USB)
Power button
5
The surface unit can withstand water spray from
any direction (IP64) when the rubber connector lid
is properly attached. The surface unit CANNOT be
submerged in water.
The operator shall maintain a minimum distance of
20 cm to the surface unit.
> 1,5 m/s
150 m
> 1,5 m/s
150 m
The surface unit is turned on.
The surface unit is turned on and
connected to the drone.
Battery level is low. Push the button
with the battery symbol to check the
battery level.
Battery is fully charged. Push the but-
ton with the battery symbol to check
the battery level.
6
Charger
The charger is NOT splash proof. it needs to be
kept away from water and dust.
> 1,5 m/s
150 m
DC input
Drone charging output
Charging status
Indicates whether the battery is
selected for charging inside or
outside the drone
Select to charge via drone or battery
Battery charging connector
7
To charge the battery inside the drone with the charger cable, set the charger
selector switch to the drone symbol.
To charge the battery outside the drone by connecting it directly to the
charger, set the charger selector switch to the battery symbol.
The battery is charging. The battery is fully charged.
8
Remote controller
Some of the buttons have multiple functions: Press and hold down the
left or right Modifier (L1 or R1) (LT or RB) to enable the (*)-actions.
iOS
L1L2 R1 R2
Modifier*
Boost thruster power
Light ON/OFF
Lock heading ON/OFF
Lock depth ON/OFF
Capture video ON/OFF
*Capture still picture
Pairing button
Modifier*
Decrease thruster power
Left stick
Adjust lights
*Adjust camera exposure
Tilt function
Power button
Right stick
(Hold down Modifier to enable)
Pro
*Adjust camera exposure
(Hold down Modifier to enable)
Tilt function
Android Pro
Modifier*
Boost thruster power
Light ON/OFF
Lock heading ON/OFF
Lock depth ON/OFF
Capture video ON/OFF
*Capture still picture
Modifier*
Decrease thruster power
Left stick
Adjust lights
MODE button
Right stick
*Adjust camera exposure
Tilt function
(Hold down Modifier to enable)
(Hold down Modifier to enable)
LTLB RB RT
iOS
Android
9
Changes in the controller layout can occur.
Diagrams and information regarding changes in control
mapping will be provided in the Blueye App Settings
and the Blueye Help Center (support.blueye.no). Also
make sure you are updated with the latest app.
The remote controller is NOT splash proof. It needs
to be kept away from water and dust.
> 1,5 m/s
150 m
> 1,5 m/s
150 m
10
Left stick
Up/down and sideways
Right stick
Forward/backwards and turning
> 1,5 m/s
150 m
> 1,5 m/s
150 m
Down
Up Forwards
Backwards
Sideways Left Turn Left
Sideways Right Turn Right
> 1,5 m/s
150 m
> 1,5 m/s
150 m
> 1,5 m/s
150 m
> 1,5 m/s
150 m
> 1,5 m/s
150 m
> 1,5 m/s
150 m
The left and right sticks controls the movements of the drone under water.
Press and hold the left and right lower triggers (L2 and R2) (LB and RT) to
gradually decrease or boost the thrust power.
Decreasing the thrust is recommended in situations were higher precision
is needed, for example stable video shoots or tricky navigation. Boosting of
the thrust can be helpful when diving in higher currents or if faster motion
is needed. Note that boosting will drain the battery faster.
