588-OEM-1NS Board Level Overview
The 588-OEM-1NS is a board level, digital pulse generator based on the 565 series
in terms of specifications, communications, and overall functionality. The unit
is available with 2, 4, or 8 independent outputs for synchronizing
multiple events. All communications take place through RS232, USB, or
GPIB as there is no keypad/display interface included. Like the 565, the
8510 is capable of generating multiple pulses and triggers for all
applications; although, additional setup is required before basic operation
may begin.
Mounting & Communications
•Care should be taken in mounting the OEM board. As no mounting holes
are included, it is recommended that card guide mounts (or equivalent)
be used. Mechanical clearances can be seen below in Figure 1. Care
should be taken to ensure that no foreign conductive material makes
contact with either side of the OEM board to eliminate destructive
electrical shorting.
•All communications take place through a RS232, USB, or GPIB interface
with the use of Standard Commands for Programmable Instruments
(SCPI) command structure. Reference the SCPI command section for
more information regarding the implementation of SCPI syntax allowing
for complete OEM board control.
NOTE: All Display commands should not be used when operating the OEM
as no display interface is included.
Required Connections
•The 588-OEM-1ns must be supplied with +5VDC and +24VDC via connector J20.*
•The power switch connector at J5 must have the pins shorted together for
power to be supplied to the board.
NOTE: This connector comes jumpered.
•The 588-OEM-1ns channel outputs are individually labeled and can be seen below
in Figure 2.
•All other specified connectors shown in Figure 2 can be used for the
implementation of additional features, but are not required during
basic setup and pulsing.
*A recommended +5VDC/+24VDC power supply may be included for an
additional cost.
Model 588 OEM-1NS User Manual
1
Berkeley Nucleonics Corporation
2955 Kerner Blvd, San Rafael, CA 94901 | 800-234-7858
9/14
Board Level Connection Information
Please refer to the standard user’s manual for operation of the unit and how
the connections work.
•Molex 4 pin female C-grid (Molex #50-57-9404). Contacts, Molex
Power Connection (J20)
#16-02-0103.
Number Name Type Specification
1 (denoted by arrow) +5VDC Supply Power Input +5VDC +/-100mV @ 1.2A max*
2 Ground Power Return 0V power supply return
3 Ground Power Return 0V power supply return
4 +24VDC Supply Power Input +24VDC +/- 200mV @ 1.5A max*
*Worst case current when driving all outputs into 50 ohm loads.
•Molex 2 pin female C-grid (Molex #50-57-9402) Contacts, Molex
Power Switch (J5)
#16-02-0103.
NOTE: this connector comes jumpered. Pins 1 and 2 can be opened and
closed (shorted) to control power supply to unit. Closed = power on,
Open = power off.
•Standard density D-Sub male connector.
RS232 Connection (J16)
Number Name
1 No Connection
2 Tx –Transmit (To PC)
3 Rx –Receive (From PC)
4 DTR –Connected to pin 6
5 Ground
6 DSR –Connected to pin 4
7 RTS –Connected to pin 8
8 CTS –Connected to pin 7
9 No Connection
2
Berkeley Nucleonics Corporation
2955 Kerner Blvd, San Rafael, CA 94901 | 800-234-7858
9/14
•USB Type B
USB Connection (J21)
Number Name
1 USB Vbus +
2 USB Data-
3 USB Data+
4 USB Ground
•Standard IEEE 488 24 pin connector
GPIB Connection (J22)
Number Name
1 Data I/O 1
2 Data I/O 2
3 Data I/O 3
4 Data I/O 4
5 EOI
6 DAV
7 NRFD
8 NDAC
9 IFC
10 SRQ
11 ATN
12 Shield
13 Data I/O 5
14 Data I/O 6
15 Data I/O 7
16 Data I/O 8
17 REN
18 Ground
19 Ground
20 Ground
21 Ground
22 Ground
23 Ground
24 Ground
3
Berkeley Nucleonics Corporation
2955 Kerner Blvd, San Rafael, CA 94901 | 800-234-7858
9/14
•Molex 2 pin female C-grid (Molex #50-57-9402). Contacts, Molex
External Trigger/Gate (J3)
#16-02-0103.
Number Name
1 Trigger/Gate input signal (0-30VDC)
2 Ground
•Molex 2 pin female C-grid (Molex #50-57-9402). Contacts, Molex
Ch A (J8), Ch B (J9), Ch C (J6), Ch D (J7), Ch E (J10), Ch F (J11), Ch G
(J12), Ch H (J13)
#16-02-0103.
Number Name
1 Positive channel output signal (TTL 5V or 2-20V Adj)
2 Ground
•Molex 2 pin female C-grid (Molex #50-57-9402). Contacts, Molex
Clock Out (J2)
#16-02-0103.
Number Name
1 Clock output reference (TTL 5V)
2 Ground
•Molex 2 pin female C-grid (Molex #50-57-9402). Contacts, Molex
Clock In (J1)
#16-02-0103.
Number Name
1 External clock input (TTL 5V)
2 Ground
4
Berkeley Nucleonics Corporation
2955 Kerner Blvd, San Rafael, CA 94901 | 800-234-7858
9/14
Figure 1 –8510 Mechanical Interface
5
Berkeley Nucleonics Corporation
2955 Kerner Blvd, San Rafael, CA 94901 | 800-234-7858
9/14

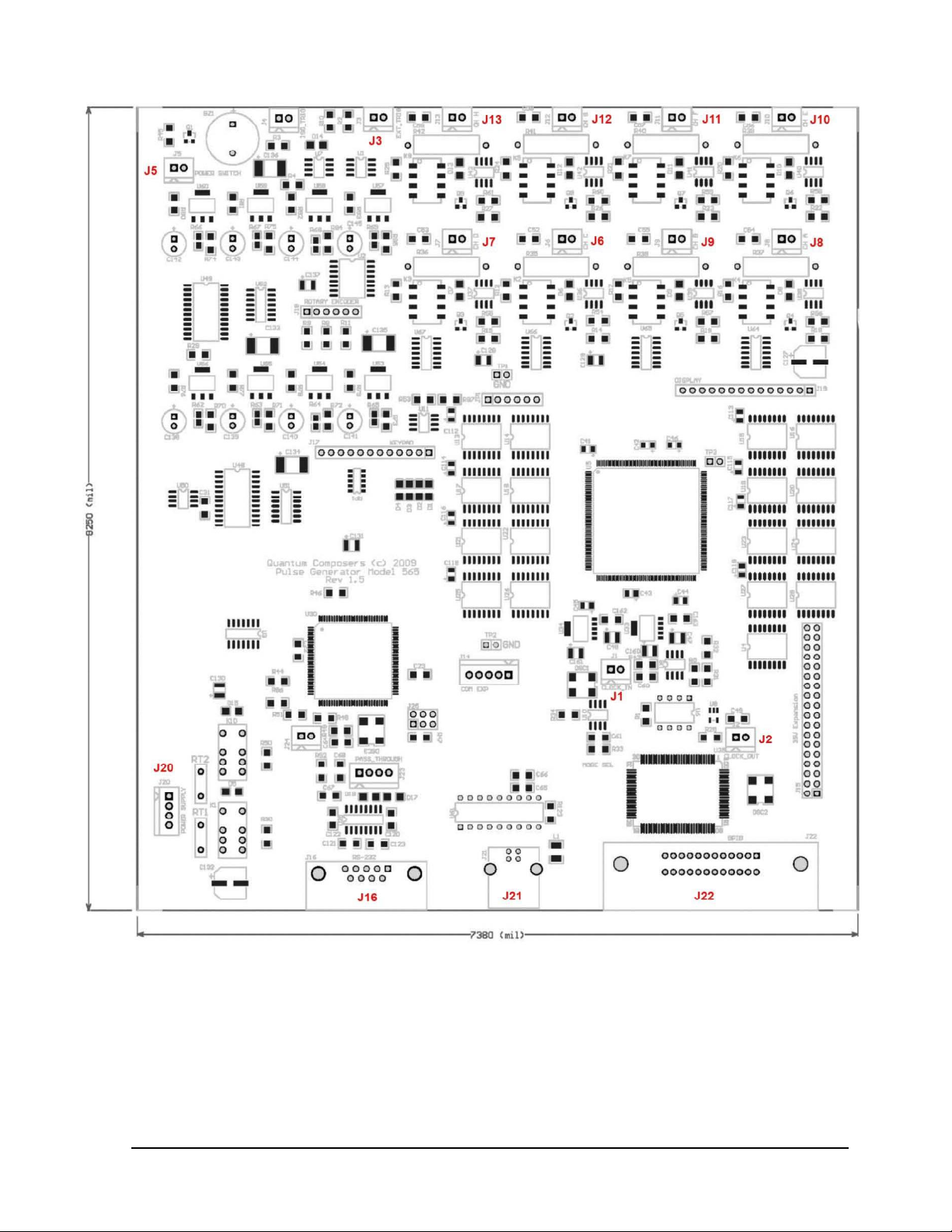

Figure 2 –Component/Connector layout
