Bolton Technical Velocity Vehicle Bedienungsanleitung
User Manual
Bolton Velocity Vehicle
Bolton Velocity Trucker
www.boltontechnical.com
1-888-987-2658
BT459624-M
BT459624-T
Page 2Version 1 | May 9. 2023 | www.boltontechnical.com | 1.888.987.2658
HEY THERE!
Thanks for purchasing the Bolton Velocity. You’ve taken the largest
step in ridding your vehicle of poor cell signal. Each version of the
Victory kit has been carefully designed to provide the absolute best,
most user-friendly signal booster experience out there.
We may be easy-going, but make no mistake: we know our stuff. We work tirelessly to provide the
best RF equipment out there, with the highest level of know-how and support anyone could ask for.
It’s our passion. Let us help make it yours.
Page 3
TABLE OF CONTENTS
ABOUT US 2
HOW IT WORKS 4
WHAT’S IN THE BOX? 5
INSTALLATION OVERVIEW 6
ANTENNA TYPES AND NECESSARY SEPARATION 6
BOLTON VELOCITY VEHICLE 7
BOLTON VELOCITY TRUCKER 11
LED INDICATORS 15
TROUBLESHOOTING 16
SPECIFICATIONS 17
CONSUMER GUIDELINES 20
WARRANTY 21
Page 4Version 1 | May 9. 2023 | www.boltontechnical.com | 1.888.987.2658
1. How it works
Every signal booster kit is made up of three key components:
• Outside antenna(s) - Captures cell signal from nearby cell tower
•Signalbooster,oramplier–Booststhecapturedsignal
• Inside antenna(s) - Broadcasts the boosted signal indoors
These components are connected by coaxial cable.
Your performance will vary as you drive, as the quality of signal changes while
you move. However, you should see a dramatic reduction in size and scope of
dead zones, faster data, and a far more reliable ability to make calls.
COMPATIBILITY
The Bolton Victory works with:
AT&T
Verizon
T-Mobile
US Cellular
All other US carriers and MVNOs
Booster B-Flat Inside
Antenna
Outside
Antenna
Page 5
2. What’s in the Box?
ThecoreofeachBoltonVictorykitis–youguessedit–aBoltonVictorycell
phone signal booster. However, the rest of the contents in your box will vary
dependingonthespecickitpurchased.
We recommend getting started by unpacking all contents of the box. For
missing or damaged items, contact your reseller.
2.1 Bolton Velocity Vehicle
1x Bolton Velocity Signal Booster .............................................................. BT459624
1x Outside 4” Mighty Mag Antenna ......................................................... BT974068
1x Inside B-Flat Antenna FME ...................................................................... BT459679
1x Power Supply .................................................................................................... BT459815
1x Accessory Mounting Pack
2x Adapter FME-Female to SMA-Female ............................................ BT512037
2.2 Bolton Velocity Trucker
1x Bolton Velocity Signal Booster .............................................................. BT459624
1x Outside Blade Antenna w/ Mirror Mount Kit ............................... BT151908
1x Inside B-Flat Antenna .................................................................................. BT459679
1x Power Supply .................................................................................................... BT459815
1x Accessory Mounting Pack
1x Adapter FME-Female to SMA-Female .............................................. BT512037
Page 6Version 1 | May 9. 2023 | www.boltontechnical.com | 1.888.987.2658
3. Installation Overview
3.1 Antenna Types and Necessary Separation
These are the antenna types which are kitted with the Bolton Victory.
OUTDOOR:
TheMightyMag–Small,4”magnet-mountomni-directionalantenna.Easiest
to install and provides decent gain on the road.
BladeOTRAntenna–Powerfulover-the-roadantennaprovidesmaximumgain
while allowing for phenomenal aerodynamics.
INDOOR:
FlatAntenna–Versatileindoorantennawhichcanbeplacedanywhere
antennas is needed most without compromising aesthetics.
IndoorWhip–Snapsondirectlytobooster.Easiesttoinstall,butprovidesthe
smallest amount of gain.
A Word on Separation
Keeping your outdoor antenna and inside antenna separate is key for
performance. That’s why we recommend installing the two components as far
from one another as possible.
For Mighty Mag Users:
If you’re looking to improve signal in the driver or passenger seat, we
recommend installing the Mighty Mag antenna near the back of your vehicle.
For improving signal in the back seat, install the antenna close to the front of
your vehicle.
For Blade Users:
If you’re driving a semi, install the Blade on the opposite side of where you
intendtoplacetheatantenna.
Page 7
4. Bolton Velocity Vehicle
Step 1: Mount Mighty Mag Antenna
Place the Mighty Mag antenna on top of your vehicle, preferably toward the
back, maximizing the distance from the planned location of the inside patch
antenna. Ensure the antenna has at least a 12-inch radius clear of obstructions
and other radiating elements, such as radio antenna.
Next, run the cable from the outside antenna across the vehicle’s roof and
inside. To hide and protect the antenna cable, pull down the door seal, run
cable underneath it and push the seal back into place. Run the cable to the
inside of the vehicle near the planned location of the booster.
Page 8Version 1 | May 9. 2023 | www.boltontechnical.com | 1.888.987.2658
Step 2: Install Inside Flat Antenna
Identify a location for the inside antenna or near your front dashboard that is:
1. Within 2-3 ft of the most common cell phone location
2. least 8 inches from cellular devices
3. At least 4 inches from metal
Next, peel the Velcro backing and apply to a clean dry surface in your
chosen location.
Or, use the free vent clip provided by with your product as a mounting surface
then clip it to the air vent.
Page 9
Step 3: Place Booster and Connect Cables
Select a well-ventilated area away from excessive heat, direct sunlight, and
moisture. We usually recommend installing the booster under a seat or within
the front console.
Connect the cable from the outside antenna to the connection marked
OUTSIDEandconnectthecablefrominsideatantennatotheconnection
marked INSIDE. Tighten the connections and wrap up any loose cable. You
may need to use the included adapters to connect cable properly.
NOTE: Included adapters may be needed to connect cable to booster.
Outside Antenna
Inside Patch Antenna
DC Power Jack
Page 10 Version 1 | May 9. 2023 | www.boltontechnical.com | 1.888.987.2658

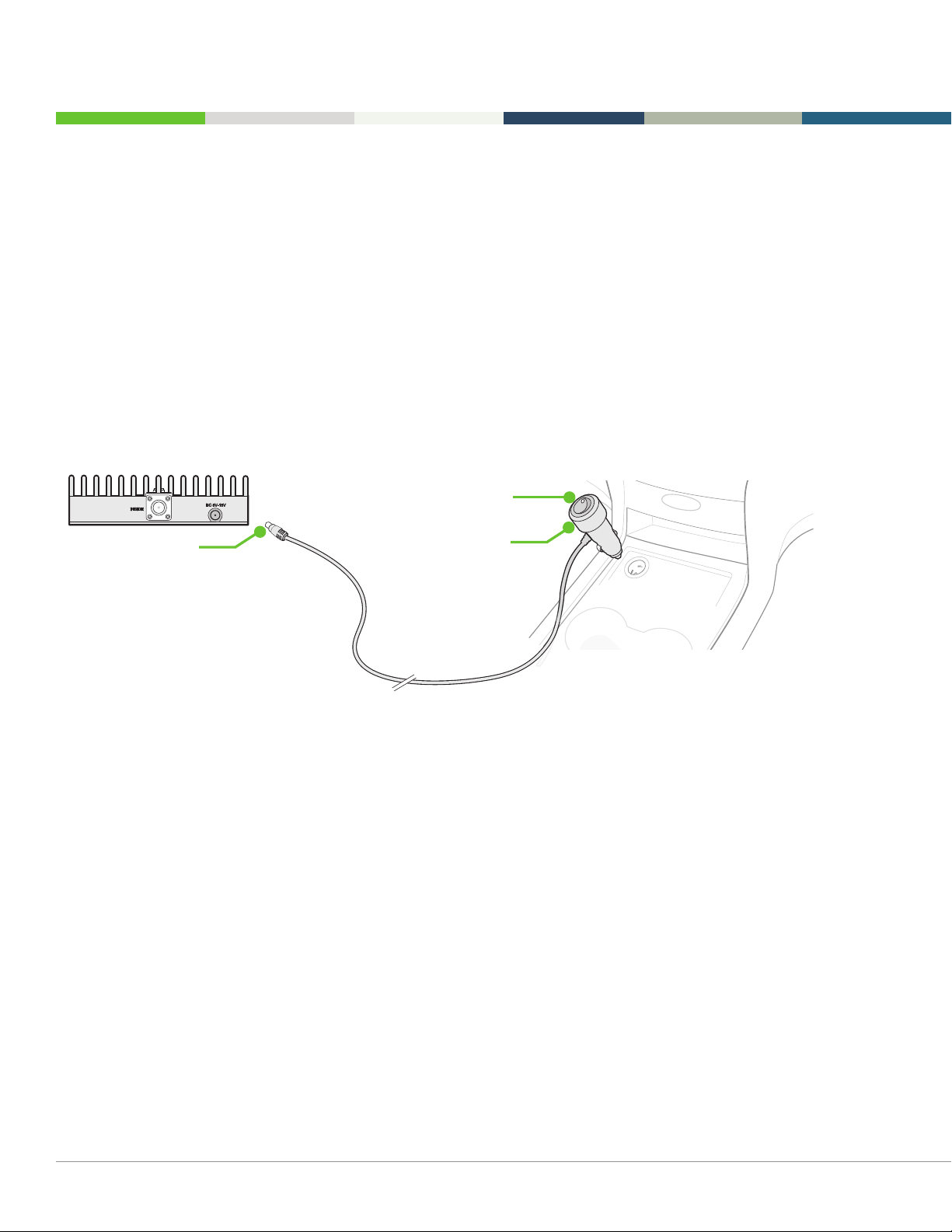

Step 4: Connect Power
Connect the power cord connector to the signal booster and insert the other
end into your cigarette lighter adapter. The Power LED illuminates to show
thesignalboosterisreadyforuse.TheAlertLEDsash5timestoshowthe
frequency band is operational.
Note: When your vehicle is off, turn the power switch to OFF to keep the
booster from continuing to draw power from your vehicle.
DC Power
Adapter
Power Switch
Power
Connector
