New 300/500/800 Bosch Dishwasher Installation - Overview

New Improvements for faster, safer, and more secure Installations

Home Appliances - For Internal Use Only - Do Not Distribute

Internal use only| PDC-RNA/MK | March 2013| © Robert Bosch Hausgeräte GmbH, Munich reserves all rights even in the event of industrial

property rights. We reserve all rights of disposal such as copying and passing on to third parties..

Factory applied installation pop will be included on the

back of the new units

New Bosch Dishwasher Installation – Guidance with POP

Home Appliances - For Internal Use Only - Do Not Distribute

Internal use only| PDC-RNA/MK | March 2013| © Robert Bosch Hausgeräte GmbH, Munich reserves all rights even in the event of industrial

property rights. We reserve all rights of disposal such as copying and passing on to third parties..

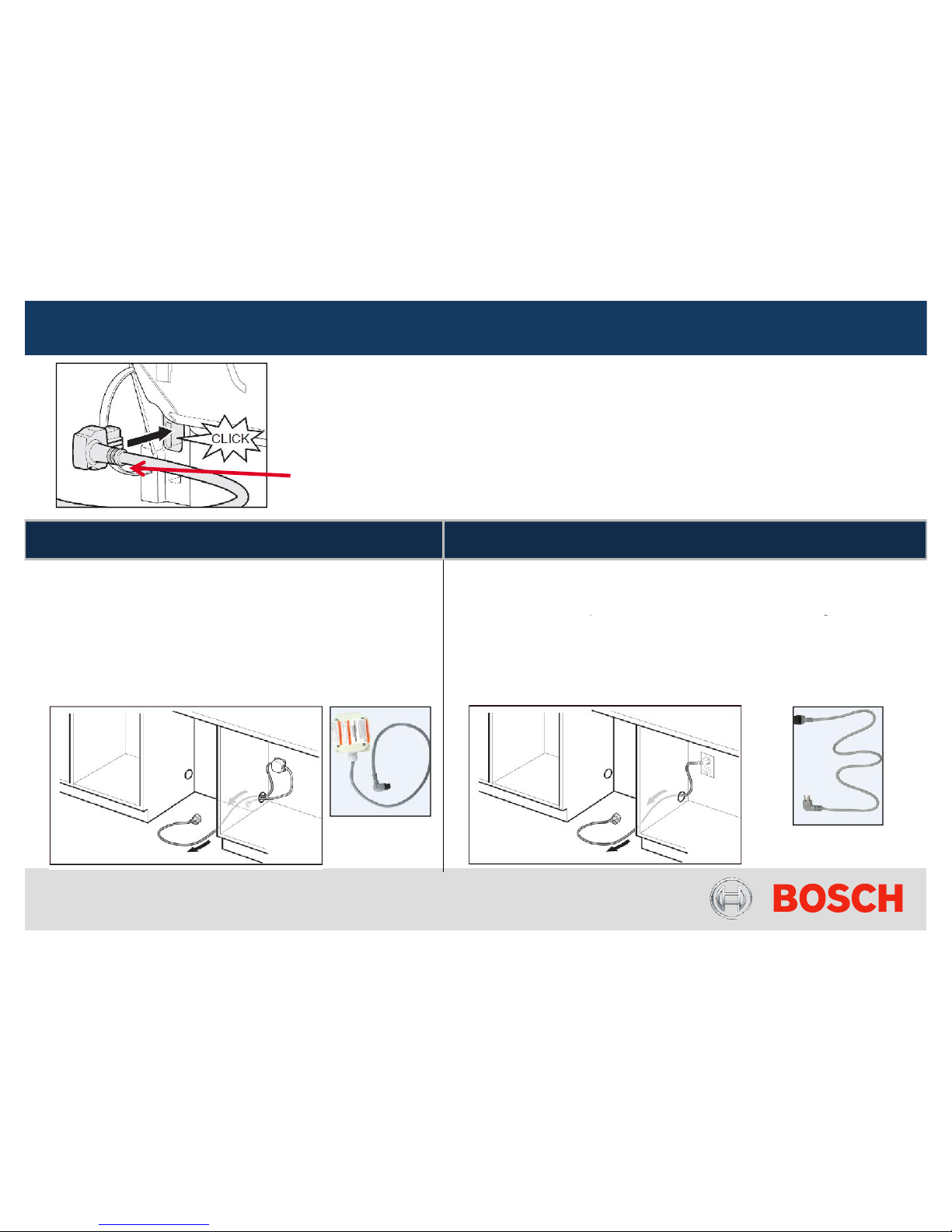

Bosch dishwashers (300 ,500, 800 series) now have new electrical installation

options.

New – a proprietary connector plug in the rear for a safe and quick installation.

Option #1: Hardwire

New Dishwasher Electrical Installation Options

•Power cord with junction box shipped with the appliance

•This installation type is valid for ~70 % of installations in

North America

Option #2: 3-prong receptacle plug

•Accessory 3-prong plug power cord kit available for purchase

(SMZPC002UC) SOS Item # 511341

•The recommended power cord to be used when installing a unit to an

electrical receptacle

•Electrical and plumbing codes vary across North America. The

installing party has the responsibility of ensuring that the dishwasher

installation is in compliance with all national and local electrical and

plumbing codes and ordinances.

Home Appliances - For Internal Use Only - Do Not Distribute

Internal use only| PDC-RNA/MK | March 2013| © Robert Bosch Hausgeräte GmbH, Munich reserves all rights even in the event of industrial

property rights. We reserve all rights of disposal such as copying and passing on to third parties..

•Power cord with junction box shipped with the appliance

•This installation type is valid for ~70 % of installations in

North America

SOS Item # 511341

Supplied with

appliance

•Accessory 3-prong plug power cord kit available for purchase

(SMZPC002UC) SOS Item # 511341

•The recommended power cord to be used when installing a unit to an

electrical receptacle

•Electrical and plumbing codes vary across North America. The

installing party has the responsibility of ensuring that the dishwasher

installation is in compliance with all national and local electrical and

plumbing codes and ordinances.

Installation Option #1: Hardwire

Hardwire Electrical

supply conductors shall be

a minimum #14 AWG

copper wire

rated at 167°F or higher

Connect wires to junction box

terminal block and securely

tighten

the terminal block screws

Plug the end of the power cord

into the back of the dishwasher as

shown

until it clicks

Home Appliances - For Internal Use Only - Do Not Distribute

Internal use only| PDC-RNA/MK | March 2013| © Robert Bosch Hausgeräte GmbH, Munich reserves all rights even in the event of industrial

property rights. We reserve all rights of disposal such as copying and passing on to third parties..

The dishwasher is designed for an electrical supply of 120V, 60 Hz, AC, connected to a dishwasher-dedicated,

properly grounded electrical circuit with a fuse or breaker rated for 15 amps.

•Accessory 3-prong plug power cord kit available for purchase

•The recommended power cord to be used when installing a unit to an electrical receptacle

•Electrical and plumbing codes vary across North America. The installing party has the responsibility of

ensuring that the dishwasher installation is in compliance with all national and local electrical and

plumbing codes and ordinances.

•Applicable for

•Bosch: 300/500/800 Series

Installation Option #2: 3-prong receptacle plug

SOS Item# 511341

Model #SMZPC002UC

Home Appliances - For Internal Use Only - Do Not Distribute

Internal use only| PDC-RNA/MK | March 2013| © Robert Bosch Hausgeräte GmbH, Munich reserves all rights even in the event of industrial

property rights. We reserve all rights of disposal such as copying and passing on to third parties..

SOS Item# 511341

Model #SMZPC002UC

Bosch Dishwasher Ascenta Installation

Model #SGZPC001UC

61” Dishwasher 3-Prong Power Cord

Ascenta Models Only:

•Current and new Ascenta models utilize

this cord

•Power cord is to be wired directly to the

dishwasher

Home Appliances - For Internal Use Only - Do Not Distribute

Internal use only| PDC-RNA/MK | March 2013| © Robert Bosch Hausgeräte GmbH, Munich reserves all rights even in the event of industrial

property rights. We reserve all rights of disposal such as copying and passing on to third parties..

•Current and new Ascenta models utilize

this cord

•Power cord is to be wired directly to the

dishwasher
