en Installation and operating instructions

Tumble dryer

WTW83560BY

Your new tumble dryer

You have opted for a tumble dryer

manufactured by Bosch.

Please take a few minutes to read and

become familiar with the advantages of

your tumble dryer.

To meet the high quality demands

required by Bosch, every tumble dryer

that leaves our factory is carefully

checked to ensure that it functions

correctly and is in perfect condition.

For more information on our products,

accessories, replacement parts and

services, see our website www.bosch-

home.com or contact our Customer

Service centres.

If the operating and installation

instructions describe different models,

any differences will be pointed out at the

relevant points in the text.

Read these operating and installation

instructions before operating the tumble

dryer.

Display rules

:Warning!

This combination of symbol and signal

word indicates a possibly dangerous

situation. Not heeding the warning can

cause death or injuries.

Caution!

This signal word indicates a possibly

dangerous situation. Not heeding the

caution can cause property and/or

environmental damage.

Note/tip

Information about the optimum use of

the appliance/any other useful

information.

1. 2. 3. / a) b) c)

The steps are represented by numbers

or letters.

■/ -

Lists are represented by a small box or

a dash.

Contents

en Installation and operating instructions

8Intended use. . . . . . . . . . . . . . . . .4

(Safety instructions . . . . . . . . . . .4

Electrical safety. . . . . . . . . . . . . . . . . . 4

Safety for children. . . . . . . . . . . . . . . . 5

Appliance safety . . . . . . . . . . . . . . . . . 5

7Environmental protection . . . . . .7

Packaging/old appliance . . . . . . . . . . 7

Coolant . . . . . . . . . . . . . . . . . . . . . . . . 7

Energy-saving tips. . . . . . . . . . . . . . . . 7

YThe main points in brief . . . . . . .8

*Getting to know your appliance .9

Dryer. . . . . . . . . . . . . . . . . . . . . . . . . . 9

Control panel . . . . . . . . . . . . . . . . . . 10

Display panel . . . . . . . . . . . . . . . . . . 11

ZLaundry . . . . . . . . . . . . . . . . . . .12

Preparing the laundry . . . . . . . . . . . . 12

Sorting washing according to: . . . . . 12

/Programmes and buttons . . . . .13

Programmes . . . . . . . . . . . . . . . . . . . 13

Buttons . . . . . . . . . . . . . . . . . . . . . . . 15

1Operating the appliance . . . . . .16

Loading laundry

and switching on the dryer . . . . . . . . 16

Setting a programme . . . . . . . . . . . . 16

Starting the programme . . . . . . . . . . 16

Programme sequence . . . . . . . . . . . 16

Changing the programme

or adding laundry . . . . . . . . . . . . . . . 17

Cancelling the programme . . . . . . . . 17

Programme end . . . . . . . . . . . . . . . . 17

Removing laundry

and switching off the dryer . . . . . . . . 17

Clean the fluff filter . . . . . . . . . . . . . . 17

Emptying the condensate container . 19

MSignal setting. . . . . . . . . . . . . . . 20

>Noises . . . . . . . . . . . . . . . . . . . . 21

DCleaning . . . . . . . . . . . . . . . . . . . 22

Cleaning the dryer

and the control panel . . . . . . . . . . . .22

Cleaning the moisture sensor . . . . . .22

Cleaning the filter in the condensate

container . . . . . . . . . . . . . . . . . . . . . .23

3Faults and what

to do about them . . . . . . . . . . . . 24

JAfter-sales service . . . . . . . . . . 26

[Consumption values. . . . . . . . . 27

Consumption values table . . . . . . . . .27

Most efficient programme

for cotton fabrics . . . . . . . . . . . . . . . .27

JTechnical data . . . . . . . . . . . . . . 28

5Installation and connection . . . 29

Scope of delivery. . . . . . . . . . . . . . . .29

Installing and connecting the dryer . .29

Optional accessories. . . . . . . . . . . . .30

Transport and frost protection . . . . . .30

en Intended use

8Intended use

Intendeduse

■For private domestic use only.

■Only to dry and refresh fabrics that

have a care label specifying that

they are suitable for use in a dryer.

■The dryer can be operated by

children 8 years old and older, by

persons with reduced physical,

sensory or mental abilities and by

persons with insufficient experience

or knowledge if they are supervised

or have been instructed in its use by

a responsible adult.

■Keep children under the age of

3 years old away from the dryer.

■This appliance is intended for use up

to a maximum height of

4000 metres above sea level.

■Do not let children carry out any

unsupervised cleaning or

maintenance work on the dryer.

■Keep pets away from the dryer.

(Safety instructions

Safetyinstructions

Electrical safety

:Warning

Risk of death!

There is a risk of electric shock

as the dryer is operated with

electricity.

You should therefore observe

the following:

■Never touch or hold the

mains plug with wet hands.

■Only pull out the mains cable

directly at the plug and never

by the cable, as this could

damage it.

■Do not use extension cables,

multiple plugs or connectors.

■Only have the mains cable

replaced by our after-sales

service.

Safety instructions en

Safety for children

:Warning

Risk of death or injury!

You should therefore observe

the following:

■Do not leave the dryer

unattended when children or

other people who cannot

assess the risks are nearby.

■Do not let children play with

the dryer.

■Children may become

entangled in packaging or

film if allowed to play with

them, or they may pull them

over their heads and

suffocate. Keep packaging,

packaging parts and film out

of the reach of children.

■Children may lock

themselves in the dryer.

Therefore, when an

appliance has reached the

end of its service life, unplug

it from the mains, cut through

the mains cable and destroy

the lock on the dryer door.

Appliance safety

:Warning

Risk of death!

■Do not use the dryer if

industrial chemicals have

been used to clean it.

■Laundry that has come into

contact with solvents, oil,

wax, wax remover, paint,

grease or stain remover may

ignite or cause an explosion

when drying is in progress.

Before drying, rinse the

laundry in hot water with

detergent.

■Coal dust or flour in the area

around the dryer may cause

an explosion.

■Only replace defective

components with genuine

spare parts.

en Safety instructions

Caution!

Risk of material damage to the

dryer or fabrics

■Only use the dryer for drying

and freshening up fabrics at

home and for fabrics that

have been washed with

water and are suitable for

tumble-drying.

Any other use is not

considered intended use and

is prohibited.

■Foamed material or foam

rubber may become

deformed or melt during

drying. Do not dry any

laundry that contains foamed

material or rubber.

■Do not lean or sit on the

dryer door, as the dryer may

tip over.

■Loose cables or hoses may

cause you to trip. Avoid

tripping hazards.

■Light things, such as hair,

may be sucked into the air

inlet during operation; keep

these away from the dryer.

■The last phase of the drying

cycle takes place without any

heat (cooling cycle) to

ensure that the laundry

remains at a temperature

that will not damage it.

Environmental protection en

7Environmental

protection

Environmentalprotection

Packaging/old appliance

)

Dispose of packaging in an

environmentally-responsible manner.

This appliance is designated according

to European directive 2012/19/EC

which governs waste electrical and

electronic equipment (WEEE).

The directive provides a framework for

the collection and recycling of old

appliances, which is valid across

the EU.

Coolant

The dryer's heat exchanger contains

fluorinated greenhouse gas in a

hermetically sealed unit.

Dispose of the dryer properly.

Energy-saving tips

■Spin the laundry before drying.

The drier the laundry, the shorter

the drying time will be, thus

consuming less energy.

■Load the dryer with the maximum

load.

Note: Do not exceed the maximum

load for the programs, as this

prolongs the drying time

and increases energy consumption.

■Ventilate the room and keep the air

inlet on the dryer free to ensure air

exchange.

■Clean the fluff filter after each drying

cycle. If the fluff filter is dirty,

the drying time is prolonged

and energy consumption is

increased.

■Energy saving mode: If the dryer is

not operated for a prolonged period,

it automatically switches off before

the program starts and when

the program has ended to save

energy. The display panel

and indicator lamps go off after

a few minutes and the Start button

flashes. To activate the lighting,

press any button, open or close

the dryer door or turn the program

selector.

Greenhouse gas: R134a

Capacity (g): 220

GWP (kgCO2/kgRefrig): 1300

Total GWP (kgCO2): 286

en The main points in brief

YThe main points in brief

Themainpointsinbrief

--------

1@ @

Load the laundry and close

the door.

Switch off the dryer. Select a programme and, if

necessary, adjust

the default programme

settings.

2@ @

Select the start button A. Dry. Unload the laundry.

3@ @

Switch off the dryer. Empty the condensate

container.

Clean the fluff filter.

Getting to know your appliance en

*Getting to know your appliance

Gettingtoknowyourappliance

Dryer

(Condensate container

0Control and display panel

8Drum interior light (depending on the model)

@Dryer door

HAir inlet

PFluff filter







en Getting to know your appliance

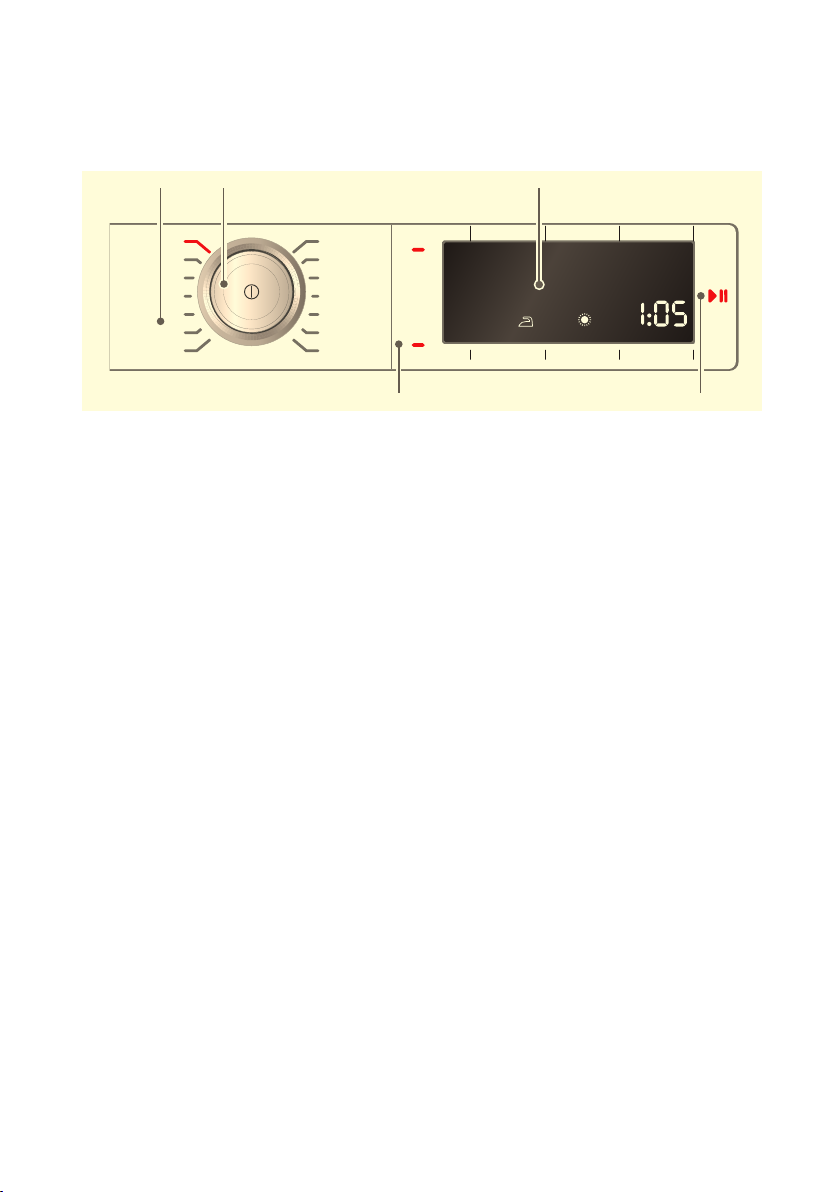

Control panel

Note: All buttons are sensitive and only need to be touched briefly.





(Programmes ~Page 13.

0Programme selector and On/Off button.

8Display panel with buttons ~Page 13.

@Start button for starting, interrupting or cancelling the programme.

HButtons ~Page 15.

Inhaltsverzeichnis

Andere Bosch Trockner Handbücher

Bosch

Bosch WTG86260CL Bedienungsanleitung

Bosch

Bosch WTM85230GB Bedienungsanleitung

Bosch

Bosch WTW8758LSN Bedienungsanleitung

Bosch

Bosch WTMC 652SUC Bedienungsanleitung

Bosch

Bosch WTX8HEL9SN Bedienungsanleitung

Bosch

Bosch WTW85491GB Bedienungsanleitung

Bosch

Bosch DV52J8700E Series Bedienungsanleitung

Bosch

Bosch WTW874B9SN Bedienungsanleitung

Bosch

Bosch Nexxt washer Operating Installationsanleitung

Bosch

Bosch WTW874M9SN Bedienungsanleitung

Bosch

Bosch WTG86400ZA Bedienungsanleitung

Bosch

Bosch WTC84000EE Bedienungsanleitung

Bosch

Bosch WTU876H80W Bedienungsanleitung

Bosch

Bosch WT47UHE9DN Bedienungsanleitung

Bosch

Bosch WTW845W0ES Bedienungsanleitung

Bosch

Bosch WTX87MH0SG Bedienungsanleitung

Bosch

Bosch WTWH7569SN Bedienungsanleitung

Bosch

Bosch WQB245CBSN Bedienungsanleitung

Bosch

Bosch WTE84106GB Installation Instructions, Instructions for Use, Programme... Bedienungsanleitung

Bosch

Bosch WTE84307GB Bedienungsanleitung

Bosch

Bosch WTW87MH0TC Bedienungsanleitung

Bosch

Bosch WTH85VC8SN Bedienungsanleitung

Bosch

Bosch WTW85560BY Bedienungsanleitung

Bosch

Bosch WTG86262ES Bedienungsanleitung

Beliebte Trockner Handbücher anderer Marken

Amana

Amana W10233410A Bedienungsanleitung

Miele

Miele TWH 780 WP Bedienungsanleitung

Asko

Asko T760 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Bedienungsanleitung

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Bedienungsanleitung

Electrolux

Electrolux EW2H328R2 Bedienungsanleitung

Beko

Beko DS8433RX1M Bedienungsanleitung

Dawlance

Dawlance Spinner DS 6000 C Bedienungsanleitung

Electrolux

Electrolux TP5080TW Bedienungsanleitung

AEG

AEG TR838P4OB Bedienungsanleitung

Indesit

Indesit IDV 75 Bedienungsanleitung

Infiniton

Infiniton SD-DG85C Bedienungsanleitung

BOMANN

BOMANN WT 5019 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Bedienungsanleitung

Asko

Asko T793C Bedienungsanleitung

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Bedienungsanleitung

Frigidaire

Frigidaire CAQE7077KW0 Betriebsanleitung

Sharp

Sharp KD-NHH9S7GW2-PL Bedienungsanleitung
