Bosch KIR51 series Bedienungsanleitung

en Instruction for Use

KIR51..

KIR41..

KIR31../KFR31..

KIR21../KFR21..

en Table of Contents

Safety and warning information ............ 3

Information concerning disposal .......... 4

Scope of delivery .................................... 5

Room temperature, ventilation

and cavity depth ...................................... 5

Installation location ................................. 6

Connecting the appliance ..................... 6

Getting to know your appliance ........... 7

Switching on the appliance ................... 7

Setting the temperature ......................... 8

Alarm function ......................................... 8

Usable capacity ....................................... 8

Refrigerator compartment ..................... 8

Super cooling ....................................... 10

Interior fittings ....................................... 10

Sticker “OK” .......................................... 10

Switching off and disconnecting

the appliance ........................................ 11

Cleaning the appliance ....................... 11

Odours ................................................... 12

Light (LED) ............................................ 12

Tips for saving energy ........................ 12

Operating noises ................................. 13

Eliminating minor faults yourself ....... 13

Appliance self-test ............................... 15

Customer service ................................. 15

enTable of Contents

enInstruction for Use

Safety and warning

information

Before you switch ON the

appliance

Please read the operating and

installation instructions carefully! They

contain important information on how to

install, use and maintain the appliance.

The manufacturer is not liable if you fail

to comply with the instructions and

warnings. Retain all documents for

subsequent use or for the next owner.

Technical safety

This appliance contains a small quantity

of environmentally-friendly but flammable

R600a refrigerant. Ensure that the tubing

of the refrigerant circuit is not damaged

during transportation and installation.

Leaking refrigerant may cause eye

injuries or ignite.

If damage has occurred

■Keep naked flames and/or ignition

sources away from the appliance,

■thoroughly ventilate the room for

several minutes,

■switch off the appliance and pull out

the mains plug,

■inform customer service.

The more refrigerant an appliance

contains, the larger the room must be in

which the appliance is situated. Leaking

refrigerant can form a flammable gas-air

mixture in rooms which are too small.

The room must be at least 1 m³ per 8 g

of refrigerant. The amount of refrigerant

in your appliance is indicated on the

rating plate inside the appliance.

If the power cord of this appliance is

damaged, it must be replaced by the

manufacturer, customer service or a

similarly qualified person. Improper

installations and repairs may put the user

at considerable risk.

Repairs may be performed by the

manufacturer, customer service or a

similarly qualified person only.

Only original parts supplied by the

manufacturer may be used. The

manufacturer guarantees that only these

parts satisfy the safety requirements.

A extension cable may be purchased

from customer service only.

Important information when

using the appliance

■Never use electrical appliances inside

the appliance (e.g. heater, electric ice

maker, etc.). Risk of explosion!

■Never use a steam cleaner to defrost

or clean the appliance! The steam

may penetrate electrical parts

and cause a short-circuit. Risk of

electric shock!

■Do not use pointed or sharp-edged

implements to remove frost or layers

of ice. You could damage

the refrigerant tubing. Leaking

refrigerant may ignite or cause eye

injuries.

■Do not store products which contain

flammable propellants (e.g. spray

cans) or explosive substances in

the appliance. Risk of explosion!

■Do not stand or support yourself on

the base, drawers or doors, etc.

■Before defrosting and cleaning

the appliance, pull out the mains plug

or switch off the fuse. Do not pull out

the mains plug by tugging the cable.

■Bottles which contain a high

percentage of alcohol must be sealed

and stored in an upright position.

■Keep plastic parts and the door seal

free of oil and grease. Otherwise,

parts and door seal will become

porous.

■Never cover or block the ventilation

openings for the appliance.

■People (childern incl.) who have

limited physical, sensory or mental

abilities or inadequate knowledge

must not use this appliance unless

they are supervised or given

meticulous instructions.

Children in the household

■Keep children away from packaging

and its parts.

Danger of suffocation from folding

cartons and plastic film!

■Do not allow children to play with the

appliance!

■If the appliance features a lock:

keep the key out of the reach of

children!

General regulations

The appliance is suitable for refrigerating

food.

This appliance is intended for use in

the home and the home environment.

The appliance is suppressed according

to EU Directive 2004/108/EC.

The refrigeration circuit has been

checked for leaks.

This product complies with the relevant

safety regulations for electrical

appliances (EN 60335-2-24).

Information concerning

disposal

*Disposal of packaging

The packaging protects your appliance

from damage during transit. All utilised

materials are environmentally safe and

recyclable. Please help us by disposing

of the packaging in an environmentally

friendly manner.

Please ask your dealer or inquire at your

local authority about current means of

disposal.

*Disposal of your old

appliance

Old appliances are not worthless

rubbish! Valuable raw materials can be

reclaimed by recycling old appliances.

This appliance is identified

according to the European

guideline 2002/96/EC on waste

electrical and electronic

equipment – WEEE. The directive

specifies the framework for an

EU-wide valid return and re-use

of old appliances.



m Warning

Redundant appliances

1. Pull out the mains plug.

2. Cut off the power cord and discard

with the mains plug.

3. Do not take out the trays

and receptacles: children are

therefore prevented from climbing in!

4. Do not allow children to play with

the appliance once it has spent its

useful life. Danger of suffocation!

Refrigerators contain refrigerant

and gases in the insulation. Refrigerant

and gases must be disposed

of professionally. Ensure that tubing

of the refrigerant circuit is not damaged

prior to proper disposal.

Scope of delivery

After unpacking all parts, check for any

damage in transit.

If you have any complaints, please

contact the dealer from whom you

purchased the appliance or our

customer service.

The delivery consists of the following

parts:

■Built-in appliance

■Interior fittings (depending on model)

■Bag containing installation materials

■Operating instructions

■Installation manual

■Customer service booklet

■Warranty enclosure

■Information on the energy

consumption and noises

Room temperature,

ventilation and cavity

depth

Ambient temperature

The appliance is designed for a specific

climate class. Depending on the climate

class, the appliance can be operated at

the following temperatures.

The climate class can be found on

the rating plate. Fig. .

Note

The appliance is fully functional within

the room temperature limits

of the indicated climatic class. If

an appliance of climatic class SN

is operated at colder room temperatures,

the appliance will not be damaged up to

a temperature of +5 °C.

Ventilation

The air on the rear panel of

the appliance heats up. Conduction of

the heated air must not be obstructed.

Otherwise, the refrigeration unit must

work harder. This increases power

consumption. Therefore: Never cover

or block the ventilation openings!

Climate class Permitted ambient

temperature

SN +10 °C to 32 °C

N+16 °C to 32 °C

ST +16 °C to 38 °C

T+16 °C to 43 °C

Cavity depth

A cavity depth of 560 mm is

recommended for the appliance.

If the cavity depth is smaller – at least

550 mm – the energy consumption

increases slightly.

Installation location

Install the appliance in a dry, well

ventilated room. The installation location

should neither be exposed to direct

sunlight nor near a heat source, e. g.

a cooker, radiator, etc. If installation next

to a heat source is unavoidable, use

a suitable insulating plate or observe

the following minimum distances to a

heat source:

■3 cm to electric or gas cookers.

■30 cm to an oil or coal-fired cooker.

Connecting

the appliance

After installing the appliance, wait at least

1 hour until the appliance is switched on.

During transportation the oil in

the compressor may have flowed into

the refrigeration system.

Before switching on the appliance for

the first time, clean the interior of

the appliance (see chapter “Cleaning

the appliance”).

Electrical connection

The socket must be near the appliance

and also freely accessible following

installation of the appliance.

The appliance complies with the

protection class I. Connect the appliance

to 220-240 V/50 Hz alternating current

via a correctly installed socket with

protective conductor. The socket must

be fused with a 10 to 16 A fuse.

For appliances operated in non-

European countries, check whether the

stated voltage and current type match

the values of your mains supply. This

information can be found on the rating

plate. Fig. .

m Warning

Never connect the appliance

to electronic energy saver plugs.

Our appliances can be used with mains

and sine-controlled inverters. Mains-

controlled inverters are used

for photovoltaic systems which

are connected directly to the national

grid. Sine-controlled inverters must be

used for isolated applications (e.g. on

ships or in mountain lodges) which are

not connected directly to the national

grid.

Getting to know your

appliance

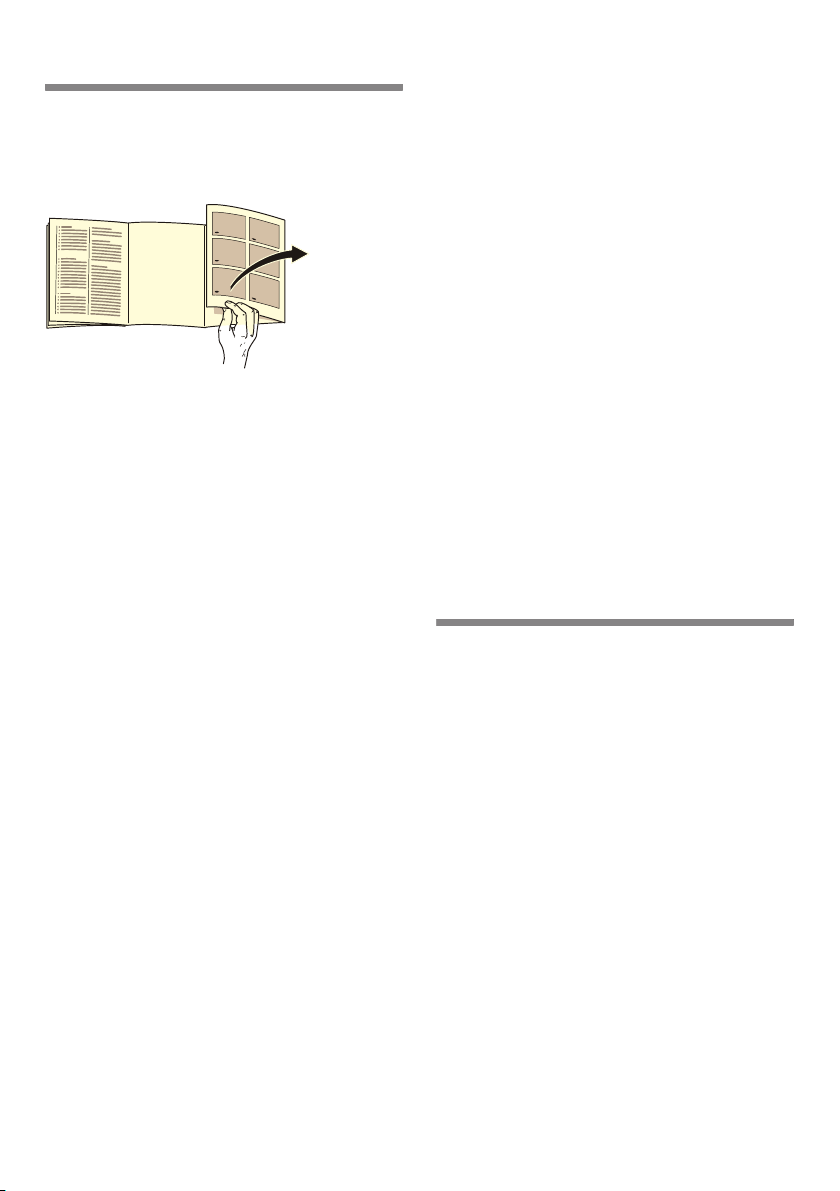

Please fold out the illustrated last page.

These operating instructions refer

to several models.

The features of the models may vary.

The diagrams may differ.

Fig. !

* Not all models.

Controls

Fig. "

Switching on

the appliance

Fig. "

Switch on the appliance with the

On/Off button 1.

The appliance begins to cool. Light is

switched on when the door is open.

We recommend a factory setting

of +4 °C in the refrigerator compartment.

Do not store perishable food warmer

than +4 °C.

1-5 Controls

6* Fan

7 Light

8 Glass shelf

9* Extendable glass shelf

10 Vegetable container with humidity

control

11 Butter and cheese compartment

12 Door shelf

13* Vario door shelf

14 Shelf for large bottles

1On/Off button

Serves to switch the appliance on

and off.

2“super” button

Is used to switch on the super

cooling (see chapter entitled

“Super cooling”).

3Temperature selection button

Press this button to set the

temperature.

4Temperature display

The numbers correspond

to the set refrigerator

compartment temperatures in °C.

5Alarm button

Used to switch off the warning

signal, see chapter “Alarm

function”.

Operating tips

■After the appliance has been switched

on, it may take several hours until

the set temperature has been

reached.

Do not put any food in the appliance

beforehand.

■While the refrigeration unit is running,

water droplets or hoarfrost may form

at the rear panel of the refrigerator.

This is due to functional reasons.

It is not necessary to scrape off

the frost or wipe off the water droplets.

The rear panel defrosts automatically.

The condensation collects

in the drainage channel and is carried

to the refrigeration unit where it

evaporates. Fig. #

■The front sides of the housing are

partly heated slightly. This prevents

condensation in the area of the door

seal.

Setting the

temperature

Fig. "

Refrigerator compartment

The temperature can be set from

+2 °C to +8 °C.

Keep pressing temperature setting

button 3 until the required refrigerator

compartment temperature is set.

The value last selected is saved. The set

temperature is indicated on temperature

display 4.

Alarm function

Door alarm

The door alarm (continuous sound)

switches on if the appliance door is open

for longer than two minutes. Close

the door to switch off the warning signal.

Switching off the alarm

Fig. "

Press the alarm button 5 to switch off

the warning signal.

Usable capacity

Information on the usable capacity can

be found inside your appliance on

the rating plate. Fig. .

Refrigerator

compartment

The refrigerator compartment is the ideal

storage location for meat, sausage, fish,

dairy products, eggs, ready meals

and pastries.

Storing food

■Store fresh, undamaged food. The

quality and freshness will then

be retained for longer.

■In the case of ready-made products

and bottled goods, observe the best-

before date or use-by date specified

by the manufacturer.

■To retain aroma, colour

and freshness, pack or cover food

well before placing in the appliance.

This will prevent the transfer

of flavours and the discolouration

of plastic parts in the refrigerator

compartment.

■Allow warm food and drinks to cool

down before placing in the appliance.

Note

Avoid contact between food and rear

panel. Otherwise the air circulation will

be impaired.

Food or packaging could freeze to

the rear panel.

Note the chill zones in the

refrigerator compartment

The air circulation in the refrigerator

compartment creates different chill

zones:

■Coldest zone is between the arrow

stamped on the side and the glass

shelf situated below. Fig. $

Note

Store perishable food (e.g. fish,

sausage, meat) in the coldest zone.

■Warmest zone is at the very top

of the door.

Note

Store e.g. hard cheese and butter

in the warmest zone. Cheese can then

continue to release its flavour and the

butter will still be easy to spread.

Vegetable container with

humidity controller

Fig. %

The vegetable container is the optimum

storage location for fresh fruit and

vegetables. A humidity controller and

a special seal can be used to adjust the

air humidity in the vegetable container.

This allows fresh fruit and vegetables

to be stored twice as long as with

conventional storage.

The air humidity in the vegetable

container can be set according to the

type and amount of products to be

stored:

■Mainly fruit as well as for a large load

– lower air humidity

■Mainly vegetables as well as for

a mixed load or small load – higher air

humidity

Notes

■Fruit sensitive to cold (e.g. pineapple,

banana, papaya and citrus fruit) and

vegetables sensitive to cold (e.g.

aubergines, cucumbers, zucchini,

peppers, tomatoes and potatoes)

should be stored outside

the refrigerator at temperatures

of approx. +8 °C to +12 °C for

optimum preservation of quality and

flavour.

■Condensation may form in the

vegetable container depending on the

type and quantity of products stored.

Remove condensation with a dry cloth

and adjust air humidity in the

vegetable container with the humidity

controller.

Super cooling

Super cooling sets the refrigerator

temperature to the coldest temperature

setting for approx. 15 hours. Then

the appliance automatically switches

to the temperature set prior to super

cooling mode.

Switch on super cooling mode, e.g.

■before placing large quantities of food

in the refrigerator compartment.

■for the fast cooling of drinks.

Switching on and off

Fig. "

Press “super” button 2.

The button is lit when super cooling is

switched on.

Note

When super cooling is switched on,

increased operating noises may occur.

Interior fittings

(not all models)

Glass shelves

Fig. &

If required, you can vary the shelves

inside the appliance: To do this, pull out

shelf, lift at the front and take out.

Extendable glass shelf

Fig. '

The extendable glass shelf can be pulled

out for a better overview of the food.

Vario shelf

Fig. (

To facilitate the storage of tall items (e.g.

cans or bottles), the front part of the

Vario shelf can be taken out and pushed

under the rear part.

Vario door shelf

Fig. )

The position of the Vario door shelf can

be moved to the side so that tall bottles

can be stored on the lower shelf.

Bottle holder

Fig. *

The bottle holder prevents bottles

from falling over when the door

is opened and closed.

Sticker “OK”

(not all models)

The “OK” temperature monitor

can be used to determine temperatures

below +4 °C. Gradually reduce

the temperature if the sticker

does not indicate “OK”.

Note

When the appliance is switched on,

it may take 12 hours until

the temperature is reached.

Correct setting

Andere Handbücher für KIR51 series

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Bosch Kühlschrank Handbücher

Bosch

Bosch KIR24A65 Bedienungsanleitung

Bosch

Bosch KSW series Bedienungsanleitung

Bosch

Bosch KIN Series Bedienungsanleitung

Bosch

Bosch KGV Series Bedienungsanleitung

Bosch

Bosch KDD86 Series Bedienungsanleitung

Bosch

Bosch KGN Series Bedienungsanleitung

Bosch

Bosch KGN36 Series Technisches Datenblatt

Bosch

Bosch B20CS30SNS/05 Bedienungsanleitung

Bosch

Bosch KUR SERIES Bedienungsanleitung

Bosch

Bosch KSR38X51 Bedienungsanleitung

Bosch

Bosch KAN92VI35/02 Einrichtungshandbuch

Bosch

Bosch KGN36VL21 Bedienungsanleitung

Bosch

Bosch CIB36P Series Bedienungsanleitung

Bosch

Bosch KGN Series Einrichtungshandbuch

Bosch

Bosch B30BB930SS Bedienungsanleitung

Bosch

Bosch KGN36SR31 Bedienungsanleitung

Bosch

Bosch KIN86AD30G Bedienungsanleitung

Bosch

Bosch B22CS50SNW-01 Einrichtungshandbuch

Bosch

Bosch KIR18A51GB Bedienungsanleitung

Bosch

Bosch KSV36VW3P Bedienungsanleitung

Bosch

Bosch KIV87NFF0/04 Bedienungsanleitung

Bosch

Bosch KGS Bedienungsanleitung

Bosch

Bosch KFR21 Series Bedienungsanleitung

Bosch

Bosch KGF39SM30/19 Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
