Bosch DIE 165 R Bedienungsanleitung

en Operating and

installation instructions

fr Mode d’emploi et

notice de montage

es Instrucciones de uso

y de montaje

DIE 165 R

Internet: http://www.bosch-hausgeraete.de

Bosch Info-Team: de Tel. 01 80/5 30 40 50 (E0,14/Min. DTAG)

en page 03–16

fr pages 17 – 30

es página 31 – 44

Abb. 1

ELECTRO

Fig. 1

GAZ

Appliance description

Operating modes

Exhaust-air mode:

❑The extractor-hood fan extracts the

kitchen vapours and conveys them

through the grease ﬁlter into the

atmosphere.

❑The grease ﬁlter absorbs the solid

particles in the kitchen vapours.

❑The kitchen is kept almost free of grease

and odours.

WARNING

When the extractor hood is operated in

exhaust-air mode simultaneously with a

different burner which also makes use of

the same chimney (such as gas, oil or

coal-ﬁred heaters, continuous-ﬂow heaters,

hot-water boilers) care must be taken to

ensure that there is an adequate supply

of fresh air which will be needed by the

burner for combustion.

Safe operation is possible provided that the

underpressure in the room where the

burner is installed does not exceed 4 Pa

(0.04 mbar).

Instructions for use:

Operating modes

This can be achieved if the combustion air

is able to ﬂow through non-lockable

openings, e.g. in doors, windows and in

conjunction with an air supply/air-intake wall

box or by other technical procedures such

as reciprocal interlocking.

If the air intake is inadequate, there is a

risk of poisoning from combustion gases

which are drawn back into the room.

An air-intake/exhaust-air wall box by itself is

no guarantee that the limiting value will not

be exceeded.

Note: When assessing the overall

requirement, the combined ventilation

system for the entire household must be

taken into consideration. This rule does not

apply to the use of cooking appliances,

such as hobs and ovens.

Lighting

Filter

grille

Chimney

panelling

Light / fan

switches

Gas hobs / Gas cookers

Do not use all the gas hotplates

simultaneously for a prolonged period

(max. 15 minutes) at maximum thermal

load, otherwise there is a risk of burns if the

housing surfaces are touched or a risk of

damage to the extractor hood. If the

extractor hood is situated over a gas hob,

operate the hood at maximum setting if

three or more gas hotplates are operated

simultaneously.

Before using for the ﬁrst time

Important notes:

❑The Instructions for Use apply to several

versions of this appliance. Accordingly,

you may ﬁnd descriptions of individual

features that do not apply to your

speciﬁc appliance.

❑This extractor hood complies with all

relevant safety regulations.

Repairs should be carried out by

qualiﬁed technicians only.

CAUTION

Improper repairs may put the user at

considerable risk.

❑Before using your appliance for the ﬁrst

time, please read these Instructions for

Use carefully. They contain important

information concerning your personal

safety as well as on use and care of the

appliance.

❑Please retain the operating and

installation instructions for a subsequent

owner.

❑This appliance is labelled

in accordance with

European Directive

2002/96/EG concerning

used electrical and

electronic appliances

(waste electrical and

electronic equipment –

WEEE). The guideline

determines the framework for the return

and recycling of used appliances as

applicable throughout the EU.

Before using for the ﬁrst time

SAFETY INSTRUCTIONS

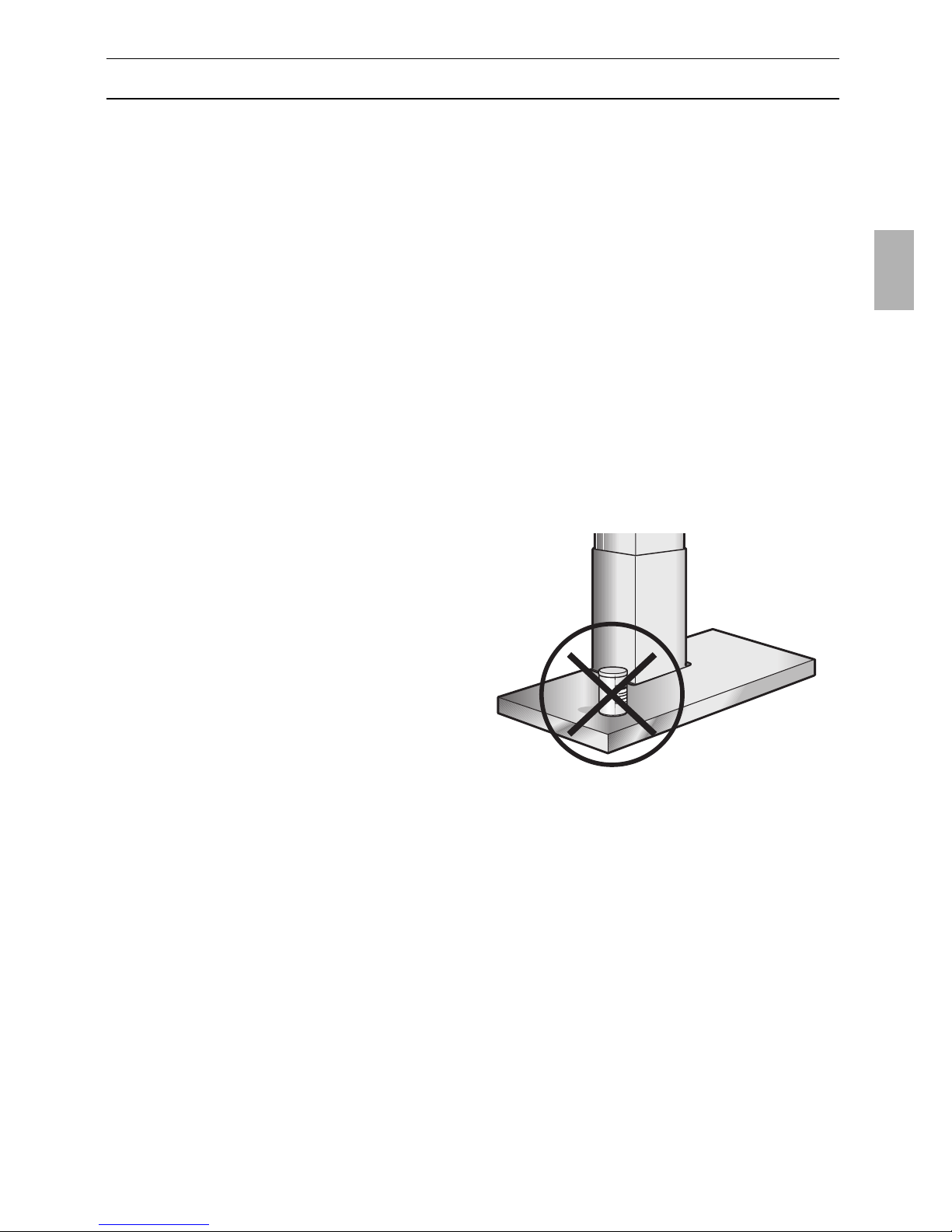

Do not ﬂambé food directly under the

extractor hood.

Risk of grease ﬁlter catching ﬁre due

to ﬂames.

The hotplates must always be covered with

a utensil.

The extractor hood must not be

operated above a solid-fuel or gas ﬁre (coal,

wood, etc.) (see installation instructions).

Do not operate all hotplates

simultaneously over a prolonged period

(max. 15 minutes) at maximum thermal

load, otherwise there is a risk of burns from

touching the housing surfaces or a risk of

damaging the extractor hood. When

operating the extractor hood above a hob,

operate the hood at maximum setting if

three or more hotplates are on at the same

time.

Do not use the appliance if damaged.

The appliance is not intended for use by

young children or inﬁrmed persons

without supervision.

Young children should be supervised to

ensure they do not play with the appliance.

When children become old enough to use

the appliance, it is the legal responsibility of

the parents or legal guardian to ensure that

they are instructed in its safe use by quali-

ﬁed persons.

If the connecting cable for this

appliance is damaged, the cable must be

replaced by the manufacturer or his

customer service or a similarly qualiﬁed

person in order to prevent serious injury to

the user.

The appliance must be connected to the

mains by a qualiﬁed technician only.

Dispose of packaging materials

properly (see Installation instructions).

Safety instructions

This extractor hood is designed for

domestic use only.

Light bulbs must always be ﬁtted when the

extractor hood is in use.

Defective bulbs should be replaced imme-

diately to prevent the remaining bulbs from

overloading.

Never operate the extractor hood

without a grease ﬁlter.

Overheated fat or oil can easily catch ﬁre.

If you are cooking with fat or oil, e.g. chips,

etc., never leave the cooker unattended.

Carefully clean the extractor hood

before switching on for the ﬁrst time.

Do not place any objects on the

extractor hood.

Intensive setting:

Maximum power is obtained at the

intensive setting. It is only required for short

intervals.

❑Keep pressing the +button until a ç

appears in the display.

❑If the intensive setting is not cancelled by

hand, the fan will automatically switch

back to step }after 10 minutes.

Lighting:

❑The light can be switched on at any

time, even though the fan is switched off.

❑Adjusting the brightness:

Hold down the 0button until the desired

brightness is obtained.

Operating procedure

Acoustic signal:

❑When a button is pressed, this is veriﬁed

by an acoustic signal.

Switching off the acoustic signal:

❑Simultaneously press buttons 0and +

until a signal is emitted after approx.

3 seconds.

Switching on the acoustic signal:

❑Repeat the process.

Switching the fan ON

❑Press the + button.

Setting the required fan speed:

❑Press the + button.

The fan speed is increased by one step.

❑Press the – button.

The fan speed is reduced by one step.

Switching the fan OFF:

❑Press the 0button.

Or:

❑Keep pressing the –button until the fan

switches off.

The most effective method of removing

vapours produced during cooking is to:

❑Switch the ventilator ON

as soon as you begin cooking.

❑Switch the ventilator OFF

a few minutes after you have ﬁnished

cooking.

Fan OFF Light

ON / OFF

Reduce fan

speed Fan ON and

increase speed

Intensive setting

Display for fan setting

Filters and maintenance

2. Clean the grease ﬁlter.

3. Re-insert the clean grease ﬁlter.

4. Cancel the #in the display.

❑Press the –button.

Grease ﬁlters:

Metal ﬁlters are used to trap the greasy

element of the vapours that develop

during cooking.

The ﬁlter mats are made from non-

combustible metal.

CAUTION

As the ﬁlter becomes more and more

saturated with grease, not only does the

risk of it catching ﬁre increase but the

efficiency of the extractor hood can also be

adversely affected.

IMPORTANT

By cleaning the metal grease ﬁlters at

appropriate intervals, the possibility of them

catching ﬁre as a result of a build-up of heat

such as occurs when deep-fat frying or

roasting is taking place, is reduced.

Saturation indicator: #

When the grease ﬁlters reach saturation

point, an acoustic signal is sounded for

6 seconds after the fan has switched off,

and an #appears in the display. The grease

ﬁlters should be cleaned straight away.

Cleaning the metal grease ﬁlters:

❑In normal operation (1 to 2 hours daily),

the metal grease ﬁlter must be cleaned

1 x a month.

❑The ﬁlters can be cleaned in a dish-

washer. It is however possible that they

will become slightly discoloured.

❑The ﬁlter must be placed loosely, and

NOT wedged, in the dishwasher.

IMPORTANT:

Metal ﬁlters that are saturated with

grease should not be washed together

with other dishes etc.

❑When cleaning the ﬁlters by hand, soak

them in hot soapy water ﬁrst of all.

Do not use aggressive, acidic or caustic

cleaners.

Then brush the ﬁlters clean, rinse them

thoroughly and leave the water to drain off.

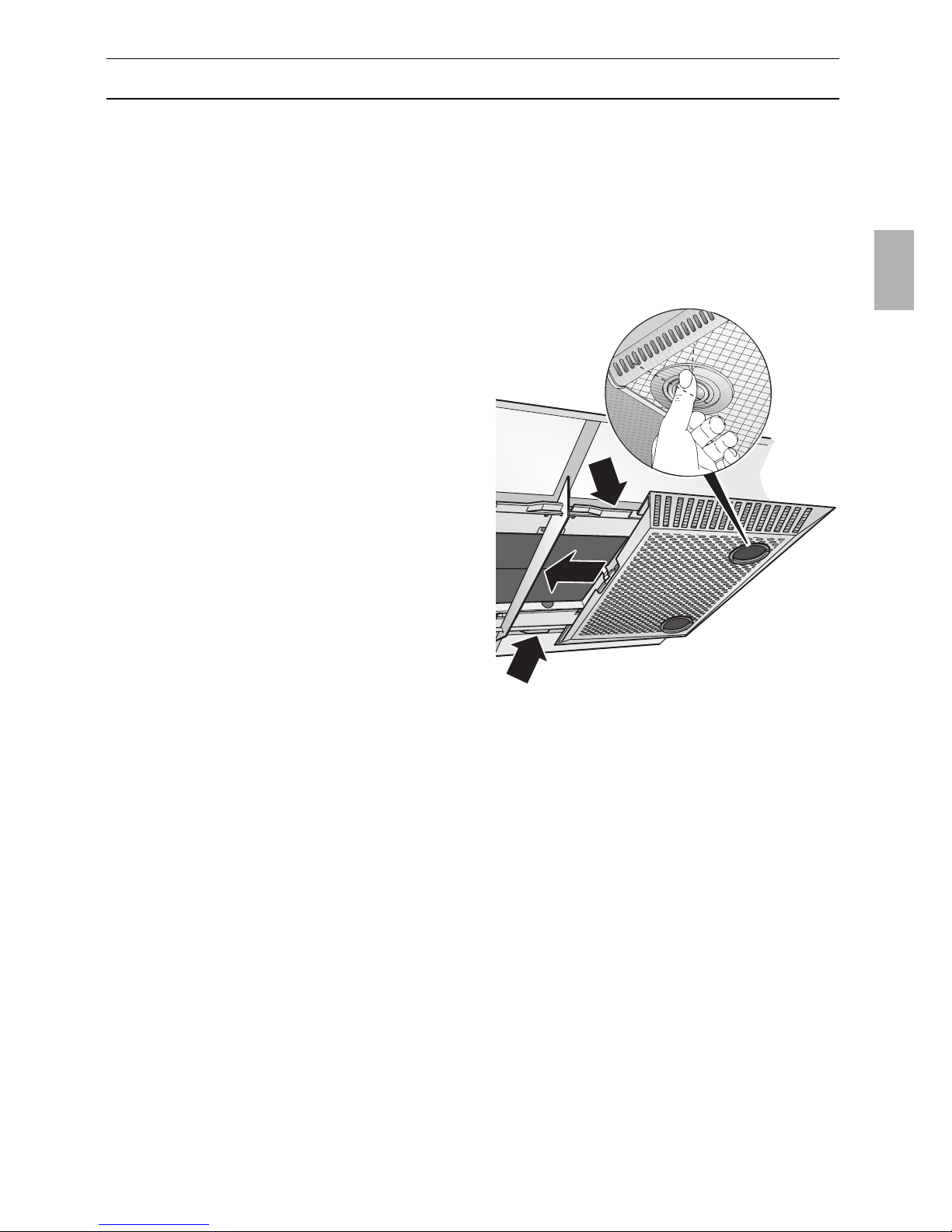

Removing and inserting the metal grease

ﬁlters:

WARNING

The halogen bulbs must be

switched off and cool.

1. Rotate the two catches on the grease

ﬁlter and remove the grease ﬁlter

sideways.

Cleaning and care

Isolate the extractor hood by pulling out

the mains plug or switching off the fuse.

NOTE:

Do not clean the extractor hood with

abrasive sponges or with cleaning agents

which contain sand, soda, acid or chlorine!

❑Clean the extractor hood with a hot soap

solution or a mild window cleaner.

❑Do not scrape off dried-on dirt but wipe

off with a damp cloth.

❑When cleaning the grease ﬁlters, remove

grease deposits from accessible parts of

the housing. This prevents the risk of ﬁre

and ensures that the extractor hood

continues operating at maximum

efficiency.

Screen and control buttons:

Clean with a mild detergent solution and a

soft, damp cloth only.

Do not use stainless steel cleaners.

Stainless steel surfaces:

❑Use a mild non-abrasive stainless steel

cleaner.

❑Clean the surface in the same direction

as it has been ground and polished.

❑We recommend our stainless steel

cleaner no. 461731.

See enclosed service booklet for order

address.

Aluminium, coated and plastic surfaces:

❑Do not use dry cloths.

❑Use a mild window cleaning agent.

❑Do not use aggressive, acidic or caustic

cleaners.

Observe the warranty regulations in the

enclosed service booklet.

If you encounter a problem

If an #appears in the display:

❑See "Filters and maintenance" Section.

If is not possible to operate the extractor

hood:

❑Disconnect the extractor hood from the

mains electricity supply by pulling out the

plug or switching it off at the main fuse

box.

Wait for approx. 1 minute and then

switch it on again.

If you have any questions or if a fault

occurs, please call Customer Service.

(See list of Customer Service

representatives).

When you call, please quote the following:

E-Nr. FD

Enter the relevant numbers into the box

above. The E-Nr. (product no.) and FD

(production date) are shown on the

nameplate which can be seen inside the

extractor hood after the ﬁlter frame has

been detached.

IMPORTANT:

The manufacturer of the extractor hoods

accepts no liability for complaints which

can be attributed to the design and lay-

out of the pipework.

4. Re-insert the bulb ring.

5. Plug the appliance into the mains or

switch it on at the fuse box.

NOTE:

If the light does not function, check that the

bulbs have been inserted correctly.

Replacing the light bulbs

3. Replace the halogen light bulb

(conventional halogen bulb, 12 Volt,

max. 20 Watt, G4 cap).

NOTE: Refer for plug-in lampholder.

Take hold of the bulb with a clean cloth.

1. Switch off the extractor hood and pull

out the mains plug or switch off the

electricity supply at the fuse box.

CAUTION:

When switched on, the halogen bulbs

become very hot. Even for some time after

the bulbs have been switched off there is

still a risk of burns.

2. Remove the bulb ring with a screwdriver

or similar tool.

Important information

Installation Instructions:

Additional information concerning gas

cookers:

When installing gas hotplates, comply with

the relevant national statutory

regulations (e.g. in Germany: Technische

Regeln Gasinstallation TRGI).

Always comply with the currently valid

regulations and installation instructions

supplied by the gas appliance

manufacturer.

Only one side of the extractor hood may be

installed next to a high-sided unit or high

wall. Gap at least 2”.

Minimum distance on gas hotplates

between the upper edge of the trivet

and lower edge of the extractor hood:

30”, Fig. 1.

Old appliances are not worthless

rubbish. Valuable raw materials can be

reclaimed by recycling old appliances.

Before disposing of your old appliance,

render it unusable.

You received your new appliance in a pro-

tective shipping carton. All packaging

materials are environmentally friendly and

recyclable. Please contribute to a better

environment by disposing of packaging

materials in an environmentally-friendly

manner.

Please ask your dealer or inquire at your

local authority about current means of

disposal.

The extractor hood can only be used in

exhaust air mode.

Always mount the extractor hood over the

centre of the hob.

Minimum distance between electric hob

and bottom edge of extractor hood:

30”, Fig. 1.

The extractor hood must not be

installed over a solid fuel cooker – a

potential ﬁre hazard (e.g. ﬂying sparks) –

unless the cooker features a closed,

non-removable cover and all national

regulations are observed.

The smaller the gap between the extractor

hood and hotplates, the greater the like-

lihood that droplets will form on the under-

side of the extractor hood.

Inhaltsverzeichnis

Sprachen:

Andere Bosch Dunstabzugshaube Handbücher

Bosch

Bosch DWB77CM50 Bedienungs- und Wartungsanleitung

Bosch

Bosch DWB98PR55 Bedienungsanleitung

Bosch

Bosch DWK06G6 0 Series Bedienungsanleitung

Bosch

Bosch DWK09M850 Bedienungsanleitung

Bosch

Bosch DIB097A50 Bedienungsanleitung

Bosch

Bosch DIA09E751B Installation Instructions Bedienungsanleitung

Bosch

Bosch DWB65BC50I Bedienungsanleitung

Bosch

Bosch DWB068G60I Bedienungsanleitung

Bosch

Bosch DWK98PR60 Bedienungsanleitung

Bosch

Bosch DHZ 2100 Bedienungsanleitung

Bosch

Bosch DHG6023UC Bedienungsanleitung

Bosch

Bosch DWK81AN60 Bedienungs- und Wartungsanleitung

Bosch

Bosch DWK09M760 Bedienungsanleitung

Bosch

Bosch DUL62MA20T Bedienungsanleitung

Bosch

Bosch DKE 985 S Bedienungsanleitung

Bosch

Bosch DWA06D750I Bedienungsanleitung

Bosch

Bosch DHL895DAU Bedienungsanleitung

Bosch

Bosch DHI 625 M AU Technisches Datenblatt

Bosch

Bosch DUL 3CA50V Series Bedienungsanleitung

Bosch

Bosch DID106T50 Bedienungsanleitung

Bosch

Bosch DIG97IM50B Bedienungsanleitung

Bosch

Bosch DWB060D50 Bedienungsanleitung

Bosch

Bosch DWK67JQ60 Bedienungsanleitung

Bosch

Bosch DWF97RU60 Bedienungsanleitung

Beliebte Dunstabzugshaube Handbücher anderer Marken

emmeti

emmeti RECUPA MED A-140 Leitfaden

Nibe

Nibe F135 Bedienungsanleitung

Kuppersberg

Kuppersberg INTRO 60 Montage- und Wartungsanleitung

Zephyr

Zephyr Spruce AK9834BS Installationsanleitung

Hisense

Hisense MH6INBG Bedienungsanleitung

Miele

Miele DA 1255 Bedienungsanleitung

Broan

Broan 46000 Bedienungsanleitung

GE Profile PV977 Originalbetriebsanleitung

FALMEC

FALMEC FFRIA24W5FS Bedienungsanleitung

Whirlpool

Whirlpool RH2600XL-1 SERIES Bedienungsanleitung

Küppersbusch

Küppersbusch DX ISLA Bedienungsanleitung

ETNA

ETNA AV360RVS Bedienungsanleitung

JUNO

JUNO JDF603E6 Bedienungsanleitung

Miele

Miele DA 6708 D Bedienungsanleitung

Tricity Bendix

Tricity Bendix LE 150 Handbuch

AEG

AEG X68163BV1 Bedienungsanleitung

AEG

AEG 125 D Bedienungsanleitung

Smeg

Smeg KSEV97X Bedienungsanleitung
