INSTRUCTIONS

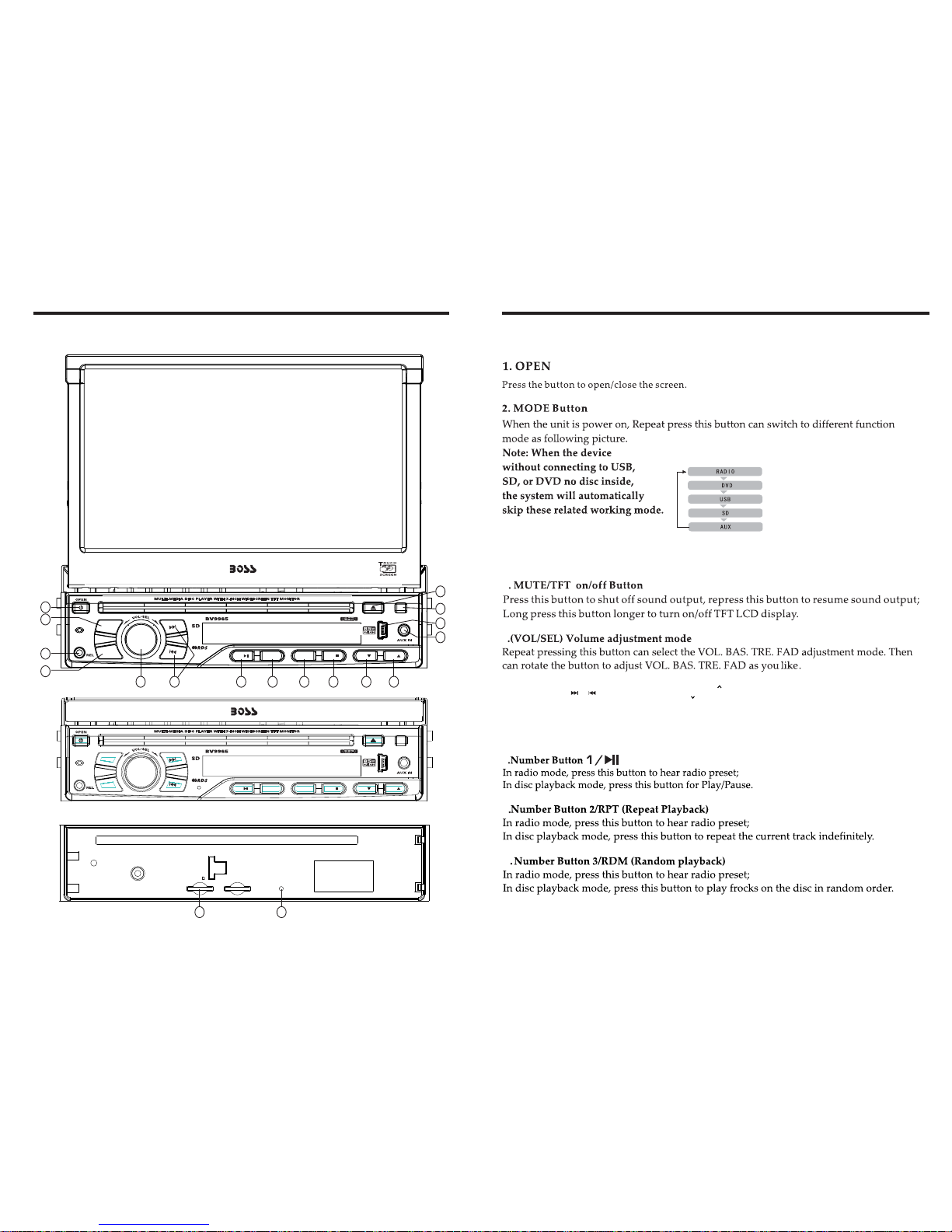

PANEL ARRANGEMENT

RESET

5 6 7

8 9 10 11 12

17 18

2/RPT 3/RDM

1/ 4/

MODE

5/ 6/

MUTE

INSTRUCTIONS

BASIC FUNCTION

3.RELEASE Button

Press this button to release the panel.

6. SEEK Knob/( / )/ (SEEK+/SEEK-)/(SEEK/SEEK)(Speed forward/backward/Select station/song)

In radio mode, press/rotate the knob to select station upward/backward. Long press/rotate the knob to

automatically scan station.

In playback mode, short press/rotate the knob to select song upward/backward,long press/rotate it to

achieve speed forward/backward function.

INSTRUCTIONS

10.

INSTRUCTIONS

REMOTE CONTROL FUNCTION

28 DSP

INSTRUCTIONS

Press this button to show the time.

28.DSP

INSTRUCTIONS

Turn on/off Host

Access main interface

In boot-up state, press POWER button on the panel to switch to main interface, as shown

in belowpicture:

Touch the function icons so as to access the

corresponding function operations.

Insert/Eject USB storage device

1. Connect a USB recorded with media information to the unit by a USB connecting cable.

2. When there is a need to eject the USB device, exit the USB device playback screen

first, and then take out the device.

Insert/eject SD card

1. Insert a SD card recorded with media information into the SD card slot in the unit

correctly until it is locked.

2. When pulling out the SD card, exit SD card playing state first, then press the SD card

and it shall pop up after unlocking.

Enter/exit

Insert a USB storage device or SD card to automatically play data contained in it. If the

unit has connected with a USB device or SD card, touch[ USB ]icon in the main interface

to enter into the external storage playback interface; Touch[ SD ]icon to enter into the SD

card playback interface. During playback, touch the top center area of the screen to pop

up the touch menu, operate touch menu to perform various playback controls.

When there is a USB device/SD card connected,

the unit can conduct the playback of audio/video/

image files in the USB device/SD card.

USB/SD Card function operation

Play

After SD card/USB removable device being read out, the operation methods are similar

to disk operation methods.

When the ignition switch is put in ACC or ON position,Press[ ] button on the front panel

to turn on the unit.After the host starts, hold [ ]button for 3 seconds , the host will turn off.

INSTRUCTIONS INSTRUCTIONS

Radio Function Operation

Touch [ RADIO ] icon in the main interface to enter into the radio interface.

Touch icon to return to main interface, and then touch other function icons so as to exit

radio mode.

Enter/exit

Click [BND] icon so as to switch among AM1, AM2, Fm1,FM2, FM3 bands.

Band selection

Search/Save radio stations

FM band can save 18 radio stations (Six stations for FM1/FM2/FM3), AM band can save

12 radio stations (Six stations for AM1/AM2).

Short press [Scan] icon to browse the stored radio stations.

Scan radio

Short press icon to manually fine-tune radio stations upward/downward.

Long press icon to automatically search and save radio stations.

Sound setting

Click [Sound] icon can switch to different sound mode.

Turn on/off the Long/Short-range

Click [Long/Short-range] icon so as to turn on/off Long/Short-Range function.

Note: This function is available only when FM band is selected.

Loudness on/off

Click [Loudness] icon so as to turn on/off loudness function.

Stereo on/off

When receiving stereo signals, click [Stereo] icon to turn on/off stereo.

Mute on/off

Click [Mute] icon to turn on/off mute function

TFT on/off

Click icon to turn off TFT, and then click the screen area so as to turn on TFT.

Click icon so as to slide screen angle.

Disc Function Operation

PIC 1

００

００:０１:４４００:０９:４３

TT 1/5 CH 1/1

VOL

００

００:０１:４４００:０９:４３

TT 1/5 CH 1/1

VOL

Do not insert two discs or more.

Eject disc

(1) Click button on the panel to eject the disc.

(2) If a disc has not been took away 15 seconds after it is ejected, system will

automatically take in the disc but not play.

Play/eject disc

Play disc

Insert the disc into the disc slot with the printing surface up, system will detect the disc

and automatically take it in to read and play.

During playback of disc, touch the middle lower area of the screen to pop up the touch

menu, operate the touch menu to perform various playback controls.(PIC 1)

DVD/VCD disc playback

CD Disc Playback

After a CD is inserted, system shall access reading state immediately.disc

When there is a in the device, click [ ] at the main interface so as to access

reading state.

disc Disc disc

After the being read out, system shall automatically play in sequence.disc

Play/pause

Touch the button to pause, retouch it to continue to play.

Stop

Touch the button to enter into prestop status.

Touch the button to select the previous/next song.

The previous/next song

Touch Menu Function Description

Fast forward/backward

Consecutively touch this button to select the speed of fast-forward/fast-backward.

Volume adjustment button

Touch this button and volume adjustment modulation shall pop up, touch button to

adjust the volume.

MP3/JPEG/MPEG4 disk playing

When the contains readable files, such as MP3/JPEG/MPEG4 files, it shall be

automatically read out and played after slipping into DVD player.

disc

During playing, touch the screen area and the touch menu shall pop up. Operate the

touch menu for various playing.

INSTRUCTIONS

Access next menu

Touch it to access the next menu interface.

Time setting

Touch this button to access time setting interface.

Stereo on/off

Touch it so as to turn on/off stereo.

Return to root menu

Touch this icon, it shall return to root menu of disk in DVD state and access PBC

menu playing in VCD state. All chapters in the disk shall be displayed on the interface,

touch the chapter icon directly for playing.

Access title menu

Press this button to return to title menu of the disk. Directly click menu bar at title

menu interface for playing.

Language selection

Touch this button to select language.

Digit keyboard

Touch this button and digit keyboard shall appear, click number buttons directly to

select tracks for playing.

Randomly play

Touch this button to instantly play each song. Press again to back to the normal play.

Zoom in/Zoom out image

Touch this button to zoom in /zoom out the image.

Repeat play

In playing state, touch this button to start repeat play function: Chapter repeat

Title repeat Off.

During VCD playing, this function only works when PBC is off.

INSTRUCTIONS

External input operation

Connect the video input plug with external video input jack, and connect the audio input

plug with external audio input jack.

Touch [Input] icon on main interface to access external input interface.

Audio You can adjust the

You can adjust the speaker volume by adjusting the front and back,left and right column.

volume, bass, pitch for input audio.

Video You can adjust the brightness, contrast, saturation and hue for input video.

You can also choose the video standard mode.

NO VIDEO SIGNAL

Other functions

Rearview function

In any running state, the video signal can switch to reverse video state when reversing the

car, and the system shall return to its initial running state after reversing the car.

Do not rely on CCD system completely,

.Back rearview system only assists in driving. As the distance range of rearview

system is limited, completely relying on the rearview system during driving may cause

accidents.

please make sure you use your direct eyesight while

driving

Reverse field simulation Rearview backup image

Warning

iPod function operation

Connect to iPod first, touch [iPod] icon on main interface to access iPod interface, as

in below diagram.

shown

Play/Pause

Stop Previous Song/next Song

Fast forward play/Fast backward play

Back to the

main interface

Volume adjustment knob

INSTRUCTIONS

Access setup interface

Click [Setup] icon on main interface to access setup interface.

General setting

Click icon on setup interface to access general setting interface, as shown in below

PIC 1 diagram:

In general setting interface, you can select to turn on or turn off the existing functions.

You can set wallpaper and opening picture you like and check version number of DV/DC,

click icon to browse up/down.

PIC 3

PIC 2PIC 1

Wallpaper selection

Click icon on wallpaper bar , icon shall pop up, click it to

select wallpaper.

direction

Opening picture

Click icon on opening picture bar , icon shall pop up, click it

to select opening picture.

direction

Time setting

Click

PIC 2diagram:

icon on setup interface to access time setting interface, as shown in below

Click icon on time bar time setting interface shall display, as shown in

below PIC 3 diagram:

Click icon beside hour and minute to separately set hour and minute.

Video setting

Click

(PIC 5) diagram:

icon on setup interface to access video setting interface, as shown in right

At video setting interface, you can adjust brightness, contrast, saturation and hue of the video.

Language Setup

During use, you can select your familiar language to display menu by language setup.

Click icon on setup interface to access language setting interface, as shown in right

(PIC 4) diagram:

Click the corresponding icon on the language bar desired to be set so as to switch

the language type, when there are more than 3 languages, direction icon shall pop up,

click it to select your familiar language.

PIC 4 PIC 5

INSTRUCTIONS

Click icon on setup interface to access audio setting interface, as shown in

diagram:

right(PIC 1)

Audio setting

You can turn on or turn off the existing functions on audio setting interface.

Steering wheel setting

II.Connect anode and cathode of direction control wire of the car with anode and cathode of

direction control wire of this device, and press the buttons on steering wheel one by one

and record the corresponding sequence and functions, then click [Allocation].

III. Click the button of steering wheel needs to be allotted so as to select the corresponding

setting function, such as volume +.

I. Click icon on setup interface so as to access steering wheel setting interface.

IIII. Buttons on steering wheel shall display the corresponding functions, such as volume + .

To reset functions, click [Reset] icon, all the settings set before shall be cleared, repeat

procedures 3~4 for resetting.

To modify function settings, repeat procedures 3~4. Click [Enter] to save the settings.

Touch calibration

If touch calibration error occurs, you can adjust the touch coordinate by “Touch calibration”.

Click icon on setup interface, input password [888888] to confirm to access touch

calibration interface, as shown in below diagram:

Touching methods

Use touch pen to click the center of “+” icon, and move along with center of “+” icon so as

to calibrate the screen. It shall automatically save data and exit after screen calibration.

Please accurately click all positions on screen, or the accuracy of touch calibration shall be

affected.

PIC 1

INSTRUCTIONS INSTRUCTIONS

WIRING DIAGRAM

This player is equipped with ISO standard connector, please follow below instruction:

● Yellow – 12 V Constant

● Black – Ground wire

● Blue - Power Antenna / Remote Amp Turn On

● Orange – Back-Up Camera Trigger (+) ● Pink – Parking Brake (-)

● White/White black - Left front speaker (+/-)

● Purple/Purple black - Right rear speaker (+/-)

● Green/Green black - Left rear speaker (+/-)

● Red - ACC ON (+12V) ● Grey/Grey black - Right front speaker (+/-)

Note:

The “PARKING BRAKE” wire must be connected to the parking brake system

of your car. When the parking brake is engages, the LCD will be allowed to view

your video. If not, the screen will produce an image saying, “PARKING BRAKE”.

This is a safety feature designed for the driver not to watch a video while driving.

The video output on this unit will not be affected by this.

INSTRUCTIONS

TROUBLE SHOOTING

PROBLEM CAUSE SOLUTION

After ignition switch

off ,setting

information all lose

Reset information and save

Change battery or fuse

Cannot power on

Change fuse same as the old one

Some factors cause MPU

wrong operation

Press RES button on the panel by

penpoint, then, power on

Poor performance

of radio station

Connot load disk There is a disk inside Remove disc before inserting another one

Weak signal Move the car to another place, then research

Cannot play disc

Disc is scratched Change new disc

Put wrong side of disc into

the unit Insert in the disk with sign side up

Clean lens by lens clean disc

Lens is dirty

Cannot switch

language/subtitle There is only one language/

subtitle in disc

If disc is not with multi-language/subtitle,

it cannot switch language/subtitle

No image Other factors cause MPU

wrong operation Press [RES] button on the panel by

penpoint, then, power on

Cannot watch

image during

driving

It’s not allowed to watch image

during driving

Park the car in a safe place, put the car stall

in “ P ” postion, pull up the hand brake,

parking brake wire must be grounded

Check fuse

ACCESSORY

DVD Parental control function：The default set

for DVD is #8 adult, which means all grades of

DVD can be read without entering password.To

change the default grade,you need to follow the

below procedure: Press SETUP button on the

remote, display will show the system set up menu

and the submenu,select password and enter

0000, you will be able to choose the DVD

grade as default.

INSTRUCTIONS

DVD Parental control function

Accessory Quantity

User Manual 2PCS

Wire

USB Cable

IPOD Cable

Keys

Install metal bar

Remote controller

Warranty card

2PCS

1PC

2PCS

CAR AUDIO SYSTEMS

BOSS AUDIO CAR STEREOS

Andere Handbücher für BV9965

Andere Boss Audio Systems Autoempfänger Handbücher

Boss Audio Systems

Boss Audio Systems BV8950 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV8963 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9360B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems MR500UAB Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 650UA Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems MR1525UI Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BVCP9800W Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 822UA Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV7348B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9986BI Benutzerhandbuch

Boss Audio Systems

Boss Audio Systems BV9356I Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV7325B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9355B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems ELITE BECPA10W Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 752UAB Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems C-3040 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BVS10.1B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9979B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV7464B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems EC3002 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems AVA-2825R Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 0791489116046 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems MR508UABW Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems CDC-3000A Bedienungsanleitung

Beliebte Autoempfänger Handbücher anderer Marken

Motorola

Motorola VWA63 Bedienungsanleitung

Nextar

Nextar D3201 Bedienungsanleitung

Alpine

Alpine CDE-163BT Bedienungsanleitung

Pioneer

Pioneer DEH-P645R Bedienungsanleitung

Axxera

Axxera XDMA7600 Betriebsanleitung

XM OnyX Bedienungsanleitung

Sound Storm

Sound Storm STM93R Bedienungsanleitung

Soundstream

Soundstream VIR-5000 Bedienungsanleitung

Avson

Avson MKT Platform Bedienungsanleitung

Sony

Sony MEX-1HD - Audio Library System Bedienungsanleitung

Pioneer

Pioneer DVH-P500UB Bedienungsanleitung

JVC

JVC KD-AHD69 Bedienungsanleitung

Blaupunkt

Blaupunkt SANTIAGO CR 87 Bedienungsanleitung

Sony

Sony CDX-4160 - Cd Receiver Bedienungsanleitung

XFIRE AUDIO

XFIRE AUDIO BMW42S Bedienungsanleitung

VDO

VDO CD 2253 Bedienungsanleitung

Volvo

Volvo 13 84 580 Bedienungsanleitung

ZENEC

ZENEC ZE-160DVD Bedienungsanleitung
