Boss Audio Systems BV7980 Bedienungsanleitung

CONTENTS

BV7980 In-Dash AM/FM DVD/MP3/CD Receiver

With 4.3 Widescreen TFT Monitor

With Front Panel USB Port

Safety Information......................................................................................

Disc Notes .................................................................................................

Installation .................................................................................................

Panel Angle Adjustment ..............................................................................

Electric Connection ....................................................................................

Remote Control ..........................................................................................

Basic Operation ........................................................................................

Setup .........................................................................................................

Specifications ...........................................................................................

Trouble Shooting ......................................................................................

.....................................................................

Scroll Caption Operation ..........................................................................

Video Quality Adjustment .........................................................................

Rear View Camera .................................................................................

MPEG4 Player ........................................................................................

USB Operation .......................................................................................

On-Screen Display Function ...................................................................

Multi-Audio Language Function ..............................................................

Multi-Subtitle Language Function ...........................................................

Multi-Angle Function .............................................................................

Title Menu Function ...............................................................................

General Setup ........................................................................................

Speaker Setup .......................................................................................

Dolby Digital Setup ................................................................................

Preferences Setup .................................................................................

Defaults Table ........................................................................................

MP3/WMA/JPEG Disc Play

AUX Operation .......................................................................................

SAFETY INFORMATION

CAUTION:

WARNING:

REGION MANAGEMENT INFORMATION:

THIS DVD PLAYER IS A CLASS I LASER PRODUCT. HOWEVER THIS DVD

PLAYER USES A VISIBLE/INVISIBLE LASER BEAM WHICH COULD CAUSE .

HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE

THE DVD PLAYER CORRECTLY AS INSTRUCTED.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF

PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN

HAZARDOUS RADIATION EXPOSURE.DO NOT OPEN COVERS AND DO NOT

REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

EQUIPMENT TO RAIN OR MOISTURE.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING

INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES.

THIS DEVICE IS INTENDED FOR CONTINUOUS OPERATION.

This product incorporates copyright protection technology that is protected

by method claims of certain U.S. Patents and other intellectual property rights

owned by Macrovision Corporation and other rights owners.Use of this

and is intended for home and other limited viewing uses only unless

otherwise authorized by Macrovision Corporation. Reverse engineering or

disassembly is prohibited.

This DVD Player is designed and manufactured to respond to the Region

Management Information that is recorded on a DVD disc. If the Region number

described on the DVD disc does not correspond to the Region number of this

DVD Player, this DVD Player cannot play this disc.

DISC NOTES

Preparing New Discs with

Edges

Rough

A new disc may have rough edges on

its inside and outside edges. If a disc

with rough edges is used, the disc may

be not seated properly and the player

will not play the disc. Therefore, remove

all rough edges in advance by using

a ball point pen or pencil as shown

below. To remove the rough edges,

press the side of the pen or pencil

against the inside and outside edges

of the disc.

Disc formats supported by this

player

Rough spots

outside edge

Ball point pen

or pencil

Rough spots

on inside

edge

Disc Cleaning

Use a dry soft cloth to wipe the surface.

If the disc is quite dirty, use a soft cloth

slightly moistured with isopropyl (rubbing)

alcohol. Never use solvents such as

benzine, thinner or conventional record

cleaners as they may mar the surface of

the disc.

Handling and Cleaning

Dirt, dust, scratches and warping of

discs may prevent operation.

Do not warp discs.

A disc should always be kept in its

case when not in use to prevent from

being damaged.

Do not place discs in the following

places:

1.Direct sunlight

2.Dirty, dusty and damp areas

3.Near car heaters

4.On the seats or dashboard

Do not put stickers on discs

Avoid scratching discs.

Discs which cannot be played

with this player

DVD-ROM

DVD-R/DVD-RAM

CDV

CD-G

VIDEO

CD-RW

DVD

12 cm disc

(Single-sided disc only)

Video CD

12 cm disc

MP3

12 cm disc

Label side

Do not touch

the

underside

of the disc

Do not

bend

Wipe the disc from

center

toward the outside

edge

INSTALLATION

Choose a mounting location where the unit will not interfere with the normal

driving function of the driver.

Before final installation of the unit, connect the wiring temporarily and make sure

all connected properly and the unit and the system work properly.

Use only the parts included with the unit to ensure proper installation. The use

unauthorized parts may cause malfunctions.

Consult with your nearest dealer if installation requires the drilling of holes or

modifications to the vehicle.

Install the unit where it does not get in the driver's way and cannot injure the

passenger if there is a sudden stop .

If installation angle exceeds 30 from horizontal, the unit might not give its

best performance.

Avoid installing the unit where it would be subject to high temperature, such

direct sunlight, or from hot air from the heater, or where it would be

dirt or excessive vibration.

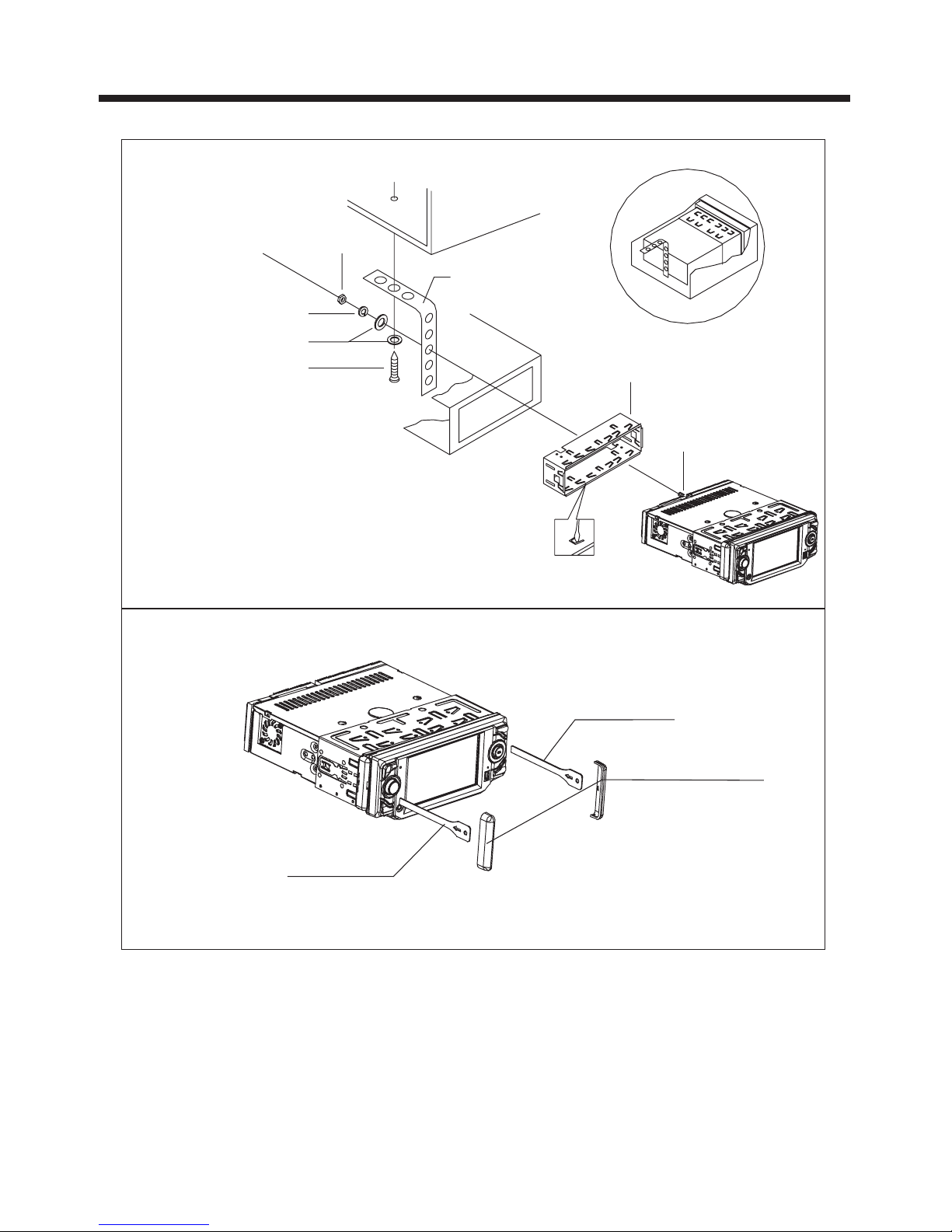

This unit can be properly installed either from "Front" (conventional DIN

or "Rear" (DIN Rear-mount installation, utilizing threaded

the unit chassis). For details, refer to the following

illustrated installation methods.

NOTES:

DIN FRONT/REAR-MOUNT

it is

other

as from

subject to dust,

Front-mount)

screw holes at the sides of

INSTALLATION

REMOVAL KEY

PLASTIC COVER

DASH BOARD

METAL MOUNTING

STRAP

HEX NUT

SPRING WASHER

PLAIN WASHER

TAPPING SCREW

CONSOLE

SLIDE BRACKET

HOUSING

HEX BOLT

To remove the unit, first remove the plastic covers from each side.

Then insert the two REMOVAL KEYS into the slots at the left and right

side of the chassis as shown in the drawing. This will release the unit from

its mounting sleeve and permit you to slide it out.

INSTALLATION

How To Remove and Install The Front Panel

When detaching or reattaching the control panel, be careful not to damage the

connectors on the back of the control panel and on the panel recess on main unit .

Detaching the Front Panel

Install the Front Panel

Before detaching the control panel, be sure to turn off the power.

Press the PWR button (2) briefly to switch the device ON.

Press the release button in the upper left corner of the front panel.(Figure 1. )

Once the left side is released, slide it slightly to the left to disengage it and lift it off.

( Figure 2. )

Always store the panel in its protective case to avoid scratches and damage to the

connectors on the rear. (Figure 3. )

To reinstall the panel, insert the right side of the panel first, then gently press the left

side until you feel a "click.” (Figure 4. )

PANEL ANGLE ADJUSTMENT

Caution:

Never put your finger behind the control panel.

To change the viewing angle of the display, press the (angle) button

repeatedly to select the desired angle as show below:

CHANGING THE CONTROL PANEL ANGLE

Angle 3

Angle 4

Angle 1 Angle 2

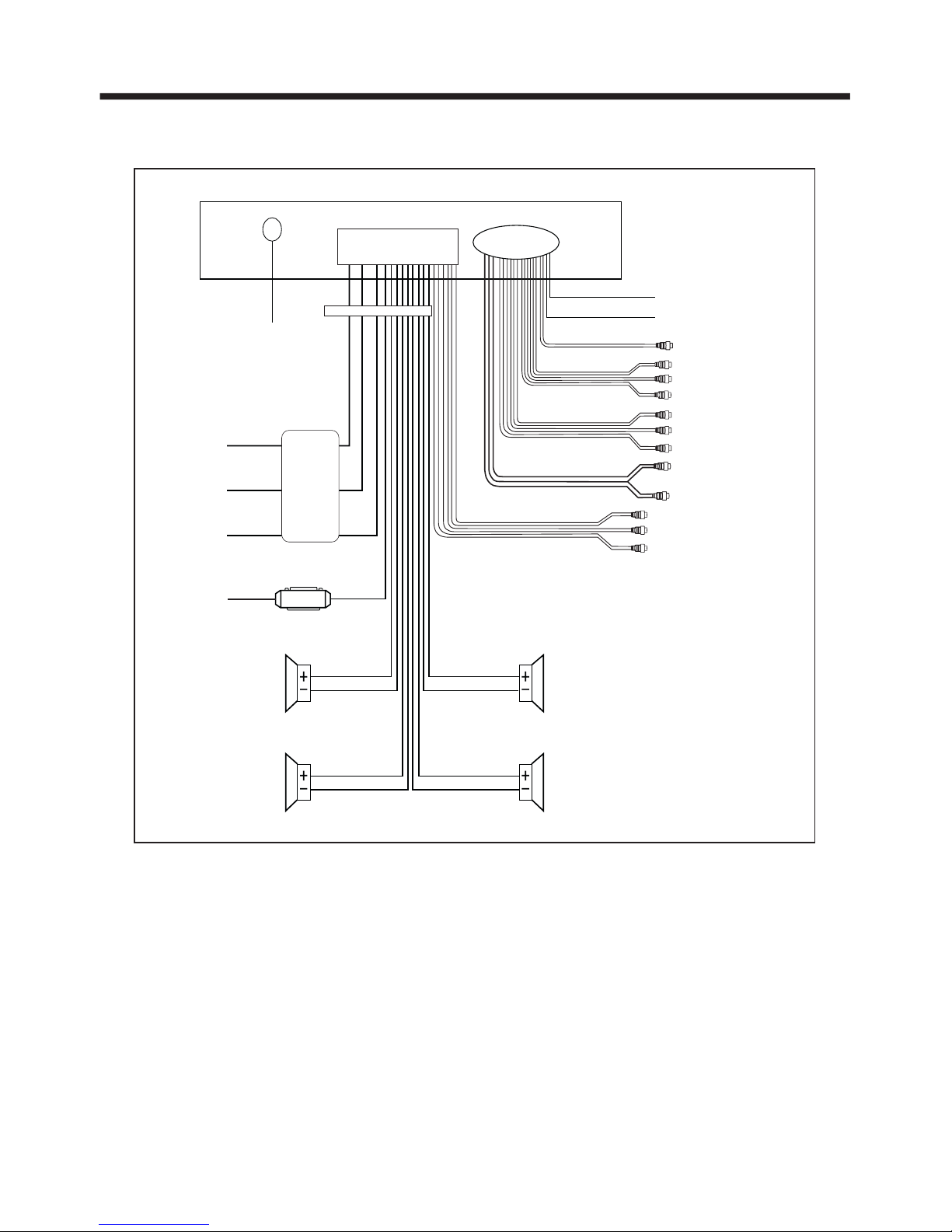

WIRING CONNECTIONS

Note:

The (B-) parking brake wire must be connected in order for video images to

appear on the monitor. If the wire has not been correctly connected,

the message “PARKING BRAKE” appears on the monitor.

(This wire must be connected to the (-) negative side of the parking brake system

of your vehicle. Once you engage the parking brake system, you will be allowed

to watch the video.)

VIDEO IN YELLOW

RCH IN RED

LCHINWHITE

GREY SUBWOOFER

VIDEO OUT 2 YELLOW

COAXIAL OUT BROWN

WHITE (B+)12V

REAR CAMERA SWITCH

GREEN

YELLOW

AUX(optional)

RCA CABLE

REAR CAMERA INPUT

(B-)PARKING BRAKE

FRONT RCA WHITE L

RCH RED

LCH WHITE

FRONT RCA RED R

VIDEO OUT 1 YELLOW

REAR RCA OUTPUT

CABLE (optional)

FRONT RCA OUTPUT

CABLE

(FOR RCA LINE OUT VERSION ONLY)

GREY

GREY/BLACK

FRONT

Rch SPK.

VIOLET

VIOLET/BLACK

WHITE

WHITE/BLACK

GREEN

GREEN/BLACK

REAR

Lch SPK.

AUTO

ANTENNA BLUE

FUSE

GROUND(B-)

MEMORY

BACK-UP(B+)

IGNITION

SWITCH(B+)

ANTENNA CONNECTOR

RED

YELLOW

BLACK

MAIN UNIT

REAR

Rch SPK.

FRONT

Lch SPK.

CHOKE

BOX

ISO CONNECTOR

REMOTE CONTROL

1.CLK

2.MODE

3.STOP

4.SETUP

Press this button to view the clock time. Press again to return to normal

display mode.

Press repeatedly to cycle through the various modes:

RADIO>DISC>AUXIN.

Press once to pause playback. Press PLAY/PAUSE to resume playback.

Please note: if you press STOP twice, playback will start at the beginning

of the disc.

Press this button to open the SETUP menu.

In Radio mode, press this button to change between Mono and Stereo

reception modes (when a station is weak, sometimes switching to Mono

will improve sound quality). In Disc Playback mode, pressing this button

opens the AUDIO setup menu for making changes to the way the

soundtrack is reproduced.

In DVD Disc Playback mode, pressing this button will allow you to change

the subtitle language on discs which have this as an option. In Radio

mode, press this button to change the radio reception sensitivity in

stations are near or far.

Pressing this button will open a menu presenting you with the playback

repeat options available for that kind of disc.

Press this button to begin playback at a moment in the program you

designate. Use the number buttons to enter the data that is needed.

Press these buttons to skip ahead or back one track.

Press this button repeatedly to cycle through the various audio and video

adjustments you can make: VOLUME, BASS, TREBLE, BALANCE,

FADER, COLOR, BRIGHTNESS, CONTRAST and TINT.

Use these controls to adjust the volume level.

Use these buttons to navigate the various menus present in the product.

Press this button briefly to display the root level directory of a DVD disc.

Press and hold this button to turn on or off the SUBWOOFER output.

In Radio mode, press this button repeatedly to switch between the five

radio bands: FM1 > FM2 > FM3 > AM1 > AM2. In Disc Playback modes,

Press this button to see information about the disc currently in play.

Press to turn the unit on or off.

In Disc Playback mode, press to pause playback. Press again to start

where playback stopped. In Radio mode (when RDS mode is engaged),

press this button to make a selection within the PTY stations available.

Press this button to turn off the audio. Press again to restore the sound

to its prior volume level.

(Note: In DVD

mode, press continually the twice to skip back one)

6. SUBTITLE

LOCAL/DISTANT

7.REPEAT

8.GOTO

9. and

10.SEL

11. VOL+/VOL-

12. / / /

13.MENU

SUB WOOFER

14.BAND(OSD)

15.POWER

16.PLAY/PAUSE

17.MUTE

5.MO/ST(AUDIO)

17 15

316

REMOTE CONTROL

Using the Remote Control

When you use the remote, be sure to be no more than six feet from the IR receiver

on the unit, and within 30º to the left or right of the IR window. Beyond these ranges,

the remote control may not communicate properly with the unit.

Preparing the Remote Control

1. Press the release catch on the battery drawer in the direction shown in the picture

below ( ) . Then with your fingertip pull the drawer out ( ).

2. Take careful note of the polarity of the battery before you remove it.

The (+) terminal must be UP as shown in the picture below ( ).

3. Insert a new battery, and push in the battery drawer until you feel a "click." ( )

Inserting the Battery

20.ANGLE MARK

BUTTON

21.EQ

23.ENTER

24. 0-9 NUMBER

BUTTONS

25.+10 BUTTON

26. RADIO PRESET BUTTONS

18.TITLE/PBC

(Playback Control

mode),

AP (Auto-Program

mode).

When playing a DVD, pressing this button will open the TITLE

menu which is recorded on the DVD. When playing a VCD disc,

press this button to create a PBC (Playback Control) menu for

the disc to assist in making playback selections. In Radio mode,

press and hold this button to start the Auto-Program mode,

during which the tuner will scan for all strong stations and assign

them to the radio preset buttons.

Press this button to adjust the screen viewing angle (see page 7).

For DVD discs which have alternate viewing angles encoded,

when you see the "angle mark" symbol advising you that these

angles are available, press this button to see them.

Press repeatedly to cycle through the different equalizer curve

presets you may wish to use for enhanced listening.

In Disc Playback mode, press for fast forward/reverse playback.

This button is used to confirm selections and settings within

many of the menus in the OSD system.

These buttons are used for numeric entry in many different

menus. In addition, in Radio Mode (when RDS is engaged),

0servesastheTAbuttonand9servesastehAFbutton.

This button is used with the other number buttons for use with

two-digit number entries.

19.

22. and

Inhaltsverzeichnis

Andere Boss Audio Systems Auto-Videosystem Handbücher

Boss Audio Systems

Boss Audio Systems BV14.1FLIP Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9972 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV15FLIP Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV12.1MC Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV13FLIP Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems DVD-2500 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV7948B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV7995T Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV10.1MC Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems DVD-6000 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV860B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9BA Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV7FL Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV11.2 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV8.5BA Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9968BI Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV8.5TA Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9567BI Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV12.1MCH Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9364B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9.2F Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV10.4FB Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems HIR70UG Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9967B Bedienungsanleitung

Beliebte Auto-Videosystem Handbücher anderer Marken

Stinger

Stinger HEIGH10 RB10RAM13B Bedienungsanleitung

Eonon

Eonon E1057 Bedienungsanleitung

Milion

Milion D2223 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-8153 Bedienungsanleitung

Voxx Electronics

Voxx Electronics HR8MA1 Bedienungsanleitung

Axxera

Axxera AV604Bi Bedienungsanleitung

Clarion

Clarion NX706E Bedienungsanleitung

Pyle view

Pyle view PLDN74BTi Bedienungsanleitung

Clarion

Clarion NX602 Bedienungsanleitung

PowerAcoustik

PowerAcoustik PTID-5850N Bedienungsanleitung

RCA

RCA DRC6296 - Twin 9" Mobile DVD System Benutzerhandbuch

Lanzar

Lanzar SVDVD5 Bedienungsanleitung

Kia

Kia MTXM100YPPE Bedienungsanleitung

Eonon

Eonon E1060 Bedienungsanleitung

Macrom

Macrom M-AN900 Bedienungsanleitung

Hyundai

Hyundai BAPE-L3000N Bedienungsanleitung

r.LiNK

r.LiNK RL2-UCON8-SM Bedienungsanleitung

Blaupunkt

Blaupunkt DVP 01C Bedienungsanleitung
