Boss Audio Systems BV9354 Bedienungsanleitung

6.2

6.2

DOUBLE

Welcome 17.ACCESSORY

User Manual

Accessory Quantity

Wire

USB

Cable

Remote Controller

Warranty card

1PC

1PC

1PC

1PC

2PCS

16.SPECIFICATIONS

Amp Rating 80 WattsX4 Channels

European frequency range

USA frequency range 87.5-107.9MHz

European frequency range

USA frequency range 530-1710kHz

522-1620kHz

20-30dBuv

DVD PLAYER

1.MPEG-4 Decoder Technology

2.Compatible with MP4(AVI/5.X),DVD(DVD-R/DVD-RW),VCD,SVCD,CD-RW,

WMA,MP3,JPEG

3.Supporting Multiles Subtitles,Angles,Languages

4.Child lock function

5.4-Channel Audio Output

6.Pause, play, UP/Down, Stop, Zoom, PBC Function

RADIO

1.AM/FM Radio Tuner

2.30 Radio Preset Stations (18FM, 12AM)

FEATURES 15.WIRING DIAGRAM

This player is equipped with ISO standard connector, please follow below instruction:

● Yellow – 12 V Constant

● Black – Ground wire

● Blue - Power Antenna / Remote Amp Turn On

● Orange – Back-Up Camera Trigger (+) ● Pink – Parking Brake (-)

● White/White black - Left front speaker (+-)

● Purple/Purple black - Right rear speaker (+/-)

● Green/Green black - Left rear speaker (+/-)

● Red - ACC ON (+12V) ● Grey/Grey black - Right front speaker (+/-)

Note:

The “PARKING BRAKE” wire must be connected to the parking brake system

of your car. When the parking brake is engages, the LCD will be allowed to view

your video. If not, the screen will produce an image saying, “PARKING BRAKE”.

This is a safety feature designed for the driver not to watch a video while driving.

The video output on this unit will not be affected by this.

1

2

3

4

5

6

7

8

9 10 11

1.SRC Button

2.MUTE/TFT on/off Button

3.MODE Button

4.SD Slot

5.RESET Button

6.SEL/VOL Button

7.AUX IN

8.USB Slot

9.Disk Load Slot

10.OPEN Button

11.Remote Control Receiver

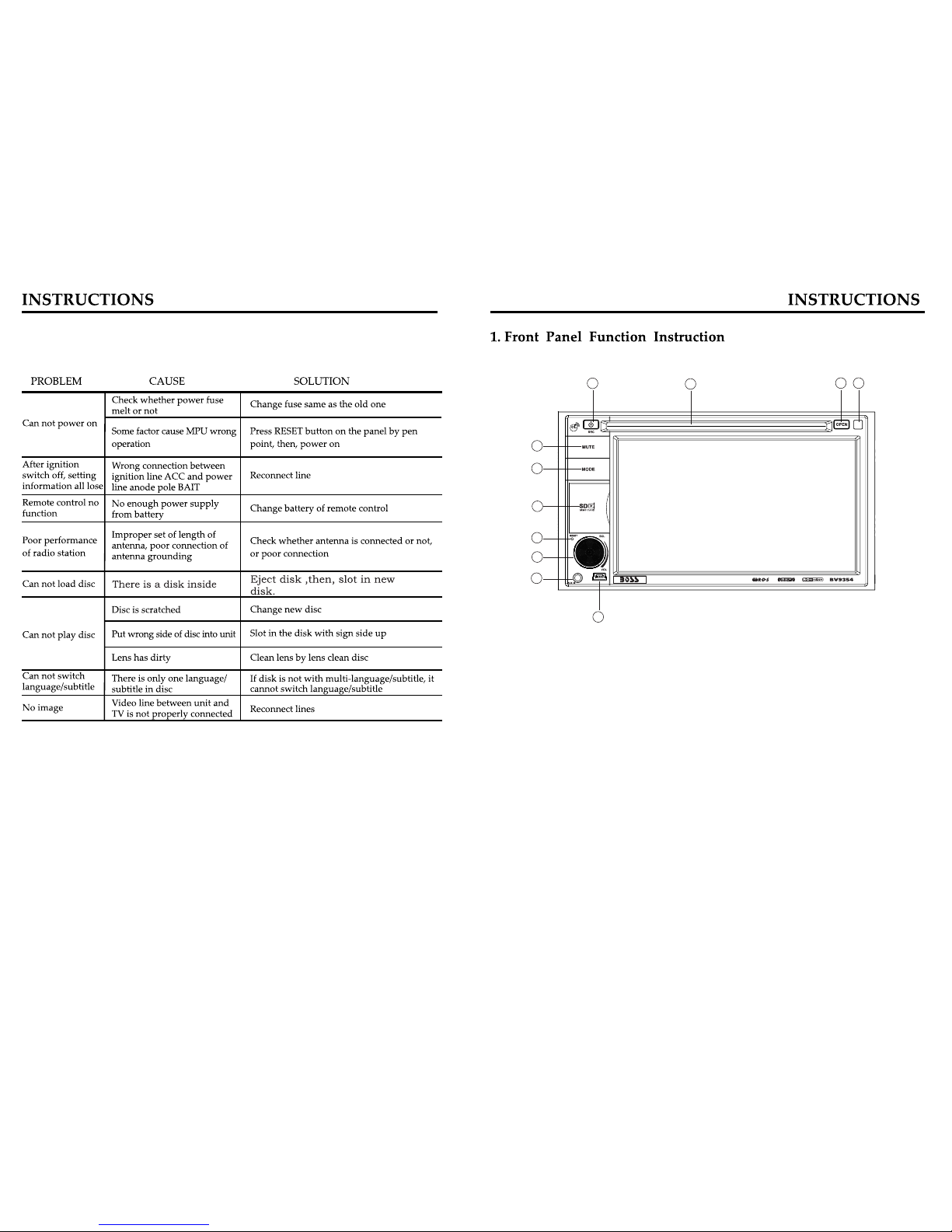

14.TROUBLE SHOOTING

1.SRC Button

2.MUTE/TFT on/off Button

3.MODE Button

4.SD Slot

This is a high-spees transmission interface, which can read high-capacity date in

MP3 or MP4 format.

5.RESET Button

Press this button and this unit will be restored to the initial state.

6.SEL/VOL Button

Turn this button can adjust the volume,Press this button can adjust the

mode according to personal likes.

13.OTHER PLAY MODE

7.

8.USB Slot

9.Disk Load Slot

Opening for disks to enter or retreat.

10.OPEN Button

Press this button can eject the disc

11.Remote Control Receiver

KEY

KEY

12.

EQ

11.

ST/PROG
