Owner’s Manual
2
Panel DescriptionsMain Features
1 2 3 4 65
7 8

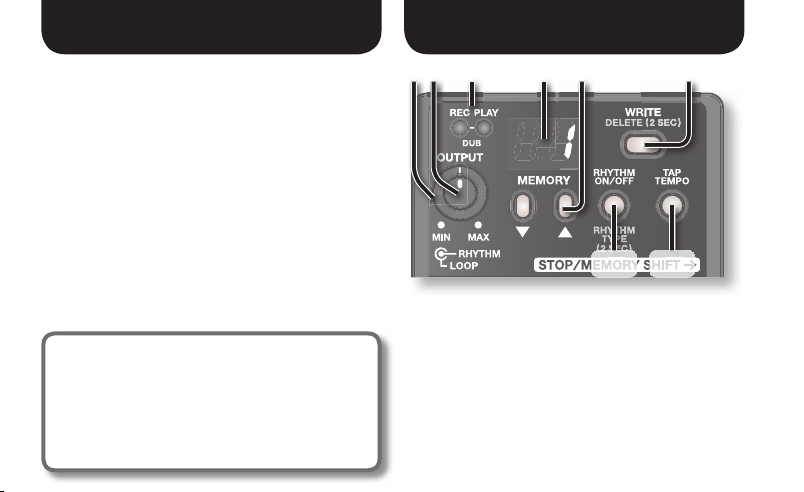

1. [OUTPUT LOOP] knob
This adjusts the volume level of the loop phrase being played back.
* This knob does not adjust the input level of the INPUT and
AUX IN jacks.
2. [OUTPUT RHYTHM] knob
This adjusts the volume level of the rhythm sound (p. 12).
Welcome to the Loop Station!
The RC-3 is a pedal-type recorder that lets you record audio phrases
from your guitar or bass, and play them back by operating the
pedal. You can create a wide variety of performances by layering
sound while you record and carry out play back in real time.
• It’s easy to create loop phrases.
• Up to 99 di erent loop phrases can be saved in phrase memory,
for a total of approximately 3 hours (* total for all phrases).
• You can input audio in stereo.
• Sound from a digital audio player connected to the AUX IN jack
can easily be recorded.
• Recorded phrases can be copied via USB to your computer, or
WAV les from your computer can be loaded into the RC-3 and
played back as loops (p. 14).
Before using this unit, carefully read the sections entitled:
“USING THE UNIT SAFELY” and “IMPORTANT NOTES” (supplied
on a separate sheet). These sections provide important
information concerning the proper operation of the unit.
Additionally, in order to feel assured that you have gained a
good grasp of every feature provided by your new unit, this
manual should be read in its entirety. The manual should be
saved and kept on hand as a convenient reference.
Panel Descriptions
3
English Deutsch Français Italiano Español Português Nederlands
3. REC, PLAY (DUB) indicator
This lights during recording, playback, and overdubbing.
Indicator Explanation
REC (red) During recording
PLAY (green)
During playback (while loading phrase memory,
or during an internal memory operation: blinks
rapidly)
Both During overdubbing
4. Display
This indicates the current phrase memory number, or various other
information (p. 20).
5. [ ] (DOWN) / [ ] (UP) buttons
These decrement or increment the number shown in the display.
6. [WRITE] button
Press this to save the recorded phrase to internal memory (p. 8).
7. [RHYTHM ON/OFF] button
This button turns the rhythm sound on/o (p. 12).
8. [TAP TEMPO] button
Press this button at the desired timing to set the tempo (p. 12).
9
10

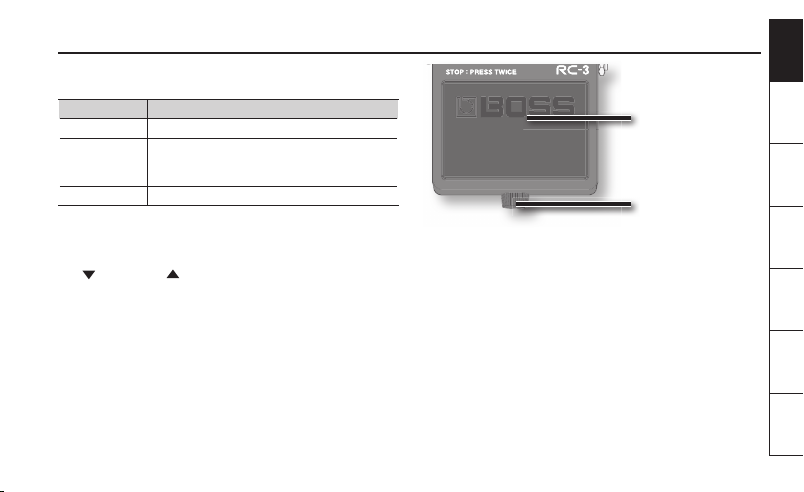

9. Pedal Switch
This pedal switches you between phrase recording, overdubbing,
and playback. Press the pedal twice in succession to stop playback
(p. 6).
10. Thumbscrew
When this screw is loosened, the pedal will open, allowing you to
change the battery.
* If you’re using the RC-3 only on a battery, the display will
indicate “bt” when the battery runs low. Replace the battery
as described on p. 22.
* A battery was installed in the unit before it left the factory.
The life of this battery may be limited, however, since its
primary purpose was to enable testing.
4

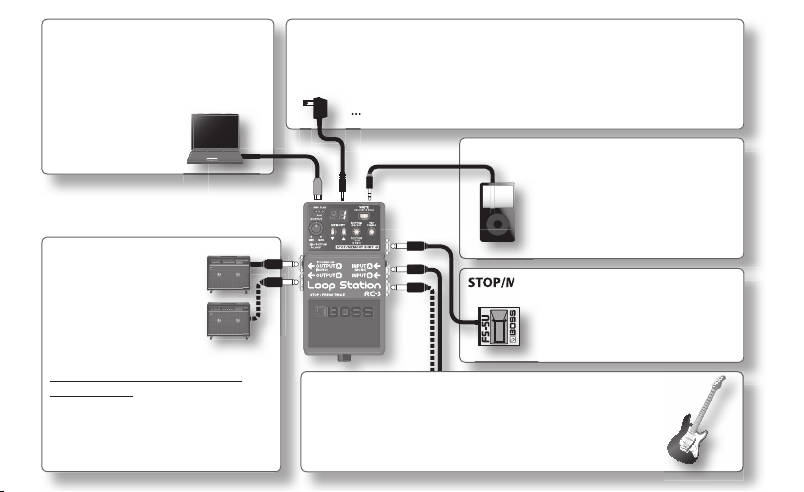

USB connector
You can use a commercially available
USB cable to connect the RC-3 to your
computer, and use the computer to read/
write RC-3 phrases (WAV les) (p. 14).
DC IN jack
Accepts connection of an AC Adaptor (PSA series; optional). By using an AC Adaptor, you
can play without being concerned about how much battery power you have left.
* Use only the speci ed AC adaptor (PSA series), and connect it to an AC
outlet of the correct voltage. Do not use any other AC adaptor, since this
may cause malfunction.
AUX IN jack
Use a stereo mini-plug cable to
connect your audio player here.
By using the Auto recording function
(p. 11), you can start recording the
moment your audio player begins
playback.
OUTPUT A/B jacks
Connect these jacks to your
amp or monitor speakers.
If your system is monaural,
use only the OUTPUT A jack.
Sound that was input in
stereo will also be output
monaurally.
The OUTPUT A jack also operates as
a power switch. The power will be on if
a plug is inserted in the OUTPUT A jack.
Remove the plug when you’re not using
the RC-3.
may cause malfunction.
AUX IN jack
STOP/MEMORY SHIFT jack
You can connect a separately available
foot switch (FS-5U, FS-6) here, and
use it to stop playback or to switch
phrases (p. 16).
INPUT A/B jacks
Connect your guitar, bass, or e ects unit to these jacks.
Use the INPUT A jack and INPUT B jack when connecting a
stereo-output e ects unit. Use only the INPUT A jack if you’re using
a monaural source.
STOP/MEMORY SHIFT jack
5
English Deutsch Français Italiano Español Português Nederlands
NOTE
* To prevent malfunction and/or damage to speakers
or other devices, always turn down the volume, and
turn o the power on all devices before making any
connections.
* Before connecting or disconnecting any connection
cables, be sure all the volume controls in your system
are set to minimum.
* Use connection cables that do not contain a built-in
resistor. If you use cables that contain a resistor,
there might be insuffi cient volume from the device
connected to the AUX IN jacks, or it might be inaudible.
* Do not connect headphones to the OUTPUT jack.
Doing so may damage the headphones.
Turning On the Power
Inserting a connecting plug into the OUTPUT A jack turns on the
power to the unit.
Once the connections have been completed, turn on power to
your various devices in the order speci ed. By turning on devices
in the wrong order, you risk causing malfunction and/or damage to
speakers and other devices.
When powering up
Turn on the power to your guitar amp last.
When powering down
Turn off the power to your guitar amp rst.
* This unit is equipped with a protection circuit. A brief interval
(a few seconds) after power up is required before the unit will
operate normally.
Español
Português
Caution when turning off the power
While the RC-3 is in the following states, you must never
turn off the power (i.e., disconnect the plug from the
OUTPUT A jack).
Doing so may cause all the saved data to be lost.
• While the REC or PLAY indicator is lit
(during recording/playback/overdubbing)
• While the PLAY indicator is blinking rapidly
(while phrase memory is being read, or an internal
memory operation is occurring)
6
Basic Operation
Selecting a Phrase Memory
Use the [ ] / [ ] buttons to select a
phrase memory (1–99).

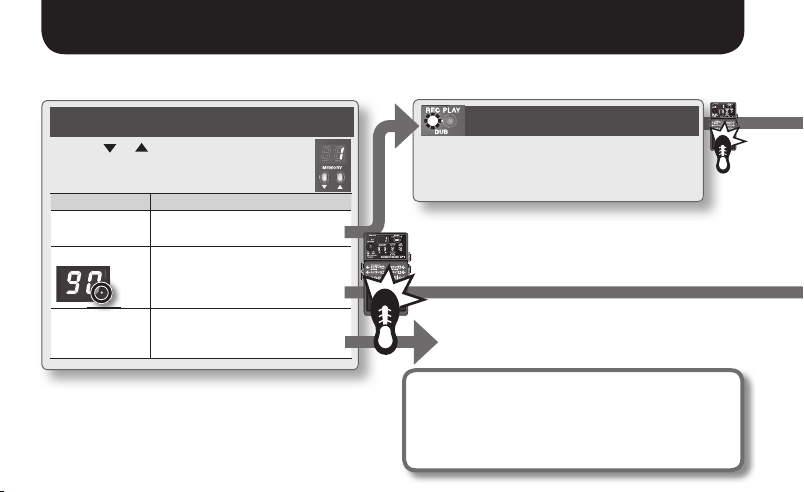

Display Explanation
Only number
displayed
Empty phrase
Press pedal to start recording
Dot in lower right Phrase containing data
Press pedal to start loop playback
Number and
“oS” displayed
alternately
One-shot phrase
Press pedal to play phrase only once
(not loop)
To perform recording, overdubbing, and playback, press the pedal as shown in the diagram.
Refer to”Saving a Phrase for One-Shot Playback” (p. 10).
Recording
Record your guitar or bass performance, or
the sound from an audio player connected
to the AUX IN jack.
• Auto recording (p. 11) lets you start recording the
moment you begin performing.
• You can also record along with rhythm sounds (p. 12).
• When shipped from the factory, phrases 90–99 contain
demo phrases.
“Recording” versus “Overdubbing”
In this manual, we refer to the act of recording to an empty
phrase for the rst time as “recording.” Any subsequent
recordings that are made, which are added on top of the
existing recording, we refer to as “overdubbing.”
Basic Operation
7
English Deutsch Français Italiano Español Português Nederlands
Deutsch
Français
Italiano
Loop Playback
Play back phrases as loops.
Pressing the pedal switches the unit to
overdubbing.
Português
Nederlands

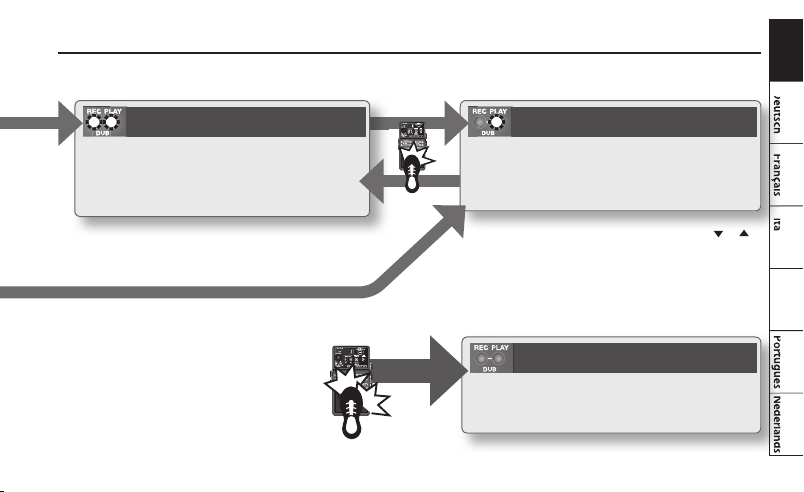

Stop
During overdubbing or loop playback, you
can stop by pressing the pedal twice in
succession.
Overdubbing
Layer your performances while the phrase
plays as a loop.
Pressing the pedal switches the unit to
playback.
Press twice
• You can Undo and Redo (p. 10). • To use the Memory Shift function, press the [ ] / [ ]
buttons while a phrase is playing; the phrase memory
number will blink, allowing you to select the next
phrase (p. 17).
• Press the pedal twice within one second.
Basic Operation
8
NOTE
* While phrase memory is being read, the
PLAY (green) indicator will blink rapidly.
Never turn o the power while the PLAY
indicator is blinking rapidly.
* The minimum recording time for a loop phrase is
approximately 1.5 seconds. If you press the pedal
within approximately 1.5 seconds after you start
recording, recording will continue until the phrase is at
least approximately 1.5 seconds long.
* The maximum recording time for a loop phrase is
approximately 3 hours (total for all phrases). When
the maximum recording time is exceeded, the display
will show “FL” to indicate that internal memory is full,
and recording or overdubbing may end before you
intended. If this occurs, delete unneeded phrases (p. 9)
and then try the operation again.
* If you use the Memory Shift function before saving a
phrase, that phrase will be erased. For details on how
to save a phrase, refer to p. 8.
Saving a Phrase
If you select a di erent phrase memory or turn o the power after
recording or overdubbing, the phrase you recorded will be lost. If
you want to keep the phrase, you must save it.

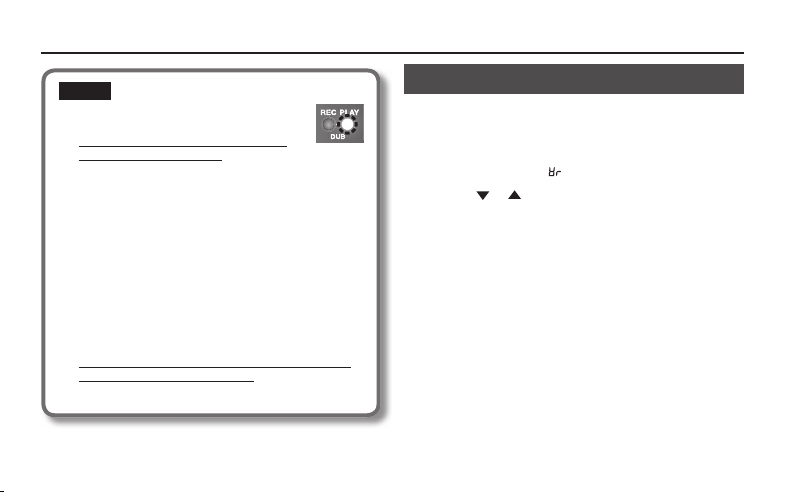

1. While playback is stopped, press the [WRITE] button.
The display will indicate “ ” (wr).
2. Use the [ ] / [ ] buttons to specify the save-
destination phrase memory.
You can skip this step if you want to save to the currently
selected phrase.
You can’t select a phrase memory in which a phrase has already
been saved.
The maximum recording time is a total of approximately 3 hours
for all phrases (including the phrase that has not been saved).
If the phrase cannot be saved because there is insuffi cient
free memory, the display will indicate “FL” alternately with the
phrase memory number. In this case, delete unneeded phrases
(p. 9) and then try the operation again.
3. Press the [WRITE] button once again; the phrase will
be saved.
If you decide not to save the phrase, press the [TAP TEMPO]
button, the [RHYTHM ON/OFF] button, or the pedal.
Basic Operation
9
English Deutsch Français Italiano Español Português Nederlands
While the phrase is being saved, the number in the display and
the PLAY indicator will blink rapidly.
NOTE
* Never turn o the power while the PLAY indicator is
blinking rapidly. This may cause all saved data to be
lost.
* Please be aware that the contents of memory can
be irretrievably lost as a result of a malfunction or
improper operation of the unit. You should back up
important data as described in “Backing up to your
computer” (p. 14).
* All due care is taken during repairs to avoid the loss
of data. However, in certain cases, such as when there
is damage to the memory, it may not be possible to
restore the data.
* Unfortunately, it may be impossible to restore the
contents of data that was stored in the unit’s memory
once it has been lost. Roland Corporation assumes no
liability concerning such loss of data.
Deleting a Phrase
* This device contains demo phrases (90–99). Once you delete
these, they cannot be recovered. Please back them up as
described in “Backing up to your computer” (p. 14).
1. Use the [ ] / [ ] buttons to select the phrase
memory that you want to delete.
2. While playback is stopped, hold down the [WRITE]
button for at least two seconds.
The display will indicate “dL.”
* At this point, you can’t change the phrase memory number
that will be deleted.
3. Press the [WRITE] button to delete the phrase.
If you decide not to delete the phrase, press the [TAP TEMPO]
button, the [RHYTHM ON/OFF] button, or the pedal.
While the phrase is being deleted, the number in the display
and the PLAY indicator will blink rapidly.
* Never turn o the power while the PLAY indicator is blinking
rapidly. This may cause all saved data to be lost.
Basic Operation
10
Saving a Phrase for One-Shot Playback
One-shot playback will play the phrase once from the beginning to
the end, and then stop automatically.
1. Hold down the [TAP TEMPO] button and press the
[WRITE] button.
The display will indicate “oS.”
2. Use the [ ] / [ ] buttons to specify the save-
destination phrase memory.
3. Press the [WRITE] button once again; the phrase will
be saved as a one-shot phrase.
If you decide not to save the phrase, press the [TAP TEMPO]
button, the [RHYTHM ON/OFF] button, or the pedal.
* Overdubbing is disabled when one-shot playback is in eect.
If the pedal is pressed during playback of the phrase, the
phrase starts playing from the beginning again (retrigger
playback).
* You need to save the phrase over again in order to cancel
one-shot playback (return to loop playback). (p. 8)
* If you want to stop a One-Shot phrase while it is playing back,
press the pedal twice within a period of 0.5 seconds.
Cancelling an Overdub (Undo/Redo/Clear)
You can undo/redo/clear by holding down the pedal for at least
two seconds.
Operation
Display
Explanation
Undo Un
Hold down the pedal for at least two
seconds during playback or overdubbing;
the recording or the most recent
overdubbing will be cancelled.
Redo rE
If you want to restore the cancelled sound,
hold down the pedal for at least two seconds
while playback once again.
* Redo is only available for overdubbing.
Clear CL
Hold down the pedal for at least two
seconds while stopped; the current phrase
will be cleared. (Clear is temporary; phrases
saved in phrase memory will not be deleted.)
During Undo/Redo, the PLAY and REC indicators will blink rapidly.
During Clear, the PLAY indicator will blink rapidly.
Andere Handbücher für RC-3 Loop Station
2
Dieses Handbuch passt für folgende Modelle
1
Inhaltsverzeichnis
Sprachen:
Andere BOSSCO Musikpedal Handbücher
BOSSCO
BOSSCO BF-3 Bedienungsanleitung
BOSSCO
BOSSCO FV-300H Bedienungsanleitung
BOSSCO
BOSSCO DS-1X Bedienungsanleitung
BOSSCO
BOSSCO Acoustic Simulator AC-2 Bedienungsanleitung
BOSSCO
BOSSCO ME-33 Bedienungsanleitung
BOSSCO
BOSSCO FW-3 Foot Wah Bedienungsanleitung
BOSSCO
BOSSCO RC-2 Bedienungsanleitung
BOSSCO
BOSSCO Harmonist PS-6 Bedienungsanleitung
BOSSCO
BOSSCO HF-2 Bedienungsanleitung
BOSSCO
BOSSCO MD-2 Bedienungsanleitung
BOSSCO
BOSSCO gt-8 Bedienungsanleitung
BOSSCO
BOSSCO BE-5B Bedienungsanleitung
BOSSCO
BOSSCO OC-2 Octaver Bedienungsanleitung
BOSSCO
BOSSCO XT-2 Xtortion Bedienungsanleitung
BOSSCO
BOSSCO BD-2 Blues Driver Bedienungsanleitung
BOSSCO
BOSSCO HM-2 Heavy Metal Bedienungsanleitung
BOSSCO
BOSSCO RC-500 Bedienungsanleitung
BOSSCO
BOSSCO BCB-30 Bedienungsanleitung
BOSSCO
BOSSCO LMB-3 Bedienungsanleitung
BOSSCO
BOSSCO Loop Station RC-5 Bedienungsanleitung
Beliebte Musikpedal Handbücher anderer Marken
Matthews Effects
Matthews Effects Whaler V2 Bedienungsanleitung
Grid 1
Grid 1 Pedal Jeanie Bedienungsanleitung
Amptweaker
Amptweaker tightboost Bedienungsanleitung
Ibanez
Ibanez TS-808 Tube Screamer Overdrive Pro Bedienungsanleitung
PuzzleSounds
PuzzleSounds DR. Q ENVELOPE FILTER Bedienungsanleitung
BYOC
BYOC Analog Chorus Handbuch
