P4FL

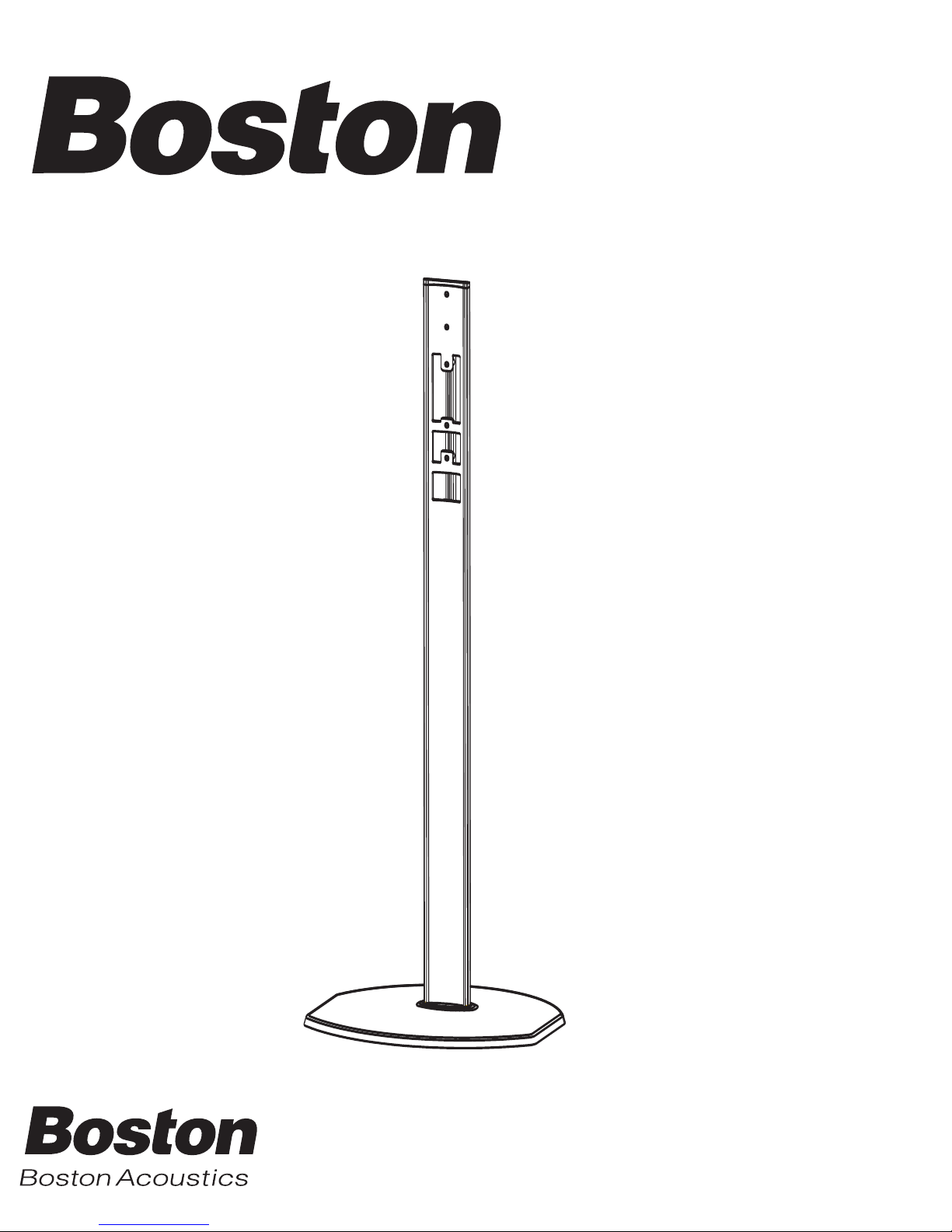

Vertical Floor Stand for the P4, Bravo®II, and Bravo Speakers

P4 Assembly Instructions:

This configuration is compatible with Models: P460,

P450, P442, and P430.

•Flat head

Screwdriver

Hardware: (Per Speaker Stand)

Required Tools:

(not included)

•Phillips head

Screwdriver

Speaker

Screw

(short) x 2

Threaded

Machine

Screw x 3

P4FL

Base x 1

P4FL

Vertical

Post x 1

Step One: Attach Base

Attach the base to the vertical

post with the three included

threaded machine screws and

split washers (small) using a

Phillips head screwdriver. The

post has already been threaded

to ease screw installation. Attach

rubber feet to base.

Step Two: Speaker Wire

With the stand still inverted, route

the speaker wirethrough the open-

ing in bottom of the base, down

through, and out the opening in

the post. Leave several extra inches

of speaker wire exposed to ease

connection with the P4 speaker.

Split Washer

(small) x 3

Step Three: Mounting the P4 Speaker

There are two heights available for vertical mounting allowing you

to match the height of the speakers with your television. The

higher option is illustrated on the left and the lower on the right.

The total difference in height is 2-inches (51mm). Due to the weight

of the P4 speaker, it is recommended that the installation be

performed with the P4 speaker laying face down with the grille

removed on a soft surface such as a plush carpeted floor or the P4

shipping carton. Inspect the area where the speaker will lay making

sure that there are no objects that could damage the speakers or

scratch the front of the P4.

1. Position the P4FL close to the P4 speaker as illustrated.

2. Connect the speaker wire to the terminals on the P4 speaker.

3. Mount the speaker to the post by lining up the appropriate

threaded inserts in the back of the P4 speaker with the

machined holes in the post. Use the “P4 Mounting Chart” on

the back page of this manual to determine the correct

threaded inserts to use. Insert the two speaker screws (short)

and tighten. Note: Do not over-tighten the screws.

4. Insert the three hole plugs in the unused mounting holes on

the back of the P4FL post.

5. Take up any slack in the speaker wire by gently pulling the wire

at the opening in the base.

Hole Plug

x 3

Bravo Assembly Instructions:

This configuration is compatible with Models: Bravo II

and Bravo.

Hardware: (Per Speaker Stand)

Speaker

Screw

(long) x 2

Threaded

Machine

Screw x 3

P4FL

Base x 1

P4FL

Vertical

Post x 1

•Pliers

•Flat head

Screwdriver

•Phillips head

Screwdriver

Split Washer

(large)

x 2

1⁄4"-20

Threaded

Nut x 2

Split Washer

(small) x 3

Hole Plug

x 3

Step One: Attach Base

Attach the base to the vertical

post with the three included

threaded machine screws and

split washers (small) using a

Phillips head screwdriver. The

post has already been threaded

to ease screw installation. Attach

rubber feet to base.

Step Two: Speaker Wire

With the stand still inverted, route

the speaker wire through the open-

ing in bottom of the base, down

through, and out the opening in

the post. Leave several extra inches

of speaker wireexposed to ease

connection with the Bravo speaker.

Step Three: Mounting the Bravo Speaker

1. Using the speaker screws (long), washer, and 1⁄4"-20 threaded

nut, mount the Bravo mounting bracket to the P4FL post.

2. Remove the speaker’sgrille by grasping the back of the

cabinet in one hand, while gently pulling the grille away with

the other hand.

3. Connect the speaker wire to the terminals on the Bravo speaker.

4. Align the openings in the back of the speaker with the two

posts protruding from the bracket as shown and attach the

speaker to the bracket by inserting the supplied screws

through the holes in the front of the speaker and into the

bracket as shown.

Note: For detailed instructions on installing the speaker to the wall bracket,

please refer to the Bravo owners manual.

5. Insert the three hole plugs in the unused mounting holes on

the back of the P4FL post.

6. Take up any slack in the speaker wire by gently pulling the wire

at the opening in the base.

Required Tools:

(not included)

Boston, Boston Acoustics, Bravo, and the Boston Acoustics

logo are registered trademarks of Boston Acoustics, Inc.

Specifications aresubject to change without notice.

300 Jubilee Drive

Peabody,MA 01960

U.S.A.

978.538.5000

www.bostonacoustics.com 042-002211-0

If Service Seems Necessary

First, contact the dealer from whom you purchased the speakers. If that is not possible, write to:

Boston Acoustics, Inc.

Attn: Parts and Service

300 Jubilee Drive

Peabody,MA 01960 U.S.A.

Or contact us via e-mail at:

suppor[email protected]

We will promptly advise you of what action to take. If it is necessary to return your P4FL floor stand to the factory,

please ship it prepaid. After it has been repaired, we will return it freight prepaid in the U.S.A. and Canada.

P4 Mounting Chart

Each P4 model features multiple mounting locations on the back of the speaker to accommodate a number of

different attachment methods. Below, the back of each model is shown along with the appropriate screw holes for

use with the P4FL speaker stand.

P450P460 P442 P430
