Boston Acoustics SUB10F Bedienungsanleitung

In-Floor Subwoofer

Sub10F

Introduction

In many homes and installations, the deep bass of a powered subwoofer is desired, but often there is

not a suitable location to install a box subwoofer. The Boston Sub10F In-Floor Subwoofer handily solves

this dilemma. Located below the ﬂoor and powered by the companion Boston SA1 Subwoofer Power

Ampliﬁer, all that is visible in the listening room is a ﬂoor register.

Warning: Always turn off the ampliﬁer when connecting the subwoofer and any other components to

the system.

Note: The Sub10F is an installed product. Installation should only be attempted by professional

installers or those possessing skills in construction, the proper use of hand and power tools, knowledge

of local building and ﬁre codes, and a familiarity with the environment below the ﬂoor in which the sub-

woofer will be installed.

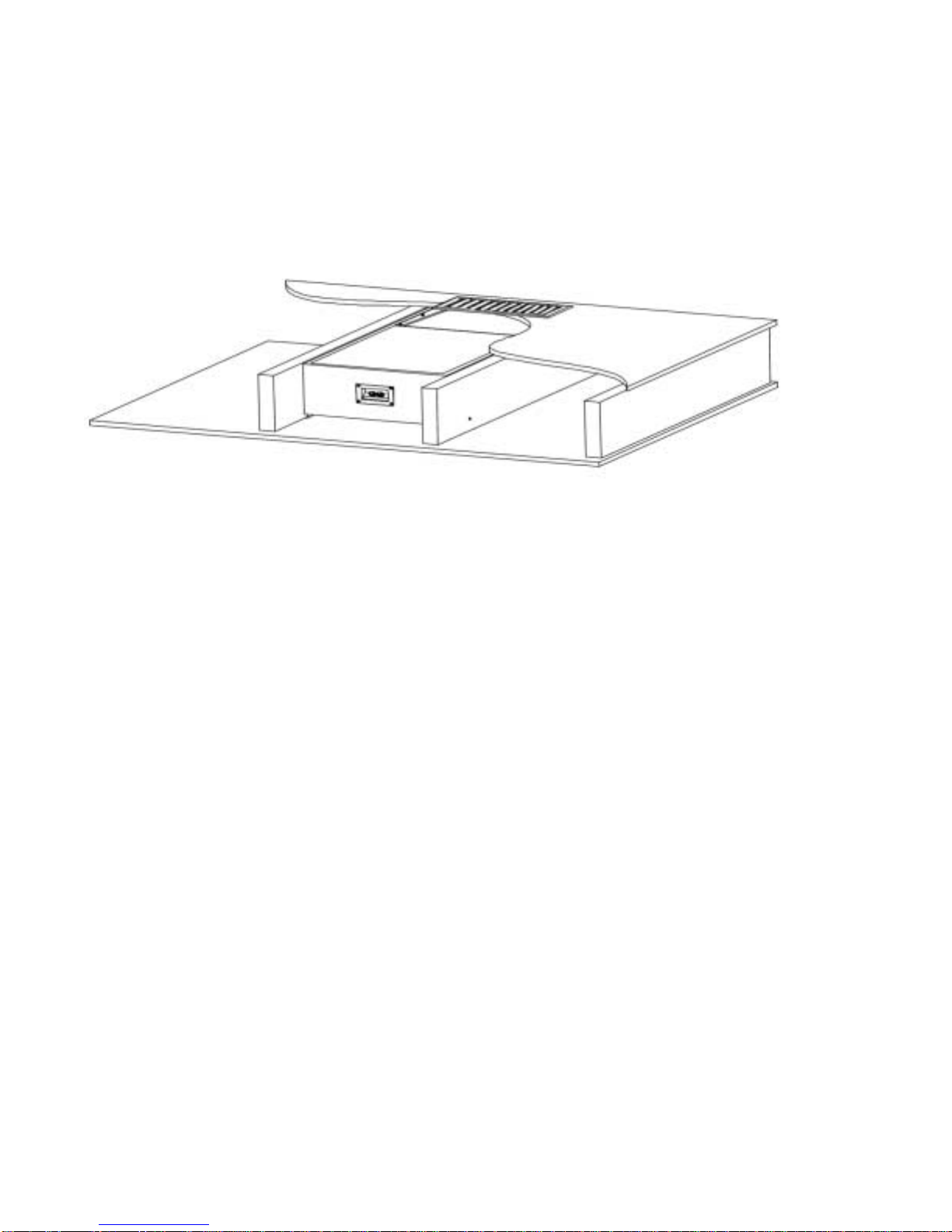

Placement

For maximum bass, place the Sub10F so its vent is near a corner or sidewall and is as close to the main

speakers as possible.

Floor Register (Not supplied)

The Sub10F mounts in the ﬂoor directly below a ﬂoor register. The register should have a minimum air

opening of 3 x 9". Return registers without moving parts should be used. If the register has moving lou-

vers or other moving parts, they will need to be removed to prevent them from rattling.

Floor Thickness

As ﬂoors differ in thickness, it is important to measure the depth of the ﬂoor register and the thickness

of the ﬂoor to conﬁrm that the ﬂoor register will not be in contact with the subwoofer’s grille.

Location Hazards

It is the nature of low-frequency energy (bass) to make objects vibrate. Care should be taken in planning

the installation of the in-ﬂoor subwoofer to minimize the risk of room vibration and noise. Do not locate

the in-ﬂoor subwoofer close to lamps or furniture that might rattle or vibrate. Some bass energy will be

heard in the room below the subwoofer. If the ceiling below is ﬁnished, ceiling ﬁxtures may rattle or

vibrate.

It is recommended that in the area where the Sub10F is to be mounted, the subﬂoor is glued to the

joists and extra nails are used to secure the subﬂoor. Be sure the joists to which the Sub10F is mounted

are securely braced against each other so that the distance between them does not change and they

are not able to move or shift (consult local building codes)

Ampliﬁer Requirements & Wiring

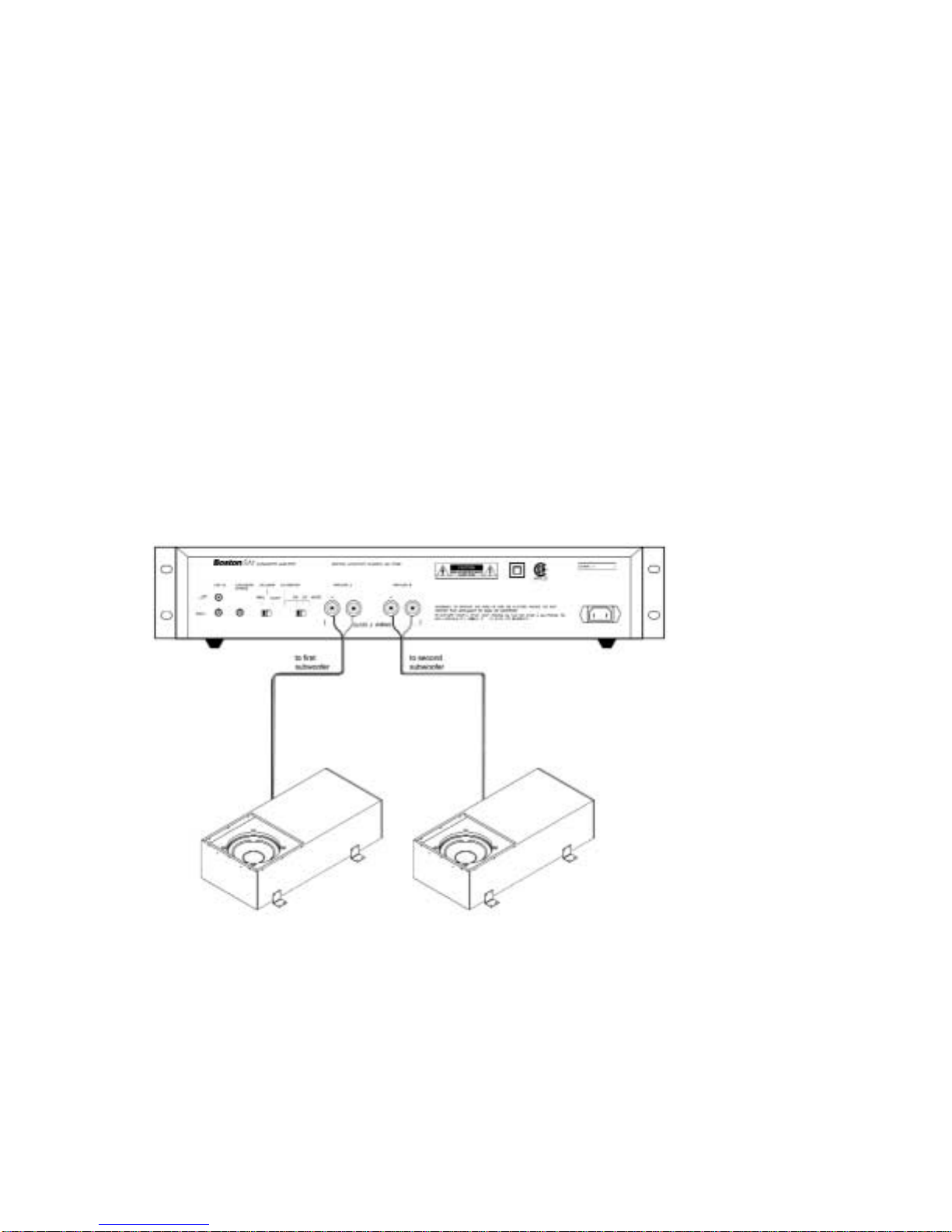

The Sub10F must be used with the Boston SA1 Subwoofer Power Ampliﬁer. Use with any other ampliﬁer

will result in poor performance. One SA1 Power Ampliﬁer can power up to two Sub10F subwoofers.

Only one Sub10F should be connected to each set of terminals on the SA1. If you are installing only one

Sub10F, pre-wire so that a second one can be added, but do not connect the extra set of speaker wires

to the SA1.

Set the equalization switch (EQ-MODE) on the back of the SA1 ampliﬁer to the “FLOOR” position. We

recommend the use of 16-gauge or larger speaker wire with both the Sub10F and SA1.

Service Access

If service is needed, the Sub10F’s woofer can be removed through the access panel on the bottom of

the subwoofer. If there is a ﬁnished ceiling below the Sub10F, ideally a door allowing access to the

complete subwoofer enclosure, or at minimum, to the Sub10F’s service panel, should be left in the ceil-

ing below.

Preparation for Installation

1) Attach the supplied gasket to the subwoofer. See diagram below.

2) After deciding on the location of the Sub10F, use the supplied template to check for the ﬁt of the sub-

woofer and location of the ﬂoor register. It is important to check both below the ﬂoor where the Sub10F

is to be mounted and in the room where the ﬂoor register is to be located.

3) Use drywall or deck screws (not supplied) for mounting the Sub10F. Do not use wood screws.

Installation

Be sure to mount the Sub10F rigidly to the ﬂoor joists, as its tremendous output could cause unwanted

vibration if the Sub10F is able to move.

Be sure the joists to which the Sub10F is mounted are securely braced against each other so that the

distance between them does not change and they are not able to move or shift.

1) Measure the ﬂoor register. Cut the hole in the ﬂoor for the ﬂoor register.

2) If any nails are protruding from the subﬂoor above, cut or hammer them out of the way.

Note: If there is not going to be ceiling installed in the room below, it is best to mount the Sub10F

after construction is complete. If the subwoofer must be installed while construction in the room above

is still in progress, cover the hole for the ﬂoor register so that construction debris or liquids cannot fall

onto the subwoofer.

3) With the hole for the ﬂoor register as a guide, hold the Sub10F in place and use the supplied brack-

ets to mark for screw holes.

4) Drill pilot holes in the Sub10F before attaching screws. The Sub10F’s cabinet is made of MDF

(Medium Density Fiberboard), which can crack if pilot holes are not drilled.

5) The Sub10F’s cabinet must be airtight. Seal any unused pilot holes with glue or caulk.

6) Attach the brackets to the subwoofer, and mount the brackets to the joists. Use wood shims, if need-

ed, to hold the Sub10F tight to the sub-ﬂoor above.

Important: The gaskets on the subwoofer must form a good seal with the sub-ﬂoor above.

Wood Shims

Installation (Cont.)

7) If you plan to attach the Sub10F directly to the joists using screws, use wood shims to prevent dam-

age to the Sub10F enclosure. It is important to use wood shims so that there are no gaps between the

sides of the Sub10F and the joists. Remember to drill pilot holes. See diagram below.

8) Attach the speaker wire securely to the terminals on the end of the Sub10F.

9) Install the ﬂoor register. For installations on hardwood ﬂoors, a foam gasket may need to be placed

under the ﬂoor register.

Speciﬁcations

SA1 Power Ampliﬁer Sub10F

Frequency Response (±3dB) — 29–160Hz (with SA1)

Recommended Ampliﬁer Power — Must use with SA1 ampliﬁer

Nominal Impedance 8 Ohms

Bass Unit — 10" DCDTM copolymer

Ampliﬁer Power < 1% THD 140 watts continuous, 8 ohms —

210 watts continuous, 4 ohms

Crossover Frequency 40–160Hz 40-160Hz (on SA1)

24dB/Octave Lowpass

Inputs L&R stereo RCA line level —

& LFE RCA line level for

crossover bypass

12-volt Trigger Input Voltage 9–14 volts DC @ 1.5mA —

max. 1/8"diameter female

plug with tip positive

External Dimensions 31/2x 19 x 121/2" (89 x 483 x 318mm) 141/16 x 311/2"(357 x 800.1mm)

[H x W x D w/o feet]

35/8 x 19 x 121/2" (92 x 483 x 318mm)

[H x W x D w/feet]

2 EIA rack space w/feet removed

Mounting Depth (from surface) — 81/4" (209.55mm)

91/4" including 1” gasket

300 Jubilee Drive

Peabody, MA 01960 U.S.A.

978.538.5000

www.bostonacoustics.com

Boston and Boston Acoustics are registered trademarks

and DCD is a trademark of Boston Acoustics, Inc.

Speciﬁcations subject to change without notice

042-001342-0

If Service Seems Necessary

First, contact the dealer from whom you purchased the subwoofer. If that is not possible, write to:

Boston Acoustics

300 Jubilee Drive

Peabody, MA 01960

Or contact us via email at [email protected] or by phone at 978-538-5000

We will promptly advise you of what action to take.

Limited Warranty

Boston Acoustics warrants to the original purchaser of our Sub10F In-Floor Subwoofer that the Sub10F

will be free of defects in materials and workmanship for a period of ﬁve years from the date of pur-

chase.

Your responsibilities are to install and use the product according to the instructions supplied, to pro-

vide safe and secure transportation to an authorized Boston service representative, and to present

proof of purchase in the form of your sales slip when requesting service.

Excluded from this warranty is damage that might result from abuse, misuse, improper installation,

accidents, shipping, or repairs/modiﬁcations by someone other than an authorized Boston Acoustics

representative.

This warranty is limited to the Boston Acoustics Sub10F and does not cover damage to any associated

equipment. This warranty does not cover the cost of removal, reinstallation, or repair of damage to the

installation location caused by either the mounting or removal of the product.

This warranty is void if the serial number is defaced or removed.
