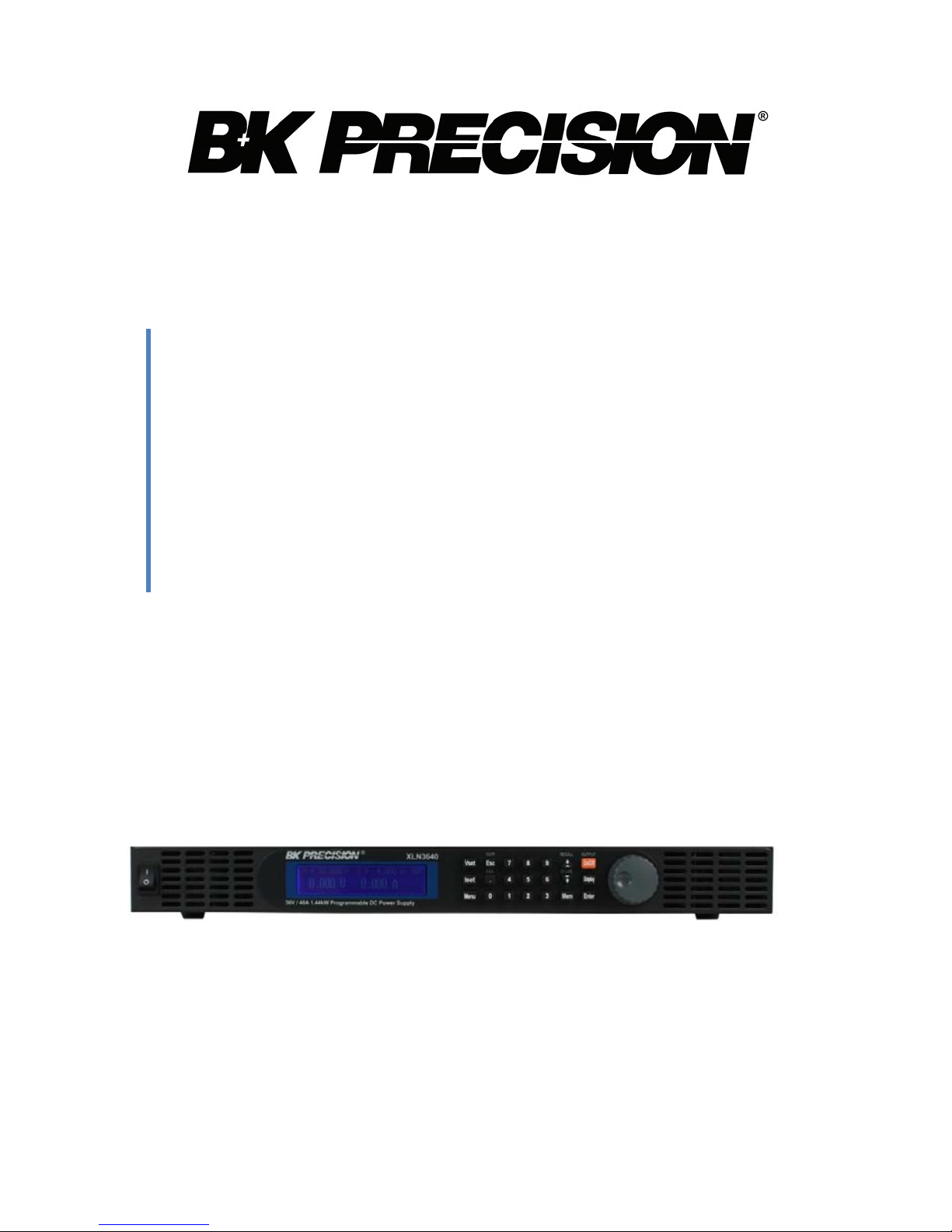

Model: XLN3640, XLN6024, XLN8018, XLN10014

High Power Programmable

DC Power Supply

USER MANUAL

Safety Summary

The following safety precautions apply to both operating and maintenance personnel

and must be observed during all phases of operation, service, and repair of this

instrument. Before applying power, follow the installation instructions and become

familiar with the operating instructions for this instrument.

Failure to comply with these precautions or with specific warnings elsewhere in this

manual violates safety standards of design, manufacture, and intended use of the

instrument. B&K Precision assumes no liability for a customer’s failure to comply

with these requirements. This is a Safety Class I instrument.

GROUND THE INSTRUMENT

To minimize shock hazard, the instrument chassis and cabinet must be

connected to an electrical ground. This instrument is grounded through the

ground conductor of the supplied, three-conductor ac power cable. The

power cable must be plugged into an approved three-conductor electrical

outlet. Do not alter the ground connection. Without the protective ground

connection, all accessible conductive parts (including control knobs) can

render an electric shock. The power jack and mating plug of the power cable

meet IEC safety standards.

DO NOT OPERATE IN AN EXPLOSIVE ATMOSPHERE

Do not operate the instrument in the presence of flammable gases or fumes.

Operation of any electrical instrument in such an environment constitutes a

definite safety hazard.

KEEP AWAY FROM LIVE CIRCUITS

Instrument covers must not be removed by operating personnel. Component

replacement and internal adjustments must be made by qualified maintenance

personnel. Disconnect the power cord before removing the instrument

covers and replacing components. Under certain conditions, even with the

power cable removed, dangerous voltages may exist. To avoid injuries,

always disconnect power and discharge circuits before touching them.

DO NOT SERVICE OR ADJUST ALONE

Do not attempt any internal service or adjustment unless another person,

capable of rendering first aid and resuscitation, is present.

DO NOT SUBSTITUTE PARTS OR MODIFY THE INSTRUMENT

Do not install substitute parts or perform any unauthorized modifications to

this instrument. Return the instrument to B&K Precision for service and

repair to ensure that safety features are maintained.

WARNINGS AND CAUTIONS

WARNING and CAUTION statements, such as the following examples,

denote a hazard and appear throughout this manual. Follow all instructions

contained in these statements.

A WARNING statement calls attention to an operating procedure, practice, or

condition, which, if not followed correctly, could result in injury or death to

personnel.

A CAUTION statement calls attention to an operating procedure, practice, or

condition, which, if not followed correctly, could result in damage to or

destruction of part or all of the product.

WARNING:

Do not alter the ground connection. Without the protective ground

connection, all accessible conducti

ve parts (including control knobs)

can render an electric shock. The power jack and mating plug of the

power cable meet IEC safety standards.

WARNING:

To avoid electrical shock hazard, disconnect power cord before

removing covers. Refer servicing to qualified personnel.

CAUTION:

Before connecting the line cord to the AC mains, check the rear panel

AC line voltage indicator. Applying a line voltage other than the

indicated voltage can destroy the AC line fuses. For continued fire

protection, replace

fuses only with those of the specified voltage and

current ratings.

CAUTION:

This product uses components which can be damaged by

electro-

static discharge (ESD). To avoid damage, be sure to follow

proper procedures for handling, storing and transporting

parts and

subassemblies which contain ESD-sensitive components.

Store/Move/Maintain

Storage

When this device is not in use, properly package it and store it in an

environment suitable for storage (if present in a good preserving environment,

the packaging process can be waived).

Freight

While moving this product, move it by using the original packaging to pack

this product in advance. If the packaging material is lost, use an equivalent

buffer material to replace it in packaging; and with external marks indicating

“fragile & water-prevention”.

Maintenance

Please return the power supply to factory for any repair, service, or

maintenance.

Disposal

When the device is in an unusable condition and can’t be repaired, please

discard it according to your company’s disposal procedures or local legal

procedures. Don’t discard arbitrarily to avoid polluting the environment.

Table of Contents

1. Preface......................................................................................................1

1.1 Products Outline................................................................................1

1.2 Features .............................................................................................2

1.3 Specifications ....................................................................................4

2. Cautions Before Using............................................................................9

2.1 Check and ConfirmAccessories before Using..................................9

2.2 Operation Instructions.......................................................................9

2.3 Ambient Environment.......................................................................9

2.4 Storage.............................................................................................10

2.5 Power-line voltage...........................................................................10

2.6 Fuses................................................................................................10

2.7 Warm-up Time.................................................................................11

2.8 Power-off procedure........................................................................11

2.9 Cautions in Operation......................................................................11

3. Front Panel Operation..........................................................................12

3.1 XLN3640/XLN6024/XLN8018/XLN10014 Panel.........................12

3.1.1 Front Panel.................................................................................12

3.1.2 Rear Panel..................................................................................29

4. Operation Instructions.........................................................................33

4.1 Voltage Setting.................................................................................33

4.2 Current Setting ................................................................................33

4.3 Over-voltage Protection OVP..........................................................33

4.4 Over-current Protection OCP..........................................................33

4.5 Voltage Output.................................................................................34

4.6 Control Voltage Output with Rotary knob.......................................34

4.7 Timer Function................................................................................34

4.8 Series (cascade) / Parallel Mode Setting.........................................35

4.8.1 Parallel Connection Setting........................................................35

4.8.2 Series Mode Setting...................................................................37

4.8.3 Error Message of Series/Parallel Connection ............................39

4.9 External Tuning Setting...................................................................41

4.10 Timer of Current Flow.....................................................................42

4.11 Programmable Capability (SCPI Command Only).........................43

4.12 Multi-unit Connection mode (RS485).............................................49

5. Protection and Error Messages............................................................53

5.1 Over-voltage Protection (OVP).......................................................53

5.2 Over-current Protection (OCP)........................................................53

5.3 Overpower Protection (OPP)...........................................................53

5.4 Constant Voltage Protection (CV TO CC).......................................54

5.5 Constant Current Protection (CC TO CV).......................................54

5.6 Over-temperature Protection (OTP)................................................54

5.7 Low Voltage Protection (ACD).......................................................55

5.8 Error Input Message........................................................................55

6. Remote Interface communication protocol ........................................56

6.1 Prefaces ...........................................................................................56

6.2 Parameters Definition......................................................................56

6.3 The Error/Event List........................................................................57

6.4 Remote Communication Protocol ...................................................58

6.5 SCPI Conformity Information.........................................................61

6.5.1 Common SCPI commands.........................................................61

6.5.2 SCPI Command subsystem........................................................62

6.6 State Bit Definition..........................................................................73

6.7 LAN Communication (-GL verions)...............................................74

Using Web Server...........................................................................................74

Main Page (Home)..................................................................................74

Using Telnet............................................................................................77

Using Sockets..........................................................................................77

7. Assemble Accessories............................................................................78

7.1 Assemble Rack Mount Brackets .....................................................78

7.2 Assembly of Output Protective Cover

(XLN6024/XLN8018/XLN10014)..................................................79

7.3 Assembly of Remote Sense Protective Cover

(XLN6024/XLN8018/XLN10014)..................................................80

8. Accessories.............................................................................................81

9. Service Information..............................................................................83

10. Limited Two-year Warranty................................................................84

1. Preface

1.1 Products Outline

B&K Precision models XLN3640/XLN6024/XLN8018/XLN10014 are

programmable DC power supplies with single outputs that offer the

maximum power output up to 1440 watts (0 -- 36 V/40 A or 0 -- 60 V/24 A

or 0 -- 80 V/18 A or 0 -- 100 V/14.4 A). With a 16-bit D/A, A/D converter

embedded, the power supplies come with the resolution of 1mV in voltage

setting and 1mA in current setting. By connecting up to 4 power supplies in

parallel or series, a maximum power output up to 5760 watts can be

generated. With four XLN10014 connected in series, the maximum output

voltage can reach 400 V. With four XLN3640 connected in parallel, the

output current can reach up to 160 A.

The XLN series provides a rotary control knob and numerical and function

keys to make the instrument convenient and easy to use. Additionally, the

power supplies provide a memory space for storage of 10 instrument settings

that can be recalled directly. This feature offers an easy way to restore the

application settings. In addition, users can program to control when to cut off

the output. This feature provides extra safety for burn-in and electroplating

applications. The supplies also provide over voltage protection (OVP), over

current protection (OCP), and over power protection (OPP) features used to

keep the output voltage and current within safety level and preventing

damage to the UUT (Unit Under Test) due to excessive current. The key lock

feature is added to avoid accidental setting changes to the XLN series..

When the input power and the load change, the power supplies maintain a

stable output due to load and line regulation of less than 0.05%; the transient

time less than 1 ms.. In remote mode, the supplies can output a new

voltage/current setting 50 ms after receiving a command, which can increase

the throughput on production lines.

1.2 Features

1) Output Voltage & Current

Voltage output range: 0 -- 36V (XLN3640) / 0 -- 60V (XLN6024)

0 -- 80V (XLN8018) / 0 -- 100V

(XLN10014)

Current output range: 0 -- 40A (XLN3640) / 0 -- 24A(XLN6024)

0 -- 18A (XLN8018) / 0 -- 14.4A

(XLN10014)

Power output range: 0 -- 1440W

2) Rotary knob, numerical keys and functions keys

The rotary knob can be used to rapidly change the output voltage setting

and simulate the surge of the voltage output. It offers a good solution for

testing triggering circuits. Numerical keys allow for direct entry of

parameters. Using function keys to switch modes makes the overall

operation more convenient.

3) Precise voltage and current measurement

Besides the precise output, the XLN series also offers the capability to

measure voltage & current accurately (read back), saving users the extra

expense and space for extra measuring instruments.

4) Internal memory and timer function

The XLN series provides a memory space for storage and retrieval of 10

instrument settings. The instruments provide one (1) timer with the

resolution of 1 second. The timers are used to time the outputs. When the

timer counts down to zero the power supply will automatically turn the

output off. This feature is useful when the supply is providing power to the

test object in a burn-in room where operators can precisely set the time

when the equipment is to shut off.

5) OVP (over voltage protection), OCP (over current protection) and OPP

(over power protection) and key lock functions

The over voltage protection (OVP), over current protection (OCP) and over

power protection (OPP) features limit the maximum output current and

voltage to avoid damages to the unit under test (UUT). The key lock

feature disables all keys except the CLR key. It prevents damaging the

UUT by accidentally entering the wrong settings.

6) Series & parallel connection mode

The series-parallel connection mode of two or more units (maximum to 4

units) significantly increases the combined output power to a maximum of

5760 W. In parallel connection mode of four XLN3640 the maximum

output is 36 V/160 A; and in series connection mode of four XLN10014,

the maximum output is 400 V/14.4 A.

7) Multi-unit connection mode

The RS 485 interface can be used to connect multiple power supplies in

series, up to maximum of 31 units. They can be controlled via USB

interface with a computer.

Andere Handbücher für XLN3640

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere B+K precision Stromversorgung Handbücher

B+K precision

B+K precision 1610 Bedienungsanleitung

B+K precision

B+K precision 9201 Bedienungsanleitung

B+K precision

B+K precision PVS10005 Bedienungsanleitung

B+K precision

B+K precision 17434 Bedienungsanleitung

B+K precision

B+K precision 1865B Betriebsanleitung

B+K precision

B+K precision 1680 Bedienungsanleitung

B+K precision

B+K precision 1653A Bedienungsanleitung

B+K precision

B+K precision 1651A Bedienungsanleitung

B+K precision

B+K precision 1795 Bedienungsanleitung

B+K precision

B+K precision 9103 Bedienungsanleitung

B+K precision

B+K precision 1601 Bedienungsanleitung

B+K precision

B+K precision 9240 Series Bedienungsanleitung

B+K precision

B+K precision 1602 Bedienungsanleitung

B+K precision

B+K precision 9129B Bedienungsanleitung

B+K precision

B+K precision 9130C Series Bedienungsanleitung

B+K precision

B+K precision 1682A Bedienungsanleitung

B+K precision

B+K precision XLN3640 Bedienungsanleitung

B+K precision

B+K precision 9120 Bedienungsanleitung

B+K precision

B+K precision 1744A Bedienungsanleitung

B+K precision

B+K precision 1672 Bedienungsanleitung

B+K precision

B+K precision 1665 Bedienungsanleitung

B+K precision

B+K precision BCS Series Bedienungsanleitung

B+K precision

B+K precision 1687B Bedienungsanleitung

B+K precision

B+K precision 9115 Betriebsanleitung

Beliebte Stromversorgung Handbücher anderer Marken

Monacor

Monacor PS-12CCD Bedienungsanleitung

VOLTIMA

VOLTIMA MagicBox 15 Bedienungsanleitung

Agilent Technologies

Agilent Technologies 6032A Bedienungsanleitung

Miller

Miller Auto Deltaweld 452 Bedienungsanleitung

BCP

BCP PUOUBK Merkblatt

HC 2210 Bedienungsanleitung

Puls

Puls CT5.241 Bedienungsanleitung

OCZ

OCZ ZX1250W Bedienungsanleitung

iseg

iseg ECH 238 Bedienungsanleitung

Power

Power XXL A Series Bedienungsanleitung

Agilent Technologies

Agilent Technologies 6631B Bedienungsanleitung

Renogy

Renogy PHOENIX 300 Bedienungsanleitung

HP 6200B Service-Handbuch

Epson

Epson Stylus Scan 2500 Betriebsanleitung

Pulsar

Pulsar GREEN POWER CCTV PoE POE044816 Bedienungsanleitung

Puls

Puls MiniLine ML50.100 Bedienungsanleitung

Puls

Puls AS-Interface SLA4.100 Bedienungsanleitung

Kenwood

Kenwood PS-60 Bedienungsanleitung
