Brady BMP21 Bedienungsanleitung

Quick Start Guide

Instructies • Instruções

Instrucciones • Instruktionen

Istruzioni

www.bradyid.com

www.bradycanada.com

www.bradyeurope.com

www.bradylatinamerica.com

Contents

English .....................................................1- 1

Français ..................................................2- 1

Español ...................................................3- 1

Deutsch...................................................4- 1

Italiano.....................................................5- 1

Nederlands..............................................6- 1

Portugues ...............................................7- 1

Čeština ....................................................8- 1

Magyar.....................................................9- 1

Polski.....................................................10- 1

Român.................................................11- 1

Slovaščina ............................................12- 1

Slovenščina ..........................................13- 1

 ............................................14- 1

.................................................15- 1

BMP™21 1-1

English

Batteries

1. Open the battery compartment.

2. Insert six AA alkaline batteries.

3. Close the battery compartment.

A/C Power

Plug in optional Power Supply BMP21-AC.

Power Up Your Printer

Display Screen

1-2 BMP™21

Keypad

Option Key Description

Label Type Includes: Banner Landscape,

Wire, Terminal Block, Patch Panel,

Fixed Length, Banner Portrait.

Menu Includes: Symbols, International

Characters, Barcode, File,

Language and Units.

Font Size Includes: Auto, 6, 9, 14, 20, 28, 40

(Bold available in each size.)

Function The FUNCTION key provides

access to the yellow designated

menu options on the keyboard.

Backlight FUNCTION + SPACE key.

Barcode In Menu or FUNCTION + 2.

CAPS Lock FUNCTION + FONT SIZE.

Clear FUNCTION + CLEAR key.

(Clears whole legend.)

Delete Deletes text and exits menu

screens.

Enter The Enter key works to accept

choices with menus and to add

additional lines to text.

Feed FUNCTION + LABEL TYPE.

International In Menu or FUNCTION + 6.

Multi-Print FUNCTION + PRINT.

Serial FUNCTION + MENU (Serializes

based on cursor location. Allows

for increment and copies.)

Symbols

In Menu or FUNCTION +1.

BMP™21 1-3

1. Press Power .

2. Press Label Type.

3. Select Wire and press Enter .

4. Select .75” (16-10AWG) and press Enter .

5. Press Font Size, select 6pt. and press Enter .

6. Type: 12345 and press Print.

7. Press the side buttons to Cut.

1. Start with a clear display.

2. Press Label Type.

3. Select Banner Landscape and press Enter .

4. Type: 12345, press , press Serial and Increment

by 01.

5. Arrow down to End and right arrow until screen reads

12347 or type 347.

6. Arrow down to Copies and right arrow until screen reads

02 or type 2 and press Enter .

7. Press Print.

8. Either Cut or Print the 2nd thru 6th label.

Label Selection Chart

Application Nylon

Outdoor

Vinyl

Perma-

Sleeve Polyester

Self Lam

Vinyl

Smooth Surfaces XX X

Textured Surface XX

Cable and Wire XX X

High Textured Surface X

Terminal Blocks X

Patch Panel X

General ID XX X

Creating Wire Labels

Serialization

12345 12345 12346 12346 12347 12347

1-4 BMP™21

1. Start with a clear display.

2. Press Label Type.

3. Select Terminal Block and press Enter .

4. Right arrow until screen reads Spacing = .2". (Right

arrow to flashing cursor and type desired spacing).

5. Arrow down to Serial and right arrow until the screen

reads On.

6. Arrow down to # of Terminations and right arrow until

screen reads 3, or type 3.

7. Arrow down to Rotation and right arrow until the picture

displays a vertical legend.

8. Press Enter .

9. Type E000 and press Print.

Use Brady part numbers M21-500-499 or M21-375-499.

1. Start with a clear display.

2. Press Label Type.

3. Select Fixed Length and press Enter .

4. Select Fixed: 2.0" and press Enter .

5. Press Font Size.

6. Select Auto.

7. Type 12345, press Enter and type WM12.

8. Press Print.

Creating Terminal Block Labels*

Fixed Length Label with Auto Size

BMP™21 1-5

1. Unlock Lever and push Release Button (on back).

2. Remove old cartridge.

3. Insert new cartridge.

4. Lock lever.

Thank you for purchasing the

BMP21

handheld printer from the

Brady Corporation.

For technical assistance, please contact one of the following

system support teams at:

• 1-888-272-3946 (USA)

• 1-800-263-6719 (Canada)

•www.bradyeurope.com/services (Europe)

• 44 1295 228 205 (UK)

• 01 800 112 7239 (Mexico)

• 55 11 3604 7729 (Brazil)

• 001-866-748-4424 (Latin America)

Please have your serial number (located inside the cartridge

bay) available when contacting our representatives.

Changing Label Cartridge

Technical Assistance

1-6 BMP™21

UNITED STATES

Note:

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference when the

equipment is operated in a commercial environment. This equipment generates,

uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is likely to

cause harmful interference in which case the user will be required to correct the

interference at his own expense.

Changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

INDUSTRY CANADA

This Class B digital apparatus meets all requirements of the Canadian

Interference-Causing Equipment Regulations.

Cet appareil numerique de la classe B respecte toutes les exigences du

Reglement sur le Materiel Brouilleur du Canada.

Batteries Directive 2006/66/EC

Users of batteries must not dispose of batteries as unsorted municipal waste.

This Directive determines the framework for the return and recycling of used

batteries and accumulators that are to be collected separately and recycled at

end of life. Please dispose of batteries according to your local regulations.

BMP™21 2-1

Français

Enregistrez votre imprimante en ligne à l'adresse

www.bradycorp.com/register.

Piles

1. Ouvrez le compartiment des piles.

2. Insérez six piles alcalines AA.

3. Fermez le compartiment des piles.

Alimentation Secteur

Branchez le cordon d'alimentation BMP21-AC en option.

Enregistrez votre imprimante

Mettez votre imprimante sous tension

Écran d'affichage

2-2 BMP™21

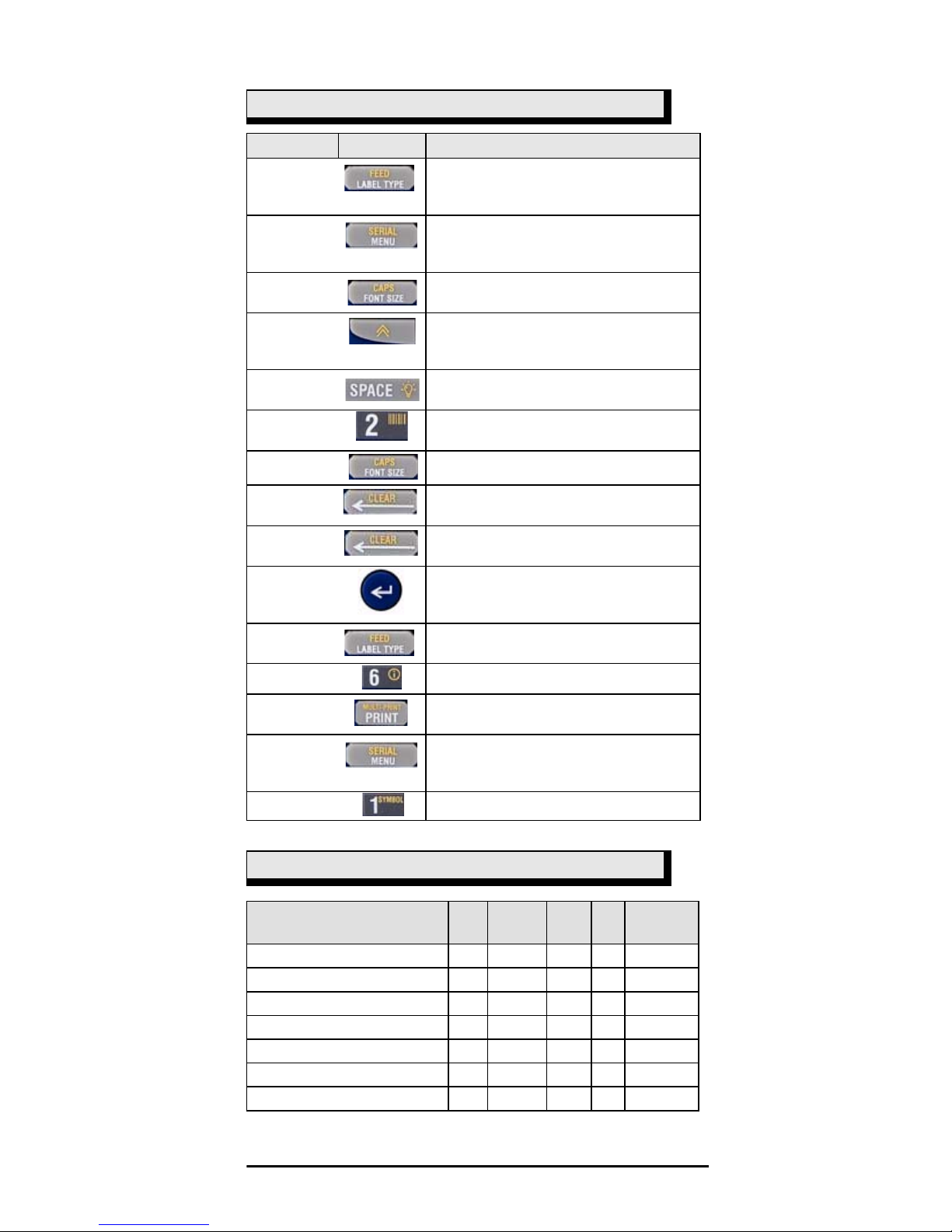

Clavier

Option Touche Description

Type

d’étiquette Comprend : Bande : Paysage, câble,

Bornier, Panneau de Braddage, Longueur

fixe, Bande : Portrait.

Menu Comprend: Symboles, Caractères

internationaux, Code à barres, Fichier,

Langue et unités.

Taille de

Police Comprend : Auto, 6, 9, 14, 20, 28, 40 (Gras

disponible pour chaque taille.)

Fonction La touche FONCTION donne accès aux

options de menu inscrites en jaune sur le

clavier.

Rétro-

éclairage FONCTION + SPACE.

Codes à

Barres Dans le menu ou FONCTION +2.

Verr. Maj. FONCTION + FONT SIZE.

Supprimer FONCTION + CLEAR.

(Supprime la légende complète.)

Delete

(Supprimer) Supprime le texte et quitte les écrans de

menu.

Enter (Entrée) La touche Entrée valide les choix dans les

menus ou ajoute de nouvelles lignes de

texte sur une étiquette.

Feed

(Avance) FONCTION + LABEL TYPE.

International Dans le menu ou FONCTION +6.

Multi-

impression FONCTION + PRINT.

Séquence FONCTION + MENU (Crée une séquence à

l'endroit du curseur. Permet d'incrémenter et

de copier)

Symboles Dans le menu ou FONCTION +1.

Tableau de sélection d'étiquette

Application Nylon

Vinyle

extérieur

Perma-

Sleeve

Poly-

ester

Vinyle auto-

stratifié

Surfaces lisses XX X

Surfaces texturées XX

Câble et fil XXX

Surfaces hautement texturées X

Borniers X

Panneau de brassage X

ID générale XX X
