Brecknell 405-LCD Bedienungsanleitung
Model 405-LCD
Weigh Scale
User Manual
AWT35-100061
Issue AA
Model 405-LCD.book
Brecknell is part of Avery Weigh-Tronix. Avery Weigh-Tronix is a trademark of the Illinois Tool Works group of companies whose ultimate
parent company is Illinois Tool Works Inc (“Illinois Tool Works”). Copyright © 2021 Illinois Tool Works. All rights reserved.
No part of this publication may be reproduced by making a facsimile copy, by the making of a copy in three dimensions of a two-dimensional
work and the making of a copy in two dimensions of a three-dimensional work, stored in any medium by electronic means, or transmitted in
any form or by any means, including electronic, mechanical, broadcasting, recording or otherwise without the prior written consent of the
copyright owner, under license, or as permitted by law.
This publication was correct at the time of going to print, however Avery Weigh-Tronix reserves the right to alter without notice the
specification, design, price or conditions of supply of any product or service at any time.
Model 405-LCD 3
Table of Contents
Chapter 1 Introduction .............................................................................................................................. 5
General and Safety Information ......................................................................................... 5
Specifications ..................................................................................................................... 5
Unpacking and Setup ......................................................................................................... 6
Contents ............................................................................................................................. 6
Chapter 2 Overview of Controls and Functions ..................................................................................... 7
Front Display ...................................................................................................................... 7
Indicator Display Character Definitions .............................................................................. 7
Key Functions .................................................................................................................... 9
Chapter 3 Operations .............................................................................................................................. 11
Power on / Power off scale .............................................................................................. 11
Zeroing the display ........................................................................................................... 11
Normal Weighing Mode ................................................................................................... 11
Taring ............................................................................................................................... 12
Switching Measuring unit ................................................................................................. 12
Calibration ........................................................................................................................ 12
AUTO-OFF setting and BACKLIGHT setting function ...................................................... 12
Display symbol meaning ................................................................................................... 12
Troubleshooting ............................................................................................................... 12
4 Model 405-LCD
4 Model 405-LCD
Manual revision history
Current
Issue Date Created Details of Changes
AA June 2021 First draft created
Model 405-LCD 5
1 Introduction
1.1 General and Safety Information
lThe Model 405-LCD is for use in dry environments only.
lThis product uses 4x AA batteries. Dispose of according to local laws and
regulations.
lFor best performance, allow sufficient warm-up time before use.
lAvoid extended exposure to extreme heat or cold. Optimum operation is at
normal room temperature. See operating temperature range in the
specifications table. Allow the scale to acclimate to room temperature before
using.
lElectronic scales are precision instruments. Do not operate near cell
phones, radios, computers, or other electronic devices that emit radio
frequencies that may cause unstable readings.
The following information is crucial for user safety and general maintenance.
6 Model 405-LCD
Specifications
1.2 Unpacking and Setup
Follow the following steps for unpacking and setup:
1. Remove the scale from the box and place it on a firm, level surface. Avoid
locations with rapid temperature changes, excessive dust, moisture, air
currents, vibrations, electromagnetic fields, heat, or direct sunlight.
Model
405-LCD-06 405-LCD-15
Max. Capacity
6 kg (12 lb) 15 kg (30 lb)
2 g (0.005 lb)
1:7500
40 g (0.1 lb)
Readability 1 g (0.002 lb)
Display Resolution 1:6000
Min. Recommended Weight
20 g (0.1 lb)
Construction Food grade
304 stainless
steel pan,
ABS plastic
housing
Weighing Units
kg / lb / g / oz /
lb:oz
Calibration unit kg / lb
Modes Weighing
Weight Display
1 backlit LCD display, 17.5mm (0.68”) high, 5 1/2 digits, 7-
segment
Zero Range
Power-on zero range:
calibration zero
point±20%FS;
ZERO key
range: power-on zero±5%FS
Tare Range Up to 100%FS
Stabilization Time
<3 seconds
Operating Temperature
5° to 35°C
(41°F to 95°F)
Humidity Range <90% relative humidity, non-
condensing
Power Supply
4*AA batteries or AC power adapter (9Vdc/600mA with
central positive)
Safe Overload Capacity
150% of
capacity
Platter Dimensions (L x W)
215 x 245 mm;
9.65" x 8.46"
Scale Dimensions (L x W x H)
255 x 308 x 110 mm; 10.04" x 12.13" x
4.33"
Model 405-LCD 7
2. Adjust the leveling feet until the bubble is centered in the circle of the level
indicator (located on the front panel).

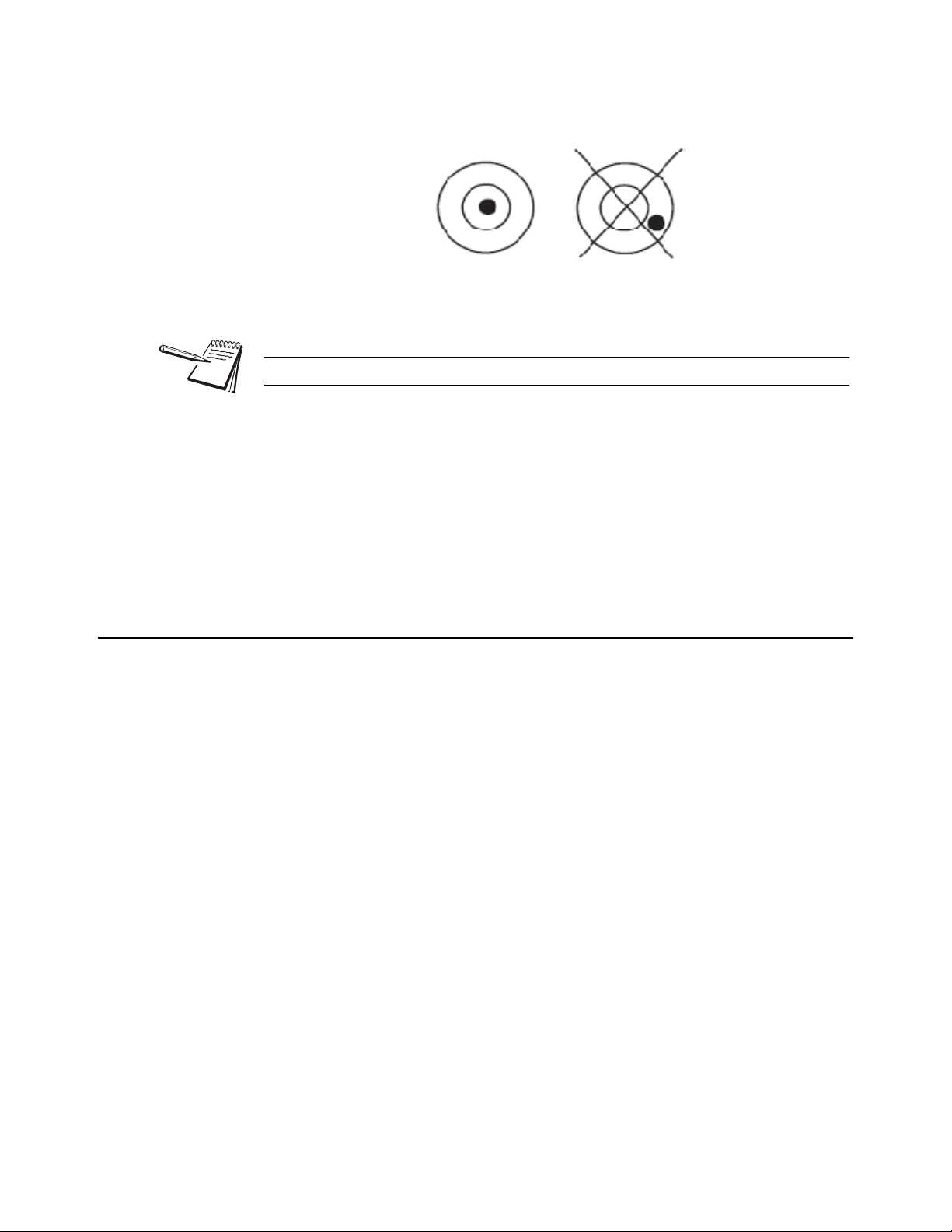

Figure 1.1 Level indicator orientation
3. For battery power usage, install 4 AA batteries (not included) into the battery
compartment found on the underside of the scale. Batteries will allow up to 70
hours continuous usage without back-light.
4. Connect the supplied AC adapter to the power input found on the underside of
the scale. Plug the AC adapter into a properly grounded power outlet.
1.3 Contents
The following items are included with the Model 405-LCD scale:
lScale
l9Vdc/600mA adapter (supplied)
l4 x AA batteries (not supplied)
NOTE: For best results, ensure that the scale is level before use.
Model 405-LCD 7
2 Overview of Controls and Functions
2.1 Front Display
8 Model 405-LCD
2.2 Indicator Display Character Definitions
