ASSEMBLY INSTRUCTION

MD_MONT-027-seat cover_EU_EN_NO_Rev. B_2016_05_15

Seat cover

Setetrekk

Exigo 30 Impera

Article number

SB/SW SD SB/SW SD

33-36 33-39 3164120

39-42 33-39 3164140

45-48 33-39 3164160

27-30 27-33 3134100

33-36 27-33 3134120

33-36 36-45 33-36 36-45 3104120

39-42 36-45 39-42 36-45 3104140

45-48 36-45 45-48 36-45 3104160

51-54 36-45 3104170

33-36 42-51 3304120

39-42 42-51 3304140

45-48 42-51 3304160

51-54 42-51 3304170

57-60 42-51 3304180

1. Demonter først det gamle setetrekket

Skru ut de to fremre skruene i seterøret og løsne de to

bakre skruene. Benytt en 3 mm umbrakonøkkel. Ta ut

propp eller seteforlenger. Hvis proppen/seteforlengeren

sitter hardt kan det være lurt å ta tak i setetrekket og

dra proppen/seteforlengeren ut samtidig som du drar

ut det gamle setetrekket. Ta vare på plastrørene som

ligger inne i det gamle setetrekket.

2. Montering av nytt setetrekk

Når du skal brette setetrekket til riktig bredde, måler du

setetrekket til ca 3,5 cm bredere enn setebredden på

stolen.

Tre plastrørene inn i det nye setetrekket.

3. Tre setetrekket inn på seterørene. Påse at bakre

setetrekk går helt i bakkant av seterørene og fremre

setetrekk går helt i framkant av seterørene. Sett i

propp/seteforlenger og skru til skruene igjen.

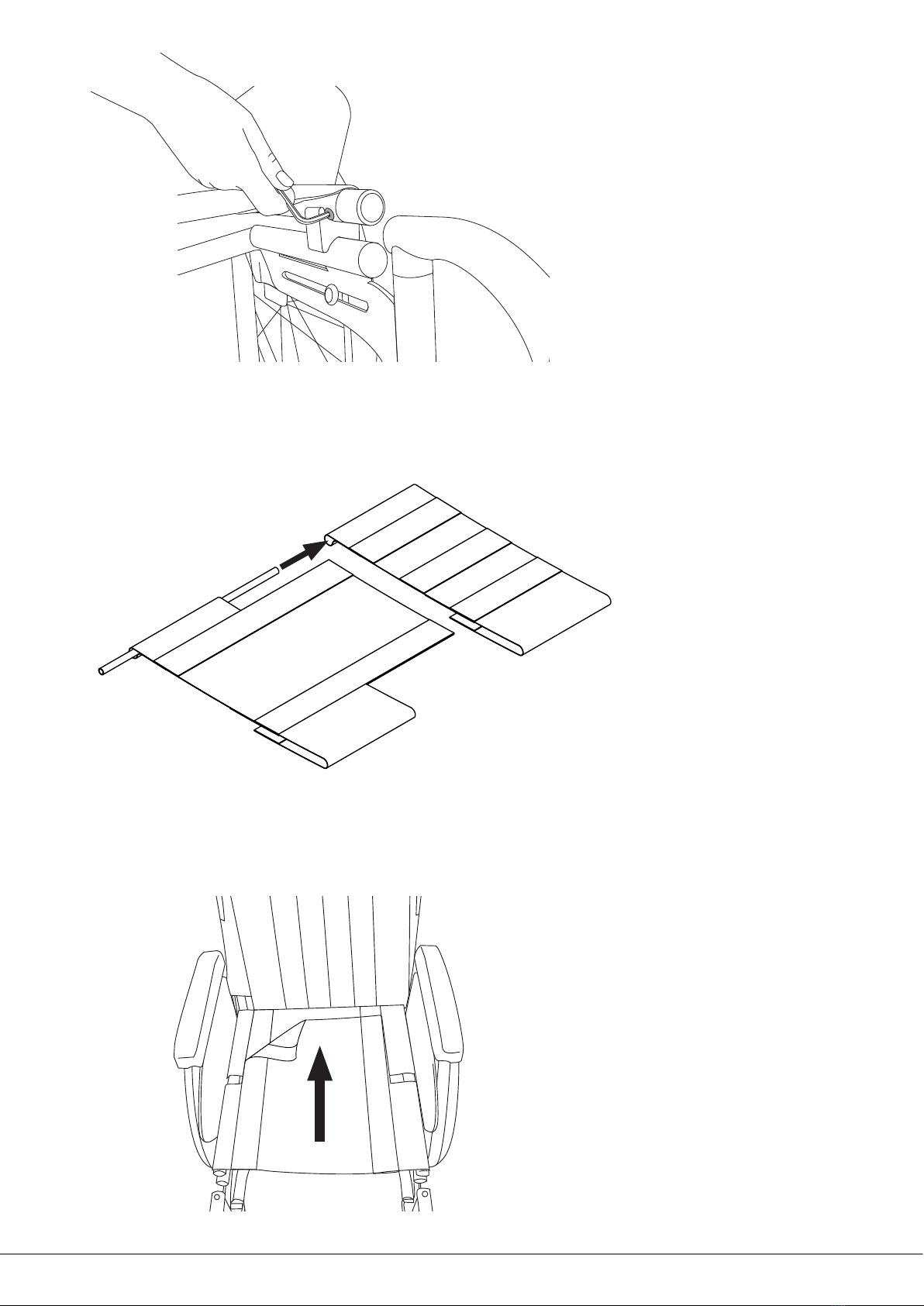

1. Dismount the old seat cover

Screw out the two screws in front of the seat tube and

loosen the two rear screws. Use a 3 mm Allen key.

Remove the plug or seat extension piece. In order to

remove the plug/seat extension piece if it is stuck, you

can pull it out simultaneous with the old seat cover.

Keep the plastic tubes, which are placed inside the old

seat cover.

2. Assembling of the new seat cover

In order to fold the seat cover into correct width, make

the seat cover 3,5 cm wider than the seat width of the

chair.

3. Thread the seat cover into the seat tubes. Ensure that

the rear seat cover is completely in the back edge of

the seat tubes, and the front seat cover is completely in

the front edge of the seat tubes. Replace the plug/seat

extension piece.

3mm

1x 1x

3 mm

Sunrise Medical HCM B.V.

Vossenbeemd 104

5705 CL Helmond

The Netherlands

T: +31 (0)492 593 888

customerser[email protected]

www.SunriseMedical.eu
