Breville Oracle Touch Bedienungsanleitung

the Oracle‰Touch

Instruction Book - BES990

BREVILLE

RECOMMENDS

SAFETY FIRST

At Breville we are very safety

conscious. We design and

manufacture consumer

products with the safety of you,

our valued customer, foremost

in mind. In addition we ask

that you exercise a degree of

care when using any electrical

appliance and adhere to the

following precautions.

IMPORTANT

SAFEGUARDS

READ ALL

INSTRUCTIONS BEFORE

USE AND SAVE FOR

FUTURE REFERENCE

• Carefully read all

instructions before

operating and save for

future reference.

• Do not touch hot surfaces.

Use handles or knobs as

advised in this instruction

book.

• To protect against ﬁre,

electric shock and injury

to persons do not immerse

the power cord, plug, or

appliance itself in water or

other liquids.

• Close supervision is

necessary when any

appliance is used by or near

children.

2 Breville recommends safety ﬁrst

7 Components

9 Oracle Touch Features

10 Assembly

11 Functions

17 Tips

19 Care & Cleaning

23 Troubleshooting

27 French

Contents

• If the appliance is to be:

- left unattended

- cleaned

- moved

- assembled or

- stored

Always switch off the

appliance by pressing the

POWER button to off and

unplug from the power

outlet.

• Always allow the appliance

to cool before cleaning,

moving or storing.

• It is recommended to

regularly inspect the

appliance and power cord.

Do not use the appliance

if there is damage to the

power cord or plug, or after

the appliance malfunctions

or has been damaged in

any way.

Immediately stop use and

call Breville Consumer

Support.

• The use of accessory

attachments not

recommended by Breville

may result in ﬁre, electric

shock or injury to persons.

• Do not let the power cord

hang over the edge of a

table or counter-top, or

touch hot surfaces.

• Do not place the appliance

near the edge of a table or

counter-top. Ensure the

surface is level, clean and

free of water and other

substances.

• Do not place the appliance

on or near a hot gas or

electric burner. Do not

place it in, or allow it to

come in contact with a

heated oven.

• This appliance is

recommended for

household use only. Do

not use this appliance for

anything other than its

intended use. Do not use

outdoors. Do not use in

moving vehicles or boats.

SPECIFIC

INSTRUCTIONS

FOR BES990

• It is recommended to plug

the espresso machine into

a properly grounded and

dedicated circuit, separate

from other electrical

appliances.

• Avoid contact with moving

parts.

• Check bean hopper for

presence of foreign objects

before using.

• Use only cold water in

the water tank. Do not

use any other liquids. Do

not use highly ﬁltered,

demineralized or distilled

water as this may affect

the taste of the coffee and

how the espresso machine

operates.

• Ensure the portaﬁlter

is ﬁrmly inserted and

secured into the group

head before starting an

extraction. Never remove

the portaﬁlter during the

extraction process.

• Use caution after milk

texturing as the auto purge

function will purge hot

steam when the steam

wand is lowered.

• Caution must be used

during descaling as hot

steam may be released.

Before descaling, turn

off the machine, allow

to cool for at least 1 hour

and ensure the drip tray is

empty and fully inserted.

For instructions, refer

to 'Descale', page 22.

• Do not attempt to open

or service the espresso

machine.

• For any maintenance other

than cleaning, call Breville

Consumer Support or

visit a Breville Authorized

Servicer.

SHORT CORD

INSTRUCTIONS

Your Breville appliance is

ﬁtted with a short power

cord to reduce personal

injury or property damage

resulting from pulling,

tripping or becoming

entangled with a longer

cord. Longer detachable

power cords or extension

cords are available and may

be used if care is exercised.

If an extension cord is used,

(1) the marked electrical

rating of the cord set or

extension cord should

be at least as great as the

electrical rating of the

appliance, (2) the cord

should be arranged so

that it will not drape over

the counter-top or table

where it can be pulled

on by children or tripped

over unintentionally and

(3) the extension cord

must include a 3-prong

grounding plug.

CALIFORNIA

PROPOSITION 65:

(Applicable to California

residents only).

This product contains

chemicals known to the

State of California to cause

cancer, birth defects or other

reproductive harm.

BREVILLE ASSIST®PLUG

Your Breville appliance

comes with a unique

Assist®Plug, conveniently

designed with a ﬁnger hole

to ease removal from the

power outlet.

FOR HOUSEHOLD USE ONLY

SAVE THESE INSTRUCTIONS

CSA DUTY CYCLE

MARKING

The Canadian Standards

Authority requires any

appliances capable of

drawing over 1500W to be

marked with a ‘duty cycle’

in minutes. For the BES990,

this ‘duty cycle’ represents

the maximum time for

which the appliance will

draw over 1500W during

any 2 hour period of

use. It does not indicate

the appliance is unsafe

for continuous use or is

required to be switched off

at certain intervals during

normal use.

Components

A. Integrated conical burr grinder

with removable ½lb bean hopper

B. Top-ﬁll 84 ﬂ.oz (2.5L) removable water

tank with integrated water ﬁlter and backlit

level indicator

C. Grind size dial

adjust grind size to suit your coffee beans

D. Touch screen control panel

displays current settings and provides

touch interface

E. Grind outlet

with auto grind, dose & tamp function

F. Heated 58mm group head with

embedded element

G. 58mm full stainless steel portaﬁlter

H. Drop down swivel foot

lifts the machine upwards for

easy maneuverability

I. Heated cup warming tray

J. Cool touch steam wand

with integrated temperature sensor for

automatic frothing

K. Dedicated hot water outlet

delivers hot water for Americano

and pre-heating cups

L. Descale access point

M. Tool storage tray

houses accessories when not in use

N. Removable drip tray

with Empty Me! indicator

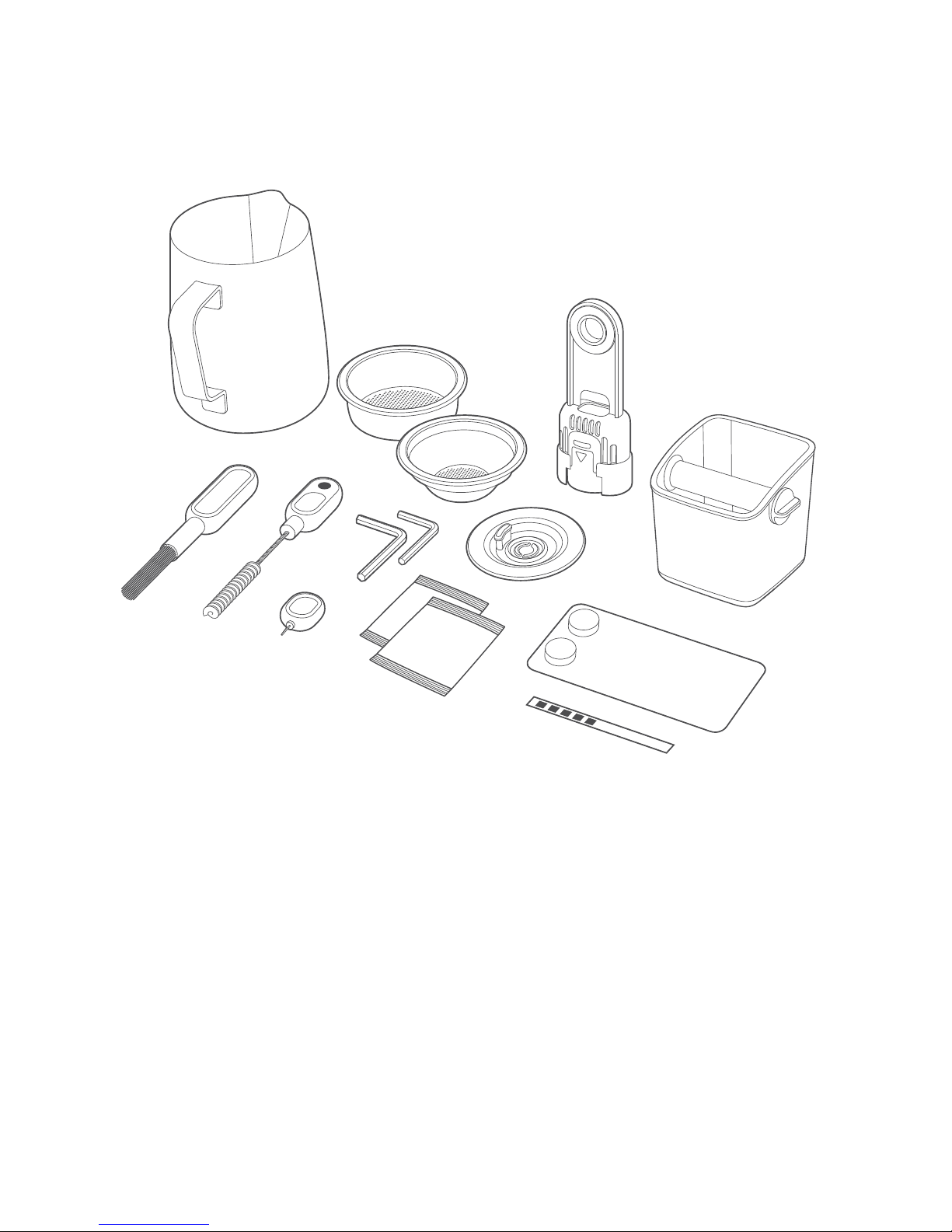

A. Stainless steel milk jug

B. 2 cup ﬁlter basket

C. 1 cup ﬁlter basket

D. Water ﬁlter holder with ﬁlter

E. Cleaning disc

F. Mini grinds bin

G. Grinder burr brush

H. Grind outlet brush & tamp

removal magnet

I. Cleaning tool for steam wand tip

J. Two allen keys

K. Steam wand cleaning powder

L. Water hardness test strip

M. Espresso cleaning tablets

ACCESSORIES

COLOR TOUCH SCREEN

CONTROL PANEL

Swipe & Select from the drinks menu. Adjust

your coffee strength, milk texture or milk

temperature, then save it as your personal

favorite.

HANDS FREE AUTOMATIC

GRIND, DOSE & TAMP

Automatically grinds, doses and tamps the

required amount of coffee, mess free.

GRIND SIZE DIAL

Adjustable grind settings from ﬁne to coarse

for optimal espresso extraction.

STAINLESS STEEL CONICAL BURRS

Maximize ground coffee surface area for a full

espresso ﬂavor.

AUTOMATIC HANDS FREE

MILK TEXTURING

Automatically textures milk to the selected

temperature and style from silky smooth

latté to creamy cappuccino. Automatic purge

removes residual milk from the steam wand

when returned to the downward position.

SIMULTANEOUS COFFEE & STEAM

Two stainless steel boilers each dedicated to

espresso and steam for simultaneous milk

texturing and espresso extraction.

PRECISION CONTROL

Electronic PID Temperature Control

Electronic temperature control delivers precise

water temperature for optimum espresso ﬂavor.

Actively Heated Group Head

Commercial size 58mm group head with

embedded element for thermal stability during

extraction.

Regulated Extraction Pressure

Over pressure valve (OPV) limits maximum

pressure for optimal espresso ﬂavor.

Low Pressure Pre-Infusion

Gradually increases water pressure to gently

expand grinds for an even extraction.

Dual Pumps

Dedicated Italian made espresso and steam

boiler pumps.

Programmable Shot Temperature

Adjust water temperature to achieve optimal

espresso ﬂavor depending on coffee origin and

degree of roast.

ADDITIONAL FEATURES

Auto Start

Switches machine on at a speciﬁed time.

Auto Off

Switches machine off after a speciﬁed time

from 0.5 to 8 hours.

Oracle Touch

Features

Assembly

BEFORE FIRST USE

Machine Preparation

Remove and discard all labels and packaging

materials attached to your espresso machine.

Ensure you have removed all parts and

accessories before discarding the packaging.

Remove the water tank located at the back of

the machine by pulling down the water tank

handle. Remove the plastic bag containing the

water ﬁlter and water ﬁlter holder. Clean parts

and accessories (water tank, portaﬁlter, ﬁlter

basket, jug) using warm water and a gentle dish

washing liquid. Rinse well then dry thoroughly.

TIP

To easily manoeuvre your machine, use the

drop down swivel foot located under the drip

tray. When turned to UNLOCK, the swivel

foot drops down & lifts the machine upwards,

making it easier to access the removable water

tank or reposition the machine to another

location.

INSTALLING THE WATER FILTER

• Remove the water ﬁlter and water ﬁlter holder

from the plastic bag.

• Soak the ﬁlter in a cup of water for 5 minutes

then rinse under cold running water.

• Wash the ﬁlter holder with cold water, taking

speciﬁc care to rinse the stainless steel mesh.

Soak filter for 5 minutes Rinse filter & mesh

• Insert the ﬁlter into the two parts of the ﬁlter

holder.

Place filter into

filter holder

• To install the assembled filter holder into the

water tank, align the base of the ﬁlter holder

with the adapter inside the water tank. Push

down to lock into place.

• Fill the water tank with cold water before

sliding back into position at the back of the

machine and locking into place.

NOTE

DO NOT use highly ﬁltered, demineralized or

distilled water in this machine. This may affect

the taste of the coffee and how the machine

operates.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Breville Kaffeemaschine Handbücher

Breville

Breville Bijou Barista VCF149X Bedienungsanleitung

Breville

Breville Dual Boiler BES920 Bedienungsanleitung

Breville

Breville Nespresso Vertuo Creatista Bedienungsanleitung

Breville

Breville the Oracle BES990BSS Bedienungsanleitung

Breville

Breville the Barista Pro BES878BSS4JAN1 Bedienungsanleitung

Breville

Breville the Oracle BES980 Bedienungsanleitung

Breville

Breville Barista Max+ Bedienungsanleitung

Breville

Breville the BrevillePrecision Brewer Thermal Bedienungsanleitung

Breville

Breville Bar Italia ESP4 Bedienungsanleitung

Breville

Breville Infuser BES840CRN Bedienungsanleitung

Breville

Breville Barista Touch BES880 Bedienungsanleitung

Breville

Breville Dosing Funnel 54 Bedienungsanleitung

Breville

Breville VCF117 Bedienungsanleitung

Breville

Breville BarVista BES200XL Bedienungsanleitung

Breville

Breville the Barista Pro Bedienungsanleitung

Breville

Breville Prima Latte III Bedienungsanleitung

Breville

Breville Puck Sucker BEA503 Bedienungsanleitung

Breville

Breville vcf011 Bedienungsanleitung

Breville

Breville CREATISTA PLUS Bedienungsanleitung

Breville

Breville Prima Latte III Bedienungsanleitung

Breville

Breville Barista Express BES870XL Bedienungsanleitung

Breville

Breville CMP12 Bedienungsanleitung

Breville

Breville BDC650 the Grind Control Bedienungsanleitung

Breville

Breville Nespresso Citiz Bedienungsanleitung

Beliebte Kaffeemaschine Handbücher anderer Marken

Taurus

Taurus Livorno 6 Bedienungsanleitung

Delta-q

Delta-q QUICK Bedienungsanleitung

Bunn

Bunn LCA-1 Fehlerbehebungshandbuch

Black & Decker

Black & Decker BLACK DECKER HOME DE790 Montageanleitung

Saeco

Saeco Vienna Plus Sup 018M Bedienungsanleitung

DeLonghi

DeLonghi DC300 Bedienungsanleitung

INCAPTO

INCAPTO BXCO1470E Bedienungsanleitung

Bosch

Bosch TASSIMO finesse TAS16B Series Bedienungsanleitung

Exido

Exido 245-072 Bedienungsanleitung

Animo

Animo OptiVend Choco Bedienungsanleitung

Siemens

Siemens TQ505DF Series Bedienungsanleitung

DeLonghi

DeLonghi ECI341 Bedienungsanleitung

Krups

Krups KT406511 Bedienungsanleitung

Cimbali

Cimbali M32 Classic Bedienungsanleitung

Philips

Philips HL3844N Bedienungsanleitung

Bosch

Bosch TES 515 SERIES Bedienungsanleitung

Tekmatix

Tekmatix TMFM - 65 Bedienungsanleitung

Scarlett

Scarlett SC-CM33005 Bedienungsanleitung
