Briggs & Stratton 126600 Bedienungsanleitung

in any form or by any means, electronic or mechanical, including photocopying,

recording or by any information storage and retrieval system, without permission

in writing from Briggs & Stratton Corporation.

PRINTED IN U.S.A.

FORM MS−6385−05/28/2008

REPLACES FORM MS−6385−04/02/2008

FILE IN SECT. 2 OF SERVICE MANUAL

126600

Illustrated Parts List

Model Series

126600

TYPE NUMBERS

0100 through 0502.

TABLE OF CONTENTS

Air Cleaner 6. . . . . . . . . . . . . . . . . . . . . . . . .

Blower Housing/Shrouds 7. . . . . . . . . . . .

Camshaft 2. . . . . . . . . . . . . . . . . . . . . . . . . . .

Carburetor 4. . . . . . . . . . . . . . . . . . . . . . . . .

Controls 5. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Crankshaft 2. . . . . . . . . . . . . . . . . . . . . . . . .

Cylinder 2. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cylinder Head 3. . . . . . . . . . . . . . . . . . . . . .

Electric Starter 7. . . . . . . . . . . . . . . . . . . . . .

Engine Sump 2. . . . . . . . . . . . . . . . . . . . . . .

Exhaust System 6. . . . . . . . . . . . . . . . . . . .

Flywheel 7. . . . . . . . . . . . . . . . . . . . . . . . . . .

Flywheel Brake 5. . . . . . . . . . . . . . . . . . . . .

Fuel Supply 4. . . . . . . . . . . . . . . . . . . . . . . .

Governor Spring 5. . . . . . . . . . . . . . . . . . . .

Ignition 5. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Lubrication 2. . . . . . . . . . . . . . . . . . . . . . . .

Piston Group 2. . . . . . . . . . . . . . . . . . . . . . .

Rewind Starter 7. . . . . . . . . . . . . . . . . . . . . .

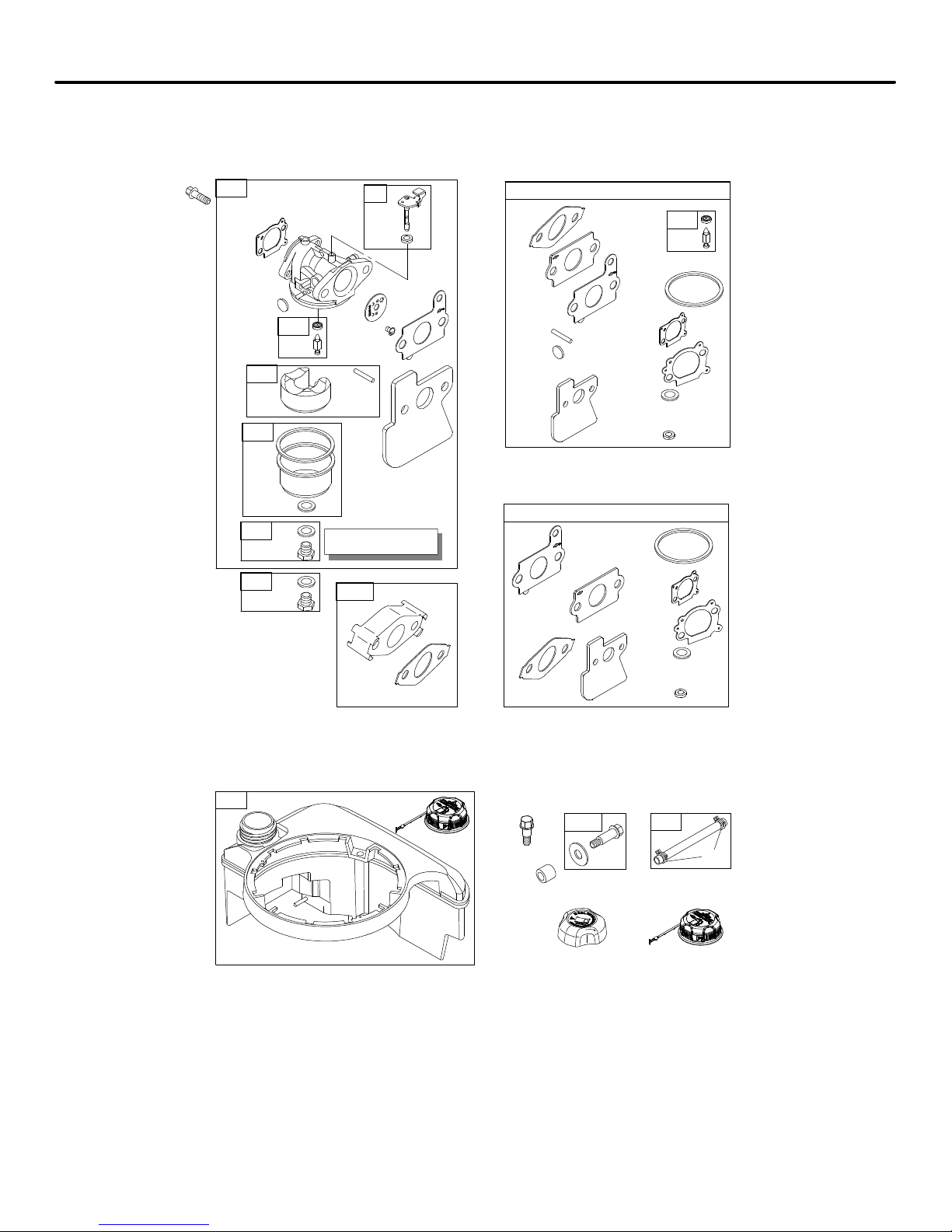

126600

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

6385−2Assemblies include all parts shown in frames. 05/28/2008

1019 LABEL KIT

584

585

684

306

307

718 8

32A

28 27

357

741

146

847

287

525

523

524

842

1022

122

883

868

993

524

842

163A

585

358 ENGINE GASKET SET

163

51A

51B

1330 REPAIR MANUAL

1058 OPERATOR’S MANUAL 1319 WARNING LABEL

REQUIRED when replacing parts

with warning labels affixed.

126600

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

6385−3Assemblies include all parts shown in frames. 05/28/2008

1023

1022

914

1022

122

883

718

619

1034

868

993

886

238

1029

830

192

1026

635

337

383

1022

122

883

868

993

1095 VALVE GASKET SET

51A

51B

51A

51B

126600

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

6385−4Assemblies include all parts shown in frames. 05/28/2008

PRIMER SYSTEM

633A

130

127

163

122

276

137

104

125

134

133

975

276

117

276

118

365

190

972

957

1059 187

670

601

51B

122A

122

163A

163

633A

137

104

134

276

127

122

163A

163

633A

137

276

977 CARBURETOR GASKET SET

51A

51B

51A

51B

957B

121 CARBURETOR OVERHAUL KIT

126600

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

6385−5Assemblies include all parts shown in frames. 05/28/2008

202

267

265

271

269

268

270

227 562

505

615

404

616

188

209A

333

851

334 1119

474

910

356

789

745

922

621

923

935

1160

122 51

621

222F

51A

51B

621

222H

122 51

222J

51A

51B

51A

51B

126600

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

6385−6Assemblies include all parts shown in frames. 05/28/2008

425A

968A 968B 968C

445A 967A

443B 259

529

163

976

966B

300 613

883

613A

836

836A

836

832

832C

677

676C

883

613

613A

300B

126600

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

6385−7Assemblies include all parts shown in frames. 05/28/2008

930A 930B

332

455

1005

363

305

592

925

969

921A

304

608

55 65

592

1211

1210

459

689

456

597

309 510 742

937

783

784

785

513

651

783A

801

544

697

803 310

802

853

545

921

1036 EMISSIONS LABEL

853

697

783A

651

513

785

784

783

937

742

510

309A

126600

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

6385−8Assemblies include all parts shown in frames. 05/28/2008

1 692670 Cylinder Assembly

2 399269 Kit−Bushing/Seal

(Magneto Side)

3K299819S Seal−Oil

(Magneto Side)

4 493279 Sump−Engine

5 795501 Head−Cylinder

(Used After Code Date

05110100).

−−−−−−− Note −−−−−

695276 Head−Cylinder

(Used Before Code

Date 05110200).

7KΔ697230 Gasket−Cylinder Head

8 495786 Breather Assembly

9K699833 Gasket−Breather

10 691125 Screw

(Breather Assembly)

11 499675 Tube−Breather

12 K692232 Gasket−Crankcase

13 691137 Screw

(Cylinder Head)

15 691680 Plug−Oil Drain

(Square Socket)

16 691457 Crankshaft

−−−−−−− Note −−−−−

695860 Crankshaft

Used on Type No(s).

0143, 0158.

693291 Crankshaft

Used on Type No(s).

0108.

691456 Crankshaft

Used on Type No(s).

0110, 0113, 0114,

0115, 0116, 0117,

0118, 0502.

20 K399781S Seal−Oil

(PTO Side)

22 691092 Screw

(Crankcase

Cover/Sump)

23 697610 Flywheel

−−−−−−− Note −−−−−

692693 Flywheel

Used on Type No(s).

0143, 0158.

24 222698S Key−Flywheel

25 795429 Piston Assembly

(Standard)

(Used After Code Date

07090300).

−−−−−−− Note −−−−−

791968 Piston

Assembly

(Standard)

(Used Before Code

Date 07090400).

795430 Piston

Assembly

(.020” Oversize)

(Used After Code Date

07090300).

791326 Piston

Assembly

(.020” Oversize)

(Used Before Code

Date 07090400).

26 795431 Ring Set

(Standard)

(Used After Code Date

07090300).

−−−−−−− Note −−−−−

791969 Ring Set

(Standard)

(Used After Code Date

04040400 and Before

Code Date 07090400).

499631 Ring Set

(Standard)

(Used Before Code

Date 04040500).

795432 Ring Set

(.020” Oversize)

(Used After Code Date

07090300).

791324 Ring Set

(.020” Oversize)

(Used After Code Date

04102100 and Before

Code Date 07090400).

499427 Ring Set

(.020” Oversize)

(Used Before Code

Date 04102200).

27 691866 Lock−Piston Pin

28 499423 Pin−Piston

29 499424 Rod−Connecting

32 691664 Screw

(Connecting Rod)

32A 695759 Screw

(Connecting Rod)

(Used After Code Date

00042200).

33 499642 Valve−Exhaust

34 499641 Valve−Intake

35 691304 Spring−Valve

(Intake)

36 691304 Spring−Valve

(Exhaust)

KIncluded in Engine Gasket Set−Ref. No.358.

DIncluded in Carburetor Overhaul Kit−Ref. No. 121.

zIncluded in Carburetor Gasket Set−Ref. No. 977.

ΔIncluded in Valve Gasket Set−Ref. No 1095.

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

126600

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

6385−9Assemblies include all parts shown in frames. 05/28/2008

37 694086 Guard−Flywheel

40 692194 Retainer−Valve

43 691997 Slinger−Governor/Oil

45 690977 Tappet−Valve

46 694039 Camshaft

51KzDΔ692668 Gasket−Intake

51AKzDΔ697735 Gasket−Intake

51BKzDΔ692555 Gasket−Intake

55 691421 Housing−Rewind

Starter

58 697316 Rope−Starter

(Cut To Required

Length)

60 281434S Grip−Starter Rope

65 690837 Screw

(Rewind Starter)

78 691108 Screw

(Flywheel Guard)

95 691636 Screw

(Throttle Valve)

97 499682 Shaft−Throttle

(Metal)

−−−−−−− Note −−−−−

790121 Shaft−Throttle

(Plastic)

104 D691242 Pin−Float Hinge

117 498981 Jet−Main

(Standard)

(Used After Code Date

03110600).

−−−−−−− Note −−−−−

498978 Jet−Main

(Standard)

(Used Before Code

Date 03110700).

118 497466 Jet−Main

(High Altitude)

(Used After Code Date

03110600).

−−−−−−− Note −−−−−

498975 Jet−Main

(High Altitude)

(Used Before Code

Date 03110700).

121 792383 Kit−Carburetor

Overhaul

122KzDΔ692799 Spacer−Carburetor

122A 792382 Spacer−Carburetor

125 790120 Carburetor

127 D694468 Plug−Welch

130 691203 Valve−Throttle

−−−−−−− Note −−−−−

696564 Valve−Throttle

(Used With Plastic

Throttle Shaft)

133 398187 Float−Carburetor

134 D398188 Kit−Needle/Seat

137 Dz693981 Gasket−Float Bowl

146 690979 Key−Timing

163KzD691894 Gasket−Air Cleaner

163AKzD692667 Gasket−Air Cleaner

187 791766 Line−Fuel

(Cut to Required

Length)

188 691147 Screw

(Control Bracket)

190 690940 Screw

(Fuel Tank)

192 694543 Adjuster−Rocker Arm

202 691303 Link−Mechanical

Governor

209A 690319 Spring−Governor

−−−−−−− Note −−−−−

691851 Spring−

Governor

Used on Type No(s).

0100, 0101, 0108,

0109, 0200, 0502.

791156 Spring−

Governor

Used on Type No(s).

0146.

691291 Spring−

Governor

Used on Type No(s).

0110, 0113, 0114,

0115, 0116, 0117,

0118, 0135, 0136,

0139, 0145.

222F 792398 Bracket−Control

(Used After Code Date

05110100).

Used on Type No(s).

0100, 0113, 0114,

0115, 0118, 0145.

−−−−−−− Note −−−−−

692617 Bracket−

Control

(Used Before Code

Date 05110200).

Used on Type No(s).

0100, 0113, 0114,

0115, 0118, 0145.

222H 792397 Bracket−Control

(Used After Code Date

05110100).

Used on Type No(s).

0143, 0158.

−−−−−−− Note −−−−−

692618 Bracket−

Control

(Used Before Code

Date 05110200).

Used on Type No(s).

0143, 0158.

222J 792404 Bracket−Control

(Used After Code Date

05110100).

−−−−−−− Note −−−−−

697614 Bracket−

Control

(Used Before Code

Date 05110200).

227 691467 Lever−Governor

Control

238 691300 Cap−Valve

259 691189 Bracket−Casing Clamp

265A 690798 Clamp−Casing

267 691044 Screw

(Casing Clamp)

268 691025 Casing−Control Wire

(Cut To Required

Length)

KIncluded in Engine Gasket Set−Ref. No.358.

DIncluded in Carburetor Overhaul Kit−Ref. No. 121.

zIncluded in Carburetor Gasket Set−Ref. No. 977.

ΔIncluded in Valve Gasket Set−Ref. No 1095.

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

126600

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

6385−10 Assemblies include all parts shown in frames. 05/28/2008

269 691026 Wire−Control

(Cut To Required

Length)

270 691027 Nut

(Control Wire Casing)

271 691028 Lever−Control

276 Dz271716 Washer−Sealing

287 690940 Screw

(Dipstick Tube)

300 694248 Muffler

300B 699769 Muffler

304 499677 Housing−Blower

−−−−−−− Note −−−−−

499676 Housing−

Blower

Used on Type No(s).

0143, 0158.

695976 Housing−

Blower

Used on Type No(s).

0116, 0117, 0118,

0139, 0141, 0145,

0157, 0174, 0502.

305 691108 Screw

(Blower Housing)

306 691232 Shield−Cylinder

307 690345 Screw

(Cylinder Shield)

309 695550 Motor−Starter

(Used Before Code

Date 07052900).

309A 795092 Motor−Starter

(Used After Code Date

07052800).

310 692327 Bolt

(Starter Motor)

332 690662 Nut

(Flywheel)

333 802574 Armature−Magneto

334 691061 Screw

(Magneto Armature)

337 692051 Plug−Spark

356 692390 Wire−Stop

357 692191 Key−Drive Pulley

358 792384 Gasket Set−Engine

363 19069 Puller−Flywheel

365 691129 Screw

(Carburetor)

(Used After Code Date

05110100).

−−−−−−− Note −−−−−

691136 Screw

(Carburetor)

(Used Before Code

Date 05110200).

383 19374S Wrench−Spark Plug

404 690272 Washer

(Governor Crank)

425A 690244 Screw

(Air Cleaner Cover)

443B 690255 Screw

(Air Cleaner Primer

Base)

445A 697029 Filter−Air Cleaner

Cartridge

455 791960 Cup−Flywheel

456 692299 Plate−Pawl Friction

459 281505S Ratchet−Pawl

474 691991 Alternator

505 691251 Nut

(Governor Control

Lever)

510 795093 Drive−Starter

513 692358 Clutch−Drive

523 499621 Dipstick

524 K692296 Seal−Dipstick Tube

525 495265 Tube−Dipstick

529 692937 Grommet

544 690786 Armature−Starter

545 492919 Washer Set

(Starter Motor)

562 691119 Bolt

(Governor Control

Lever)

584 697734 Cover−Breather

Passage

585 K691879 Gasket−Breather

Passage

592 690800 Nut

(Rewind Starter)

597 691696 Screw

(Pawl Friction Plate)

601 791850 Clamp−Hose

608 497680 Starter−Rewind

613 691108 Screw

(Muffler)

613A 691140 Screw

(Muffler)

615 690340 Retainer−Governor

Shaft

616 698801 Crank−Governor

619 691108 Screw

(Cylinder Head Plate)

621 692310 Switch−Stop

633ADz691321 Seal−Choke/Throttle

Shaft

635 66538S Boot−Spark Plug

651 690345 Screw

(Starter Gear Cover)

670 692294 Spacer−Fuel Tank

676C 497682 Deflector−Muffler

677 690661 Screw

(Muffler Deflector)

684 690345 Screw

(Breather Passage

Cover)

689 691855 Spring−Friction

697 691127 Screw

(Drive Cap)

718 690959 Pin−Locating

741 794388 Gear−Timing

(Use Without Woodruff

Key)

(Used After Code Date

07093000).

−−−−−−− Note −−−−−

790345 Gear−Timing

(Use Without Woodruff

Key)

(Used Before Code

Date 07100100).

691830 Gear−Timing

(Uses Woodruff Key)

742 93941 Retainer−E Ring

KIncluded in Engine Gasket Set−Ref. No.358.

DIncluded in Carburetor Overhaul Kit−Ref. No. 121.

zIncluded in Carburetor Gasket Set−Ref. No. 977.

ΔIncluded in Valve Gasket Set−Ref. No 1095.

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

Andere Briggs & Stratton Motor Handbücher

Briggs & Stratton

Briggs & Stratton 190000 Series Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 210000 Power Built Intek Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton Vanguard 470000 Series Installations- und Betriebshandbuch

Briggs & Stratton

Briggs & Stratton 110400 Installations- und Betriebshandbuch

Briggs & Stratton

Briggs & Stratton 400000 Professional Series Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 21000 Series Installations- und Betriebshandbuch

Briggs & Stratton

Briggs & Stratton 400000 Professional Series Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton Vanguard 290000 Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 12X800 Series Montageanleitung

Briggs & Stratton

Briggs & Stratton Vanguard 130000 Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 28N700 Series Installations- und Betriebshandbuch

Briggs & Stratton

Briggs & Stratton 90000 series Installations- und Betriebshandbuch

Briggs & Stratton

Briggs & Stratton Vanguard Diesel 432447 Handbuch

Briggs & Stratton

Briggs & Stratton 330000 VERTICAL SERIES Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 100600 Series Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 11B600 Installations- und Betriebshandbuch

Briggs & Stratton

Briggs & Stratton Vanguard Diesel 432447 Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 120000 Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton Vanguard 290000 Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 150000 HORIZONTAL SERIES Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton VANGUARD M490000 Betriebsanleitung

Briggs & Stratton

Briggs & Stratton 194700 Series Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton Vanguard 10V000 Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 310000 VERTICAL SERIES Bedienungsanleitung

Beliebte Motor Handbücher anderer Marken

Rotax

Rotax 125 senior MAX evo Bedienungsanleitung

Kohler

Kohler K361 Bedienungsanleitung

MTD

MTD OHV Series Bedienungsanleitung

Kohler

Kohler COMMAND CH18-745 Bedienungsanleitung

Mercury

Mercury D4.2L D-Tronic Bedienungsanleitung

Selve

Selve SE Plus-RC Series Bedienungsanleitung

Perkins

Perkins 1206E-E66TA Bedienungsanleitung

Skov

Skov DA 174 Handbuch

Rossi

Rossi TX11 Series Bedienungsanleitung

Siemens

Siemens SIMOTICS T-1FW3 Merkblatt

AL-KO

AL-KO PRO 350 Bedienungsanleitung

MTU

MTU 12 V 4000 Lx4 Bedienungsanleitung

Nanni

Nanni N3.30 Gebrauchsanweisung

Nanni

Nanni N5.160 CR2 Bedienungsanleitung

KSB

KSB SuPreme Series Montageanleitung

Hiwin

Hiwin EM1 Series Bedienungsanleitung

Rotax

Rotax 912 i series Betriebsanleitung

Siemens

Siemens SIMOTICS XP 1MB1 Bedienungsanleitung
