20G400

Illustrated Parts List

Model Series

20G400

TYPE NUMBERS

0017 through 0222.

TABLE OF CONTENTS

Alternator 8..........................

Blower Housing/Shrouds 6............

Camshaft 2...........................

Carburetor 4..........................

Controls 6............................

Crankcase Cover 7....................

Crankshaft 2..........................

Cylinder 2............................

Cylinder Head 3......................

Electric Starter 8......................

Exhaust System 5.....................

Flywheel 6............................

Fuel Supply 8.........................

Gasket Set -- Engine 3.................

Gasket Set -- Valve 3..................

Governor Spring 7....................

Ignition 8.............................

Kit -- Carburetor Overhaul 4............

Lubrication 2.........................

Operator’s Manual 2..................

Piston/Rings/Connecting Rod 2........

Rewind Starter 4......................

Valves 3..............................

Warning Label 2......................

Not for

Reproduction

20G400

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

5547--2 Assemblies include all parts shown in frames. 10/07/2008

306

552

718

718A

1221

1194

741

146

524

287 842

742

746

220

725

998

15B

415

847 523

525

219

25 26

1351

529

1058 OPERATOR’S MANUAL 1319 WARNING LABEL

REQUIRED when replacing parts

with warning labels affixed.

170

Not for

Reproduction

20G400

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

5547--3 Assemblies include all parts shown in frames. 10/07/2008

358 ENGINE GASKET SET

51A

1022

883

868

163

358 ENGINE GASKET SET

1095 VALVE GASKET SET

1022

868

51 51A

883

1026

383

337

914

1171

1022

635

1023A

362

1352

1275

883

868

1100 798

1022

51A

34 42

33 42

192

1029

Not for

Reproduction

20G400

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

5547--4 Assemblies include all parts shown in frames. 10/07/2008

108C

118

130A

135

117

369

127A

51A

104A

105A

137A

1127A

975A

125B

133A

95A

632

633B

97A

633B

109E

633B

109F

98A

592 55A

1211

1210

459

689

456

597

60A

930

608A

121A CARBURETOR OVERHAUL KIT

105A

104A 137A

127A

633B

51A 163

98A

51A

122

Not for

Reproduction

20G400

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

5547--5 Assemblies include all parts shown in frames. 10/07/2008

832 836

613 613B

883

300A

613 613B

883

300B

NOTE: This muffler is intended for replacement

purposes only and is not to be used

for retrofitting to engines with different

exhaust systems.

883C

832C

836C

300C

863C

740

740A

819

355

436C

437

1177

Not for

Reproduction

20G400

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

5547--6 Assemblies include all parts shown in frames. 10/07/2008

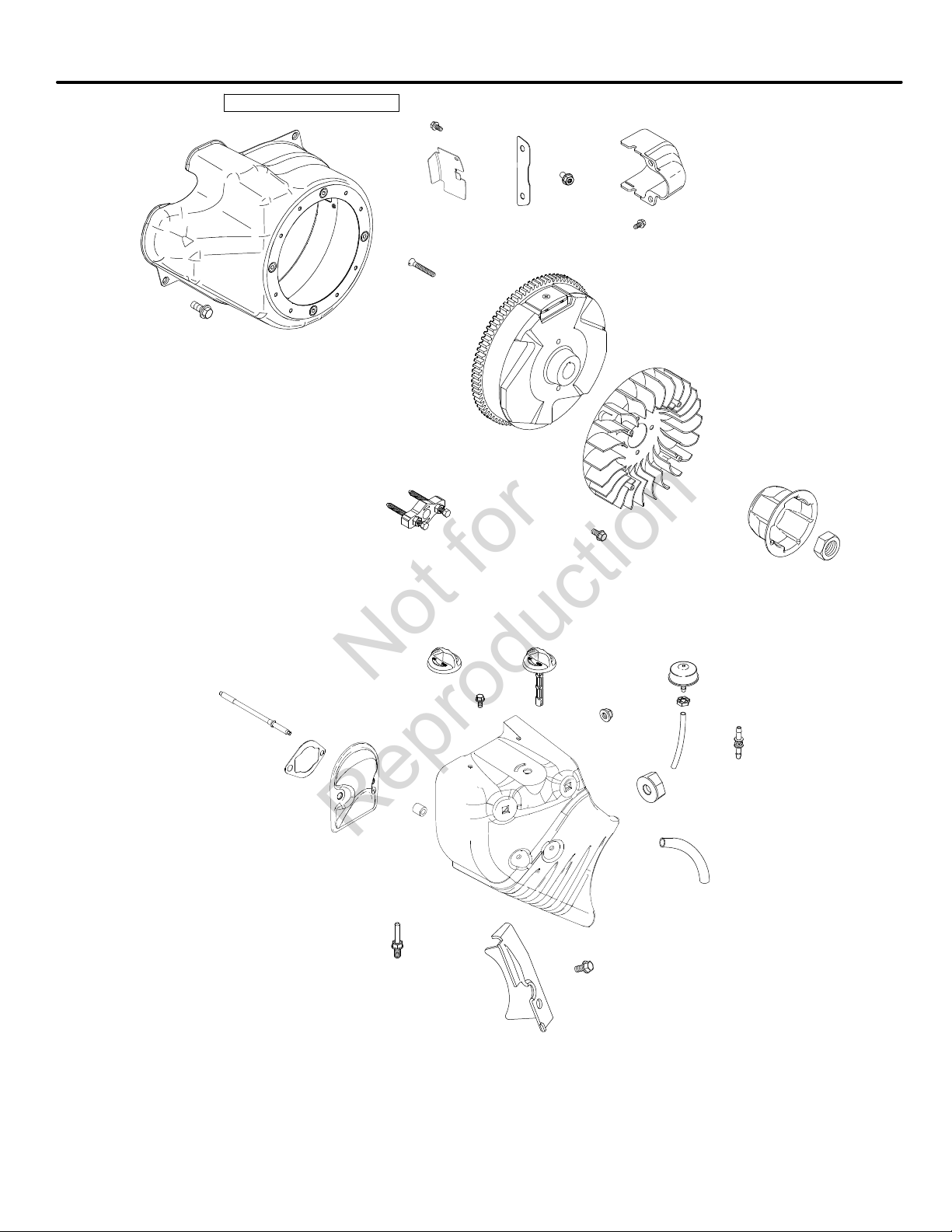

731

53C

610

668B

163

1036 EMISSIONS LABEL

305

332

455

1070

1005

732

304 37

37A 78

78A

727A

695

363

1252

1251

472

1196

11B

1288

528

1224

976

472A

1011

1230

1318

Not for

Reproduction

20G400

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

5547--7 Assemblies include all parts shown in frames. 10/07/2008

621

410

188

668

271B

773

1138

222A

504

211

209

267

265

270

268

269

271

188

616

615

505

562

663B

663A

281A

485

632

564

227

616

604A

278

Not for

Reproduction

20G400

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

5547--8 Assemblies include all parts shown in frames. 10/07/2008

813

958

601

187 187A

474A

DC ONLY

501

526

474C

5--9AMP

NOTE: All stators use a No. mounting screw.

1119

NOTE: The proper flywheel part number and/or the alternator magnet size will

determine the alternator type or output. See repair instruction manual

for additional information.

474

AC ONLY

356G

356J

493B

493

503

697

990A

892A

309C

474H

DUAL

CIRCUIT

878

851

334

333

187D

601

318

309A

190

957A

957

972A

Not for

Reproduction

20G400

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

5547--9 Assemblies include all parts shown in frames. 10/07/2008

1 794849 Cylinder Assembly

2 698340 Kit--Bushing/Seal

(Magneto Side)

3K391086S Seal--Oil

(Magneto Side)

5 793305 Head--Cylinder

7K∆694872 Gasket--Cylinder Head

11B 696750 Tube--Breather

12 K694953 Gasket--Crankcase

13 690360 Screw

(Cylinder Head)

15 691686 Plug--Oil Drain

15B 695757 Plug--Oil Drain

16 794720 Crankshaft

Used on Type No(s).

0017, 0019, 0110,

0111, 0222, 0368.

-- -- -- -- -- -- -- N o t e -- -- -- -- --

794716 Crankshaft

Used on Type No(s).

0100.

18 791965 Cover--Crankcase

19 698340 Kit--Bushing/Seal

(PTO Side)

20 K391086S Seal--Oil

(PTO Side)

21 281658S Cap--Oil Fill

22 695174 Screw

(Crankcase Cover/

Sump)

23 695485 Flywheel

Used on Type No(s).

0017, 0019, 0100,

0110, 0111, 0222,

0368.

24 222698S Key--Flywheel

25 792117 Piston Assembly

(Standard)

-- -- -- -- -- -- -- N o t e -- -- -- -- --

792144 Piston

Assembly

(.020” Oversize)

26 792026 Ring Set

(Standard)

(Used After Code Date

05080900).

-- -- -- -- -- -- -- N o t e -- -- -- -- --

694004 Ring Set

(Standard)

(Used Before Code

Date 05081000).

792073 Ring Set

(.020” Oversize)

(Used After Code Date

05080900).

694008 Ring Set

(.020” Oversize)

(Used Before Code

Date 05081000).

27 690975 Lock--Piston Pin

28 696581 Pin--Piston

29 694691 Rod--Connecting

30 694692 Dipper--Connecting

Rod

32 690976 Screw

(Connecting Rod)

33 499596 Valve--Exhaust

34 795199 Valve--Intake

35 694865 Spring--Valve

(Intake)

36 694865 Spring--Valve

(Exhaust)

37 790730 Guard--Flywheel

Used on Type No(s).

0100.

37A 699047 Guard--Flywheel

Used on Type No(s).

0100, 0110.

42 499586 Keeper--Valve

45 690977 Tappet--Valve

46 790958 Camshaft

51 KD∆694874 Gasket--Intake

51A KD∆694875 Gasket--Intake

53C 794542 Stud

(Carburetor)

55A 696710 Housing--Rewind

Starter

58 693389 Rope--Starter

60A 699334 Grip--Starter Rope

65 697725 Screw

(Rewind Starter)

78 690372 Screw

(Flywheel Guard)

Used on Type No(s).

0100, 0110.

78A 695724 Screw

(Flywheel Guard)

Used on Type No(s).

0100, 0110.

95A 690718 Screw

(Throttle Valve)

97A 696387 Shaft--Throttle

98A D695408 Kit--Idle Speed

104A D694918 Pin--Float Hinge

105A D696136 Valve--Float Needle

108C 696736 Valve--Choke

109E 696735 Shaft--Choke

109F 793162 Shaft--Choke

117 D696134 Jet--Main

(Standard)

118 696135 Jet--Main

(High Altitude)

121A 696146 Kit--Carburetor

Overhaul

(Nikki Carburetor)

122 694876 Spacer--Carburetor

125B 794593 Carburetor

127A D690727 Plug--Welch

130A 696139 Valve--Throttle

133A 694914 Float--Carburetor

135 696142 Tube--Fuel Transfer

137A D695426 Gasket--Float Bowl

146 690979 Key--Timing

163 KD692277 Gasket--Air Cleaner

170 695296 Stud

(Crankcase Cover/

Sump)

187 791766 Line--Fuel

(15 Inches Long)

(Cut To Required

Length)

187A 791869 Line--Fuel

(Used After Code Date

05063000).

-- -- -- -- -- -- -- N o t e -- -- -- -- --

695429 Line--Fuel

(Used Before Code

Date 05070100).

187D 791879 Line--Fuel

(Used After Code Date

05063000).

-- -- -- -- -- -- -- N o t e -- -- -- -- --

698080 Line--Fuel

(Used Before Code

Date 05070100).

KIncluded in Engine Gasket Set--Ref. No. 358.

DIncluded in Carburetor Overhaul Kit--Ref. No. 121A.

∆Included in Valve Gasket Set--Ref. No. 1095.

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

Not for

Reproduction

20G400

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

5547--10 Assemblies include all parts shown in frames. 10/07/2008

188 690877 Screw

(Control Bracket)

190 692127 Screw

(Fuel Tank)

192 690083 Adjuster--Rocker Arm

209 694867 Spring--Governor

211 695307 Spring--Governor Idle

219 693578 Gear--Governor

220 691724 Washer

(Governor Gear)

222A 698034 Bracket--Control

227 694864 Lever--Governor

Control

265 691024 Clamp--Casing

267 692577 Screw

(Casing Clamp)

268 691025 Casing--Control Wire

(Cut to Required

Length)

269 691026 Wire--Control

(Cut to Required

Length)

270 691027 Nut

(Control Wire Casing)

271 696697 Lever--Control

271B 698035 Lever--Control

278 792008 Washer

(Governor Control

Lever)

281A 697400 Panel--Control

-- -- -- -- -- -- -- N o t e -- -- -- -- --

698081 Panel--Control

Used on Type No(s).

0222.

287 691693 Screw

(Dipstick Tube)

300A 794694 Muffler

Used on Type No(s).

0100, 0222.

300B 794695 Muffler

Used on Type No(s).

0017, 0019, 0110,

0111, 0368.

300C 793701 Muffler

(This muffler is

intended for replace-

ment purposes only

and is not to be used

for retrofitting to

engines with different

exhaust systems)

304 791478 Housing--Blower

305 691108 Screw

(Blower Housing)

306 697240 Shield--Cylinder

309A 793524 Motor--Starter

Used on Type No(s).

0019, 0222, 0368.

309C 698311 Motor--Starter

Used on Type No(s).

0017, 0111.

318 690372 Screw

(Mounting Bracket)

332 694685 Nut

(Flywheel)

333 492341 Armature--Magneto

334 691061 Screw

(Magneto Armature)

337 491055S Plug-- Spark

Used on Type No(s).

0017, 0019, 0100,

0111, 0222, 0368.

-- -- -- -- -- -- -- N o t e -- -- -- -- --

691043 Plug--Spark

Used on Type No(s).

0110.

355 691075 Washer

(Muffler Bracket)

356G 696748 Wire--Stop

356J 696700 Wire--Stop

358 795201 Gasket Set--Engine

362 698041 Shield--Spark Plug

363 19203 Puller--Flywheel

369 695422 Spring--Float Bowl

383 19374S Wrench--Spark Plug

410 695382 Link--Control

415 691363 Plug

436C 792374 Manifold--Exhaust

437 696705 Screw

(Exhaust Manifold)

455 697226 Cup--Flywheel

456 692299 Plate--Pawl Friction

459 281505S Pawl--Rachet

472 696752 Knob--Choke Shaft

472A 791958 Knob--Choke Shaft

474 694457 Alternator

474A 695730 Alternator

474C 698314 Alternator

474H 698230 Alternator

485 695755 Knob--Control

493 691177 Bracket--Mounting

493B 699048 Bracket--Mounting

Used on Type No(s).

0110.

501 698315 Regulator

Used on Type No(s).

0017, 0110, 0111.

503 698318 Strap--Starter

Used on Type No(s).

0017, 0111.

504 695383 Washer Set--Friction

505 691251 Nut

(Governor Control

Lever)

523 695344 Dipstick

524 691876 Seal--Dipstick Tube

525 695343 Tube--Dipstick

526 690297 Screw

(Regulator)

Used on Type No(s).

0017, 0110, 0111.

528 793006 Hose--Primer

(Cut to Required

Length)

529 791822 Grommet

552 694674 Bushing--Governor

Crank

562 793216 Bolt

(Governor Control

Lever)

564 696692 Screw

(Control Cover)

592 690800 Nut

(Rewind Starter)

597 691696 Screw

(Pawl Friction Plate)

601 791850 Clamp--Hose

604A 696758 Cover--Control

608A 699335 Starter--Rewind

Used on Type No(s).

0017, 0019, 0100,

0110, 0111, 0222,

0368.

610 794541 Arrester--Intake

613 695312 Screw

(Muffler)

613B 696705 Screw

(Muffler)

(Torx Head)

KIncluded in Engine Gasket Set--Ref. No. 358.

DIncluded in Carburetor Overhaul Kit--Ref. No. 121A.

∆Included in Valve Gasket Set--Ref. No. 1095.

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

Not for

Reproduction

Dieses Handbuch passt für folgende Modelle

Andere Briggs & Stratton Motor Handbücher

Briggs & Stratton

Briggs & Stratton 405700, 406700, 407700, 445700 Montageanleitung

Briggs & Stratton

Briggs & Stratton 400000 Professional Series Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 280000 Series Installations- und Betriebshandbuch

Briggs & Stratton

Briggs & Stratton 400000 Professional Series Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 11B600 Installations- und Betriebshandbuch

Briggs & Stratton

Briggs & Stratton Fource 21000 Installations- und Betriebshandbuch

Briggs & Stratton

Briggs & Stratton 120000 Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 6 Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 120000 Handbuch

Briggs & Stratton

Briggs & Stratton 400000 Professional Series Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 190000 Series Handbuch

Briggs & Stratton

Briggs & Stratton 090600 Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 205300 Series Einrichtungshandbuch

Briggs & Stratton

Briggs & Stratton 210000 Intek Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 90000 series Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 400000 Professional Series Installations- und Betriebshandbuch

Briggs & Stratton

Briggs & Stratton 9B900 Installations- und Betriebshandbuch

Briggs & Stratton

Briggs & Stratton Vanguard 290000 Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 120000 Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 120000 Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 290700 Series Installations- und Betriebshandbuch

Briggs & Stratton

Briggs & Stratton Vanguard 85400 Installations- und Betriebshandbuch

Briggs & Stratton

Briggs & Stratton 210000 Series Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton Vanguard 350000 Bedienungsanleitung

Beliebte Motor Handbücher anderer Marken

Rotax

Rotax 125 senior MAX evo Bedienungsanleitung

Kohler

Kohler K361 Bedienungsanleitung

MTD

MTD OHV Series Bedienungsanleitung

Kohler

Kohler COMMAND CH18-745 Bedienungsanleitung

Mercury

Mercury D4.2L D-Tronic Bedienungsanleitung

Selve

Selve SE Plus-RC Series Bedienungsanleitung

Perkins

Perkins 1206E-E66TA Bedienungsanleitung

Skov

Skov DA 174 Handbuch

Rossi

Rossi TX11 Series Bedienungsanleitung

Siemens

Siemens SIMOTICS T-1FW3 Merkblatt

AL-KO

AL-KO PRO 350 Bedienungsanleitung

MTU

MTU 12 V 4000 Lx4 Bedienungsanleitung

Nanni

Nanni N3.30 Gebrauchsanweisung

Nanni

Nanni N5.160 CR2 Bedienungsanleitung

KSB

KSB SuPreme Series Montageanleitung

Hiwin

Hiwin EM1 Series Bedienungsanleitung

Rotax

Rotax 912 i series Betriebsanleitung

Siemens

Siemens SIMOTICS XP 1MB1 Bedienungsanleitung
