Brightek E30 Gebrauchsanweisung



QUICK INSTALL

快速安装

北京炜煌科技发展有限公司

Beijing Bright Technology Development Co.,Ltd





E30/E31

快速安装手册

http://www.whkj.com.cn010‐51655555

●打印机各部件一览 Printer Parts Names



1.开门板手 lock

2.纸仓盖 Paper Case Cover

3.指示灯/LF 键 Indicator Light/LF Button

4.螺钉 Screw

5.螺钉盖 Cover Screw

6.纸卷 Paper Roll

7.滚轴 Platen Roller

8.电源接口 Power Connector

9.通讯接口 Interface Connector

10.SET 键 SET Button

11.固定架 Holder

12.卡子 Fastenter



按钮开关的操作及指示灯

打印机上电后指示灯保持常亮状态，打印机缺纸时指示灯闪，不能接受数据。

正常上电后，LF 键为走纸键。

自检测方式

打印机断电，按 LF 键不放手同时给打印机上电，打印机就会打印出自检条。

Operation Specification

After turning on the printer, the indicator light will keep on. When

the light flash, it shows that the paper is lacking, and the printer

can not receive data.

Press the LF button, the printer will feed paper.

The Self Test

Press the LF button, do not release and turn on the printer at the

same time，and then the printer will print out the self-check scrip.



快速安装手册

http://www.whkj.com.cn010‐51655555

●尺寸 Size



WH-E30/E31 型尺寸 Product Size:

外型尺寸 Outline Dimension: 109mmX48.8mmX64mm

安装尺寸 Mounting Dimension:

机型

Model

L H

E30 101.0mm 55.0mm

E31 102.2mm～103.0mm 56.2mm～57.0mm

嵌入深度 Inlaid Deepness： 41.6mm

快速安装手册

http://www.whkj.com.cn010‐51655555

●安装 Installation



安装方法：

在打印机四角周围装上卡子（WH-E30 型不装卡子），然后把打印机嵌入部分插入仪器或设备面板的

安装孔内，再打开纸仓盖，扣出螺钉盖把螺钉拧紧，左右对称各一套，安装方法相同。

所安装的面板厚度为 0.5～8mm 的金属板或塑料板；厚薄不会影响打印机安装的牢固性。

开口尺寸：

WH-E30 型：100.4mm+0.5 X 54.4mm+0.5

WH-E31 型：104.4mm+0.5 X 58.4mm+0.5

Installation Method：

Fix the fastener onto the printer(WH-E30 no use fastener).Insert the built-in part

of printer into the installing orifice of instrument or equipment. Then open the

paper case cover, tighten the screws in the front of panel.

For the faceplate that will be fixed could be metal plate or plastic plate with

thickness from 0.5mm to 8mm. Neither too thick nor too thin would affect the

fastness of the printers.

Installation dimension:

WH-E30：100.4mm+0.5 X 54.4mm+0.5

WH-E31：104.4mm+0.5 X 58.4mm+0.5

快速安装手册

http://www.whkj.com.cn010‐51655555

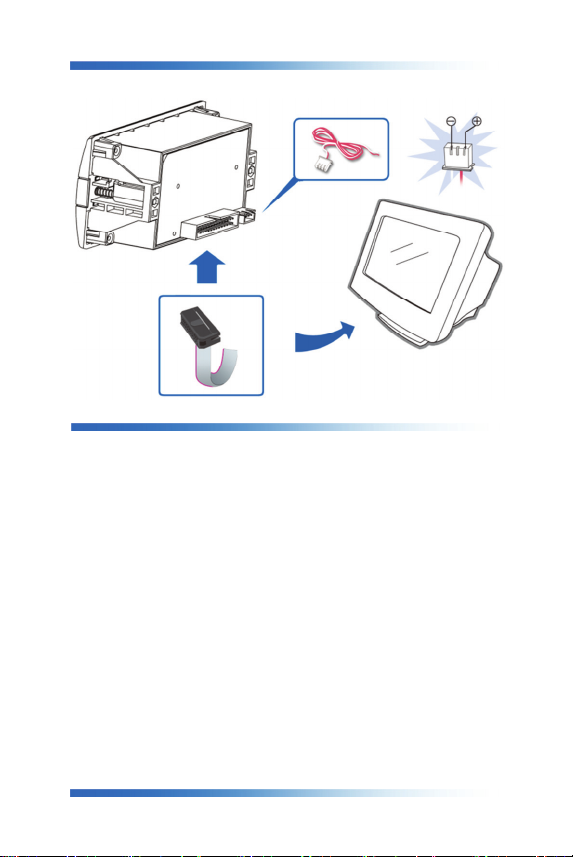

●连接 Connection



通讯连接：

请严格参照产品背面标签所注参数进行连接。

电源连接：

请严格参照产品背面标签所注参数进行连接。

注意：不要将交流 220V 与打印机电源插座直接连接，工作电压应在额定电压±5%以内，电源极性

一定要接正确，否则会给打印机造成永久性损坏，炜煌公司对此不承担保修义务。

Communication Connection：

Please refer to the label of printer.

Power Connection：

Please refer to the label of printer.

Attention： Do not connect AC to the printer directly, operating

voltage should be within ± 5% rated voltage. Power polarity must be

correct, otherwise it will cause permanent damage to printer, brightek

company do not assume maintenance compulsory upon this.



●产品规格一览表 Product Specification

项目 ITEMS 规格 SPECIFICATION

打印方式 Printing method 热敏行式打印 Direct thermal line printing

纸宽 Paper width 57mm

打印宽度 Print width 48mm

分辨率 resolution ration 8 dots/mm(384 dots/line )

打印头寿命 life of printing head 6x10⁶ character lines

打印速度 Printing speed 60mm/sec(when the utilization rate is 25％)

字符大小 character size 6x8dots,8x16dots,or 12x24dots

汉字库 chinese character library GB2312,16X16dots, 24x24dots

纸的规格 Paper supplied 热敏纸卷 Thermal roll paper(57mm wide, ￠30mm)

接口 Interface Serial RS232/TTL/485/Parallel interface

输入电源 Input Power DC 5V～8.5V,15W /DC 9V～24V，30W

操作温度 Operating temperature 5℃～50℃

存储温度 Storage temperature -20℃～60℃

操作湿度 Operating humidity 10％～80％

存储湿度 Storage humidity 10％～90％
