BriskHeat Custom Series Bedienungsanleitung
Read and understand this manual before operating or
servicing this heater. Failure to understand how to
safely operate these heaters could result in an
accident causing serious injury or death. Only
qualified personnel should operate or service heater.
Silicone Rubber Heating Blankets
SRL, SRP, SRMU, SRX, & Custom Series
Instruction Manual
BriskHeat® Corporation. All rights reserved
2
SRL, SRP, SRMU, SRX, Custom Series
Silicone Rubber Heating Blankets
Table of Contents
Introduction.....................................................................................2
Safety Alert Symbol........................................................................2
Important Safety Instructions..........................................................3
Prior to Installation..........................................................................4
Mounting Your Heating Blanket......................................................5
Connecting Heating Blanket to a Power Source............................6
Troubleshooting Guide ...................................................................7
Warranty Information......................................................................8
SAFETY ALERT SYMBOL
The symbol above is used to call your
attention to instructions concerning your
personal safety. It points out important
safety precautions. It means
“ATTENTION! Become Alert! Your
Personal Safety is involved!” Read the
message that follows and be alert to the
possibility of personal injury or death.
INTRODUCTION
Thank you for purchasing a BriskHeat® Silicone Rubber Heating
Blanket. Your heater is designed to provide a long and efficient service
life with function, reliability, and safety in mind. For additional
information concerning this, or other BriskHeat® products, please
contact your local BriskHeat® distributor or contact us toll free
(U.S. / Canada only) at 1-800-848-7673 or 614-294-3376.
Immediate hazards which WILL result in severe
personal injury or death
Hazards or unsafe practices that COULD result in
severe personal injury or death
Hazards or unsafe practices that COULD result in
minor personal injury or
property damage
SAVE THESE INSTRUCTIONS!
Additional copies of this manual are available upon request.
BriskHeat® Corporation. All rights reserved
3
SRL, SRP, SRMU, SRX, Custom Series
Silicone Rubber Heating Blankets
Inspect all components before use.
Never handle the heater while it is in operation;
always disconnect the heater from the power
source and allow cooling prior to handling.
Designed for use of metal surfaces. Do not use
on plastic surfaces.
Do not wrap the heater over itself.
If spillage of foreign matter onto heater occurs,
disconnect from power source and clean after
heater is allowed to cool.
Never operate a heater without an appropriate
heat sink (device being heated is considered a
heat sink).
Do not operate heater above rated temperature
value.
Fasten heater to device using approved methods
only.
Do not use control and heating system if any
component is damaged.
Do not repair damaged or faulty control and
heating systems.
Do not crush or apply severe physical stress on
any component of system, including cord
assembly.
Unplug control and heating system when not in
use.
Failure to observe these warnings may result in
personal injury or damage to the heater.
IMPORTANT SAFETY INSTRUCTIONS
Do not immerse heater in liquid.
Keep volatile or combustible material away from
heater when in use.
Use heater only in approved locations.
Keep sharp metal objects away from heater.
All SRX blankets have T ratings described in
Article 501 of the NEC code. The blankets should
not be used in an area with a lower T rating than
the blanket. The T rating is stated in marking on
the blanket.
Failure to observe these warnings may result in electric
shock, risk of fire, and personal injury.
End User Must Comply to the Following:
Only qualified personnel are allowed to connect
electrical wiring.
Disconnect all supply power at the source before
making any power connections.
All electrical wiring must follow local electrical
codes and highly recommend following NEC
Article 427.
Final installation / wiring is to be inspected by the
authority who has jurisdiction in the area that the
heater is installed.
The end-user is responsible for providing a
suitable disconnecting device.
The end-user is responsible for providing suitable
electrical protection device. It is highly
recommended that a ground fault circuit breaker
is used.
SRX series: A NRTL (National Recognized
Testing Laboratory) listed temperature controller
must be used to control the surface temperature
of the blankets. The controller must be approved
for the area where it is located.
SRX series: Heaters provide surface heating,
consult proper authorities for information for safe
heating of materials/ contents of any vessel
heated by SRX heaters.
Failure to observe these warnings may result in
personal injury or damage to the heater.
A person who has not read and understood all
operating instructions is not qualified to operate this
product.
Agency Approvals
Approvals valid only when installed in accordance
with all applicable instructions, codes, and regulations.
SRL/SRP Series
Up to 358°F (181°C)
SRX Series
Hazardous Locations
Class I, Division 2, Groups A, B,
C, & D
Class II, Division 2, Groups F & G
SRMU Series and Custom
Silicone Rubber Heating
Blankets
BriskHeat® Corporation. All rights reserved
4
SRL, SRP, SRMU, SRX, Custom Series
Silicone Rubber Heating Blankets
Read and understand this enre manual before operang this electric heater.
PRIOR TO INSTALLATION
1. Check for suspected damage to the heating blanket like rips, punctures, etc.
2. Verify surface to be heated is free from all sharp edges, weld splatter, rust, oil,
etc. Surface must be clean prior to installing heater.
3. Check that the desired placement of the blanket will not cause damage to the
blanket through impact shock, vibration, ambient temperature, or by
neighboring moving parts.
4. Confirm voltage / wattage rating of heater is appropriate for power supply
device or temperature controller. The heater is designed to work at a specific
voltage to heat properly. For additional information, contact your local
distributor or BriskHeat®.
5. Confirm blanket maximum exposure temperature rating is suitable for
environment. The temperature of the internal heating element may run up to
25% higher than the external surface of the blanket. Use extreme caution for
applications that require a process temperature near the maximum exposure
temperature ratings of the blanket.
All Silicone rubber heating blanket except SRX exposure temperature
range: -60ºF to 450ºF (-51ºC to 232ºC)
SRX exposure temperature range: -60ºF to 400ºF (-51ºC to 204ºC)
T3: 292ºF (145ºC) high limit thermostat
T4A: 158ºF (70ºC) high limit thermostat
6. Confirm all necessary installation hardware and tools are readily available.
Depending on the application, this may include:
Tools:
Wire strippers
Cleaning / prep supplies (varies based on what is being cleaned)
Medium to hard roller
BriskHeat® Corporation. All rights reserved
5
SRL, SRP, SRMU, SRX, Custom Series
Silicone Rubber Heating Blankets
MOUNTING YOUR HEATING BLANKET
Your silicone rubber heating blanket can be mounted on both flat and curved
surfaces. However, do not allow your heater to exceed the maximum “bend
radius”. The typical bend radius is approximately 2” (51mm). To determine the bend
radius, slowly bend the heater until it begins to crease or fold. The point prior to
creasing is the bend radius. Your heater may be more flexible in one direction than
the other, however, the heater should be installed with the wires exiting the
bottom if in an outdoor application.
Your heater can be attached to the surface using:
• Factory applied PSA (pressure sensitive adhesive)
• Factory supplied mechanical fasteners
• Factory supplied or recommended mechanical clamping devices
• High-temperature adhesive tape that will not damage the heater
• Thin layer of RTV
For all installations, regardless of adhesion method:
1. For proper temperature control, place the thermocouple, RTD, or other sensing
device, so that it touches the edge of the heating blanket.
Sensor must be in close proximity to the heater to prevent
overheating.
If heating blanket is installed on a vertical surface, place sensor
directly on lower edge of heating blanket since heat naturally rises.
Sensor should be connected in accordance with instructions provided
with temperature controller.
Secure with one strip of aluminum adhesive tape.
2. Ensure heater is in contact with the surface to be heated. If air gaps are
present, heat transfer will decrease and there is a potential to overheat the
heating blanket. Use a medium to hard roller to eliminate trapped pockets of air.
Do not wrap the heater over itself or allow it to contact a
second heater.
Hardware:
Junction Box
Wire Ties
Mounting Hardware
Temperature controller and sensor
Silicone RTV
Insulating material
High-temperature adhesive tape
(part # AA2180)
Plug if connecting heater to a
receptacle rather than hard wiring to
a temperature controller or junction
box
BriskHeat® Corporation. All rights reserved
6
SRL, SRP, SRMU, SRX, Custom Series
Silicone Rubber Heating Blankets
CONNECTING YOUR HEATING BLANKET TO A POWER
SOURCE
1. If your heating blanket does not have its own internal temperature control device,
it must be connected to an external control device. The heater must not be
operated without some form of temperature control.
Your heater is designed to operate at a specific voltage ±10%. Refer to the label on
the heater for proper operating voltage and wattage information. Failure to operate
the heater at the specified rating could result in overheating of the heating blanket,
the surface being heated, or personal injury. Also note lower-than-rated voltage will
result in under-heating.
All electrical connections must be made by qualified personnel and in accordance
with all applicable codes and regulations.
SRX series: A NRTL (National Recognized Testing Laboratory) listed temperature
controller must be used to control the surface temperature of the blankets. The
controller must be approved for the area where it is located.
Installation of heater using factory supplied Pressure Sensitive Adhesive
(PSA):
3. Peel off the release film [Figure A] and then press the heater onto the surface of
the item being heated using a medium to hard rubber roller [Figure B]. Ensure
blanket is making intimate contact with the surface to be heated.
The pressure sensitive adhesive will cure when the blanket is energized and
heat is generated. PSA generally cures in twenty minutes at 200ºF (93ºC) in a
68ºF (20ºC) ambient environment. The cure time will vary with temperature of
the blanket and surrounding ambient conditions. The higher the ambient
temperature and set-point of the blanket, the faster the cure time.
The blanket may require a temporary method of attachment to secure the
heater until the PSA cures. Use a high-temperature adhesive tape (BriskHeat®
Part # AAT2180) to secure the heater.
For larger heaters, press the heater onto the surface as the film is removed.
NOTE: BriskHeat® does not recommend allowing pressure sensitive adhesive to
cure at temperatures below 40ºF (4ºC).

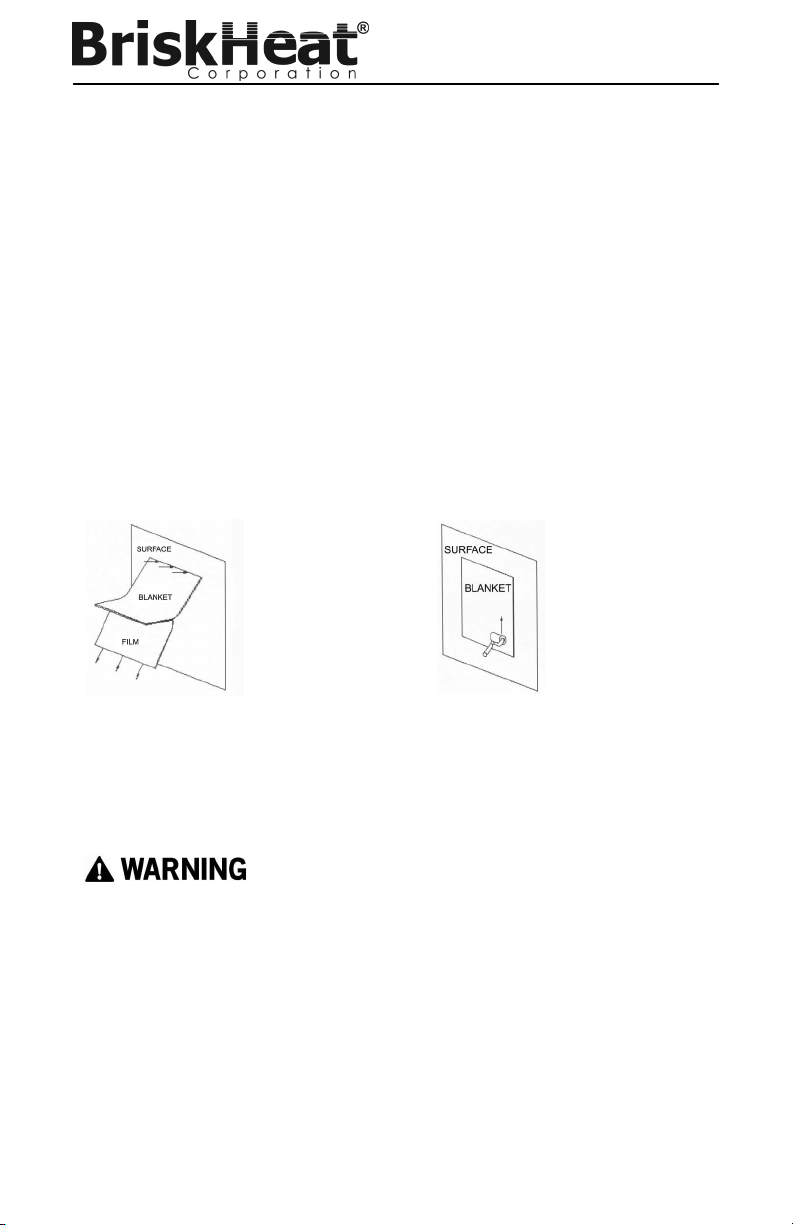

Figure A:
Removing Film
Figure B:
Rolling the Blanket
BriskHeat® Corporation. All rights reserved
7
SRL, SRP, SRMU, SRX, Custom Series
Silicone Rubber Heating Blankets
2. Most heating blankets are available with an optional high-limit safety
thermostat to protect both the heater and the product being heated from
damage if the main controlling device fails. This option is especially
recommended for surfaces that are high risk for heat damage (e.g. plastic).
Contact factory for more details.
3. Ensure heater is protected by a properly rated circuit breaker or fuse.
4. Use of a ground fault circuit interrupter (GFCI) is highly recommended and
may be required according to local electric code.
5. Power lead wires should be connected to the power source (or temperature
control device) directly, through a junction box, or to a connector that is
mated to a receptacle connected to the power source. BriskHeat® Heating
Blankets are non-polarized, allowing either power lead wire to be connected
to the neutral or hot. The third wire (if applicable), designated by the color
green (or a green stripe), should be connected to ground. For three phase
installation, contact the factory.
6. SRX series: The conduit connection is 3/4” hub.
TROUBLESHOOTING GUIDE
Please read this guide prior to contacting BriskHeat®. This guide is designed to
answer the most commonly asked questions. If you are unable to identify the
problem or need additional assistance, please contact us at 1-800-848-7673
(U.S. / Canada), 1-614-294-3376 (worldwide), or bhtsales1@briskheat.com.
PROBLEM SOLUTION(S)
Heater does not warm up Verify heater is connected to proper voltage.
Check to see if there is a resistance reading (not an open
circuit) in heater using an ohm meter.
Pressure sensitive
adhesive is not adhering
Verify date of manufacture. PSA has a shelf life of 6 months.
Ensure there are no air gaps and heater is making intimate
contact with surface being heated. Use a medium to hard
rubber roller.
Circuit breaker is tripping Validate that the circuit breaker is capable of handling the amp
requirement of heater. The identification label located on the
power cord displays the heater’s amperage requirement.
Examine heater and cord for any damage.
Check to see if there is a resistance reading between power
leads and the ground lead.
BriskHeat® Corporation. All rights reserved
8
SRL, SRP, SRMU, SRX, Custom Series
Silicone Rubber Heating Blankets
1055 Gibbard Ave, Columbus, OH 43201
Toll Free: 800-848-7673
Phone: 614-294-3376
Fax: 614-294-3807
Email: [email protected]
PN: 11661 Rev. D
WARRANTY INFORMATION
BriskHeat® warrants to the original purchaser of this product for the period of
eighteen (18) months from date of shipment or twelve (12) months from date of
installation, whichever comes first. BriskHeat®’s obligation and the exclusive
remedy under this warranty shall be limited to the repair or replacement, at
BriskHeat®’s option, of any parts of the product which may prove defective
under prescribed use and service following BriskHeat®’s examination, is
determined by BriskHeat® to be defective. The complete details of the warranty
can be found online at www.briskheat.com/t-warranty.aspx or by contacting us
at 1-800-848-7673 (toll free, U.S. / Canada) or 1-614-294-3376 (Worldwide).
Dieses Handbuch passt für folgende Modelle
4
Inhaltsverzeichnis
Andere BriskHeat Heizsystem Handbücher
