BRITEQ® 1 BTX-700BEAM

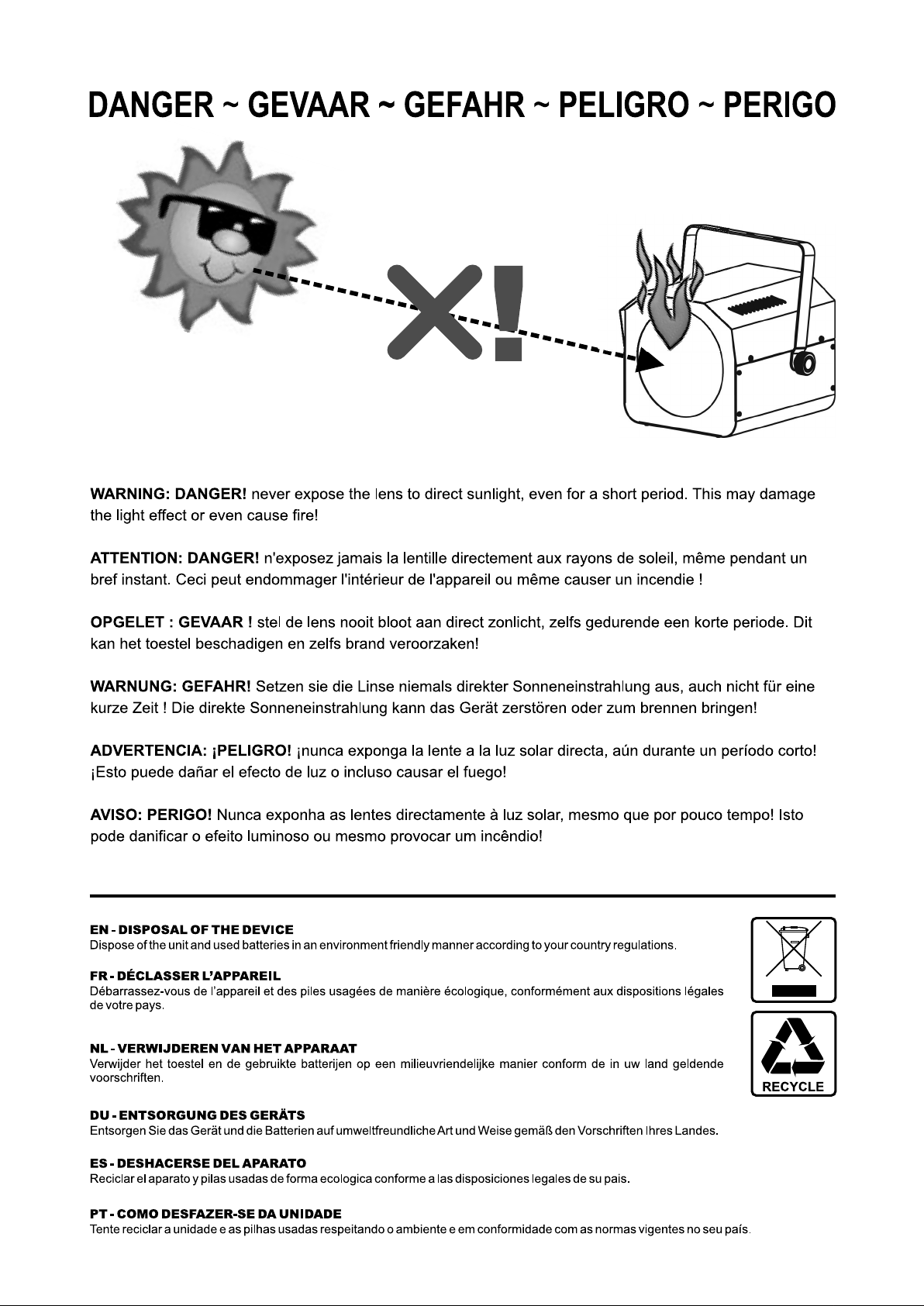

1. Safety Instruction

WARNING

Please keep this User Guide for future consultation. If you sell the unit to another user, be

sure that they also receive this instruction manual.

Important:

Damages caused by the disregard of this user manual are not subject to warranty.

The dealer will not accept liability for any resulting defects or problems.

Unpack and check carefully that there is no transportation damage before using the

unit.

The unit is for indoor use only. Use only in a dry location.

Do install and operate by qualified operator.

Do not allow children to operate the fixture.

Use safety chain when fixing the unit. Handle the unit by carrying its base instead of

head only.

The unit must be installed in a location with adequate ventilation, at least 50cm from

adjacent surfaces.

Be sure that no ventilation slots are blocked, otherwise the unit will be overheated.

Before operating, ensure that the voltage and frequency of power supply match the

power requirements of the unit.

It’s important to ground the yellow/green conductor to earth in order to avoid electric

shock.

Maximum ambient temperature TA: 40°C. Don’t operate it when the temperature is

higher.

Don’t connect the device to any dimmer pack.

During initial start-up some smoke or smell may arise. This is a normal process and

does not necessarily mean that the device is defective, and it will decrease gradually

within 15 minutes.

Make sure there are no flammable materials close to the unit while operating to avoid

fire hazard.

Examine the power wires carefully, replace them immediately if there is any damage.

Unit’s surface temperature may reach up to 85℃. Don’t touch the housing bare-handed

during its operation, and allow about 15 minutes for cooling the unit down before

replacing bulb or maintenance as it could be very hot.

Avoid any inflammable liquids, water or metal objects entering the unit. Once it

happens, cut off the mains power immediately.

Do not operate in dirty or dusty environment, do clean fixtures regularly.

Do not touch any wire during operation as there might be a hazard of electric shock.

Avoid power wires together twist other cables.

The minimum distance between light output and the illuminated surface must be more

than 2.5 meters.

Disconnect mains power before fuse/lamp replacement or servicing.

Replace fuse/lamp only with the same type.

In the event of serious operating problem, stop using the unit immediately.

Never turn on and off the unit time after time.

The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly

damaged.

Please read carefully the instruction manual, which includes

important information about the installation, usage and maintenance.

BRITEQ® 2 BTX-700BEAM

Do not open the unit as there are no user serviceable parts inside.

Never try to repair the unit by yourself. Repairs carried out by unskilled people can lead

to damage or malfunction. Please contact the nearest authorized technical assistance

center if needed.

Disconnect the mains power if the fixture is has not been used for a long time.

Do use the original packing materials before transporting it again.

Caution

To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or

moisture.

Hot lamp explosion hazard. Do not open the unit within 15 minutes after switching off.

Do replace the bulb once it is damaged, deformed or life-expired.

Do not look directly at the light while the bulb is on.

Never touch bulb with bare fingers, as it is very hot after using.

Do not start on the unit without bulb enclosure or when housing is damaged.

Product Items

User manual

2 x Omega clamps

2. Installation

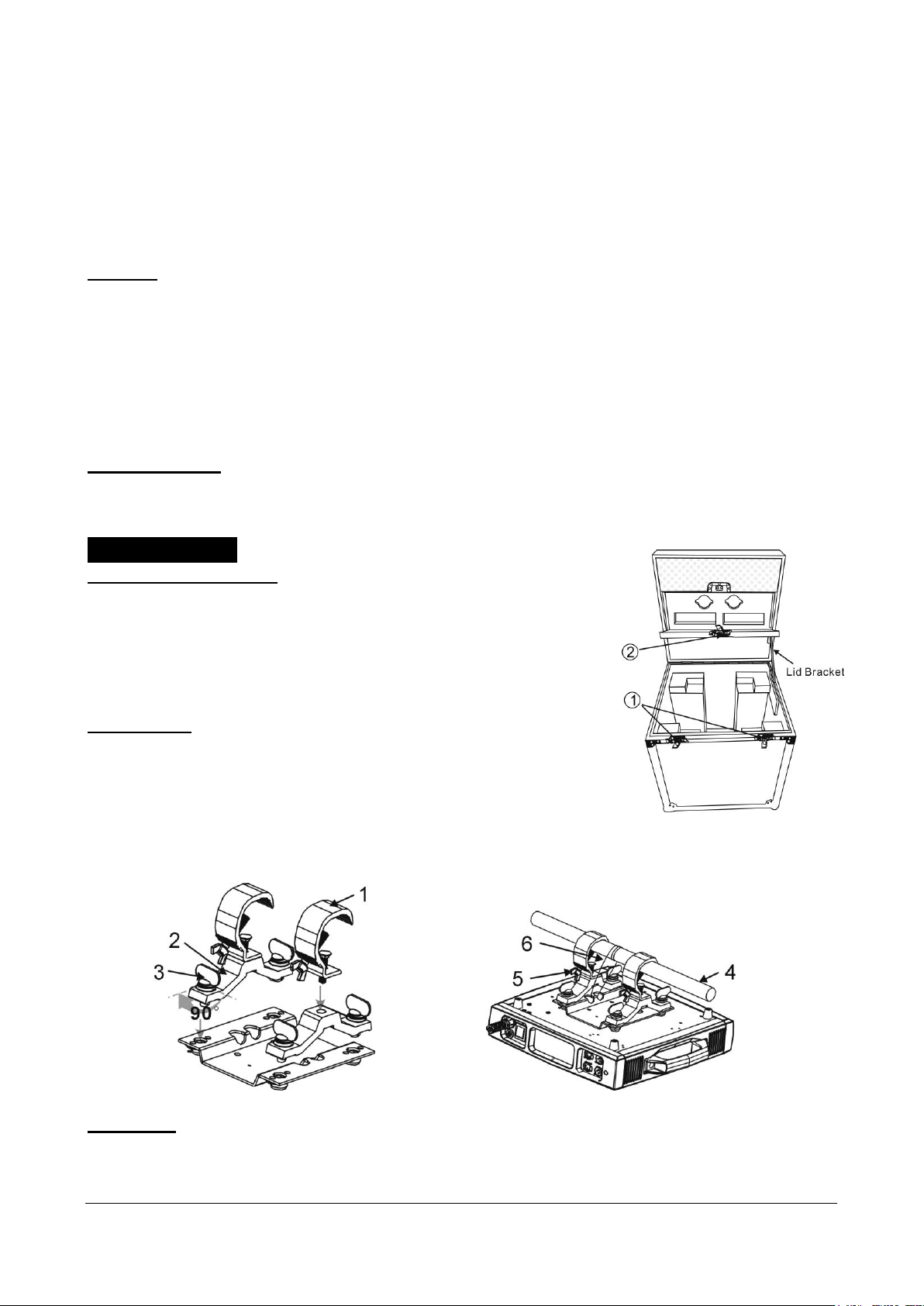

Unpacking the fixture (for flight case pack only)

1.Stop the flight case via the brake sheet above the wheels.

2.Unlock the lock modules (1) and open the cover board.

3.Prop the cover board with lid bracket.

4.Take out the fixture.

5.Unlock the lock module (2) take out omega clamps.

Installation:

1. Bolt each clamp (1) to the Omega holder with screw and

lock nut through the hole in the holder.

2. Fasten the omega holders (2) on the bottom of the base by

inserting quick-lock fasteners (3) into the holes of the base

and tighten fully clockwise.

3. Hang the fixture to the support (4) through clamp and fasten the screws (5). Fasten the

safety cable (6) through the bottom of the base and over the support.

Fig.1 Fig.2

Attention:

Always ensure that the structure to which you are attaching the unit is secure and is

able to support a weight of 10 times of the unit’s weight.

BRITEQ® 3 BTX-700BEAM

Also always use a safety cable that can hold 12 times of the weight of the unit when

installing the fixture.

Always ensure that the unit is firmly fixed to avoid vibration and slipping while

operating.

The equipment must be fixed by professionals. And it must be fixed at a place where is

out of the touch of people and has no one pass by or under it.

3. Technical Specification

Power supply

- AC 100V~240V 50/60Hz

Power Consumption

- 879W (230V)

- 909W (120V)

Fuse

- T 15 A

Lamp

- Philips MSR Gold 700/2 mini FastFit

Battery backup display

- Setting DMX address or other functions without connecting to mains power.

- Battery for LCD display charges automatically when the fixtures connects to the mains

power.

- No need to change battery.

Wireless control (for the unit with wireless receiver built-in only)

- Wirelessly controlled by W-DMX (option).

- Each W-DMX is sending out 512 channels of DMX.

- License free band of 2.45 GHz

Optical system

- High efficiency optical system, delivering extremely powerful output

- High quality diachronic lenses

- Beam angle: 8°

Movement

- Pan: 540°

- Tilt: 270°

- Pan/Tilt moving speed adjustable.

- Automatic Pan/Tilt correction.

- Easy calibration and maintenance by magnetic home positioning.

- Pan/Tilt position lock for transporting protection.

Shutter/Dimmer

- Blackout, 0~100% smooth dimming, independent shutter and various strobe effect.

Color wheel

- Color wheel: 7 diachronic colors + open.

- Rainbow effect in both directions.

- Easy calibration and maintenance by magnetic home positioning.

CMY

- CMY speed adjustable.

- Optional multiple preset colors and macros available.

Gobo wheel

- Gobo size: Ø26.8mm (Ø24mm for image)

- Gobo Wheel: 7 rotating, index able, easily replaceable gobos + open.

- Easy calibration and maintenance by magnetic home positioning.

BRITEQ® 4 BTX-700BEAM

- Module design for easy assembly and service.

Prism

- 3 facets prism with rotating effect.

Frost

- Variable, separate effect.

Cool

- Fan cooled

Protocols

- DMX 512

- Date input/output: 3/5 Pin XLR socket

Weight

- 21.5kgs

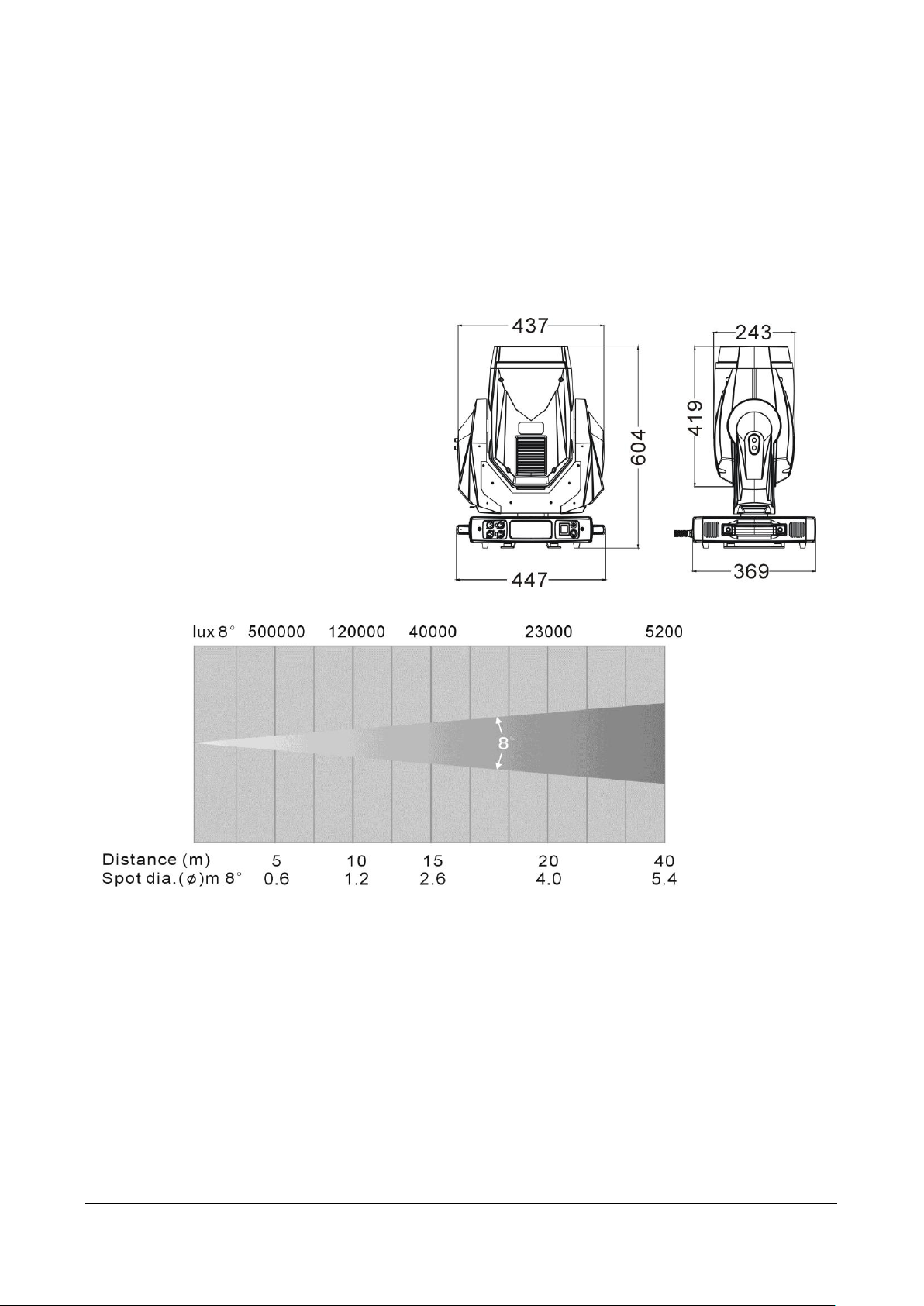

Dimension

- 447× 369×604 mm

Photometric diagram

BRITEQ® 5 BTX-700BEAM

DMX Channels

Mode

Mode 1

18-CH

Mode 2

18-CH

Mode 3

25-CH

Pan

Shutter

Pan

Pan Fine

Dimmer

Pan Fine

Tilt

Cyan

Tilt

Tilt Fine

Magenta

Tilt Fine

Pan /Tilt Speed

Yellow

Pan /Tilt Speed

Shutter

Color

Dimmer

Gobo

Dimmer Fine

Color

R-Gobo

Shutter

Cyan

R-Gobo Fine

Color

Magenta

Prism

Cyan

Yellow

R-Prism

Magenta

Preset Color

Pan

Yellow

Gobo

Pan Fine

CMY Speed

R-Gobo

Tilt

Gobo

Prism

Tilt Fine

R-Gobo

R-Prism

Pan /Tilt Speed

R-Gobo Fine

Frost

Prism

Function

R-Prism

R-Prism Fine

Frost

P/T Macro

P/T Macro Speed

Preset Color

Color Macro

Function

BRITEQ® 6 BTX-700BEAM

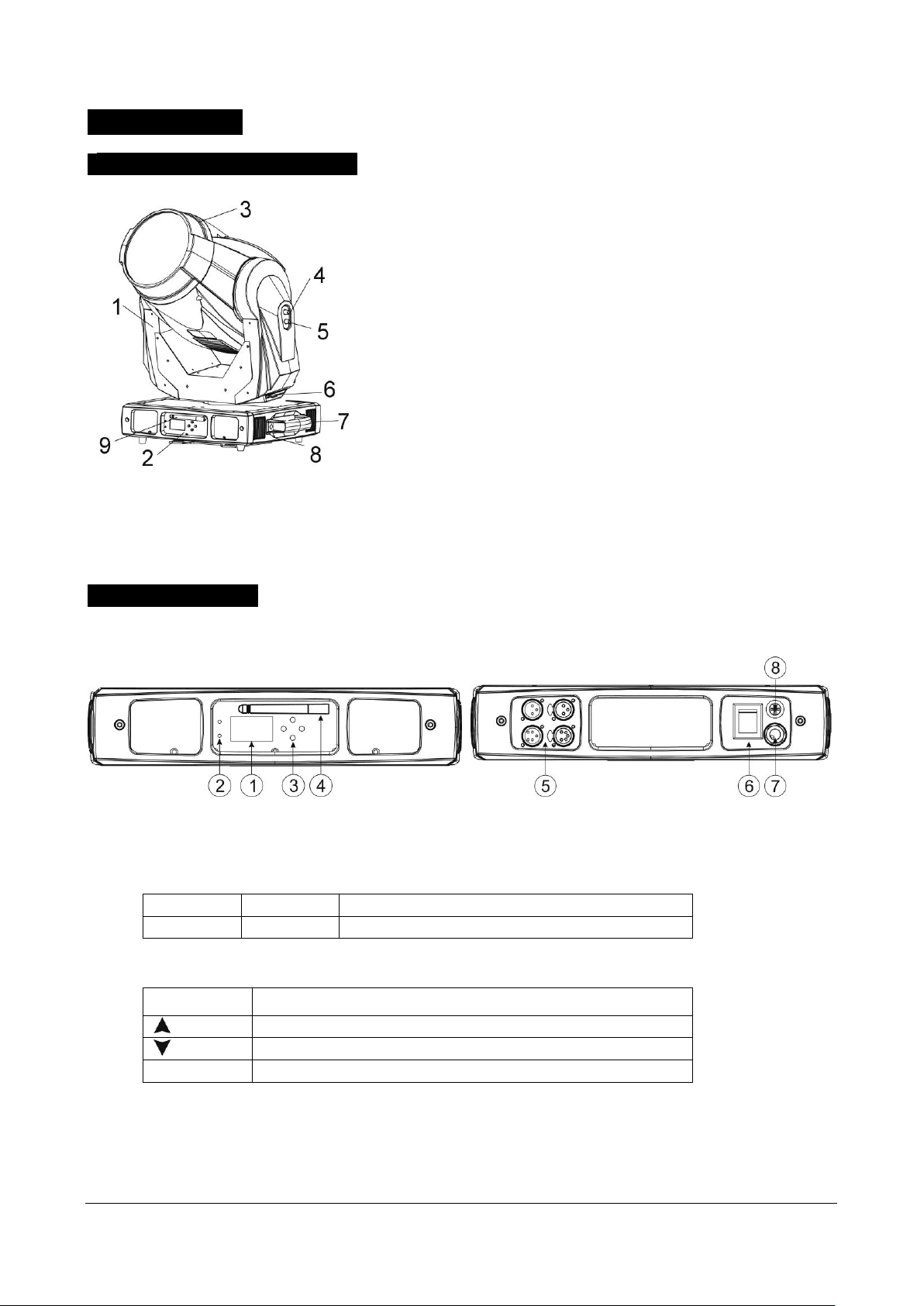

4. Description

4.1 Description of the fixture

The head can be locked for transportation protection-the tilt lock button (4) is pressed and

the pan lock/unlock lever (6) is in lock position. To unlock the head, press the tilt unlock

button (5) and move the pan lock/unlock lever (6) to unlock position.

Caution: The head and arm must be unlocked before operation!

4.2 Control Panel

Front view Rear view

○,1 Monitor (Batter Back-up display):

○,2 LED

POWER

Power on

DMX

DMX input present

○,3 Button

To enter into move backward or leave the menu

To go backward to move up in the menu

DOWN

To move down in the menu

ENTER

To perform the desired functions

○,4 Antenna (optional)

Receive wireless signal from a wide range

1.Arm

2.Front panel

3.head

4.Tilt lock button (Black)

5.Tilt unlock button (Gray)

6.Pan lock

7.Handle

8.Base

9.Antenna (for XP-700A BEAM WT only)

BRITEQ® 7 BTX-700BEAM

○,5 DMX input/output:

For DMX 512 operation, use 3/5-pin XLR plug cable to link the units together

○,6 Power Switch:

Turns On/Off the power

○,7 Power Cable:

To connect to the mains supply

○,8 Fuse (T 15 A):

Protect the unit from damage of over current.

5. Gobo and Lamp

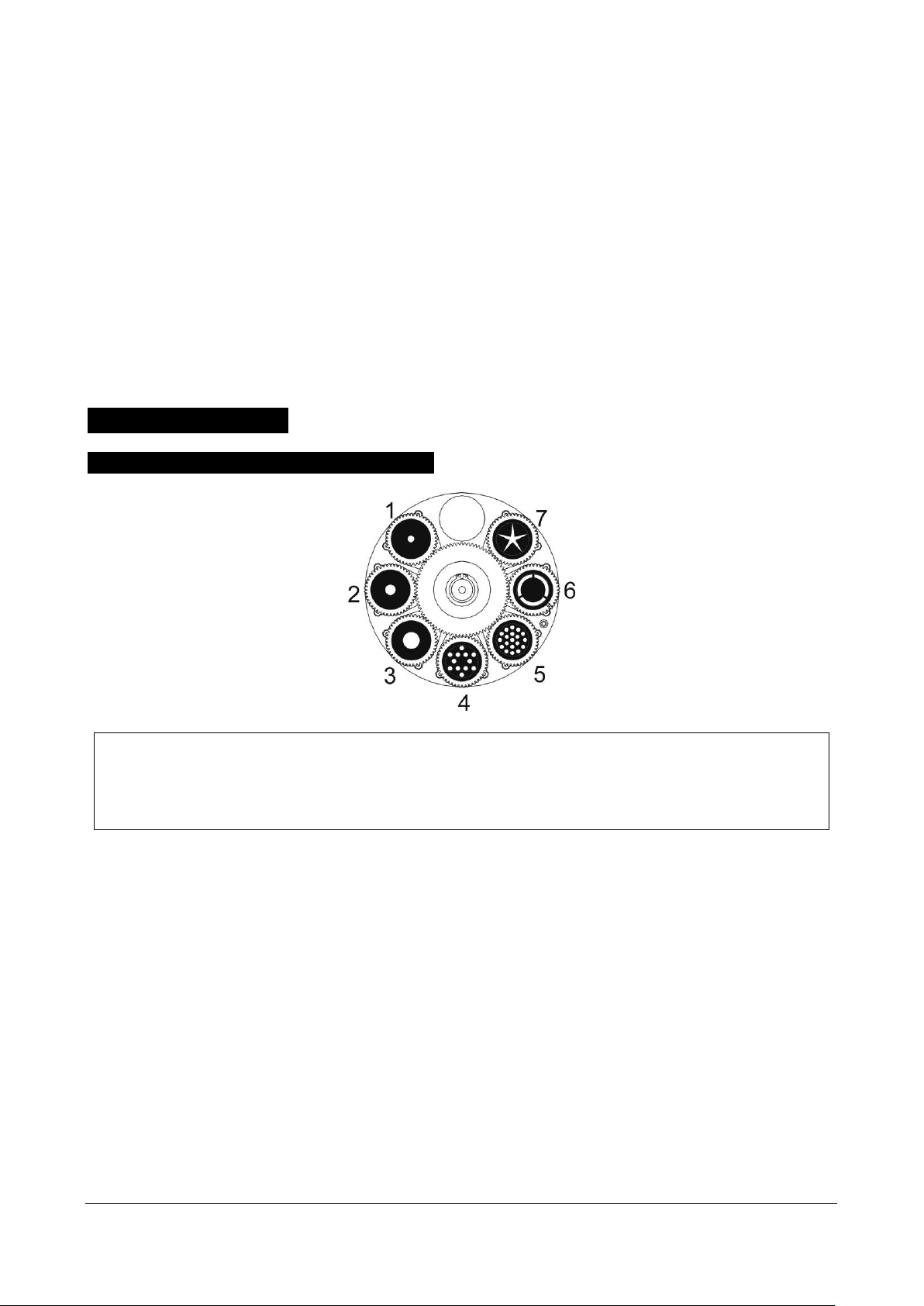

5.1 Inserting/Exchanging rotating gobos

DANGER!

Install the gobos with the device switched off only.

Unplug from mains before changing gobos!

CAUTION: Never unscrew the screws of the rotating gobo as the ball bearing will

otherwise be opened!

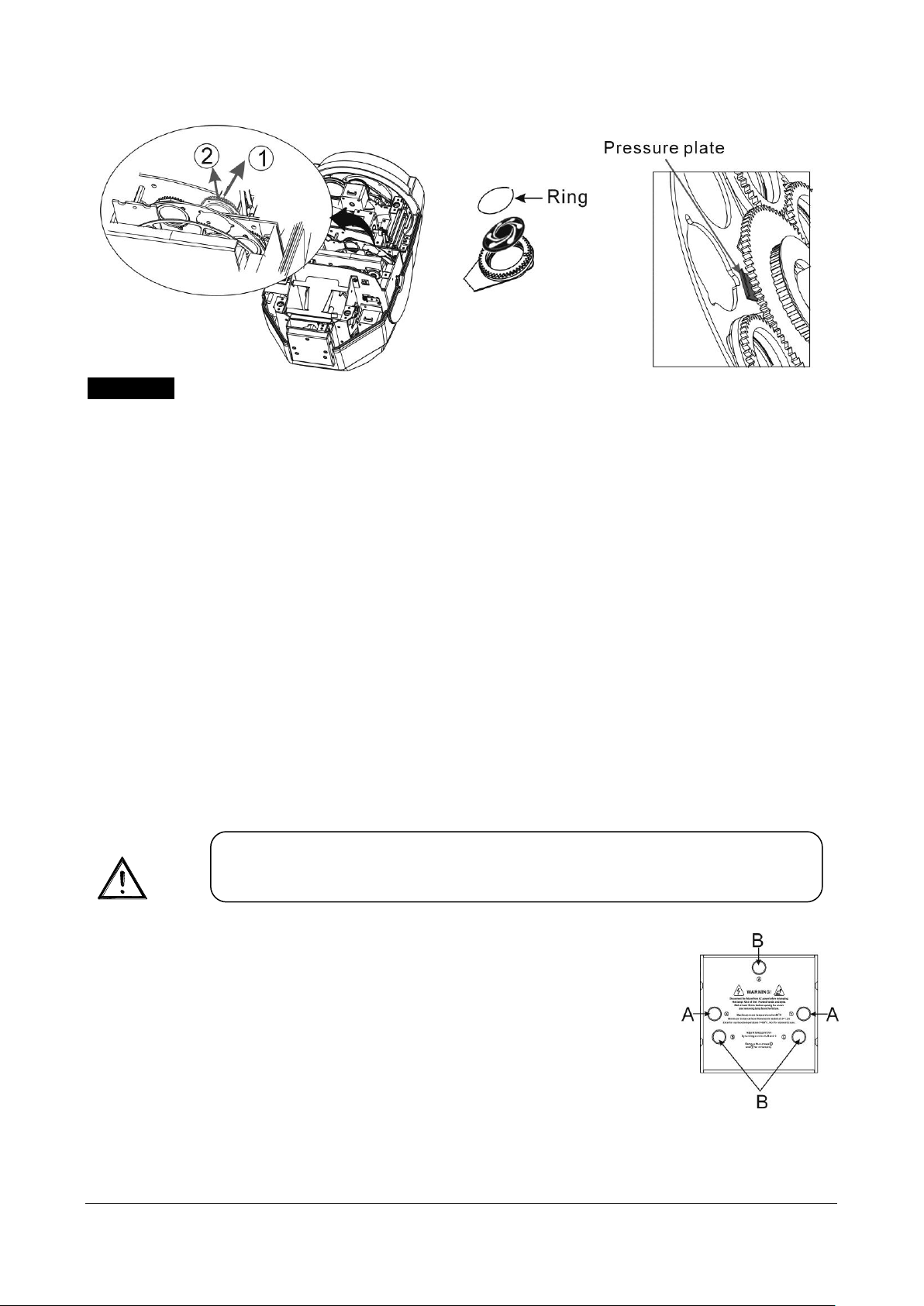

Please follow the steps below to insert/change rotating gobos

1. Open the cover by loosening the fastening screws on the cover.

2. Push the gobo plate (follow the direction 1) and gently pull out the plate (follow the

direction 2).

3. Take out the ring with an appropriate tool. Do not touch the surface of the glass gobo.

4. Remove the original gobo and inset a new one (glazy side towards the lamp). Insert the

ring to secure it in the gobo holder.

5. Install the gobo plate back into the gobo wheel. Make sure the gobo plate is installed

under the pressure plate.

BRITEQ® 8 BTX-700BEAM

5.2 Lamp

MSR/ MSD Gold 700/2 miniFastFit

Because of its high internal pressure, there might be a risk that the Discharge

lamp would explode during operation. The lamp emits intense UV radiation which

is harmful to the eyes and skin. The high luminance of the arc can cause severe

damage to the retina if you take a close look at the lamp.

To protect the lamp, always turn off the lamp first (via control panel or DMX

controller) and let the unit run at least five minutes to cool down before switching

off the mains supply. Never handle the lamp or luminaries when it is hot.

Do not touch the bulb with bare hands. If this happens, clean the lamp with

denatured alcohol and wipe it with a lint free cloth before installation.

The lamp generates UV radiation. Never operate the lamp without appropriate

shielding.

When lighting up, the lamp operates at high pressure and there is a slight risk of arc

tube rupture. The risk increases with age, temperature and improper handling of the

lamp. Do not use the lamp longer than its lifespan.

Make sure the lamp is located in the center of the reflector for the best projection.

Change

Lamp

WARNING

1. Turn off the power.

2. Unscrew the two screws (A), open the lamp cover, turn it to the

position as the sketch shown below.

3. Hold the base of the lamp, anticlockwise turn until it is parallel to the

groove.

4. Inset a new lamp follow the groove, turn it clockwise to fix the lamp.

5. Tighten the screws (A) to fix the lamp cover.

6. Turn the screws (B) to adjust the lamp position be sure it is located

in the center of the reflector for the best projection.

In case of replacement of the lamp or maintenance, do not open the

fixture within 15 minutes until the unit cools down after switching off.

Inhaltsverzeichnis

Andere Briteq Beleuchtungsausrüstung Handbücher

Briteq

Briteq LD-POWER240 Bedienungsanleitung

Briteq

Briteq BT-BEAM70 Bedienungsanleitung

Briteq

Briteq BT-W12L10 Wash Bedienungsanleitung

Briteq

Briteq LED UV-GUN 60W Bedienungsanleitung

Briteq

Briteq BT-THEATRE 250EZ Mk2 Bedienungsanleitung

Briteq

Briteq BTX-BLIZZARD WASH1 Bedienungsanleitung

Briteq

Briteq BTX 300 Beam Bedienungsanleitung

Briteq

Briteq BEAMSPOT1-DMX NW Bedienungsanleitung

Briteq

Briteq BT-30FC WASH Bedienungsanleitung

Briteq

Briteq BT-THEATRE 400TW Bedienungsanleitung

Briteq

Briteq BT-CHROMA 800 Bedienungsanleitung

Briteq

Briteq Spectra 3D Laser Bedienungsanleitung

Briteq

Briteq Stage Beamer RGB MK2 Bedienungsanleitung

Briteq

Briteq BT-LASER2000 RGB Bedienungsanleitung

Briteq

Briteq LED BLINDER WHITE - V1.0 Bedienungsanleitung

Briteq

Briteq BT-60ls Bedienungsanleitung

Briteq

Briteq BT-W07L12 Wash Bedienungsanleitung

Briteq

Briteq BT-36II Bedienungsanleitung

Briteq

Briteq LED MINI PAR Bedienungsanleitung

Briteq

Briteq BTX 5R BEAM Bedienungsanleitung

Briteq

Briteq POWERMATRIX5x5-RGB Bedienungsanleitung

Briteq

Briteq BT-THEATRE 20WW Bedienungsanleitung

Briteq

Briteq LED MINI PAR - V2.1 Bedienungsanleitung

Briteq

Briteq BT-THEATRE 100EC Bedienungsanleitung

Beliebte Beleuchtungsausrüstung Handbücher anderer Marken

Brizo

Brizo 8SP-MU-4 Bedienungsanleitung

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Bedienungsanleitung

IKEA

IKEA BJÖRKSPIREA Bedienungsanleitung

Laserworld

Laserworld Evolution Series ES-400RGB Bedienungsanleitung

Alien

Alien RG STAR Bedienungsanleitung

EuroLite

EuroLite LED B-40 Bedienungsanleitung

Qazqa

Qazqa Suplux SL 3 Black 103062 Bedienungsanleitung

Commercial Electric

Commercial Electric 54568141 Bedienungsanleitung

CREE LIGHTING

CREE LIGHTING 304 Series Bedienungsanleitung

Goobay

Goobay 49867 Bedienungsanleitung

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Bedienungsanleitung

Alkalite

Alkalite Krypton KT-81 Bedienungsanleitung

Clas Ohlson

Clas Ohlson GU10 Bedienungsanleitung

DTS

DTS DELTA 10 F Bedienungsanleitung

ring

ring Solar Steplight Bedienungsanleitung

One Stop Gardens

One Stop Gardens 57696 Montageanleitung

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Bedienungsanleitung

SIREM

SIREM Swimeo A2 Bedienungsanleitung
