Port Side Exhaust Kit

Installation Procedure

Supporting Brocade DCX-4S Backbone

53-1001181-04

*53-1001181-04*

August 31, 2009

2 of 20 Port Exhaust Kit Installation Procedure

Publication Number: 53-1001181-04

Brocade, the B-wing symbol, BigIron, DCX, Fabric OS, FastIron, IronPoint, IronShield, IronView, IronWare, JetCore, NetIron, SecureIron, ServerIron,

StorageX, and TurboIron are registered trademarks, and DCFM, Extraordinary Networks, and SAN Health are trademarks of Brocade

Communications Systems, Inc., in the United States and/or in other countries. All other brands, products, or service names are or may be

trademarks or service marks of, and are used to identify, products or services of their respective owners.

Notice: This document is for informational purposes only and does not set forth any warranty, expressed or implied, concerning any equipment,

equipment feature, or service offered or to be offered by Brocade. Brocade reserves the right to make changes to this document at any time,

without notice, and assumes no responsibility for its use. This informational document describes features that may not be currently available.

Contact a Brocade sales office for information on feature and product availability. Export of technical data contained in this document may

require an export license from the United States government.

The authors and Brocade Communications Systems, Inc. shall have no liability or responsibility to any person or entity with respect to any loss,

cost, liability, or damages arising from the information contained in this book or the computer programs that accompany it.

The product described by this document may contain “open source” software covered by the GNU General Public License or other open source

license agreements. To find-out which open source software is included in Brocade products, view the licensing terms applicable to the open

source software, and obtain a copy of the programming source code, please visit

http://www.brocade.com/support/oscd.

Brocade Communications Systems, Incorporated

Document History

The following table lists all published versions of the Port Exhaust Kit Installation Procedure.

Corporate and Latin American Headquarters

Brocade Communications Systems, Inc.

1745 Technology Drive

San Jose, CA 95110

Tel: 1-408-333-8000

Fax: 1-408-333-8101

E-mail: inf[email protected]

Asia-Pacific Headquarters

Brocade Communications Systems China HK, Ltd.

No. 1 Guanghua Road

Chao Yang District

Units 2718 and 2818

Beijing 100020, China

Tel: +8610 6588 8888

Fax: +8610 6588 9999

E-mail: [email protected]

European Headquarters

Brocade Communications Switzerland Sàrl

Centre Swissair

Tour B - 4ème étage

29, Route de l'Aéroport

Case Postale 105

CH-1215 Genève 15

Switzerland

Tel: +41 22 799 5640

Fax: +41 22 799 5641

E-mail: emea-i[email protected]

Asia-Pacific Headquarters

Brocade Communications Systems Co., Ltd. (Shenzhen WFOE)

Citic Plaza

No. 233 Tian He Road North

Unit 1308 – 13th Floor

Guangzhou, China

Tel: +8620 3891 2000

Fax: +8620 3891 2111

E-mail: [email protected]

Title Publication number Summary of changes Date

Port Exhaust Kit Installation Procedure 53-0001181-01 New document. November 2008

Port Exhaust Kit Installation Procedure 53-0001181-02 Corrections to document. December 2008

Port Exhaust Kit Installation Procedure 53-0001181-03 Corrections to document. December 2008

Port Exhaust Kit Installation Procedure 53-0001181-04 Corrections to document. August 2009

Port Exhaust Kit Installation Procedure 3 of 20

Publication Number: 53-1001181-04

Air flows into the Brocade DCX-4S Backbone through its non-port side and out through the exhaust vent on the side

of the unit, The Port-Side Exhaust Mount Kit is designed to route this airflow out the exhaust vents on the port side of

the unit while mounted in the equipment cabinet. This document provides instructions to install a Brocade DCX-4S

Backbone in a 19 in. (48.26 cm) Electronic Industries Association (EIA) cabinet using the following Brocade Port-Side

Exhaust Mount Kits:

•Kit for cabinet rail-to-rail depth of 27 to 31 in. (68.58 to 78.74 cm).

•Kit for cabinet rail-to-rail depth of 18 to 24 in. (45.72 to 60.96 cm).

The document is organized as follows.

•Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

•Installation guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

•Installing the DCX-4S in equipment cabinet. . . . . . . . . . . . . . . . . . . . . . . . . . 4

Safety

Observe the caution notice in this manual. The caution notice has an ID, which is displayed in parentheses (C015).

Use this ID to locate the translation of this caution notice in the Brocade Product Safety Notices.

CAUTION

Use safe lifting practices when moving the product. (C015)

NOTE

A fully populated Brocade DCX-4S weighs 103.50 kg (228.20 lb) with four FC8-48 port cards installed (192 ports) and

requires a hydraulic or assisted lift to install it.

Installation guidelines

ATTENTION

To ensure adequate cooling, install the chassis with the air intake (nonport side) facing the cool-air aisle.

Follow these general installation guidelines:

•The shelf in the kit is 1 U high, so you need a total of 9 U of cabinet space to install the shelf and the Brocade

DCX-4S Backbone. 1U is equal to 4.45 cm (1.75 in.).

•To allow the quick removal of all power from the chassis, use AC power sources that are easily accessible and

located near the chassis.

•Verify that the additional weight of the chassis does not exceed the weight limits of the cabinet.

•Plan for cable management before installing the chassis. Cables can be managed in a variety of ways, such as

by routing cables below the chassis, to either side of the chassis, through cable channels on the sides of the

cabinet, or using patch panels. Refer to the product’s DCX-4S Backbone Hardware Reference Manual for

specific information.

4 of 20 Port Exhaust Kit Installation Procedure

Publication Number: 53-1001181-04

•Ensure that one or two dedicated electrical branch circuits with the following characteristics are available:

-200-240 VAC, 50-60 Hz (refer to the corresponding Hardware Reference Manual for additional electrical

specifications)

-Protected by a circuit breaker in accordance with local electrical codes

-Supply circuit, line fusing, and wire size are adequate, according to the electrical rating on the chassis

nameplate

-Grounded outlets are installed by a licensed electrician and compatible with the power cords

-Located close to the enterprise-class platform chassis and easily accessible

•To maximize fault tolerance, connect each power cord to a separate power source.

•Ensure that all equipment installed in the cabinet is grounded through a reliable branch circuit connection. Do

not rely on a secondary connection to a branch circuit, such as a power strip.

•Ensure that the product fans have access to a total minimum airflow of 350 cubic ft (9.91 cubic meters) per

minute. Do not block intake vents. Allow for a minimum of 14 in. (35.66 cm) clearance.

•Ensure that the air temperature on the air intake side is less than 104oFahrenheit (40oCelsius) during

operation.

Installing the DCX-4S in equipment cabinet

Use the following instructions to install the DCX-4S in an equipment cabinet using the Port-Side Exhaust Kit.

Time required

Allow approximately one hour to unpack and install a chassis in a cabinet.

Tools required

The following tools are required when installing the rack mount kit:

•Torque wrench with #2 Phillips screwdriver tip

•Flathead screwdriver

•Hydraulic or assisted lift with a minimum raise of 55 in. (140 cm) and a minimum capacity of 250 lbs (113 kg).

Unpacking the Brocade DCX-4S

Use the following procedure to unpack the Brocade DCX-4S.

CAUTION

Use safe lifting practices when moving the product. (C015)

NOTE

A fully populated Brocade DCX-4S weighs 103.50 kg (228.20 lb) with four FC8-48 port cards installed (192 ports) and

requires a hydraulic or assisted lift to install it.

Port Exhaust Kit Installation Procedure 5 of 20

Publication Number: 53-1001181-04

1. Unpack the Brocade DCX-4S.

a. Cut the bands that encircle the packaging.

b. Remove the lid and the kits and foam from the top of the chassis.

c. Lift the cardboard box off the chassis and remove the plastic bag from around the chassis.

Save the packing materials for use when returning the old chassis.

d. Leave the chassis on top of the plastic shipping tray if the chassis must be transported to the installation

location.

2. Use a pallet jack or other assisted lift to transport the new chassis to the installation area. Doorways must be

wider than 36 in. (91 cm) to accommodate the chassis on the pallet.

3. Remove the Port-Side Exhaust kit, accessory kit, packing foam, and antistatic plastic from the chassis and set

aside.

Installing with 27 to 31 in. (68.58 to 78.74 cm) kit

Use the following procedures to install the DCX-4S Backbone in a cabinet with rail-to-rail depth of 27 to 31 in.(68.58

to 78.74 cm). Be sure to use the 27-31 in. Port-Side Exhaust Kit for this installation.

Parts list

The following parts list refers to items illustrated in Figure 1 on page 6.

TABLE 1 Hardware for Port-Side Exhaust Kit for 27 to 31 in. (68.58 to 78.74 cm) cabinets

Item Description Quantity

AToprail 1

BDuct 1

CShelf 1

D 10-32 x .5 in. (1.27 cm) Phillips screw (blue Loctite on threads) 12

E 10-32 x .63 in.(1.60 cm) Phillips screw with square cone washer 12

F 10-32 clip nut for cabinets that have rails with round holes 8

G 10-32 retainer nut for cabinets that have rails with square holes 8

H Alignment washer for cabinets that have rails with square holes 12

I 6-32 x .25 in. (.635 cm) Phillips screw 2

6 of 20 Port Exhaust Kit Installation Procedure

Publication Number: 53-1001181-04

FIGURE 1 Port-Side Exhaust Kit assembly for 27 to 31 in. (68.58 to 78.74 cm) cabinets

10-32 Clip Nut

10-32 x .5"

10-32 Retainer Nut Alignment Washer

Port Side

(Exhaust)

10-32 x .63"

6-32 x .25"

I-1

I-2

I-3

I-4

I-5

I-6

I-7

Port Exhaust Kit Installation Procedure 7 of 20

Publication Number: 53-1001181-04

Torque requirements

Use the following torque settings when tightening screws that secure the rack mount kit and DCX-4S to the

equipment cabinet.

Install cabinet hardware

1. Determine how the DCX-4S can be oriented in the equipment cabinet so that the nonport side has access to

intake air (cool).

2. Install clip nuts (F in Figure 1 on page 6) or retainer nuts (G in Figure 1 on page 6) in cabinet rail locations shown

in Figure 2 on page 7. These nuts will secure the 10-32 screws that mount the Port Side Exhaust Kit shelf and

DCX-4S to the cabinet. For rails with round holes, use clip nuts. For rails with square holes, use retainer nuts.

Note that Figure 2 on page 7 shows relative positions for these nuts in the cabinet rails to mount the shelf and

DCX-4S. You may mount the shelf and DCX-4S in 9 U of cabinet space higher or lower in the cabinet than shown.

FIGURE 2 Clip and retainer nut locations on cabinet rails

TABLE 2 Torque requirements for mounting screws

Screw size Torque

6-32 x .25 in. (.635 cm)

Phillips screw

8.75 in.-lbs (10 cm-kg)

10-32 x .63 in.(1.60 cm)

Phillips screw

32 in.-lbs (36.86 cm-kg)

Setup for Rails

with Square Holes

Note

Screws, clip nuts, and retainer nuts

for DCX-4S are provided in the

DCX-4S hardware accessory kit.

Retainer Nut

(Item G)

Rail

Attaching Clip Nuts

for Round-Hole Rails

Clip or Retainer

Nut Locations

for DCX-4S

Clip or Retainer

Nut Locations

for Shelf

8 of 20 Port Exhaust Kit Installation Procedure

Publication Number: 53-1001181-04

3. Install the shelf (C in Figure 1):

a. The shelf can be adjusted to a length of between 27 and 31 inches (68.58 and 78.74 cm) to accommodate

your cabinet size. To lengthen or shorten the shelf, loosen the four 6-32 screws in the four slots on the shelf

(I-4 through I-7 in Figure 1 on page 6) and adjust the shelf to the desired length. Once adjusted, tighten the

four 6-32 screws.

b. Secure the shelf to the cabinet with eight 10-32 screws with washers (E in Figure 1 on page 6), two screws

in each corner of the shelf (see Figure 3). Tighten screws according to specifications under “Torque

requirements” on page 7.

FIGURE 3 Shelf installed in cabinet

4. Install the air-duct assembly by inserting it down into the side slot on the shelf. Ensure that the tabs of the duct

align and engage with the slots in the shelf.

Port Side

(Exhaust)

Port Exhaust Kit Installation Procedure 9 of 20

Publication Number: 53-1001181-04

FIGURE 4 Installing air duct into side slot on shelf

5. Install the top-rail assembly (A in Figure 1 on page 6) to the air-duct assembly: Refer to Figure 5 on page 10.

a. The top-rail assembly can be adjusted to a length of between 27 and 31 inches (68.58 to 78.74 cm) to fit on

the inside of the cabinet rails. To lengthen or shorten the top-rail assembly, loosen the two 6-32 screws (I-3

in Figure 1 on page 6) and adjust the top-rail assembly to the desired length. The length will be

approximately the length of the adjustable shelf. Once adjusted, tighten the two 6-32 screws.

b. Insert the top-rail assembly down into the air-duct assembly and then secure the top-rail assembly to the

air-duct assembly with two 6-32 screws, one screw on each side of the air-duct assembly (I-1 and I-2 in

Figure 1 on page 6). Tighten screws according to specifications under “Torque requirements” on page 7.

10 of 20 Port Exhaust Kit Installation Procedure

Publication Number: 53-1001181-04

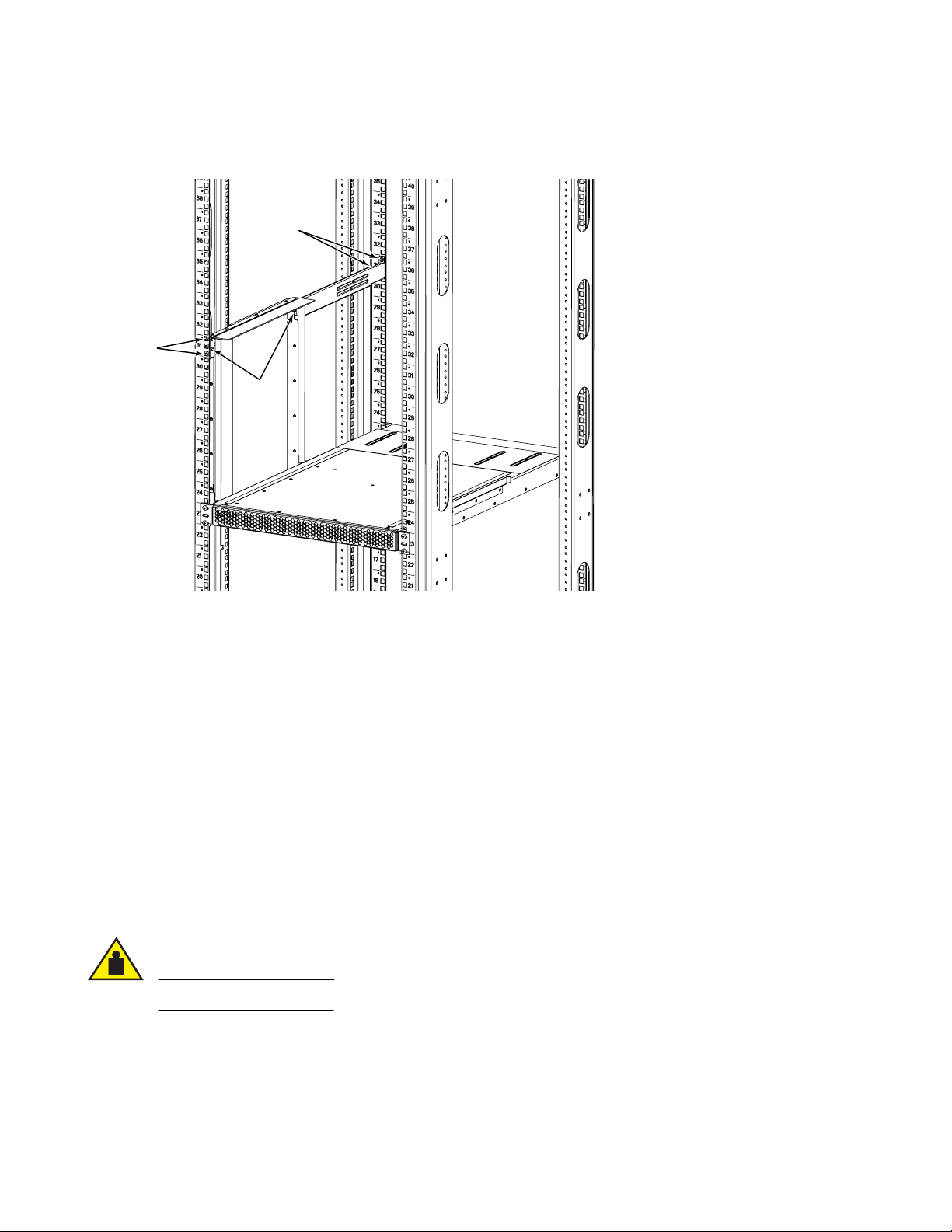

FIGURE 5 Securing top rail in cabinet.

6. Secure the top-rail assembly to the cabinet with four 10-32 screws, two screws on each end of the top-rail

assembly.

•For rails with round holes:

Use two 10-32 screws with washers (E in Figure 1 on page 6) on each end of the top rail assembly. Tighten

screws according to specifications under “Torque requirements” on page 7.

•For rails with square holes:

Use the two standard 10-32 screws (D in Figure 1 on page 6) with blue Loctite on the threads and alignment

washers (H in Figure 1 on page 6) on each end of the top rail assembly. Tighten screws according to

specifications under “Torque requirements” on page 7.

Install DCX-4S in cabinet

1. Ensure that the door is removed from the port side of the DCX-4S. For instructions, refer to the corresponding

Hardware Reference Manual.

2. Use a lift to raise the chassis to the correct level.

CAUTION

Use safe lifting practices when moving the product. (C015)

3. If applicable, lock the wheels of the lift.

4. Carefully lift the DCX-4S and slide it into the cabinet.

5. Secure the DCX-4S to the cabinet with six 10-32 screws with washers. Tighten screws according to

specifications under “Torque requirements” on page 7.

Install

screws

Install

screws

Install screws

Andere Handbücher für DCX-4S

Inhaltsverzeichnis

Andere Brocade Communications Systems Schalten Handbücher
