BROKIS MONA SMALL Bedienungsanleitung
CM12229
MONA SMALL
Table light
1x assembled light
1x hex key size
1x cotton gloves
1x installation manual
The manufacturer assumes no liability for
damage resulting from incorrect assembly.
When unpacking the light, do so with regard
for its material composition – the main
components are made of glass.
Wear the cotton gloves included with the light
when unpacking and assembling it.
INSTALLATION
MANUAL
COMPONENTS INCLUDED
WITH UNIT:
WARNING:
Installation time: 10 minutes/1 person
BROKIS S.R.O.
ŠPANIELOVA 1315/25
163 00 PRAHA 6 - ŘEPY
CZECH REPUBLIC
ORG. ID 64940799
VAT ID CZ64940799
C 42174 MĚSTSKÝ SOUD
V PRAZE
TEL +420 567 211 517
TECHNICAL@BROKIS.CZ
INFO@BROKIS.CZ
WWW.BROKIS.CZ PAGE 2
Download
CLEANING THE GLASS
BROKIS applies the highest possible quality standards in manufacturing its lights. Prior to shipping, each light
undergoes several quality controls and stages of cleaning. Lights may require additional cleaning as a result of
transportation, storage, and the amount of time that passes between packing in our plant and subsequent
unpacking by the client. Therefore, we emphasizes cleaning the lights prior to installation.
The glass must first be rinsed in hot water, with a dilution of a dish-detergent used to remove all foreign
particles and dust. Eventually repeat this basic treatment, if necessary. Afterwards the glass must have a second
cleaning using hot water, with a dilution of a de-greaser (such as ammonia or vinegar). The glass must then be
thoroughly rinsed with running hot water. Eventually repeat this treatment, if necessary. The glass is then
thoroughly dried with a paper towel or a clean soft cotton towel. Only re-assemble the glass to the lamp body,
when completely cooled down.
Do not use mineral spirits, highly concentrated thinners, or other substances not intended for use on glass
surfaces. Also: do not use products, containing silicones – since they will rapidly attract more dust and grease.
PRIOR TO SHIPPING, THE FUNCTIONALITY OF EACH LIGHT AND ITS COMPONENTS IS THOROUGHLY TESTED.
THE MANUFACTURER ASSUMES NO LIABILITY FOR THE MISHANDLING OF PRODUCTS.
MONA SMALL
Table light
INSTALLATION
MANUAL
BROKIS S.R.O.
ŠPANIELOVA 1315/25
163 00 PRAHA 6 - ŘEPY
CZECH REPUBLIC
ORG. ID 64940799
VAT ID CZ64940799
C 42174 MĚSTSKÝ SOUD
V PRAZE
TEL +420 567 211 517
TECHNICAL@BROKIS.CZ
INFO@BROKIS.CZ
WWW.BROKIS.CZ PAGE 3
Cleaning information

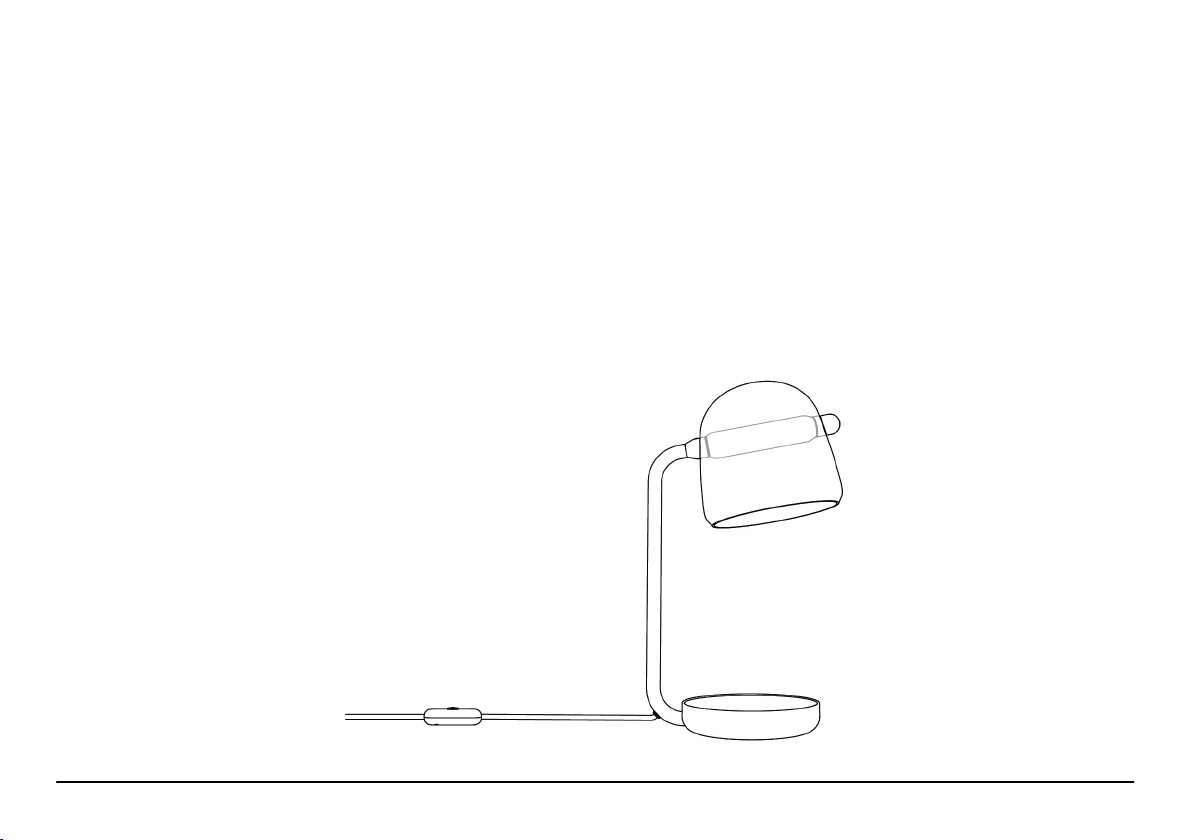

Plug the power cable into an electrical outlet and ensure the light works properly.
SWITCHING ON THE LIGHT
1.
PAGE 4

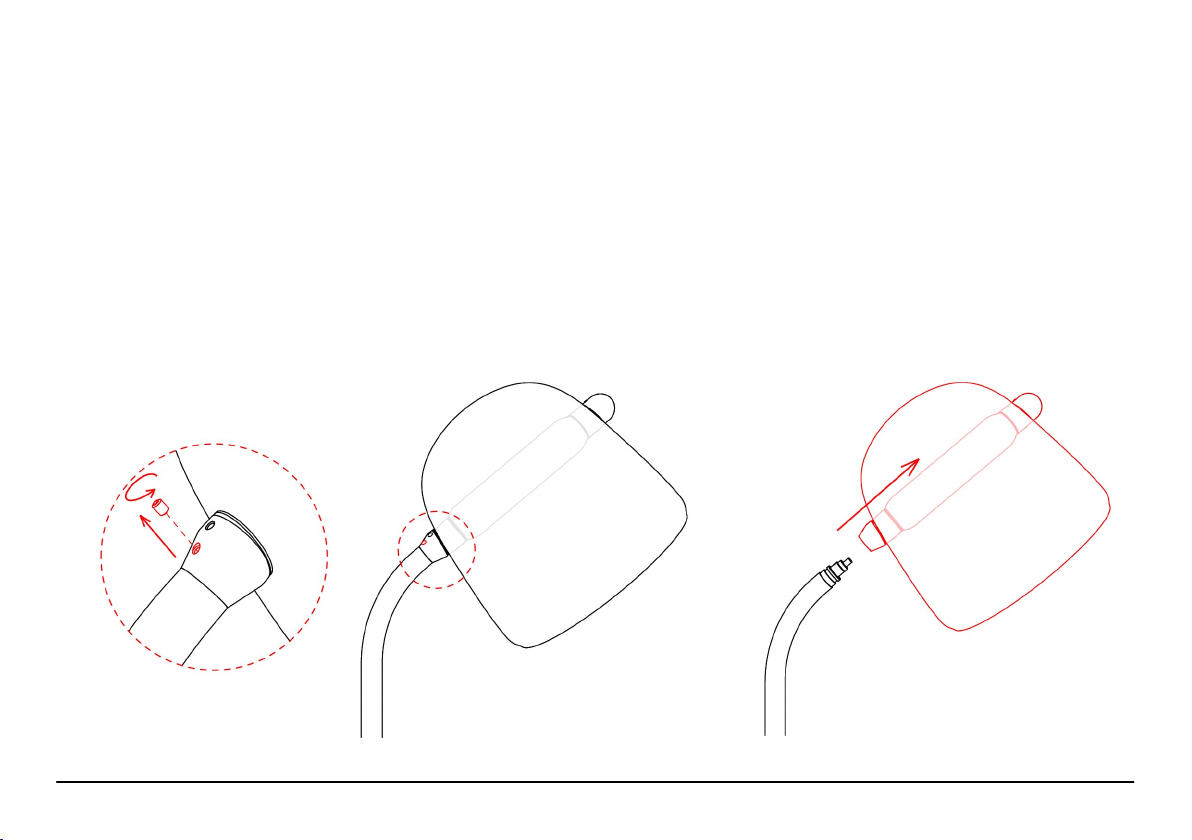

Use the hex key to loosen the set screw in the metal fixture and remove the shade with light source.
DISASSEMBLING THE SHADE / LIGHT SOURCE
2.
PAGE 5

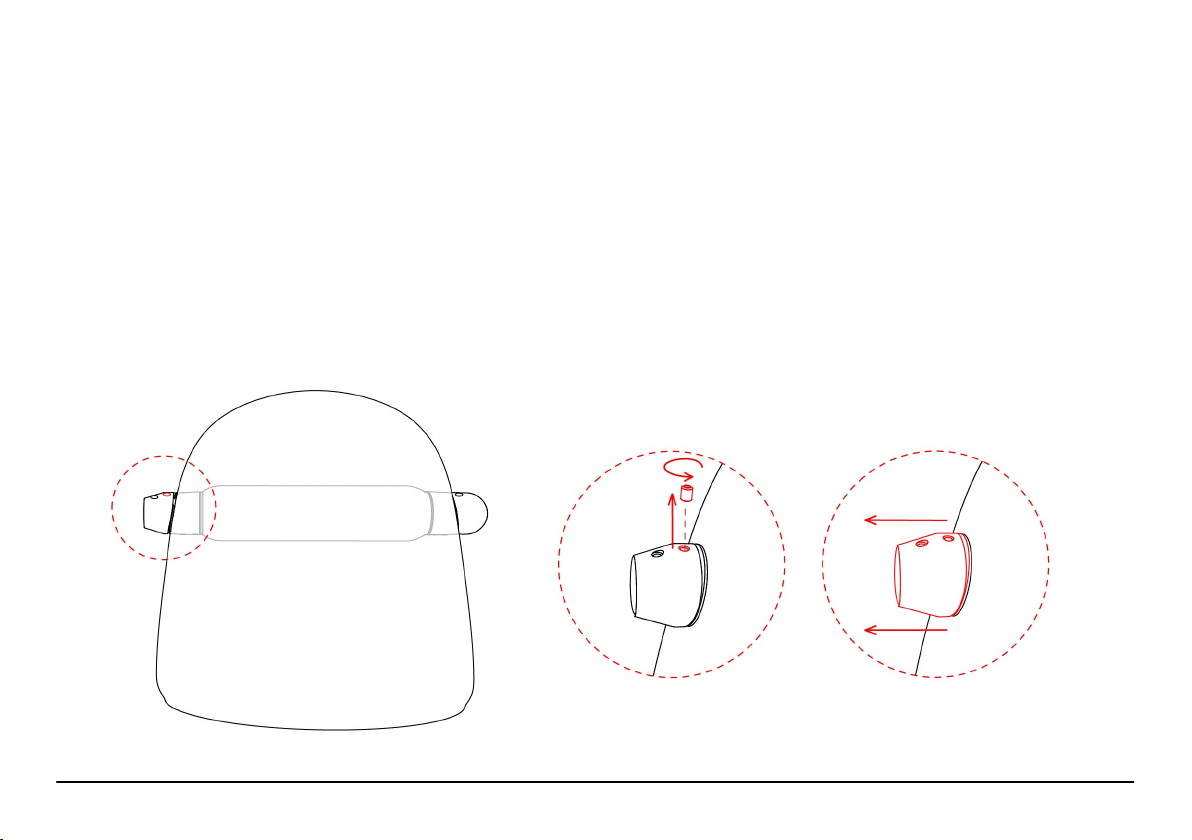

Use the hex key to loosen the set screw in the outer cap of the light source and remove the cap.
REMOVING THE OUTER CAP
3.
PAGE 6

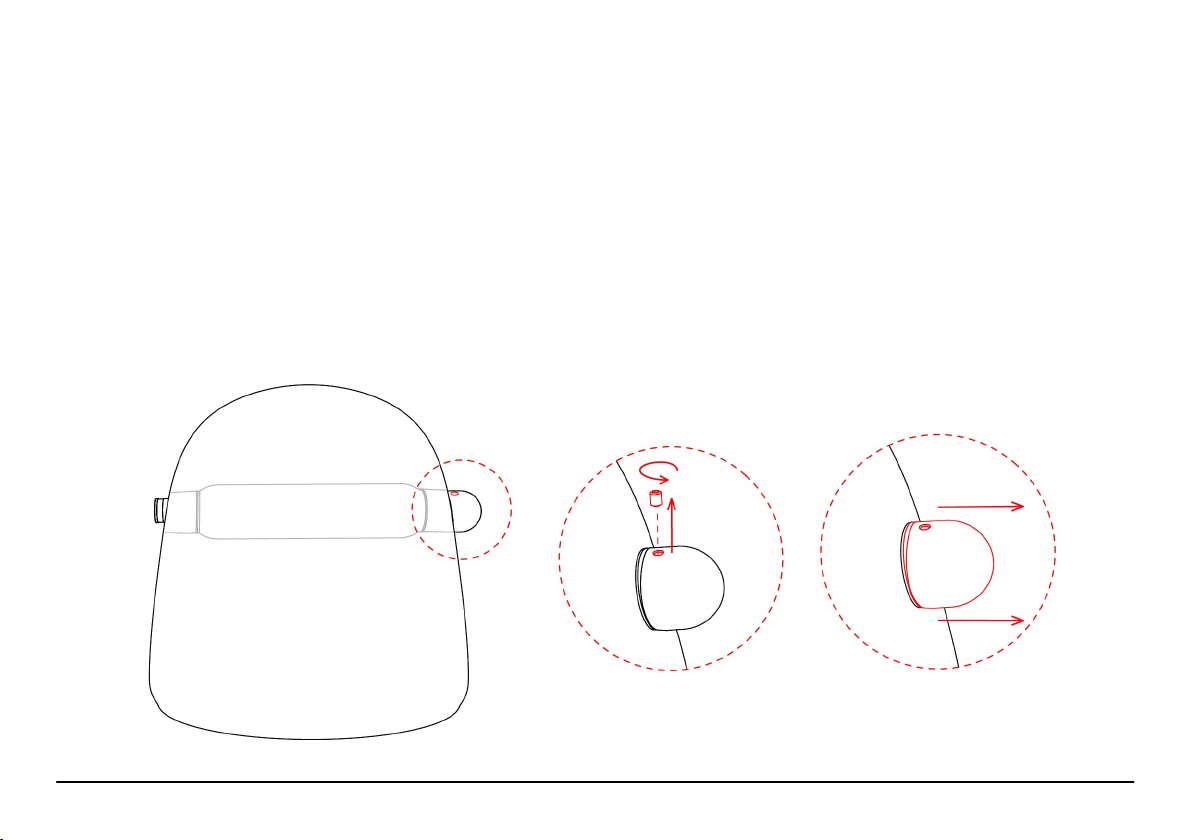

Use the hex key to loosen the set screw in the other outer cap of the light source and remove the cap.
REMOVING THE OUTER CAP
4.
PAGE 7

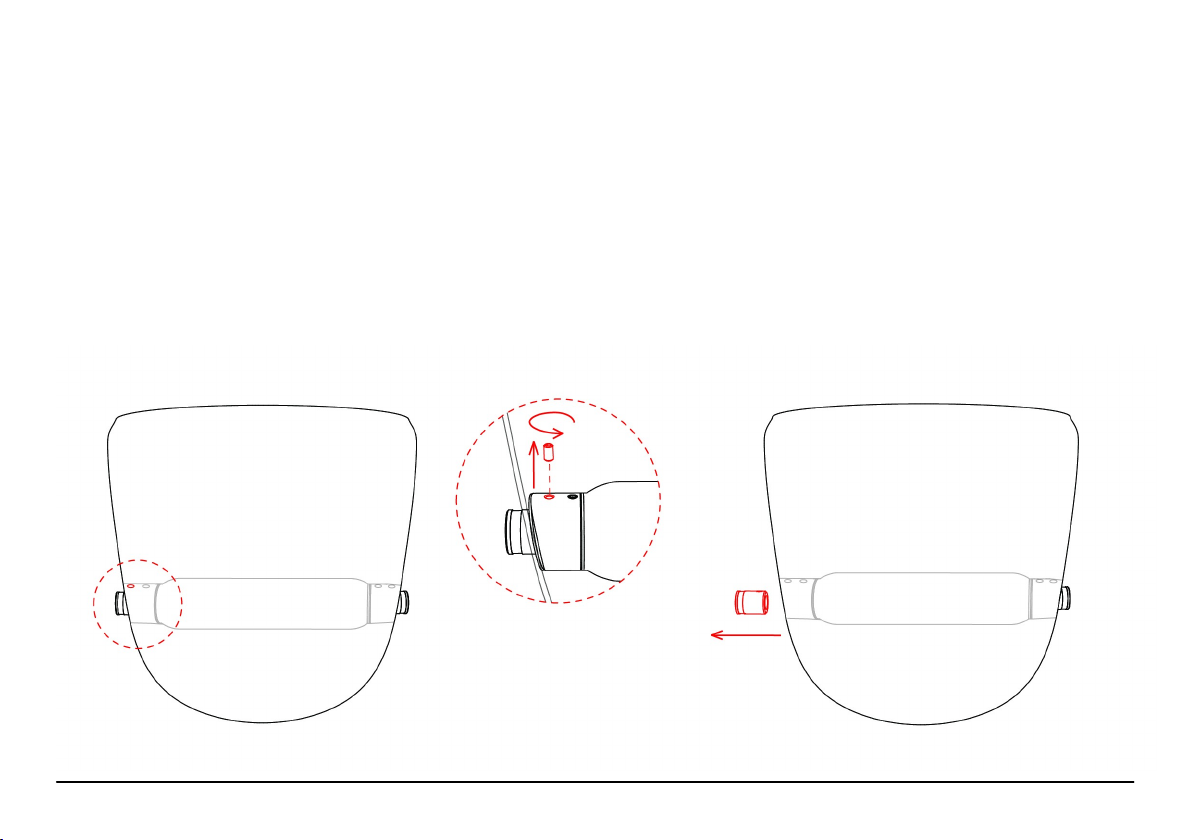

Use the hex key to loosen the set screw in the inner cap of the light source. Next, remove the locking cylinder by pulling it
out of the shade while holding the light source in place.
REMOVING THE LIGHT SOURCE LOCKING CYLINDER
5.
PAGE 8

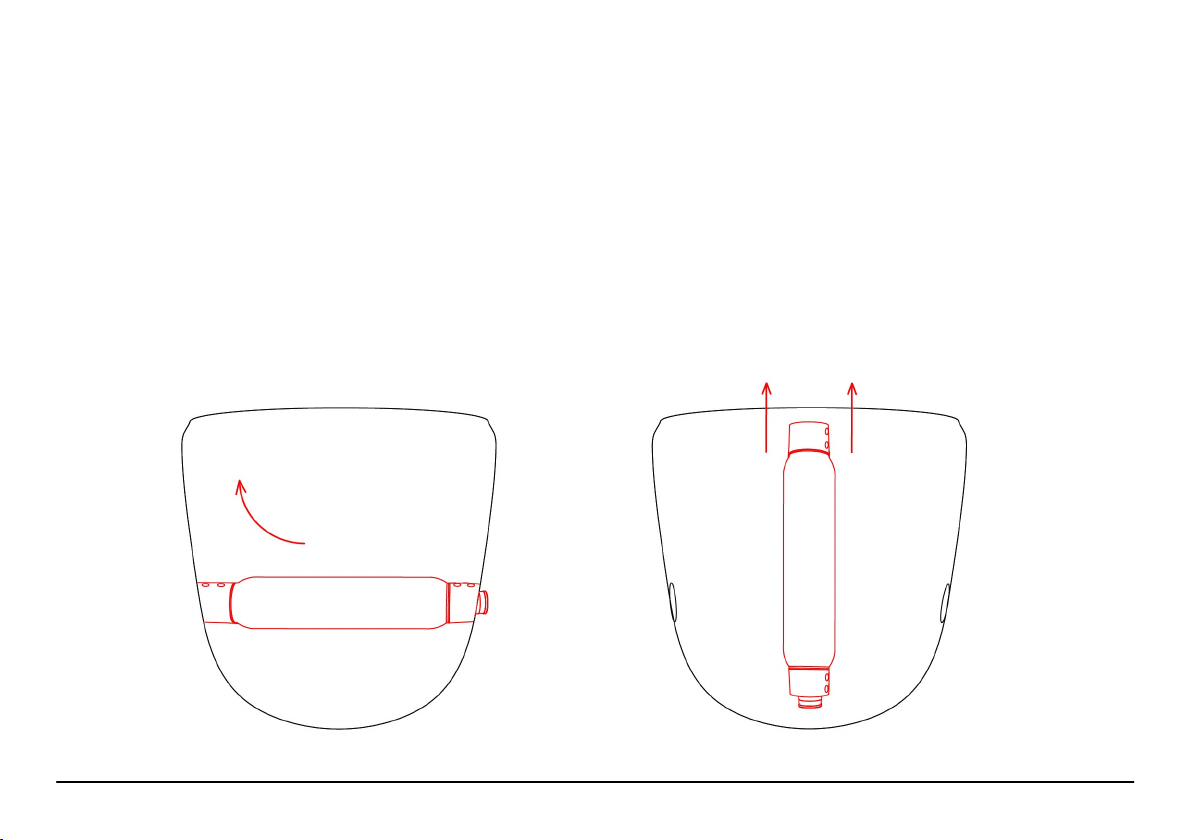

Remove the light source from the glass shade.
REMOVING THE LIGHT SOURCE
6.
PAGE 9

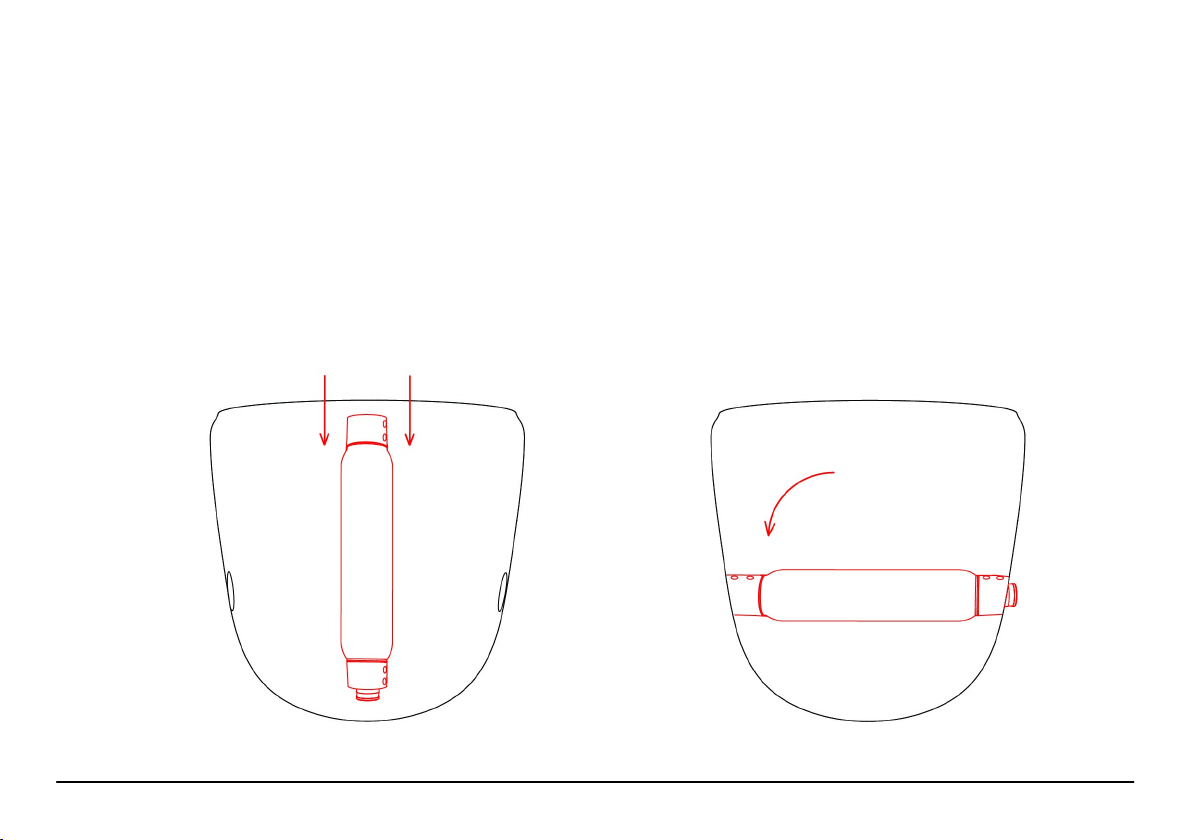

Position the light source in the glass shade so that it fits neatly in the holes. If the light source is loose in the holes, add
another seal, position it in the holes again, and check for a snug fit.
INSTALLING THE LIGHT SOURCE
7.
PAGE 10
