Brother DCP-8045DN Bedienungsanleitung

FACSIMILE EQUIPMENT

PARTS REFERENCE LIST

MODEL: DCP8040 / 8045D/8045DN

MFC8440 / 8840D / 8840DN

(For Germany / United Kingdom / France /

Belgium / Netherlands / Switzerland /

Ireland / Denmark / Austria / Spain / Italy /

Portugal / Asia / China

Oceania (Austria/ New Zealand) /

Pan-Nordic (Norway / Finland / Sweden) /

Euro Generic)

No part of this publication may be reproduced in any form

or by any means without permission in writing from the

publisher.

Specifications are subject to change without prior notice.

NOTES FOR USING THIS PARTS REFERENCE LIST

1. In the case of ordering parts, it needs mentioning the following items:

(1) Code

(2) Q' ty

(3) Description

(4) Recommend (The √mark is attached to recommend parts at this column.)

(5) Symbol (PCB No., Revision, and Parts location mounted on the PCB.)

Note: No orders without Parts Code or Tool No. can be accepted.

[Example]

(1) (2) (3) (4) (5)

REF.NO. CODE Q' TY DESCRIPTION RECOMMEND SYMBOL REMARKS

2. Design-changed parts:

When the parts are changed, any one of the following symbols is mentioned in the REMARKS column.

CHG (chg): The part is changed to a new part.

ADD (add): The part is newly added.

DEL (del): The part is deleted.

Symbol in capital letters indicates that the change is the latest one in the page.

3. Parts change will be informed by the technical information.

COUNTRIES

GERMAN ----- GER

UNITED KINGDOM ----- UK

FRANCE ---- FRA

BELGIUM ---- BEL

NETHERLANDS ---- NLD

SWITZERLAND ---- CHE

IRELAND ---- IRE

DENMARK ---- DEN

AUSTRIA ---- AUS

SPAIN ---- SPA

ITALY ---- ITA

PORTUGAL ---- POR

CHINA ---- CHN

ASIA ---- ASA

OCEANIA ---- OCE

PAN NORDIC ---- PND

EURO GENERIC ---- GNR

LIST1(FRAME L)

REF No. CODE Q'TY DESCRIPTION RECOMMEND ORDER

TO BIUK REMARK

1 LF2680001 1 MAIN FRAME L UNIT, DCP8040, MFC844

1 LF2685001 1 MAIN FRAME L UNIT, DCP8045D/8045DN,

MFC8840D/8840DN FOR BEL/NLD/SPA/PO

1 LF2721001 1 MAIN FRAME L UNIT, DCP8045DN, MFC8840DN FOR

GER/UK/FRA/AUS

1-1 LM2440001 1 MAIN MOTOR ASSY

1-2 LJ7386001 1 F/R SOLENOID ASSY

1-3 LJ7391001 1 P/R SOLENOID ASSY

1-4 LJ5014001 1 SOLENOID RELEASE SPRING P/R

1-5 LJ9166001 1 TONER LED PCB UNIT ASSY

1-6 LJ7403001 2 RUBBER FOOT

1-7 LG3218001 1 DOCUMENT COVER SENSO

1-8 LJ7784001 1 SENSOR CLIP

1-9 LJ7678001 1 REVERSING RELEASE SOLENOID, DCP8045D/8045DN,

MFC8840D/8840D

1-10 LG4518001 1 THERMISTOR ASSY

1-11 08732061

4 TAPTITE, CUP S M3X6

1-12 LJ7377001 1 DEVELOP JOINT

1-13 LJ7376001 1 JOINT SPRING

1-14 UH304400

1 GEAR, 40/54Y

1-15 UL656900

2 GEAR 17 PLANETARY

1-16 UL8977001 1 GEAR 45 ARM F/R

1-17 LM2444001 1 GEAR 20 CENTER F/R

DCP8040/8045D/8045DN

MFC8440/8840D/8840DN

8C5933/935/936/943/945/946

8C5983/985/986/993/995/996

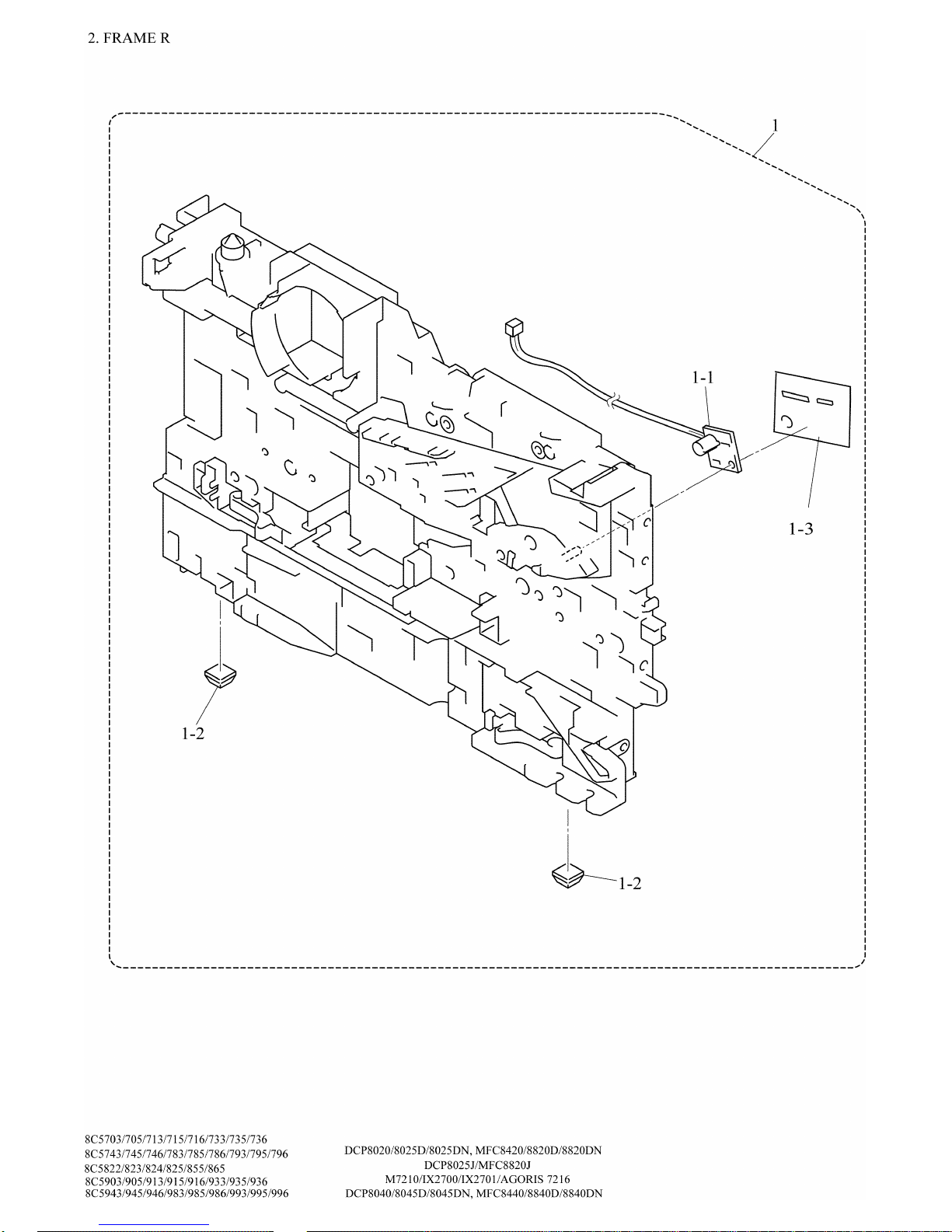

LIST2(FRAME R)

REF No. CODE Q'TY DESCRIPTION RECOMMEND ORDER

TO BIUK REMARK

1 LM2733001 1 MAIN FRAME R UNIT

1-1 LJ9612001 1 TONER SENSOR PCB UNIT

1-2 LJ7403001 2 RUBBER FOOT

1-3 LM2731001 1 TE FILM

DCP8040/8045D/8045DN

MFC8440/8840D/8840DN

8C5933/935/936/943/945/946

8C5983/985/986/993/995/996

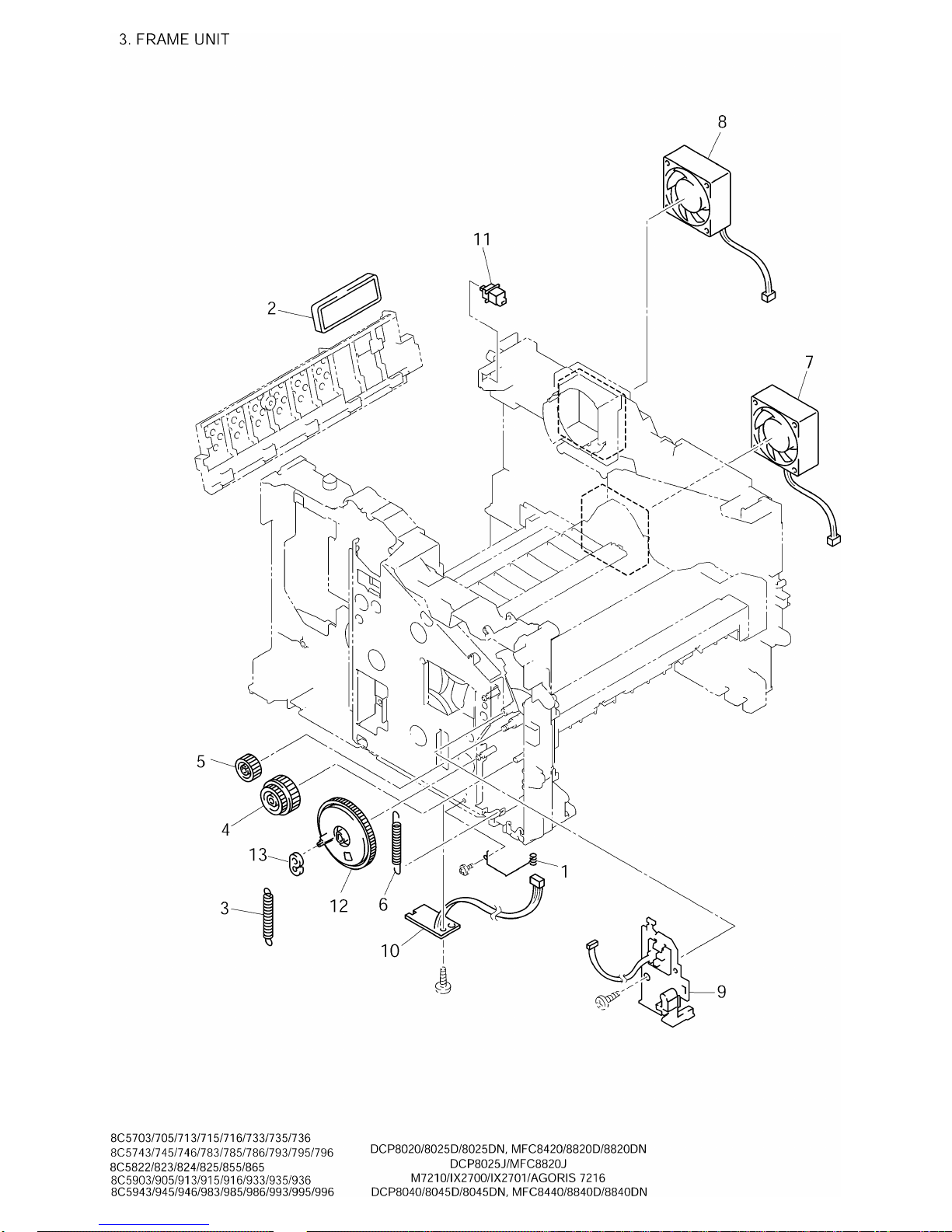

LIST3(FRAME UNIT)

REF No. CODE Q'TY DESCRIPTION RECOMMEND ORDER

TO BIUK REMARK

1 LJ7490001 1 GROUND SPRING

2 LM2445001 1 FILTER

3 LJ7496001 1 SPRING, EXTENSION P/R

4 LJ7501001 1 MIDDLE ROLLER GEA

5 LJ7502001 1 IDLE GEAR 22

6 LJ7504001 1 GROUND WIRE

7 LM2473001 1 FAN MOTOR 60 UNIT L

8 LM2474001 1 FAN MOTOR 60 UNI

9 LJ7579001 1 MP SOLENOID HOLDER UNIT, DCP8045D/8045DN

MFC8840D/8840DN

10 LJ9237001 1 DX-SENSOR PCB ASSY, DCP8045D/8045DN,

MFC8840D/8840D

11 LG3218001 1 DOCUMENT COVER SENSOR, DCP8045D/8045DN,

MFC8840D/8840D

12 LM2720001 1 SECTOR GEAR PR ASSY

13 UH237800

1 SPRING HOOK

DCP8040/8045D/8045DN

MFC8440/8840D/8840DN

8C5933/935/936/943/945/946

8C5983/985/986/993/995/996
