Brother Facsimile Equipment

PARTS REFERENCE LIST

MODEL:

DCP-9040CN / DCP-9042CDN

MFC-9440CN / MFC-9450CDN

Read this list thoroughly before maintenance work.

Keep this list in a convenient place for quick and easy reference at all times.

April 2007

PL-FAX143

8CE113

Ver. A*-1

NOTE FOR USING THIS PARTS REFERENCE LIST

1. In the case of ordering parts, it is necessary to mention the following items;

(1) Code

(2) Q'ty

(3) Description

(4) Symbol ( PCB No. etc )

Note: Orders without Parts Code or Tool No. can not be accepted.

< Example >

REF.NO. CO DE Q’TY DESCRIPTION SYMBOL REMARK

2. Design-changed parts :

If any of the parts is changed, one of the following symbols is indicated in the REMARK column.

CHG(chg) : The parts is changed to a new parts.

ADD(add) : The parts is newly added.

DEL(del) : The parts is deleted.

Symbol in capital letters indicates the latest parts change information in the page.

3. Parts change will be informed by the Parts change information.

4. Parts are subject to change in design without prior notice.

COUNTRIES

U.S.A. ----- US CHINA ---- CHN

CANADA ---- CAN SOUTH AFRICA ----ZAF

GERMANY ---- GER ASIA (SINGAPORE&GULF) ---- ASA

UNITED KINGDOM ---- UK BRAZIL ---- BRA

FRANCE ---- FRA RUSSIA ----RUS

BELGIUM ---- BEL AUSTRALIA ---- ARL

NETHERLANDS ---- NLD NEW ZEALAND ---- NZ

SWITZERLAND ---- CHE PAN NORDIC

IRELAND ---- IRE (NORWAY/ FINLAND/DENMARK/SWEDEN) ---- PND

SPAIN ---- SPA EEU-GENERIC ---- EEU

ITALY ---- ITA IBERIA(SPAIN&PORTUGAL) ---- IBR

PORTUGAL ---- POR

(

)

(

)

(

)

(

)

CONTENTS

1. FRAME UNIT........................................................................................ 1

2. DRIVE................................................................................................... 3

3. LASER UNIT ........................................................................................ 5

4. PAPER FEEDER.................................................................................. 7

5. MP UNIT............................................................................................... 9

6. PAPER TRAY..................................................................................... 11

7. FUSER UNIT ...................................................................................... 13

8. PAPER EJECT................................................................................... 15

9. COVERS&LABELS............................................................................ 17

10. DOCUMENT SCANNER..................................................................... 19

11. ADF..................................................................................................... 21

12. PANEL................................................................................................ 23

13. PCB .................................................................................................... 26

14. ACCESSORIES.................................................................................. 28

15. PRINTED MATERIAL......................................................................... 31

16. PACKING MATERIALS...................................................................... 33

17. PERIODICAL MAINTENANCE PART................................................ 37

18. DX....................................................................................................... 39

1. FRAME UNIT

REF No. CODE Q'TY DESCRIPTION SYMBOL REMARKS

1 LR0402001 4 NEW TONER ACTUATOR

2 LR0403001 4 NEW TONER ACTUATOR SPRING

3 UH2208001 2 RUBBER FOOT

4 LM9189001 1 DEVELOP RELEASE SENSOR PCB ASSY B512243

5 LM9210001 4 TONER LED PCB ASSY B512237

6 LR1094001 4 LED HOLDER

7 LM9211001 1 TONER SENSOR PCB ASSY K (TE/NEW)

8 LM9334001 1 TONER SENSOR PCB ASSY Y (TE/NEW)

9 LM9335001 1 TONER SENSOR PCB ASSY M (TE/NEW)

10 LM9336001 1 TONER SENSOR PCB ASSY C (TE/NEW)

11 UL9037001 4 LED HOLDER

12 LR0523001 1 BELT CLEANER RELEASE ASSY

12-1 LM9218001 1 BELT CLEANER RELEASE SENSOR PCB ASSY B512233

12-2 085310816 1 TAPTITE BIND B M3X8

13 LR0532001 1 WASTE TONER SENSOR HOLDER ASSY

13-1 LM9221001 2 WASTE TONER SENSOR

14 LR0589001 1 AIR INTAKE FAN(AIR)

15 LR0217001 1 BELT UNIT DRIVE MOTOR

16 LR0903001 1 LVPS FAN (PS)

17 LR0906001 1 FUSER UNIT FAN (FU)

18 LU4228001 1 DRUM UNIT FAN HOLDER ASSY (OPC) CHG

19 0A2301603 4 SCREW PAN (P WASHER) M3X16

20 085310816 3 TAPTITE BIND B M3X8

21 087310816 1 TAPTITE CUP B M3X8

22 LR1820001 1 ALUMINUM SHEET FRAME

23 LU4027001 1 DX HOOK ASSY AC, DCP9042CDN/MFC9450CDN

8CE103/8CE104/8CE113/8CE114/

8CE133/8CE134/8CE143/8CE144

DCP9040CN/DCP9042CDN/

MFC9440CN/MFC9450CDN

- 1 -

2. DRIVE

REF No. CODE Q'TY DESCRIPTION SYMBOL REMARKS

CLEANER DRIVE

A1 LR1246001 1 DRIVE FRAME UNIT ASSY

A1-1 LR0440001 1 PAPER FEED/BELT CLEANER MOTOR ASSY

A1-2 087320616 4 TAPTITE CUP S M3X6

A2 LR1126001 1 FUSER DRIVE GEAR 18 ADD

DRUM DRIVE

B1 LR1904001 1 DRUM DRIVE ASSY

B1-1 LM9192001 1 DRUM PHASE SENSOR PCB ASSY1 B512236

B1-2 LM9337001 1 DRUM PHASE SENSOR PCB ASSY2 B512236

B1-3 Z31008001 1 DRUM DRIVE MOTOR1

B1-4 Z31012001 1 DRUM DRIVE MOTOR2

B1-5 085320616 6 TAPTITE BIND S M3X6

DEVELOP DRIVE

C1 LR0193001 1 DEVELOP DRIVE MOTOR ASSY

C2 087320616 3 TAPTITE CUP S M3X6

C3 LU4111001 1 FRICTION CAP add

DRUM DRAW DRIVE

D1 LR1006001 1 RELEASE RACK

D2 LR1007001 1 RELEASE RACK PLATE

D3 087310816 1 TAPTITE CUP B M3X8

D4 LR1008001 1 RELEASE RACK SPRING

D5 LR1228001 1 THM/HUM SENSOR HOLDER ASSY

D6 LR0803001 1 DEVELOP PRESS DRIVE L ASSY

D6-1 LR0823001 1 DEVELOP RELEASE MOTOR ASSY

D6-2 LR0827001 1 FRONT COVER INTERLOCK SWITCH ASSY

D7 LR1014001 1 DRUM LOCK LEVER L

D8 LR1018001 1 DRUM LOCK LEVER R

D9 LR1710001 1 DRUM LOCK LEVER LABEL

D10 087320616 5 TAPTITE CUP S M3X6

D11 LR1023001 1 DRUM LOCK GEAR 24 add

D12 LR0307001 1 HOOK B add

D13 LR0308001 1 HOOK C add

D14 LR0327001 1 BUSH7 add

D15 LR0910001 1 HOOK SPRING BC add

D16 LR0310001 1 PP GEAR CLUTCH CAM SPRING add

D17 LR0296001 3 BUSH5 add

8CE103/8CE104/8CE113/8CE114/

8CE133/8CE134/8CE143/8CE144 DCP9040CN/DCP9042CDN/

MFC9440CN/MFC9450CDN

- 3 -

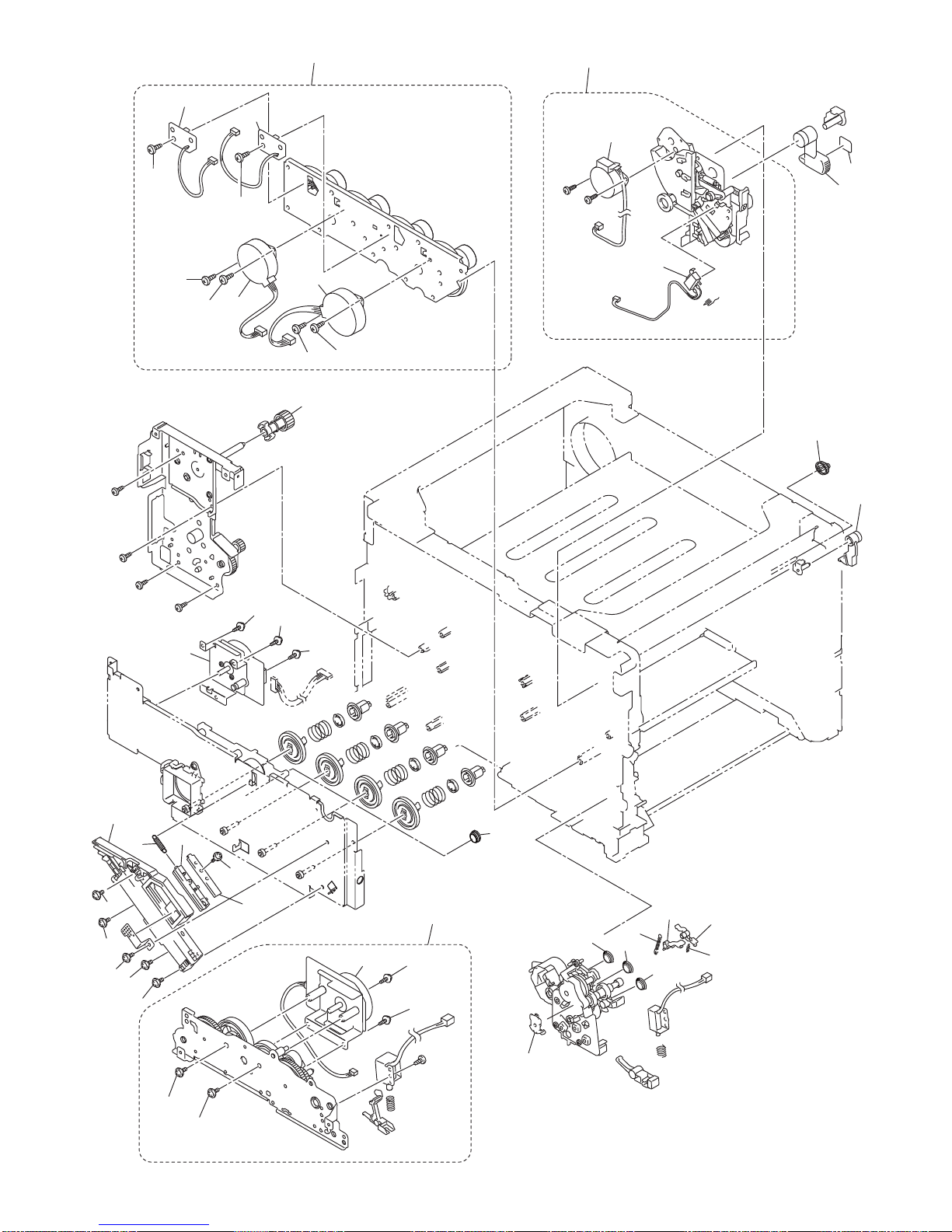

2.DRIVE

- 4 -

B1-4

B1-3

A1-1 A1-2

A1-2

D10

B1 D6

D6-1

D6-2

B1-2

B1-5

B1-5 B1-5

B1-5

B1-1

D12

D13

D16

D15

D17 D17

D17

D14

D11

3. LASER UNIT

REF No. CODE Q'TY DESCRIPTION REMARKS

1 LU4373001 1 LASER UNIT (SP) CHG

2 LJ0908001 1 LASER CAUTION LABEL EXCEPT FOR CHN

2 UL7931001 1 LASER CAUTION LABEL FOR CHN

3 LM5867001 7 TAPTITE CUP S M3X6 SR

8CE103/8CE104/8CE113/8CE114/

8CE133/8CE134/8CE143/8CE144 DCP9040CN/DCP9042CDN/

MFC9440CN/MFC9450CDN

- 5 -

4. PAPER FEEDER

REF No. CODE Q'TY DESCRIPTION REMARKS

1 LR0107001 1 PAPER FEED FRAME UNIT

1-1 LM9185001 1 T1 PE/EDGE SENSOR PCB ASSY

1-2 LR1914001 1 ROLLER HOLDER ASSY

8CE103/8CE104/8CE113/8CE114/

8CE133/8CE134/8CE143/8CE144

DCP9040CN/DCP9042CDN/

MFC9440CN/MFC9450CDN

- 7 -
