USER’S GUIDE

THIS EQUIPMENT IS DESIGNED TO WORK WITH A TWO WIRE

ANALOGUE PSTN LINE FITTED WITH THE APPROPRIATE

CONNECTOR.

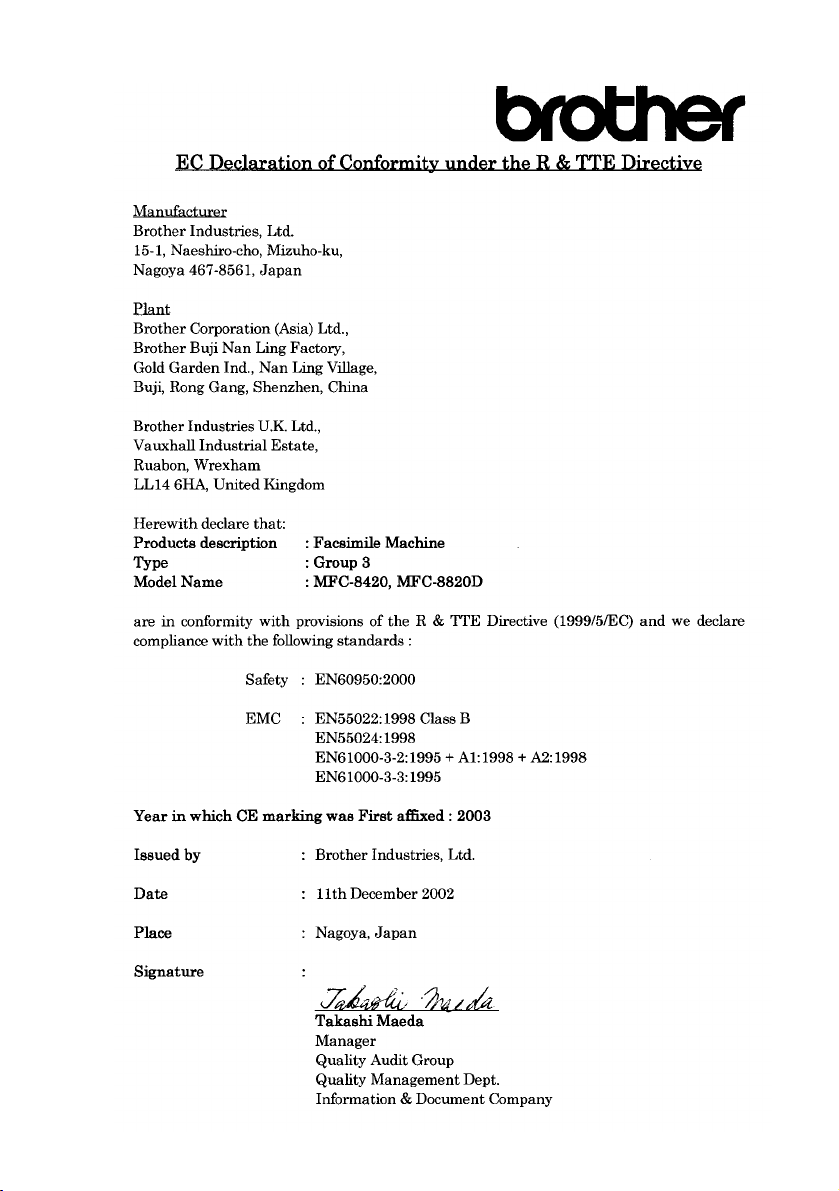

APPROVAL INFORMATION

Brother advises that this product may not function correctly in a

country other than where it was originally purchased, and does not

offer any warranty in the event that this product is used on public

telecommunication lines in another country.

Compilation and Publication Notice

Under the supervision of Brother Industries Ltd., this manual has

been compiled and published, covering the latest product

descriptions and specifications.

The contents of this manual and the specifications of this product are

subject to change without notice.

Brother reserves the right to make changes without notice in the

specifications and materials contained herein and shall not be

responsible for any damages (including consequential) caused by

reliance on the materials presented, including but not limited to

typographical and other errors relating to the publication.

iii

Safety precautions

To use the MFC safely

Save these instructions for later reference.

WARNING

There are high voltage

electrodes inside the machine.

Before you clean the MFC or

clear a paper jam, make sure

you have unplugged the power

cord from the power outlet.

Do not handle the plug with wet

hands. Doing this might cause

an electrical shock.

After you use the MFC, some internal parts are extremely HOT!

To prevent injuries, be careful not to put your fingers in the area shown in

the illustration.

To prevent injuries, be careful

not to put your hands on the

edge of the MFC under the

document cover.

To prevent injuries, be careful

not to put your fingers in the

area shown in the illustration.

WARNING

■When you move the MFC, grasp the side handholds that are

under the scanner. Do NOT carry the MFC by holding it at the

bottom.

■Use caution when installing or modifying telephone lines. Never

touch telephone wires or terminals that are not insulated unless

the telephone line has been disconnected at the wall socket.

Never install telephone wiring during a lightning storm. Never

install a telephone socket in a wet location.

■Install equipment with a power cord near a socket/outlet that is

easily accessible.

■Do not use a telephone in the vicinity of gas leak to report leak.

■Do not use this product near appliances that use water, in a wet

basement or near a swimming pool.

■There may be a remote risk of electric shock from lightning.

Caution

■Lightning and power surges can damage this product! We

recommend that you use a quality surge protection device on the

AC power line and on the telephone line, or unplug the lines

during a lightning storm.

To prevent injuries, be careful not to put

your fingers in the area shown in the

illustration.

Choosing a location

Place your MFC on a flat, stable surface that is free of vibration and

shocks, such as a desk. Put the MFC near a telephone socket and a

standard, grounded power outlet. Choose a location where the

temperature remains between 10° and 32.5°C.

Caution

■Avoid placing your MFC in a high-traffic area.

■Do not place near heaters, air conditioners, water, chemicals, or

refrigerators.

■Do not expose the MFC to direct sunlight, excessive heat,

moisture, or dust.

■Do not connect your MFC to electrical outlets controlled by wall

switches or automatic timers.

■Disruption of power can wipe out information in the MFC’s

memory.

■Do not connect your MFC to electrical outlets on the same circuit

as large appliances or other Equipment that might disrupt the

power supply.

■Avoid interference sources, such as speakers or the base units

of cordless phones.

Quick Reference Guide

Sending faxes

Automatic Transmission

If it is not illuminated in

green, press (Fax).

Place the document face up

in the ADF, or face down on

the scanner glass.

Enter the fax number using

One-Touch, Speed-Dial,

Search or the dial pad.

Press Start.

If you are using the scanner

glass, press 2or Start.

Real Time Transmission

You can send faxes in real time.

If it is not illuminated in

green, press (Fax).

Place the document face up

in the ADF, or face down on

the scanner glass.

Press Menu, 2, 2, 5.

Press or to select

On, and then press Set.

—OR—

For the next transmission

only, press or to

select Next Fax Only,

and then press Set.

For the next fax only, press

or to select Next

Fax:On, and then press

Set.

Press 1if you want to

choose more settings and

the LCD will return to the

Setup send menu.

—OR—

Press 2to fax.

Enter the fax number.

Press Start.

Receiving faxes

Select Receive Mode

Press Menu, 0,1.

Press or to select

Fax Only, Manual,

Fax/Tel and External

TAD and then press Set.

Storing numbers

Storing One-Touch Dial

numbers

Press Menu, 2, 3, 1.

Press the One-Touch key

where you want to store the

number.

Enter a number (up to 20

digits), and then press Set.

Enter a name (up to 15

characters or leave it blank),

and then press Set.

Press Stop/Exit.

vii

Storing Speed-Dial numbers

Press Menu, 2, 3, 2.

Enter a three-digit

Speed-Dial number, and

then press Set.

Enter a number (up to 20

digits), and then press Set.

Enter a name (up to 15

characters or leave it blank),

and then press Set.

Press Stop/Exit.

Dialling operations

One-Touch Dialling /

Speed-Dialling

If it is not illuminated in

green, press (Fax).

Place the document face up

in the ADF, or face down on

the scanner glass.

Press the One-Touch key of

the number you want to call.

—OR—

Press

Search/Speed Dial

press #, and then press the

three-digit Speed-Dial

number.

Press Start.

Using Search

If it is not illuminated in

green, press (Fax).

Press

Search/Speed Dial

and then enter the first letter of

the name you’re looking for.

Press or to

search the memory.

Press Start.

Making copies

Single copy

Press (Copy)to

illuminate it in green.

Place the document face up

in the ADF, or face down on

the scanner glass.

Press Start.

Sorting multiple copies

(Using the ADF)

Press (Copy) to

illuminate it in green.

Place the document face up

in the ADF.

Use the dial pad to enter the

number of copies you want

(up to 99).

Press Sort.

Sort icon appears on the

LCD.

Press Start.

viii
