Brother MFC-9010CN Bedienungsanleitung

Start Here MFC-9010CN

Quick Setup Guide

USA/CAN Version A

Before you can use the machine, please read this Quick Setup Guide for the correct setup and installation.

To view the Quick Setup Guide in other languages, please visit http://solutions.brother.com/.

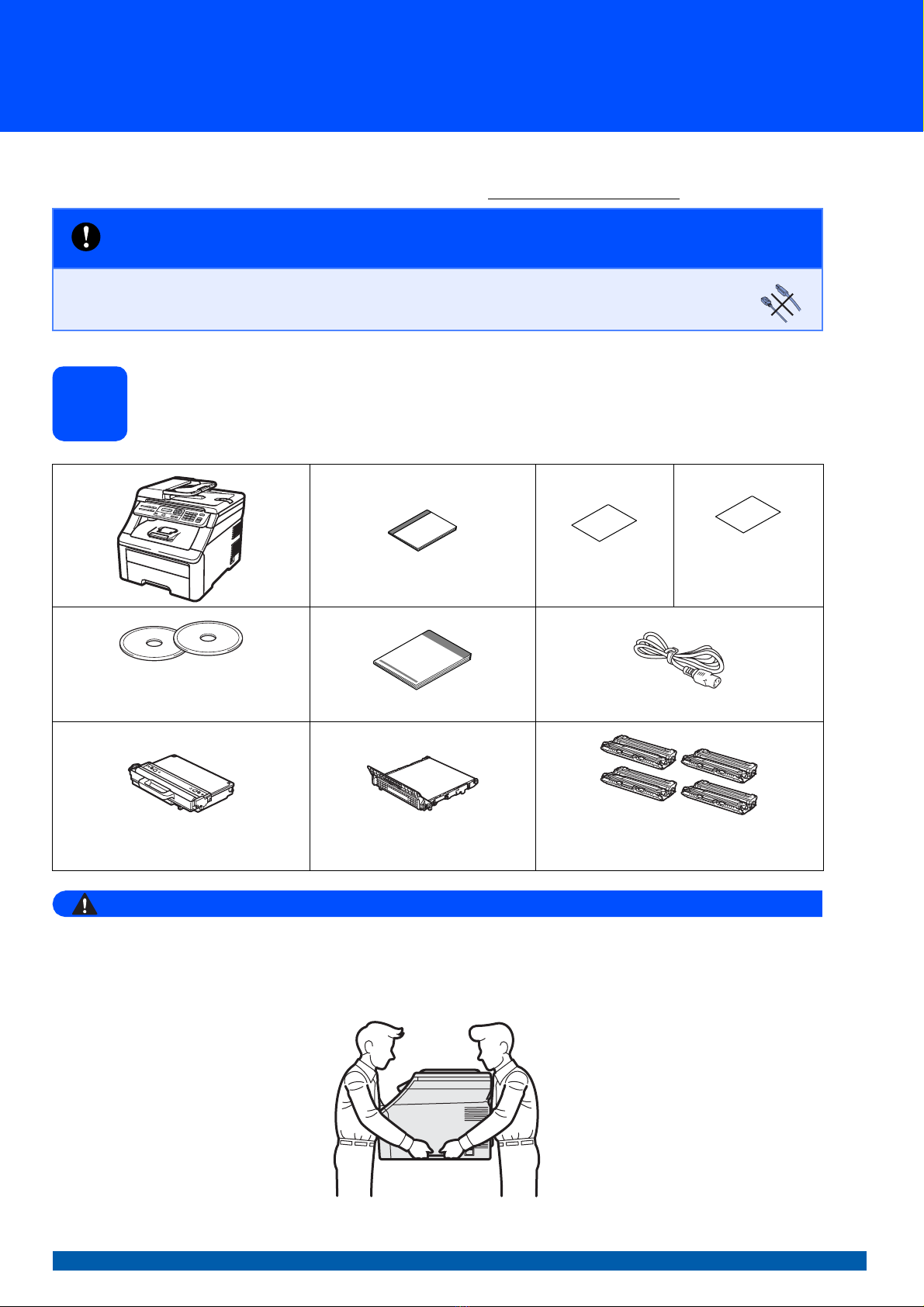

Unpack the machine and check the components

WARNING

• Plastic bags are used in the packaging of your machine. To avoid danger of suffocation, please keep

these bags away from babies and children.

• This machine is heavy and weighs approximately 50.0 lb. (22.7 kg). To prevent injuries use at least two

people to lift the machine. Be careful not to pinch your fingers when you put the machine back down.

IMPORTANT

DO NOT connect the interface cable yet.

User’s Guide Accessory Order

Form

ProductRegistration

Sheet

(USA only)

CD-ROM

(Windows®)

(Macintosh) Quick Setup Guide AC Power Cord

Waste Toner Box

(pre-installed)

Belt Unit

(pre-installed)

Drum Unit and Starter Toner Cartridge

Assemblies

(Black, Cyan, Magenta and Yellow)

Note

Keep a minimum gap around the machine as shown in the illustration.

15.7 in. (400 mm)

4 in.

(100 mm)

4 in.

(100 mm) 4.7 in.

(120 mm)

Note

• The components included in the box may differ depending on your country.

• Save all packing materials and the box in case for any reason you must ship your machine.

• The interface cable is not a standard accessory. Buy the appropriate interface cable for the interface you

want to use (USB or Network).

USB cable

• Please make sure you use a USB 2.0 cable (Type A/B) that is no longer than 6 feet (2 meters).

• DO NOT connect the interface cable at this time. Connecting the interface cable is done during MFL-Pro

installation process.

• When you use a USB cable, make sure you connect it to the USB port of your computer and not to a USB

port on a keyboard or non-powered USB hub.

Network cable

Use a straight-through Category 5 (or greater) twisted-pair cable for 10BASE-T or 100BASE-TX Fast Ethernet

Network.

Symbols used in this guide

WARNING WARNINGs tell you what to do to prevent possible personal injury.

CAUTION CAUTIONs specify procedures you must follow or avoid to prevent possible minor injuries.

IMPORTANT IMPORTANT specifies procedures you must follow or avoid to prevent possible damage to the

machine or other objects.

Note Notes tell you how you should respond to a situation that may arise or give tips about how the

current operation works with other features.

User's Guide

Network User's

Guide

Indicates reference to the User's Guide or Network User's Guide which is on the CD-ROM we

have supplied.

Remove the packing

material from the

machine

aRemove the packing tape from the outside of

the machine.

bOpen the top cover by lifting up on the

handle a.

cRemove the packing material from the inside of

the machine.

IMPORTANT

• Save all packing material and the carton in

case you have to ship your machine.

• DO NOT plug in the AC power cord yet.

Install the drum unit and

toner cartridge

assemblies

aUnpack the four drum unit and toner cartridge

assemblies and gently shake each of them

from side to side several times to distribute the

toner evenly inside the assembly.

bRemove the protective cover by pulling on the

tab as shown in the illustration.

cSlide all four of the drum unit and toner

cartridge assemblies into the machine as

shown in the illustration. Make sure that you

match the toner cartridge color to the same

color label on the machine.

dClose the top cover of the machine.

Note

Do not touch the surface of the packing film. It

may contain toner powder which can stain your

skin and clothing.

IMPORTANT

To avoid print quality

problems, DO NOT touch the

surface of the drum unit.

C - Cyan Y - Yellow

M - Magenta K - Black

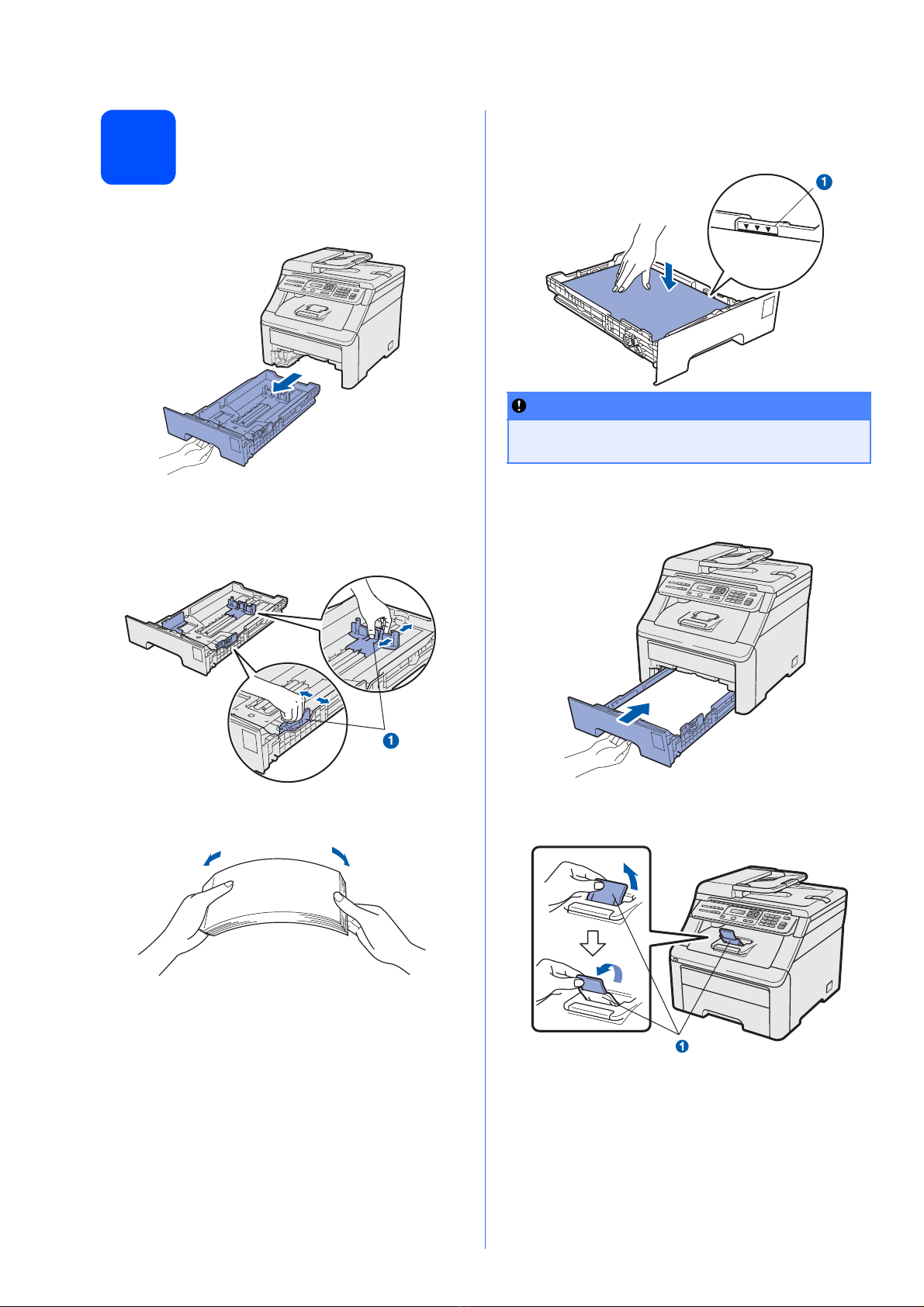

Load paper in the paper

tray

aPull the paper tray completely out of the

machine.

bWhile pressing the green paper-guide release

lever a, slide the paper guides to fit the paper

size you are loading in the tray. Make sure that

the guides are firmly in the slots.

cFan the stack of paper well to avoid paper jams

and misfeeds.

dPut paper in the tray, and make sure that the

paper is below the maximum paper mark a.

The side to be printed on must be face down.

ePut the paper tray firmly back in the machine.

Make sure that it is completely inserted into the

machine.

fUnfold the support flap ato prevent paper

from sliding off the face-down output tray.

IMPORTANT

Make sure the paper guides touch the sides of

the paper so it will feed properly.

Connect the power cord

aMake sure that the machine’s power switch is

off. Connect the AC power cord to the machine.

bPlug the AC power cord into an AC outlet. Turn

the power switch on.

Choose your language

(if needed)

aPress Menu, 1, 0.

General Setup

0.Local Language

bPress aor bto choose your language.

Press OK.

cPress Stop/Exit.

IMPORTANT

DO NOT connect the interface cable yet.

Set the LCD contrast

(if needed)

If you are having difficulty reading the LCD, try

changing the contrast setting.

aPress Menu, 1, 4.

General Setup

4.LCD Contrast

bPress ato increase the contrast.

—OR—

Press bto decrease the contrast.

Press OK.

cPress Stop/Exit.

Windows®

USB

Macintosh Windows®Macintosh

Wired Network

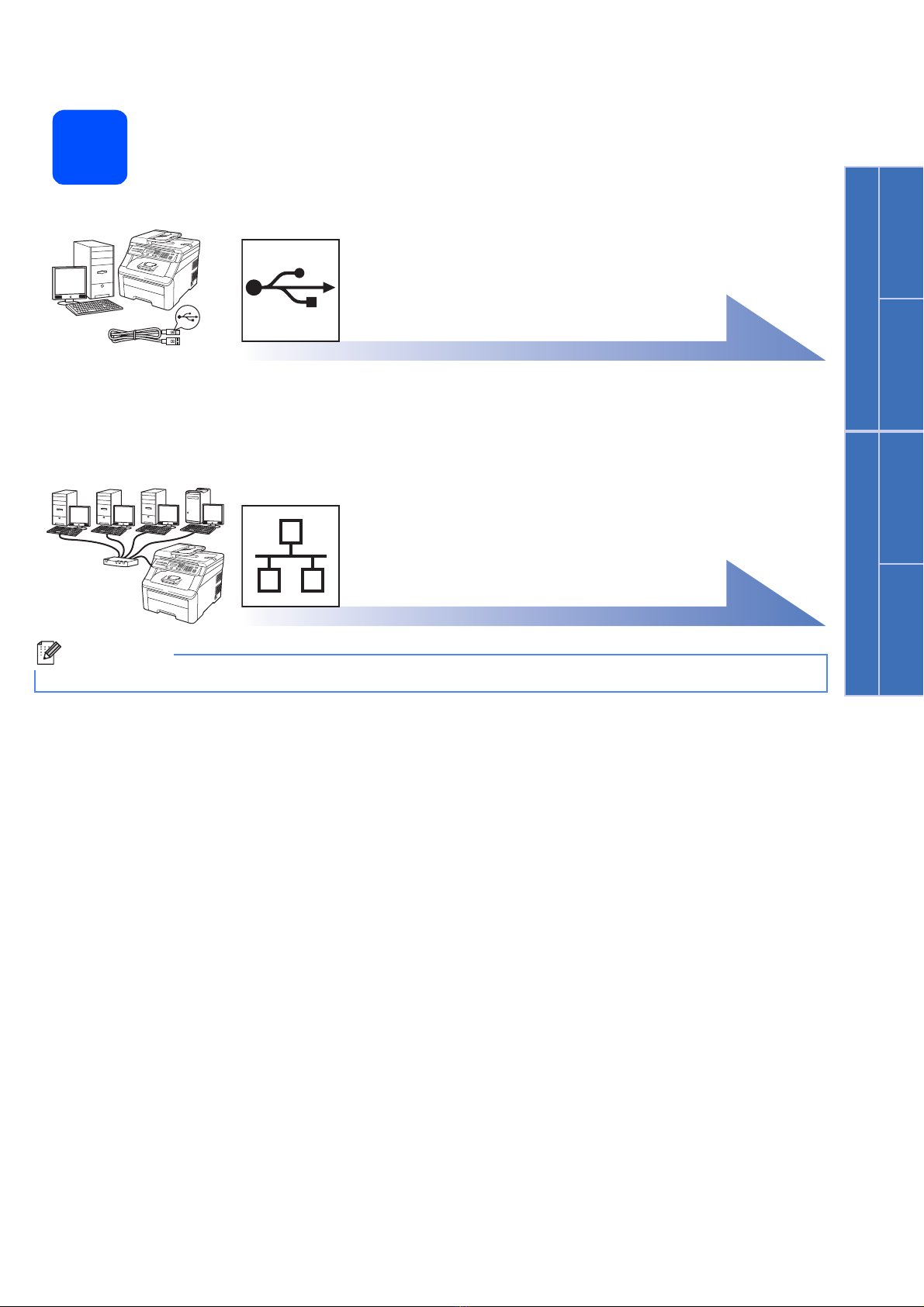

Choose your connection type

For USB Interface Users

Windows

, go to page 10

Macintosh, go to page 14

For Wired Network

Windows

, go to page 16

Macintosh, go to page 21

Note

For Windows Server®2003/ 2008, see the Network User’s Guide on the CD-ROM.

Windows®

USB

For USB Interface Users

(Windows

2000 Professional/XP/XP Professional x64 Edition/

Windows Vista

)

Before you install

aMake sure that your computer is ON and you

are logged on with Administrator rights.

bTurn off and unplug the machine from the AC

outlet and disconnect it from your computer, if

you already connected an interface cable.

Install MFL-Pro Suite

aPut the supplied CD-ROM into your CD-ROM

drive. If the model name screen appears,

choose your machine. If the language screen

appears, choose your language.

bThe CD-ROM main menu will appear. Click

Initial Installation.

cClick Install MFL-Pro Suite.

IMPORTANT

• DO NOT connect the USB cable yet.

• If there are any programs running, close

them.

• The screen may differ depending on the

operating system.

• The supplied CD-ROM includes ScanSoft™

PaperPort™ 11SE. This software supports

Windows®2000 (SP4 or greater), XP (SP2 or

greater), XP Professional x64 Edition and

Windows Vista®. Update to the latest

Windows®Service Pack before installing

MFL-Pro Suite.

Note

If the Brother screen does not appear

automatically, go to My Computer (Computer),

double-click the CD-ROM icon, and then

double-click Start.exe.
