• Read this User’s Guide before you start using your P-touch.

• Keep this User’s Guide in a handy place for future reference.

USER’S GUIDE

1900

INTRODUCTION

Thank you for purchasing the P-touch 1900!

Your new P-touch will allow you to create labels and stamps for any need. Its versatility

enables you to design custom labels by choosing from a variety of frame designs and from

many character sizes and styles. In addition, the four tape widths (1/4” (6 mm), 3/8” (9 mm),

1/2” (12 mm) and 3/4” (18 mm)) and variety of tape colors allow you to print personalized

labels, useful for color-coded filing.

You no longer have to worry about urgent tasks that require professional printing. In the office,

the factory, the lab and the home, the quality and performance of the P-touch 1900 makes it

an extremely practical machine.

Finally, as you may want to occasionally refer to this User’s Guide we suggest that you keep it

in a handy place.

Use only the adaptor designed exclusively for this machine. See “GENERAL PRECAUTIONS”

on page 3.

Canadian Department of Communications Compliance Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions from dig-

ital apparatus as set out in the interference-causing equipment standard entitled “Digital Ap-

paratus”, ICES-003 of the Department of Communications.

Switching the language of the messages between English and French

1. Erase all of the text in the display either with *or by holding down cand press-

ing *.

2. Hold down cand press Fto display the current language setting (“ENGLISH”

or “FRANÇAIS”).

3. Keep cheld down and press Fagain until the desired setting appears in the dis-

play, then release the keys.

The default setting is English.

Turning off the machine does not change the language setting.

The language cannot be changed if some text remains in the display.

CONTENTS

Getting Started

CONTENTS .........................................................................................................i

GENERAL DESCRIPTION ...................................................................................1

GENERAL PRECAUTIONS ..................................................................................3

BATTERIES .........................................................................................................3

OPTIONAL AC ADAPTOR .................................................................................4

TAPE CASSETTE .................................................................................................5

ATTACHING LABELS .........................................................................................6

PRINT HEAD & ROLLERS ................................................................................. 10

For Your Information

POWER KEY .....................................................................................................11

CURSOR KEYS .................................................................................................11

CODE, ALT & SHIFT KEYS ...............................................................................12

SPACE KEY .......................................................................................................15

RETURN KEY .................................................................................................... 15

TAB FUNCTION ..............................................................................................16

DELETE KEY .....................................................................................................18

LINE OUT FUNCTION .....................................................................................19

CLEAR FUNCTION ..........................................................................................20

ACCENT FUNCTION .......................................................................................22

SYMBOL FUNCTION .......................................................................................23

AUTO FORMAT FUNCTION ...........................................................................25

STAMP FUNCTION .......................................................................................... 26

FONT FUNCTION ...........................................................................................29

SIZE & WIDTH FUNCTIONS ............................................................................ 30

STYLE FUNCTION ...........................................................................................32

UNDERLINE FUNCTION .................................................................................34

FRAME FUNCTION .......................................................................................... 35

TAPE MARGIN FUNCTION .............................................................................36

HORIZONTAL ALIGNMENT FUNCTION ........................................................37

MIRROR PRINTING FUNCTION ...................................................................... 38

LENGTH FUNCTION .......................................................................................39

AUTO CUT FUNCTION ................................................................................... 41

PRINT KEY .......................................................................................................42

FEED & CUT FUNCTION .................................................................................43

NUMBERING FUNCTION ...............................................................................43

REPEAT PRINTING FUNCTION .......................................................................45

MEMORY FUNCTIONS .................................................................................... 46

TROUBLESHOOTING ......................................................................................50

ERROR MESSAGE LIST .....................................................................................51

SPECIFICATIONS .............................................................................................54

ACCESSORIES ..................................................................................................55

INDEX ..............................................................................................................58

TOP VIEW

BOTTOM VIEW

Getting Started

GENERAL DESCRIPTION

Tape compartment

cover

LCD display

Keyboard

AC adaptor

connector

Tape exit slot

Battery compartment cover

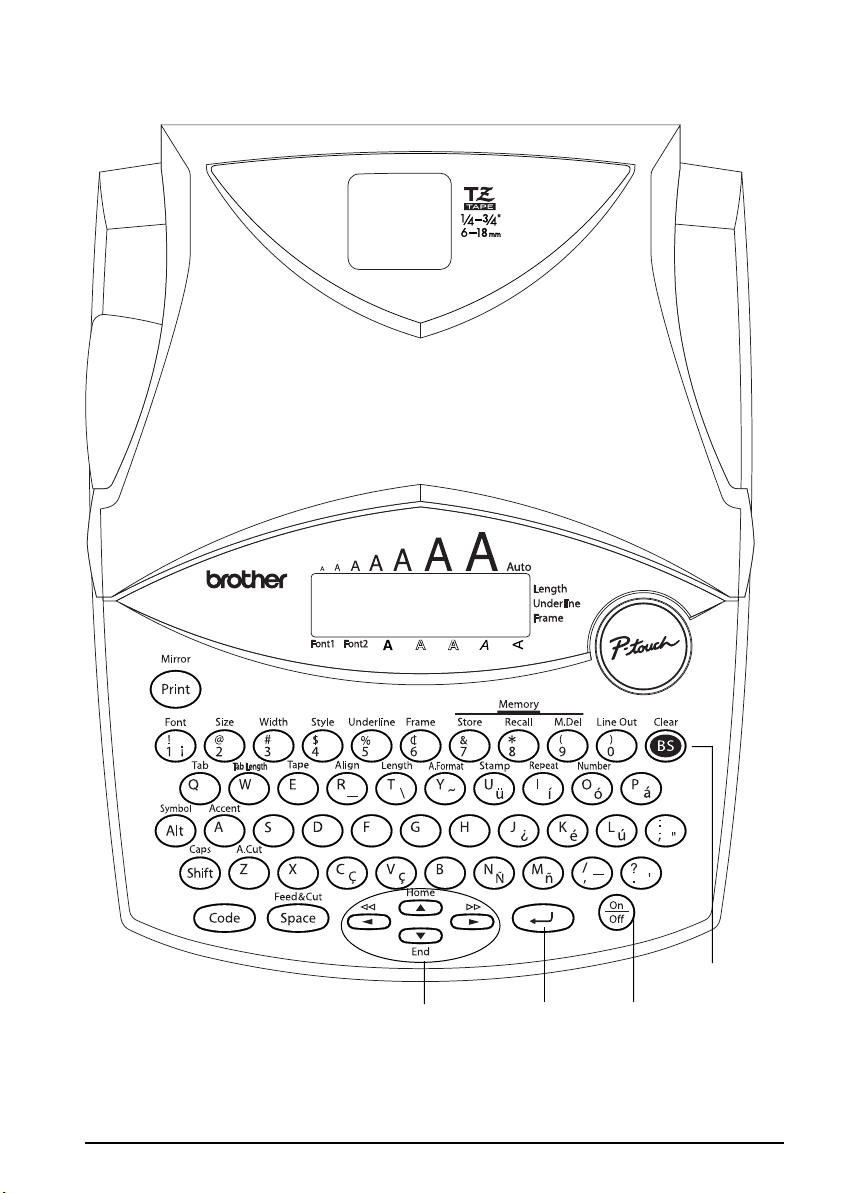

KEYBOARD & LCD DISPLAY

Power keyCursor keys

Delete key

Return key

●

To avoid injuries, do not touch the cutter’s edge.

●

Use only Brother TZ tapes with this machine to avoid damage. Do not use tapes that do

not have the mark. Brother cannot be held responsible for trouble or damage by the

use of unauthorized supplies.

●

Do not pull on the tape being fed from the P-touch. This may damage the tape cassette.

●

Do not use the machine in dusty places, and keep it out of both direct sunlight and rain.

●

Do not expose the machine to high temperatures or high humidity. Never leave it on the

dashboard or in the back of your car.

●

Do not leave any rubber or vinyl on the machine for an extended period of time. Doing

so may cause staining.

●

Do not clean the machine with alcohol or other organic solvents. Use a soft, dry cloth only.

●

Do not put any foreign objects into or anything on the machine.

●

Use only the AC adaptor (model AD-60) designed exclusively for this machine. Use of

any other adaptor may void the warranty.

●

Do not try to disassemble the AC adaptor.

●

When the machine is not being used for a long period of time and it is not necessary to

keep the text ﬁles stored in the memory, disconnect the AC adaptor, and remove the bat-

teries to prevent them from leaking and damaging the machine.

●

When the AC adaptor is connected, unplugging the adaptor from the electrical outlet

before unplugging it from the machine can delete all text ﬁles in the memory, even if bat-

teries are installed.

●

Use six AA alkaline batteries in this machine.

●

If the batteries are not installed with their positive and negative poles pointing in the cor-

rect direction, the batteries may leak, overheat or burst, or the print head may overheat.

This portable machine can be used anywhere by installing six (6)

AA alkaline batteries

.When

you change the batteries, always replace all six at the same time.

To change the batteries:

Remove the battery compartment cover on the back of the machine.

If batteries are already installed, remove them.

Insert six new AA alkaline batteries, making sure that their poles point in the correct direction.

Attach the battery compartment cover.

☞

Be sure to insert the new batteries within ﬁve minutes of removing the old ones,

otherwise the text shown in the display and any text ﬁles stored in the memory will

be lost (unless the machine is plugged into an AC outlet with the AC adaptor).

GENERAL PRECAUTIONS

BATTERIES

Remove the batteries and disconnect the AC adaptor if you do not intend to use this

machine for an extended period of time. When the power is disconnected, all text

shown in the display and stored in the memory will be lost.

If the batteries are not installed with their positive and negative poles pointing in

the correct direction, the batteries may leak, overheat or burst, or the print head

may overheat.

The AC adaptor (model AD-60) allows you to use this machine wherever there is an electrical outlet.

To connect the optional AC adaptor:

Insert the plug on the adaptor cord into the connector marked DC IN 9.5V on the right

side of the machine.

Insert the plug on the adaptor into the nearest standard electrical outlet.

☞

Only use the AC adaptor designed exclusively for this machine.

Remove the batteries and disconnect the AC adaptor if you do not intend to use this

machine for an extended period of time. When the power is disconnected, all text

shown in the display and stored in the memory will be lost.

When the AC adaptor is connected, unplugging the adaptor from the electrical out-

let before unplugging it from the machine can delete all text ﬁles in the memory,

even if batteries are installed.

OPTIONAL AC ADAPTOR

A single TZ tape cassette is supplied with this unit. However, since TZ tape cassettes are avail-

able for this machine in a wide variety of colors and sizes, it is possible to make distinctive

color-coded and stylized labels.

In addition, this machine has been designed to allow you to change the tape cassettes quickly

and easily.

To change the tape cassette:

Lift open the tape compartment cover. The installed cassette is also released.

If a tape cassette is already installed, remove it by pulling it straight up.

If the ink ribbon in the tape cassette to be installed is loose, use your finger to wind the

toothed wheel in the direction of the arrow on the cassette until there is no slack in the

ribbon. Also, make sure that the end of the tape feeds under the tape guides.

☞

If you are using a new tape cassette provided with a stopper, be sure to remove the

stopper.

Insert the tape cassette firmly into the tape compartment, making sure that the entire back

of the cassette touches the bottom of the compartment.

☞

When inserting the tape cassette, make sure that the inner ribbon does not catch on

the corner of the metal guide.

Close the compartment cover, and then turn on the machine, if it is off.

Hold down

and press

once to advance the tape and remove any slack.

TAPE CASSETTE

LAMINATED TAPE

The enclosed stick enables you to easily remove the backing from labels printed on laminated tapes.

Hold the tape in your left hand, with the printed surface facing up, and hold the stick in

your right hand.

Pass the tape halfway through the long narrow hole in the stick.

Turn the stick three-quarters of a turn towards you and pull the stick away from you as

shown below.

Peel off the label backing.

NON-LAMINATED TAPE

Labels printed on non-laminated tapes can be folded in half so that the inside edges of the two

backing pieces come off the label, enabling the backing to easily be peeled off.

ATTACHING LABELS

ABCDEF
