English



Compilation and Publication Notice

Under the supervision of Brother Industries Ltd., this manual has been compiled and

published, covering the latest product’s descriptions and specifications.

The contents of this manual and the specifications of this product are subject to change

without notice.

Brother reserves the right to make changes without notice in the specifications and

materials contained herein and shall not be responsible for any damages (including

consequential) caused by reliance on the materials presented, including but not limited

to typographical and other errors relating to the publication.

• IBM is a trademark of International Business Machines, Inc.

• Microsoft and Windows are registered trademarks of Microsoft Corporation, USA.

• The names of other software or products used in this document are trademarks or

registered trademarks of the respective companies that developed them.

Declaration of Conformity

We BROTHER INDUSTRIES, LTD.

15-1, Naeshiro-cho, Mizuho-ku,

Nagoya 467-8561, Japan

declare that the Labelling System PT-2100 conforms with the following normative

documents:

Safety: EN 60950-1:2001/A11:2004 (AC adapter)

EMC: EN 55022:1998/A1: 2000/A2: 2003 Class B

EN 55024:1998/A1: 2001/A2: 2003

EN 61000-3-2:2006

EN 61000-3-3:1995/A1: 2001

and follows the provisions of the Electromagnetic Compatibility Directive 89/336/EEC (as

amended by 92/31/EEC and 93/68/EEC). The AC adaptor also follows the provisions of the

Low Voltage Directive 2006/95/EC.

Issued by: BROTHER INDUSTRIES, LTD.

BEFORE USING YOUR P-TOUCH

Thank you for purchasing the P-touch 2100.

Your new P-touch is an easy to operate, feature packed labelling system that makes

creating professional, high quality labels a breeze. In addition to easy label creation via

pre-formatted label layouts, the P-touch editing software features advanced label

formatting, block formats, barcodes and auto-numbering functions.

To prevent injury and damage, important notes are explained using various symbols.

The symbols and their meanings are as follows:

The symbols used in this manual are as follows:

Safety Precautions

WARNING

Tells you what to do to avoid the risk of injury.

CAUTION

Tells you about procedures you must follow to prevent damage to

the P-touch.

Action NOT allowed to do DO NOT disassemble the

product.

DO NOT splash the product

with or immerse the product in

water.

DO NOT touch a given

portion of the product.

Mandatory action Unplugging

Safety alert Alerts to the possibility of

electrical shock

English

WARNING

AC adapter

Follow these guidelines to avoid fire, damage, electric shock, or failure.

Use only the AC adapter (AD-24)

designed exclusively for your P-touch.

Failure to observe this may result in an

accident or damage. Brother shall not

assume any responsibility for any

accident or damage resulting from not

using the specified AC adaptor.

Unplug the power cord immediately

and stop using the machine during an

electrical storm. There may be a

remote risk of electric shock from

lightning.

Do not touch the AC adapter or power

plug with wet hands.

Do not use the AC adapter in places

of high humidity such as bathrooms.

Do not use a damaged power cord.

Do not overload the power outlet.

Do not place heavy objects on,

damage or modify the power cord or

plug. Do not forcibly bend or pull the

power cord.

Do not drop, hit or otherwise damage

the AC adaptor.

Make sure that the plug is fully

inserted to the power outlet. Do not

use an outlet that is loose.

Battery

Follow these guidelines to avoid liquid leakage, heat, rupture of the battery.

Do not use metallic articles, such as

tweezers or a metallic pen, when

exchanging the batteries.

Do not throw into fire, heat up, or

disassemble the battery.

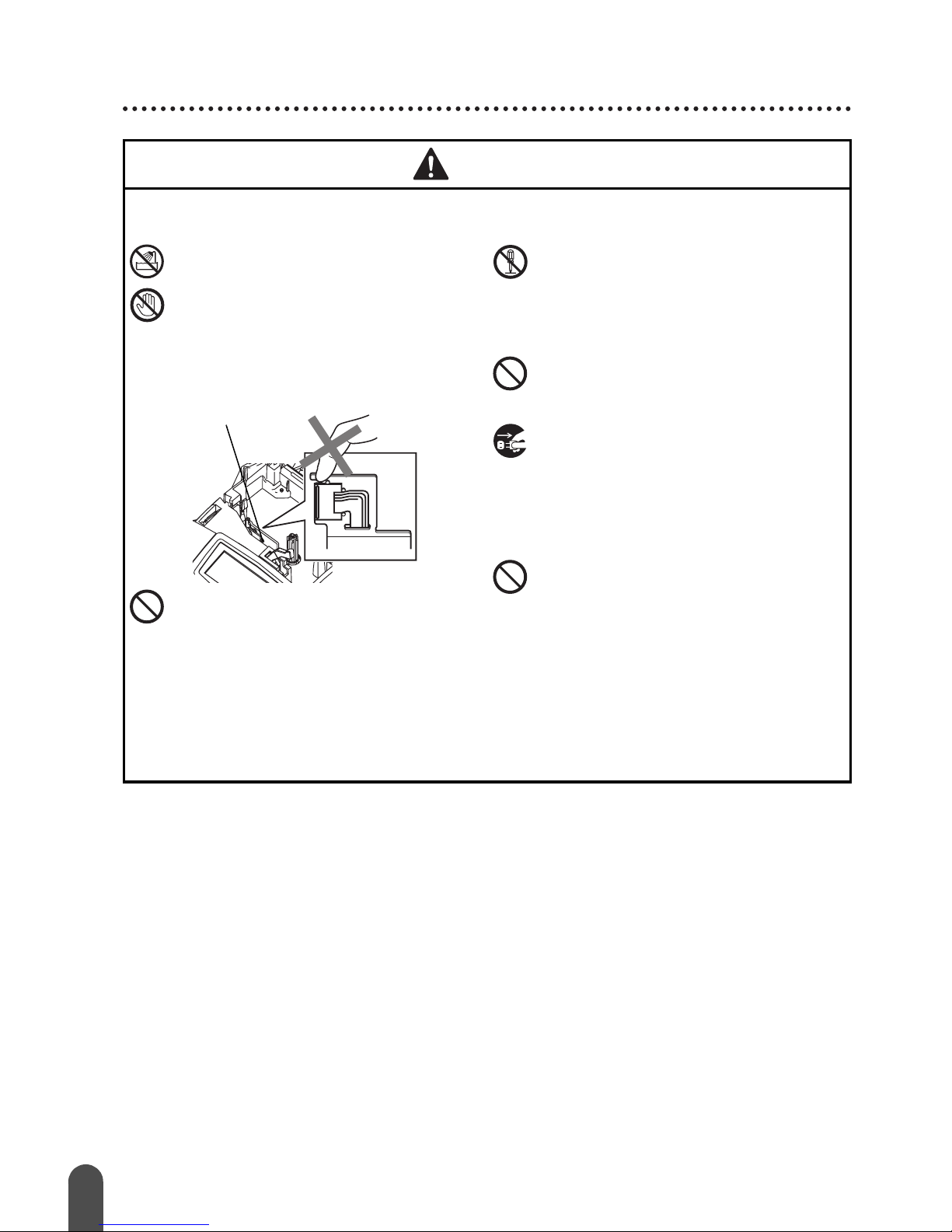

BEFORE USING YOUR P-TOUCH

P-touch

Follow these guidelines to avoid fire, damage, electric shock, and choking.

Do not allow the P-touch to get wet in

any way.

Do not touch any metal parts near the

print head. The print head becomes

very hot during use and remains very

hot immediately after use. Do not

touch it directly with your hands.

Do not use the P-touch with a foreign

object in it. If water, metallic

substance or any foreign object

enters the P-touch, disconnect the

AC adaptor and remove batteries,

and contact the retail outlet where the

P-touch was purchased or your local

authorized service center.

Do not disassemble the P-touch. For

inspection, adjustment, and repair of

the P-touch, contact the retail outlet

where the P-touch was purchased or

your local authorized service center.

Dispose of plastic bags correctly and

keep away from babies and children.

Do not wear or play with plastic bags.

Disconnect the AC adaptor and

remove batteries immediately and

stop using when you notice abnormal

odor, heat, discolouration,

deformation or anything unusual

while using or storing it.

Do not drop, hit or otherwise bang the

P-touch.

WARNING

Print head

English

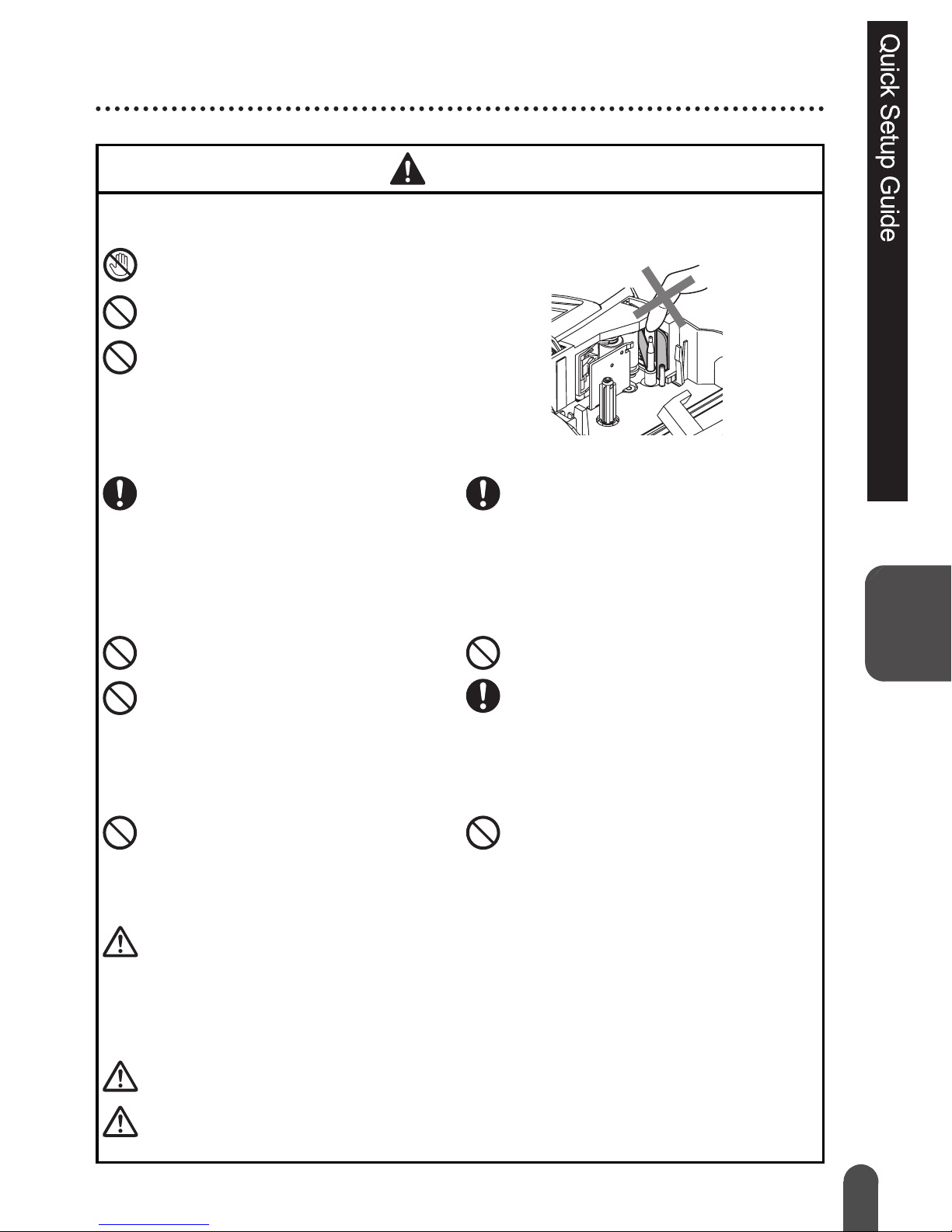

CAUTION

Tape Cutter

Follow these guidelines to avoid personal injury and damage of the P-touch.

Do not touch the blade of the cutter

unit.

Do not open the tape compartment

cover when operating the cutter unit.

Do not apply excessive pressure to

the cutter unit.

AC adaptor

Be sure to disconnect the AC adapter

from the power outlet and the P-touch

when not using the P-touch for any

extended period of time.

Always hold the plug when

disconnecting the power cord from

the power outlet.

Battery

Follow these guidelines to avoid liquid leakage, heat, rupture of the battery.

Do not use old and new batteries

together.

Do not mix alkaline batteries with

other type batteries.

Do not set the positive and negative

end in the wrong position.

Remove the batteries if you do not

intend to use the P-touch for an

extended period of time.

P-touch

Follow these guidelines to avoid personal injury and damage of the P-touch.

Place the P-touch on a flat, stable

surface such as a desk.

Do not place any heavy objects on top

of the P-touch. Do not press on the

LCD display.

Tape

Depending on the location, material, and environmental conditions, the label may

unpeel or become irremovable, the colour of the label may change or be

transferred to other objects.

Before applying the label, check the environmental condition and the material.

Memory

Any data stored in memory will be lost due to failure or repair of the P-touch, or if

the battery expires.

When power is disconnected for more than two minutes, all text and format

settings will be cleared. Any text files stored in the memory will also be cleared.

BEFORE USING YOUR P-TOUCH

• Do not use the P-touch in any way or for any purpose not described in this guide. Doing

so may result in accidents or damage the machine.

• Do not put any foreign objects into the tape exit slot, AC adapter connector, or USB port, etc.

• Do not touch the print head with your fingers. Use a soft wipe (e.g. a cotton swab) when

cleaning the print head or the optional print head cleaning cassette (TZ-CL4) when

cleaning the print head.

• Do not clean the machine with alcohol or other organic solvents. Only use a soft, dry cloth.

• Do not place the P-touch in direct sunlight or rain, near heaters or other hot appliances, in

any location exposed to extremely high or low temperatures (e.g. on the dashboard or in

the back of your car), high humidity, or dusty locations. Standard operating temperature

range: (10

C to 35

C).

• Do not leave any rubber or vinyl on the machine for an extended period of time, otherwise

the machine may be stained.

• Depending on the environmental conditions and the applied settings, some characters or

symbols may be difficult to read.

• Use only Brother TZ tapes with this machine. Do not use tapes that do not have the

mark.

• Do not pull or press on the tape in the cassette. Otherwise the tape cassette or P-touch

may be damaged.

• Do not try to print labels using an empty tape cassette or without a tape cassette set in the

P-touch. Doing so will damage the print head.

• Do not attempt to cut tape while printing or feeding since this will damage the tape.

• It is recommended that you use the USB cable supplied with the P-touch. Should another

USB cable need to be used, ensure it is of high quality construction.

• Be careful not to scratch the CD-ROM. Do not place the CD-ROM in any location exposed

to high or low temperatures. Do not place heavy objects on the CD-ROM or bend it.

• The software on the CD-ROM is intended for use with the P-touch and may be installed

on more than one PC.

• We strongly recommend that you read this User's Guide carefully before using your P-

touch, and then keep it nearby for future reference.

The following symbols are used throughout this guide to indicate additional information.

General Precautions

Symbols Used in this Guide

This symbol indicates information or directions that may result in damage or

injury if ignored, or operations that will result in errors.

This symbol indicates information or directions that may help you understand and

use the P-touch more efficiently.

English

GETTING STARTED

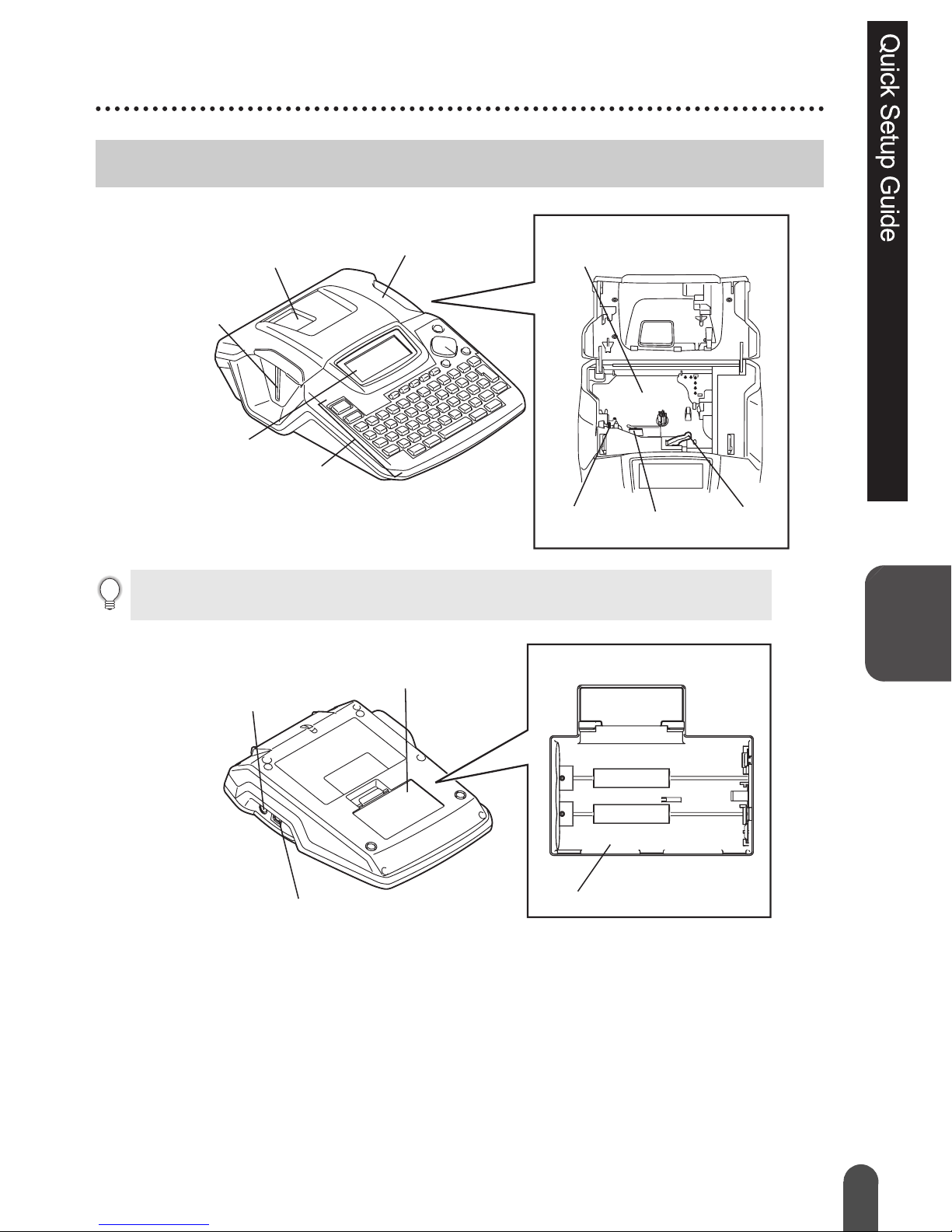

General Description

When shipped from the factory, the LCD display is covered with a protective sheet to

prevent damage. Remove this sheet before using the P-touch.

Tape compartment cover

Tape exit slot

Keyboard

Tape viewer

LCD display

Tape cassette compartment

Tape cutter Print head Release

lever

AC adaptor connector

USB port

Battery compartment cover

Battery case

GETTING STARTED

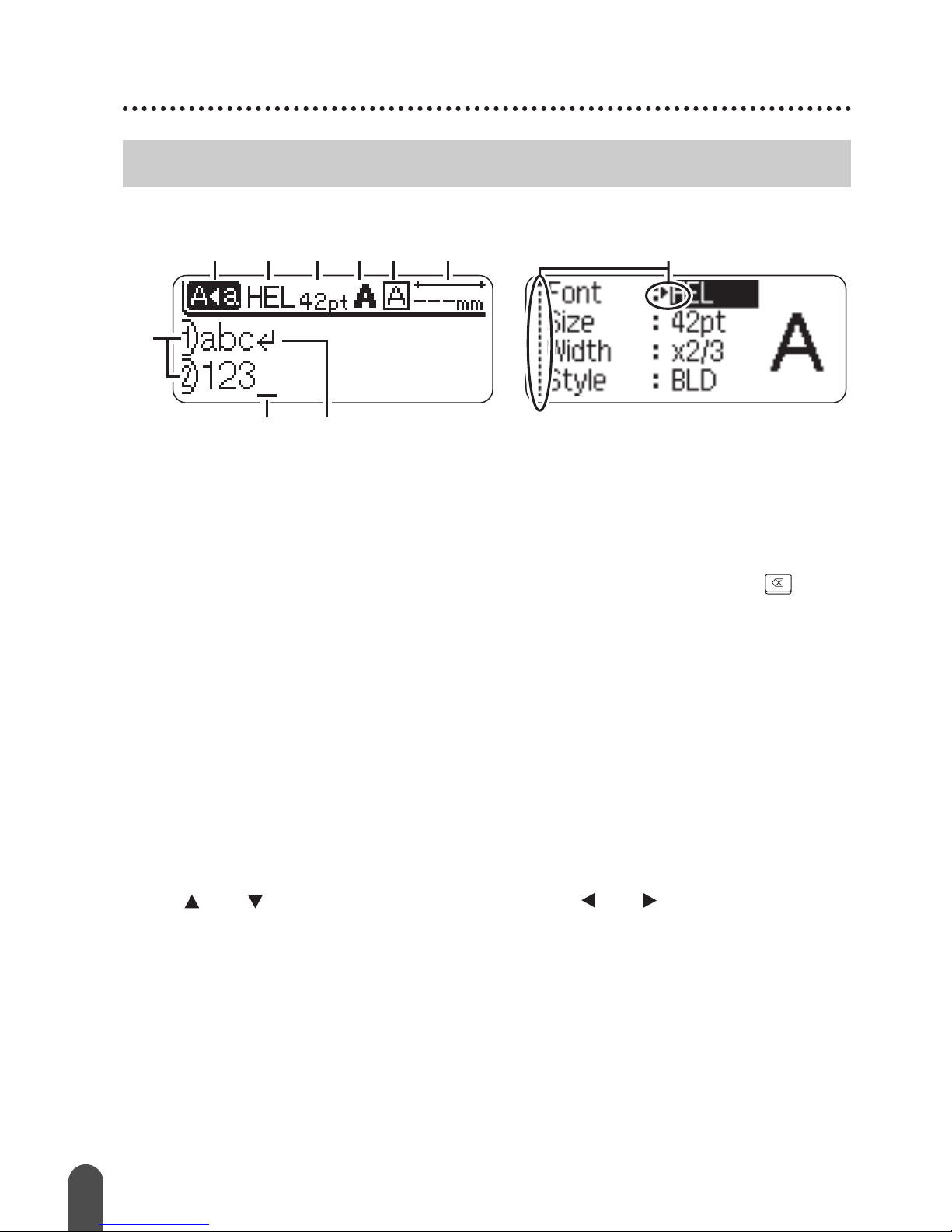

LCD Display

1. Line number

Displayed at the beginning of each line, this mark indicates the line number within

the label layout.

2. Cursor

Indicates the current position of the cursor. New characters are entered to the left of

the cursor, and the character to the left of the cursor is deleted when the key is

pressed.

3. Return mark

Indicates the end of a line of text.

4. Caps mode

Indicates that the Caps mode is on.

5.~8. Style guidance

Indicates the current font (5), character size (6), character style (7), frame (8)

settings.

9. Tape length

Indicates the tape length for the text entered.

10.Cursor selection

Indicates that you can use the cursor keys to select the items on the screen. Use

the and keys to select a menu item, and the and keys to change the

setting.

LCD Display & Keyboard

456789 10

English

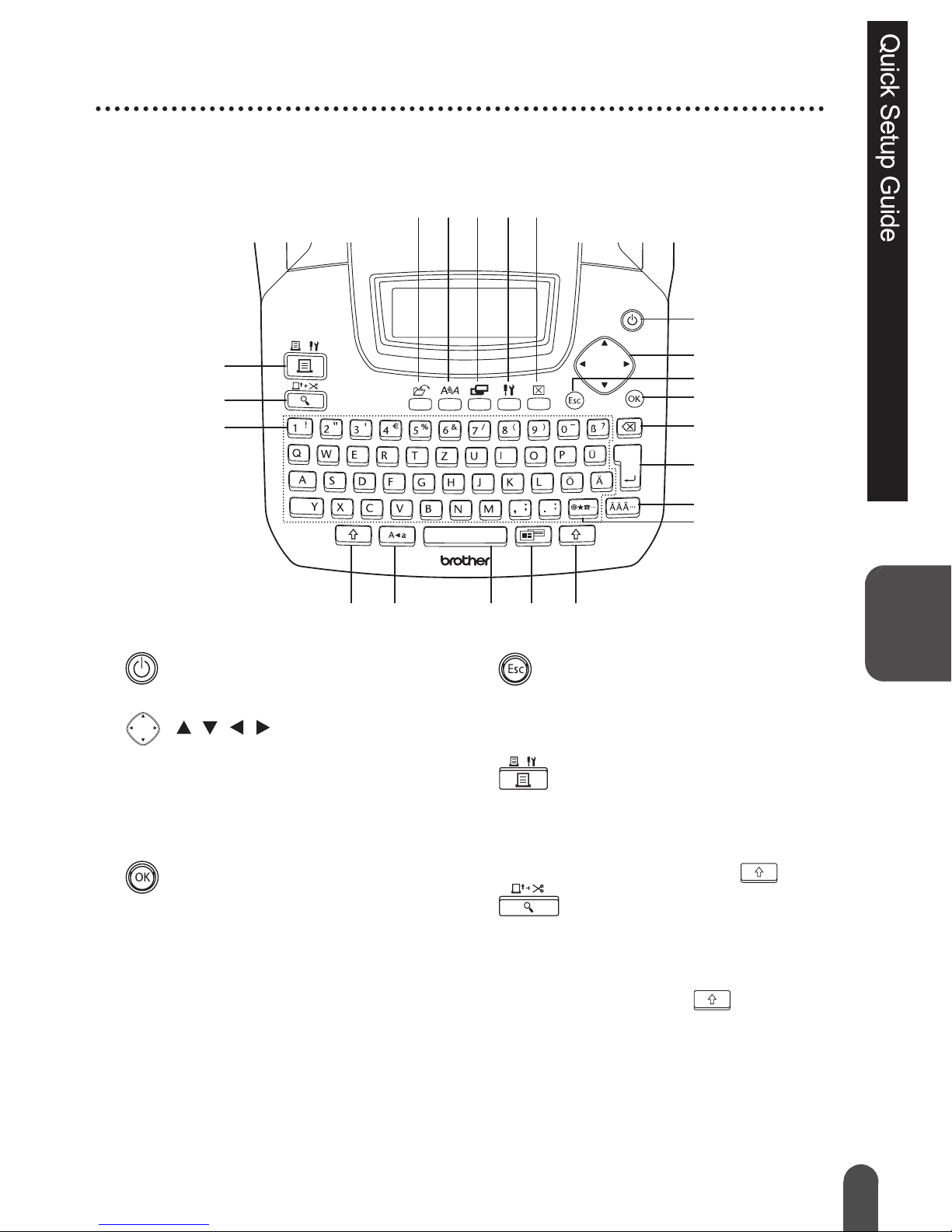

Key Names and Functions

1. (Power):

Turns the P-touch on and off.

2. ( ):

Moves the cursor in the direction of the

arrow when entering or editing

characters, entering symbols or

accented characters, and when setting

label attributes in the function menus.

3. :

Selects the option displayed when

setting label attributes in the function

menus, or when entering symbols or

accented characters.

4. (Escape):

Cancels the current command and

returns the display to the data entry

screen or the previous step.

5. (Print):

• Prints the current label design onto the

tape.

• Opens the Print Options menu when

used in combination with the key.

6. (Preview):

• Displays a preview of the label.

• Feeds 23 mm of blank tape and then

automatically cuts the tape when used

in combination with the key.

12 19 1813 13

91016

Andere Handbücher für P-Touch 2100

Inhaltsverzeichnis

Sprachen:

Andere Brother Etikettendrucker Handbücher

Brother

Brother PT-1050 Bedienungsanleitung

Brother

Brother P-Touch PT-D200 Bedienungsanleitung

Brother

Brother P-Touch PT-D210 Bedienungsanleitung

Brother

Brother P-touch 2030VP Bedienungsanleitung

Brother

Brother TD4000ZU1 Bedienungsanleitung

Brother

Brother P-touch QL-1050N Bedienungsanleitung

Brother

Brother RuggedJet RJ-2030 Bedienungsanleitung

Brother

Brother P-touch 1830 Bedienungsanleitung

Brother

Brother P-TOUCH PT-H110 Bedienungsanleitung

Brother

Brother P-Touch PT-1250C Bedienungsanleitung

Brother

Brother PT 2300 - P-Touch 2300 Thermal Transfer... Bedienungsanleitung

Brother

Brother PT 1950 - P-Touch 1950 B/W Thermal Transfer... Bedienungsanleitung

Brother

Brother QL-800 Bedienungsanleitung

Brother

Brother QL 570 - P-Touch B/W Direct Thermal Printer Bedienungsanleitung

Brother

Brother P-touch PT-D610BT Bedienungsanleitung

Brother

Brother QL 650TD - P-Touch B/W Direct Thermal... Bedienungsanleitung

Brother

Brother PT-9500PC - P-Touch 9500pc B/W Thermal Transfer... Bedienungsanleitung

Brother

Brother PT1090 - P-Touch - Labelmaker Bedienungsanleitung

Brother

Brother P-Touch QL-500 Bedienungsanleitung

Brother

Brother PT 1900 - P-Touch Electronic Labeling System Montageanleitung

Brother

Brother QL-810W Bedienungsanleitung

Brother

Brother P-Touch 2450DX Bedienungsanleitung

Brother

Brother E-100 Bedienungsanleitung

Brother

Brother P-Touch 540 Bedienungsanleitung

Beliebte Etikettendrucker Handbücher anderer Marken

newell

newell Dymo LabelManager 210D Bedienungsanleitung

U-Line

U-Line BROTHER H-8754 Bedienungsanleitung

Tharo Systems

Tharo Systems H-435+ Bedienungsanleitung

Godex

Godex RT700 SERIES Bedienungsanleitung

ID Technology

ID Technology 252 Bedienungsanleitung

Labelmate

Labelmate MC-11 Bedienungsanleitung

CAB

CAB XD4M/300 Bedienungsanleitung

Avery Dennison

Avery Dennison Pathfinder 6057 Service-Handbuch

TSC

TSC PEX1000 Series Bedienungsanleitung

Adkins

Adkins Label Master Bedienungsanleitung

Epson

Epson LabelWorks LW-400 Bedienungsanleitung

Primera

Primera 510212 Bedienungsanleitung

Brady

Brady BradyPrinter S3100 Bedienungsanleitung

DuraLabel

DuraLabel LabPRO Bedienungsanleitung

Novexx Solutions

Novexx Solutions XLP 604 Bedienungsanleitung

Epson

Epson LabelWorks LW-400 Bedienungsanleitung

Dymo

Dymo LabelManager 420P Bedienungsanleitung

Epson

Epson LW-PX400 Bedienungsanleitung
