P-touch

PARTS REFERENCE LIST

MODEL: PT-550

NOTE FOR USING THIS PARTS REFERENCE LIST

1. In the case of ordering parts, it needs mentioning the following items:

(1) Code

(2) Q'ty

(3) Description

(4) Symbol (PCB No., Revision , and Parts location mounted on the PCB.)

Note : No orders without Parts Code or Tool No. can be accepted.

[ Example ]

(4) (1) (2) (3)

REF. NO. SYMBOL CODE Q’TY DESCRIPTION REMARKS

(4) Revision No. : marked on the printed circuit board.

B48J338 - 101 A

Design change indication

Specification No.

Pattern alteration No.

Circuit board No.

2. Design-changed parts:

When the parts are changed, any one of the following symbols is indicated in the REMARKS

column.

CHNG#A : compatible between old and new

CHNG#B : replaceable from old to new

CHNG#D : incompatible

ADD : newly established

3. The original of this list was made based on the information available in Nov., '97

4. Parts are subject to change in design without prior notice.

CONTENTS

1 . RUBBER KEY...........................................................................................1

2 . POWER SUPPLY PCB.............................................................................1

3 . PRINT MECHANISM................................................................................3

4 . COVERS..................................................................................................5

5 . MAIN PCB................................................................................................7

6 . SENSOR..................................................................................................9

7 . ATTACHMENTS.......................................................................................9

8 . PRINTED MATTER................................................................................11

9 . PACKING MATERIALS...........................................................................13

-1-

MODEL PT-550 (USA/EUROPE) 5V2-412-102

1 . RUBBER KEYS

MODEL PT-550 (USA/EUROPE) 5V2-412-003

2 . POWER SUPPLY PCB

-2-

1 . RUBBER KEYS

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1UT0280001 1RUBBER 63 KEY GE, GRAY1395 (DEU/AUT)

1UT0279001 1RUBBER 63 KEY UK, GRAY1395 (GBR/IRL/NLD/CHE/DNK/SWE/NOR/ESP)

1UT0281001 1RUBBER 63 KEY FR, GRAY1395 (FRA)

1UT0282001 1RUBBER 63 KEY BG, GRAY1395 (BEL/PRT)

1UT0278001 1RUBBER 63 KEY US, GRAY1267 (USA)

MODEL PT-550 (USA/EUROPE) 5V2-412-003

2 . POWER SUPPLY PCB

REF.NO. SYMBOL CODE Q'TY DESCRIPTION REMARKS

1-2 B48J339-2C UT0423001 1PS PCB ASSY 550, EU (EUROPE)

1-2 B48J339-2C UT0418001 1PS PCB ASSY 530, US (USA)

1J1 W00325001 1JACK, HEC0470

2F1 UN0999000 1FUSE, 125V4A

3UN4594000 1GROUND PLATE 350

MODEL PT-550 (USA/EUROPE) 5V2-412-102

-3-

MODEL PT-550 (USA/EUROPE) 5V2-412-045

3 . PRINT MECHANISM

-4-

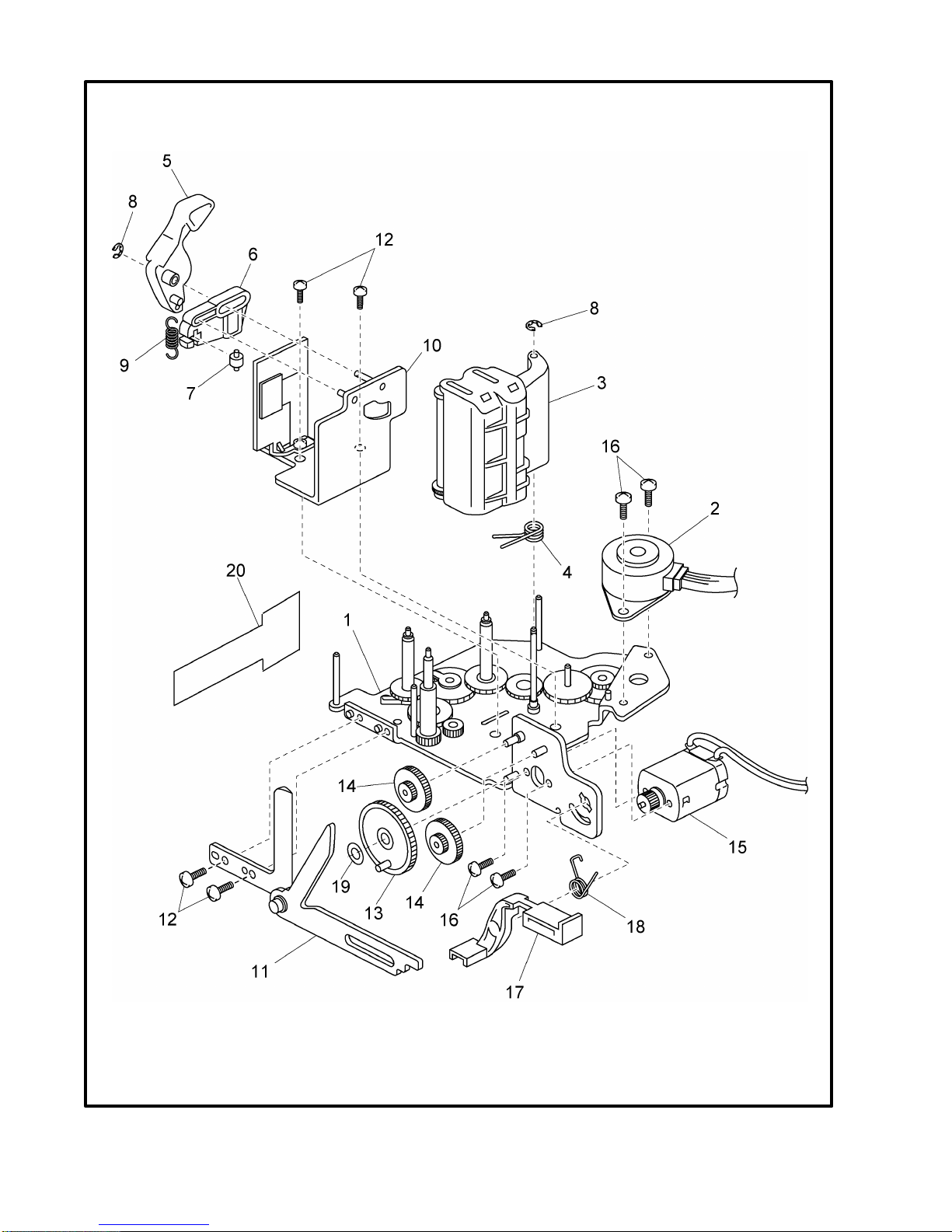

3 . PRINT MECHANISM PT2000026

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1UT0283001 1CHASSIS 550 ASSY (EUROPE)

1UT0204001 1CHASSIS 530 ASSY (USA)

2Z26490001 1TAPE FEED MOTOR

3UT0224001 1ROLLER HOLDER ASSY

4UN0039001 1ROLLER HOLDER RELEASE SPRING

5UT0239000 1RELEASE LEVER

6UT0240000 1RELEASE ROD

7UB5507000 1RELEASE ROD ROLLER

8 048025346 2 RETAINING RING, E2.5

9UT0241001 1RELEASE LEVER SPRING

10 UT0242001 1HEAD 530 ASSY

11 LA4062001 1CUTTER ASSY (SP) CHNG#A

12 060300516 4 SCREW, BIND M3X5

13 UT0252001 1CUTTER MOVING GEAR

14 UT0254000 2CUTTER DOUBLE GEAR

15 UT0401001 1CUTTER MOTOR ASSY

16 UB3848001 4SCREW, PAN M2.6X3.5

17 UT0255000 1ACTUATOR

18 UT0256001 1SPRING

19 UB3733001 1WASHER 2.6

20 U62189000 1PLATEN PROTECT PAD

MODEL PT-550 (USA/EUROPE) 5V2-412-045

-5-

MODEL PT-550 (USA/EUROPE) 5V2-412-061

4 . COVERS

-6-

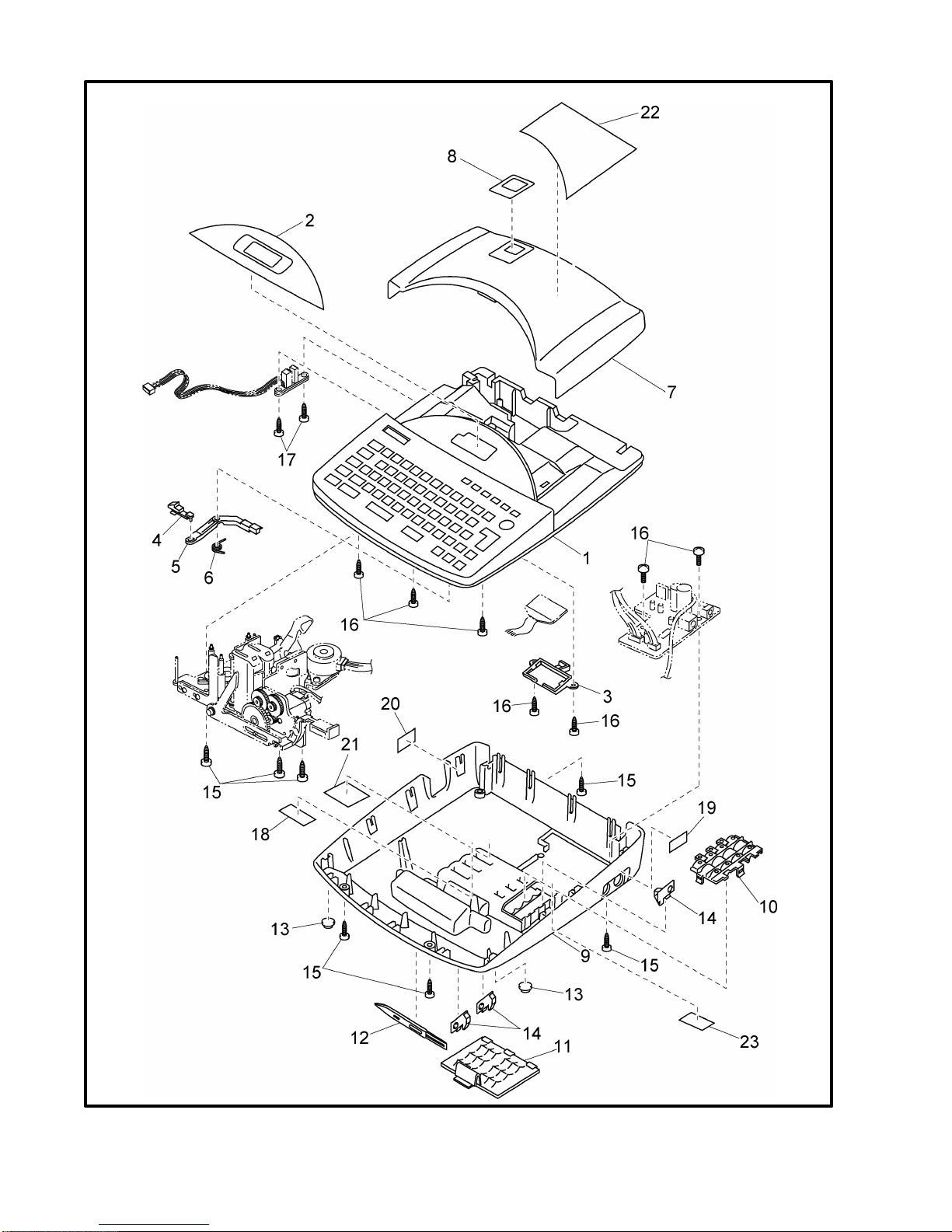

4 . COVERS

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1UT0289001 1BODY COVER 550 GE, GRAY1395 (DEU/AUT)

1UT0288001 1BODY COVER 550 UK, GRAY1395 (GBR/IRL/NLD/CHE/DNK/SWE/BEL/PRT/NOR

/ESP)

1UT0290001 1BODY COVER 550 FR, GRAY1395 (FRA)

1UT0287001 1BODY COVER 550 US, WHITE1397 (USA)

2UT0294001 1LCD PANEL 550 GE (DEU/AUT)

2UT0293001 1LCD PANEL 550 UK (GBR/IRL/NLD/CHE/DNK/SWE/BEL/PRT/NOR/ESP)

2UT0295001 1LCD PANEL 550 FR (FRA)

2UT0292001 1LCD PANEL 550 US (USA)

3UT0259001 1LCD HOLDER

4UT0260003 1COVER BUTTON, GRAY1395 (EUROPE)

4UT0260002 1COVER BUTTON, WHITE1397 (USA)

5UT0261001 1COVER LOCK LEVER

6UT0262001 1LOCK LEVER SPRING

7UT0297001 1CASSETTE COVER 550UK, GRAY1395 (EUROPE)

7UT0296001 1CASSETTE COVER 550US, WHITE1397 (USA)

8UT0299001 1CASSETTE WINDOW 550 UK (EUROPE)

8UT0298001 1CASSETTE WINDOW 550 US (USA)

9UT0300001 1BOTTOM COVER 550 UK, GRAY1395 (EUROPE)

9UT0265002 1BOTTOM COVER 530/550 US, WHITE1397 (USA)

10 UT0266003 1BLIND COVER, GRAY1395 (EUROPE)

10 UT0266002 1BLIND COVER, WHITE1397 (USA)

11 UN0940003 1BATTERY LID PEN, GRAY1395 (EUROPE)

11 UN0940002 1BATTERY LID PEN, WHITE1397 (USA)

12 UT0267001 1LETTERING STICK TZ36

13 UB4431001 2LOWER FOOT

14 UB3719000 3BATTERY TERMINAL

15 U05404003 7TAPTITE, BIND B M3X8

16 085270615 7TAPTITE, BIND B M2.6X6

17 083270815 2TAPTITE, PAN B M2.6X8 (EUROPE)

18 UB0022001 1FCC LABEL (USA)

19 UB7372001 1ADAPTER CAUTION LABEL (USA)

20 UN0732001 1CAUTION LABEL MID (USA)

21 UN0180001 1CAUTION LABEL MID, EC (EUROPE)

22 UT0304001 1MYLAR LABEL 530/550 US (USA)

23UN0804001 1BATTERY CAUTION LABEL (USA)

MODEL PT-550 (USA/EUROPE) 5V2-412-061

-7-

MODEL PT-550 (USA/EUROPE) 5V2-412-101

5 . MAIN PCB

SPEC. NO. TABLE

04 BEL.D/F H H H L

03 FRENCH H H LH

02 GERMAN HLH H

01 GBR.ENGLISH LH H H

00 550 USA.ENGLISH H H H H

SPEC. CODE KEYBOARD SPEC. 1 2 3 4

SOLDER POINT

H: DO NOT SOLDER

L: SOLDER
