Brother P-Touch PT-H100 Bedienungsanleitung

Operator’s Manual

for the

Brother PT-H100 printer

Start Printing & Applying Labels Quickly

Revised 11/06/2015

EzPi

EzProducts International Inc

612 North Florida Ave, Wauchula FL 33873 SA ● 863.767.0155 ● www.ezpi.us

LABEL CARTRIDGES FOR THE PT-H100

The following cartridges are available from EzProducts:

part number __ description _ _ price $US

LC4-C12-WK-PT 12MM (½”) Clothing Labels, white / black ribbon, 32’ $ 29.00

TZe231 ½” Laminated Self-stick white with black ribbon, 26’ $ 19.00

IF YOU HAVE PROBLEMS

If you have problems, please call EzProducts TOLL FREE at 877.906.1818

international 863.767.0155 8:30am to 5:00pm EST.

ARRANTY REPAIR

This Brother PT-H100 printer is warranted for one year from the date of

purchase. A copy of your invoice may be required when requesting warranty

repair. Always call EzProducts at 877.906.1818 or international call

863.767.0155 to obtain a Return Machine Authorization Number (RMA) prior

to returning a PT-H100 for repair.

Page - 7

Contents

GETTING STARTED page

Display items

●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●

Key definitions

●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●

Installing the Alkaline Ni-MH Battery

●●●●●●●●●●●●●●●●●●●●●●●●●●

Turning Power On/Off

●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●

Installing a Label Cartridge

●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●

Feeding Tape

●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●

Resetting the P-touch printer

●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●

CREATING A LABEL

Creating a Fixed Length Label

●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●

Creating a Variable Length Label

●●●●●●●●●●●●●●●●●●●●●●●●●●●

Creating a One Line Label

●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●

Creating a Two Line Label

●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●

LABEL PRINTING

Printing a Single Label

●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●

Printing Several Identical Labels

●●●●●●●●●●●●●●●●●●●●●●●●●●●●

Editing a Label

●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●

Erasing a Label

●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●

Saving a Label in a File

●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●

Retrieving a Label That Was Saved in a File

●●●●●●●●●●●●●●●●●●●●●

Feeding & Cutting Labels

●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●

LABEL CARTRIDGES FROM EZPRODUCTS

Clothing Labels – 12mm

●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●

Laminated Self Stick Labels – 12mm

●●●●●●●●●●●●●●●●●●●●●●●●●●●

IF YOU HAVE PROBLEMS

●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●

ARRANTY REPAIR

●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●

GETTING STARTED – Key Names & Functions

Display items:

1. Size

2. Cursor

3. Caps

4. Underline/Frame

5. idth

6. Style

7. Label Length

8. Guidance (left,

right)

The LCD display shows one line of 12 characters, however, the text you enter

can be up to 80 characters per printed line.

Key definitions:

9. Power key

10. Cursor key: Right

11. Cursor key: Left

12. Backspace key

13. Size key

14. Style key

15. Character keys

16. Caps key

18. Menu key

19. Clear key

20. Print key

21. Enter key

22. Auto Designs key

23. Frame key

24. Accent key

25. Space key

17. Symbol key

Page – 1

LABEL PRINTING - Printing a Single Label

1. Press the Print key. The display will show: [Copies: 1].

2. Press the Enter key.

LABEL PRINTING – Printing Several Identical Labels

1. Press the Print key. The display will show: [Copies: 1].

2. Press the

◄► key or 1 – 9 then press the Enter key.

TO PREVENT DAMAGE TO THE LABEL MEDIA, DO NOT TOUCH THE CUTTER

LABEL PRINTING – Cutting the Labels

When the label has finished printing and the message Printing or Feeding is not

displayed, firmly press the cutter lever on the upper right corner of the PT100.

LABEL PRINTING - Editing a Label

se the left/right arrow keys to underscore the character you want to

change. Tap the BS key to delete those characters one at a time.

LABEL PRINTING - Erasing a Label

Press the BS key to delete all characters or press the Clear button.

LABEL PRINTING - Saving a Label in a File

1.Type your label, press menu key

2. se the ◄► key to display File

3. Press key, then ◄► key to save

4. Display will show 1: Press key to save

LABEL PRINTING - Retrieving a Label from a File

1. Press the menu key

◄► key to display file and press key

◄► key to open and press key

Nmae and number of file will display

Page - 6

CREATING A LABEL

CREATING A LABEL - One Line Label

1. At the _ Prompt, type one line of data.

2. Press the Print Key.

CREATING A LABEL - Two Line Label

1. At the _ Prompt, type one line of data and press Enter.

2. Type your second line of data.

3. Press the Print Key.

CREATING A LABEL – Changing Label Length

1. Press the Menu key.

2. Press the ◄► key to display Label Length then

3. Press the ◄► key to select Auto, 2.0”-12.0”.

4. Press Enter.

Page - 5

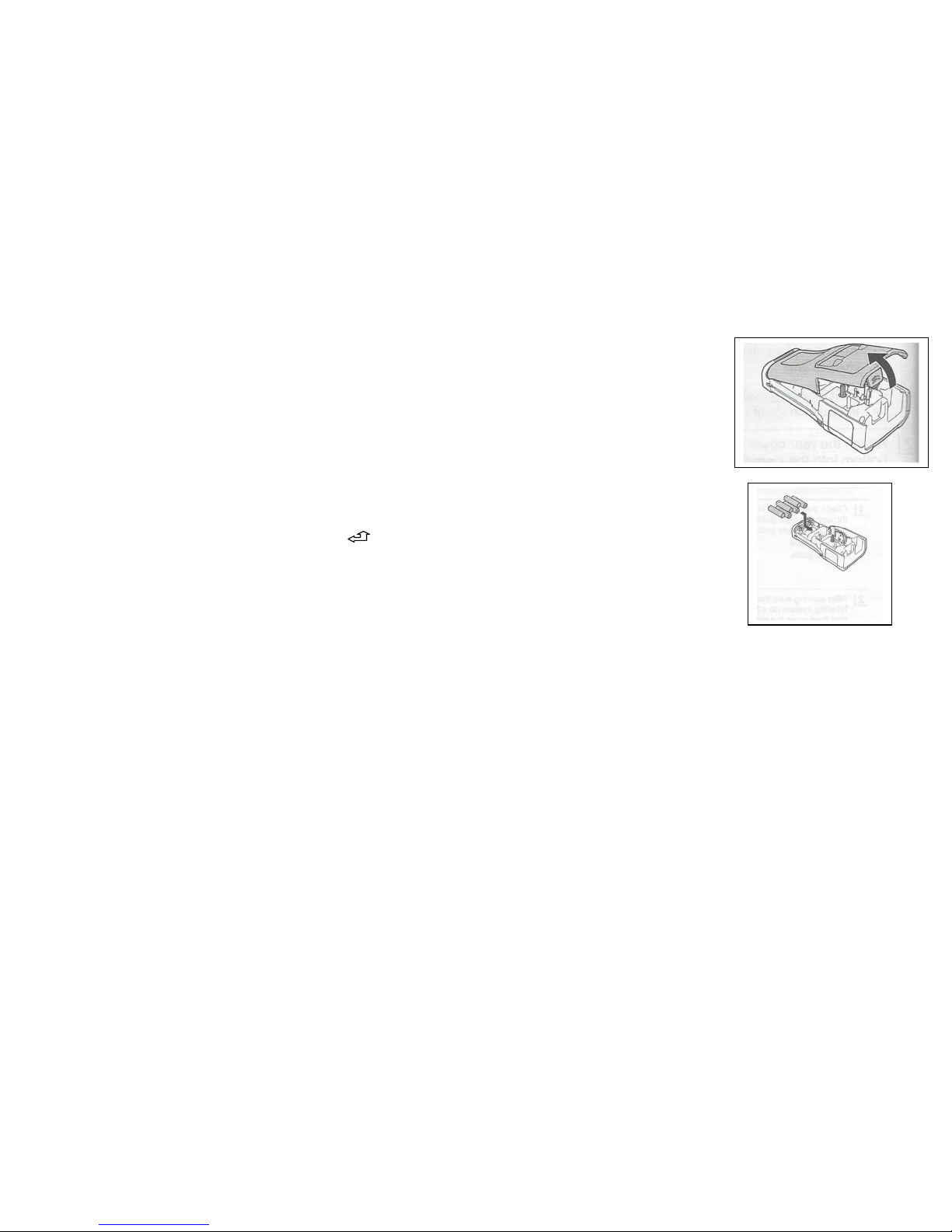

GETTING STARTED - Alkaline Ni-MH Battery

1. Make sure the PO ER IS OFF! Always replace all six batteries at the

same time using six brand new

fully charged batteries.

2. Remove the rear cover.

3. If the batteries are already in the P-

touch label printer, remove them.

4. Insert six new AA-size alkaline

batteries (LR6), or fully charged Ni-MH

rechargeable batteries (HR6), making

sure that the positive (+) and negative

(-) ends of the batteries match the

positive (+) and negative (-) marks

inside the battery compartment.

5. Attach the rear cover by inserting the

hooks at the bottom Into the slots on

the P-touch label printer, then pushing down firmly until it snaps into place.

6. REMOVE THE BATTERIES IF YOU DO NOT INTEND TO USE THE

P-TOUCH FOR AN EXTENDED PERIOD OF TIME.

Page - 2

GETTING STARTED - Turning Power On/Off

1. Press the ɸ (Power) to turn the P-touch printer ON/OFF.

GETTING STARTED – Installing a Label Cartridge

1. If the new label cartridge has a

cardboard stopper, be sure to remove

the stopper before inserting the

cassette.

2. Check that the end of the tape is not

bent and it passes through the tape

guide at least ½ inch, also make sure

that the ink ribbon is wound tight.

(see photo).

3. After making sure that the power is off,

place the P-touch printer on a flat surface and open the rear cover. If there is

already a tape cassette in the P-touch, remove it by pulling it straight up.

4. Insert the label cartridge into the compartment with the end of the tape

protruding out of the P-touch printer tape

exit slot and press firmly until you hear it

click.

hen inserting the label cartridge, make

sure that the tape and ribbon do not

catch on the print head. If there is slack in the tape, pull the tape

through the tape guide.

5. Close the rear cover.

6. DO NOT PULL THE LABEL HILE IT IS COMING OUT OF THE

PRINTER. DOING SO ILL CAUSE THE INK RIBBON TO PULL OUT OF

THE EXIT SLOT AND TO BE CUT HEN THE LABEL IS CUT. THIS

ILL CAUSE THE LABEL CARTRIDGE TO NO LONGER FUNCTION.

Page - 3

GETTING STARTED - Feeding Tape

1. Press the Menu Key.

2. se the ◄► key until Feed appears on the screen.

3. Press the ┘key

GETTING STARTED – Resetting the P-touch

1. Turn off the P-touch labeler.

2. Simultaneously hold down the Menu key and the R key and while

holding the keys, turn the P-touch back on.

3. Release the Menu key and the R key. The P-touch will turn on with

the internal memory reset.

Note: All text, settings and stored files are cleared.

Page - 4
