Brother SC-2000 Bedienungsanleitung

Stamp Creator PRO

PARTS REFERENCE LIST

MODEL: SC-2000 (For Europe)

NOTES FOR USING THIS PARTS REFERENCE LIST

1. In the case of ordering parts, it needs mentioning the following items:

(1) Code

(2) Q'ty

(3) Description

(4) Symbol (PCB No., Revision , and Parts location mounted on the PCB.)

Note : No orders without Parts Code or Tool No. can be accepted.

[ Example ]

(4) (1) (2) (3)

REF. NO. SYMBOL CODE Q’TY DESCRIPTION REMARKS

Revision No. : marked on the printed circuit board.

B48J300 - 101 A

Design change indication

Specification No.

Pattern alteration No.

Circuit board No.

2. Design-changed parts:

When the parts are changed, any one of the following symbols is indicated in the REMARKS column.

CHNG#A : compatible between old and new

CHNG#B : replaceable from old to new

CHNG#D : incompatible

ADD : newly established

3. The original of this list was made based on the information available in Dec., '98.

4. Parts are subject to change in design without prior notice.

CONTENTS

1 .MECHANISM...............................................................................1

2 .COVERS.....................................................................................5

3 .MAIN PCB...................................................................................7

4 .POWER SUPPLY PCB................................................................9

5 .CONTROL PANEL PCB...............................................................9

6 .MAIN CAPACITOR CHARGE PCB..............................................11

7 .SENSORS...................................................................................11

8 .ATTACHMENTS..........................................................................13

9 .PRINTED MATTER.....................................................................15

10 .PACKING MATERIALS................................................................15

-1-

MODEL SC-2000 5V5-641-045

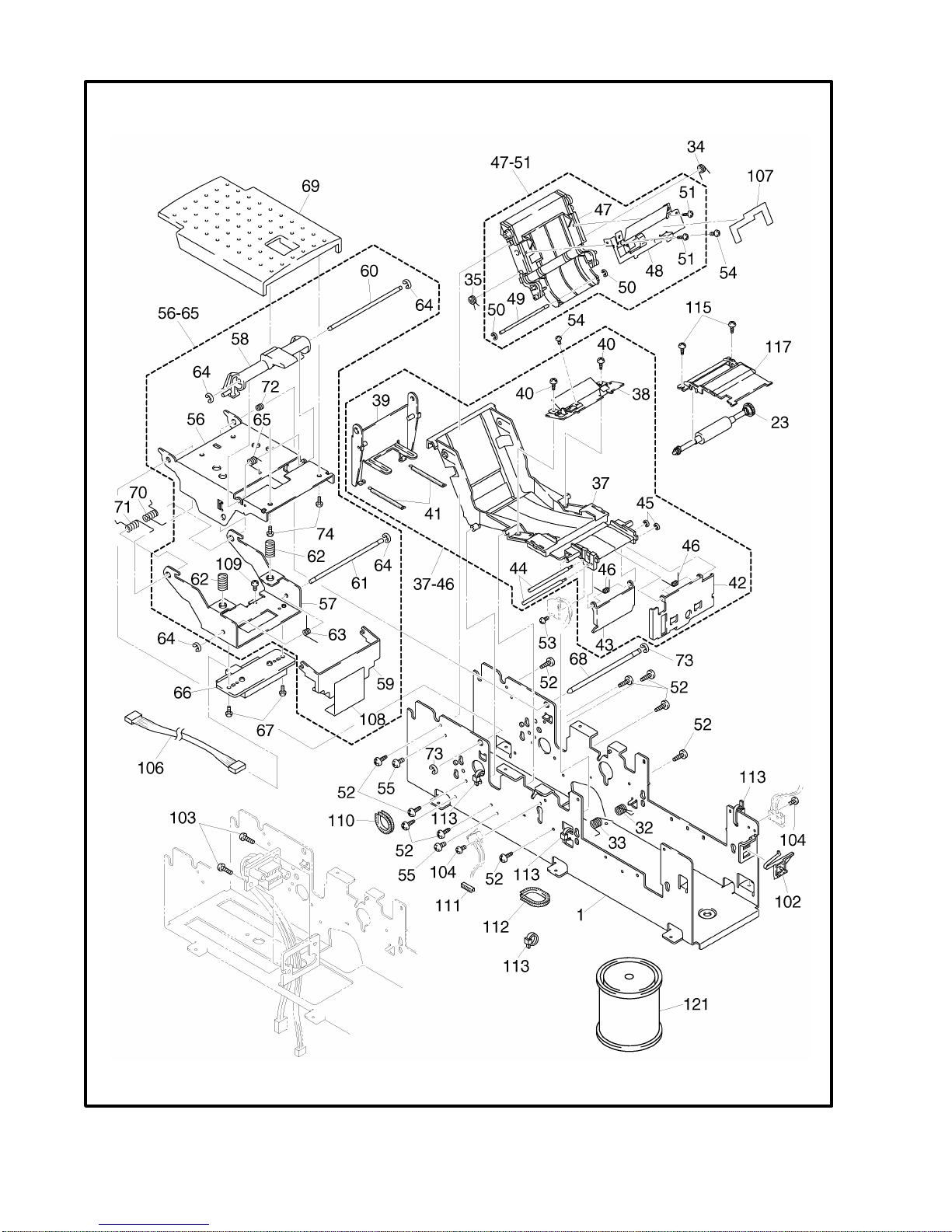

1 . MECHANISM

-2-

MODEL SC-2000 EU 5V5-641-045

1 . MECHANISM PT99005

-3-

1 . MECHANISM PT99005

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1UN7201001 1MAIN CHASSIS SUB ASSY

2UN7205001 1MOTOR HOLDER SUB ASSY

3060300506 3SCREW, BIND M3X5

4Z26436001 1MAIN MOTOR, BP484223LMFX3

5Z26567001 1PAPER FEED MOTOR, BP242516M07-PS

6060300506 2SCREW, BIND M3X5

7060260506 2SCREW, BIND M2.6X5

8UN7209000 1GEAR 19/84

9UN7210000 2GEAR 20/50

10 UN7211000 1GEAR 50A

11 UN7212000 1PULLEY 18

12 UN7213000 1GEAR 25

13 UN7214000 1GEAR 44

14 UN7215000 2GEAR 21/47

15 UN7216000 1PULLEY 25

16 UN7207000 1GEAR 68

17 UN7218001 2CLUTCH SPRING A

18 UN7220001 1CLUTCH SPRING C

19 UN7221000 4FLANGE

20 UN7222001 1MXL BELT B69, SUB DRIVING ROLLER

21 UN7224001 1MXL BELT 221, PAPER EJECT ROLLER

22 048030346 6RETAINING RING, E3

23 UN7699001 1PLATEN UNIT ASSY (SP)

24 UN7231001 1DRIVING ROLLER ASSY

25 UN7392001 2PAPER FEED ROLLER ASSY

26 UN7229000 8BEARING

27 UN7233001 2CLUTCH SPRING D

28 026050136 2WASHER, PLAIN S 5

29 048040346 9RETAINING RING, E4 CHNG

30 048020346 2RETAINING RING, E2

31 UN7234001 2NIP ROLLER

32 UN7235001 1SPRING, TORSION R

33 UN7236001 1SPRING, TORSION L

34 UN7237001 1LABEL NIP SPRING R

35 UN7238001 1LABEL NIP SPRING L

36 048040346 4RETAINING RING, E4

37-46 UN7239001 1FILM PATH ASSY

37 UN7240001 1FILM PATH, BLACK010

38 UN7241001 1SENSOR BRACKET

39 UN7243001 1MAGAZINE LIFT SUB ASSY

40 087310816 2TAPTITE, CUP B M3X8

41 UN7248001 2SPRING, MAGAZINE

42 UN7394000 1OUTER PLATE

43 UN7395000 1LOCK PLATE

44 UN7396001 2OUTER PLATE SHAFT

45 048015346 2RETAINING RING, E1.5

46 UN7398001 2RETURN SPRING

47-51 UN7246001 1LABEL GUIDE ASSY

47 UN7247001 1LABEL GUIDE, BLACK010

48 UN7241001 1SENSOR BRACKET

49 UN7361001 1RIBBON CASSETTE SHAFT

50 048020346 2RETAINING RING, E2

51 087310816 2TAPTITE, CUP B M3X8

52 087311016 10TAPTITE, CUP B M3X10

53 087310615 1TAPTITE, CUP B M3X6

54 060300506 2SCREW, BIND M3X5

55 060300506 2SCREW, BIND M3X5

56-65 UN7249001 1HEAD HOLDER ASSY

56 UN7250001 1HEAD HOLDER GUIDE

57 UN7251001 1HEAD HOLDER

58 UN7252001 1LEVER HOOK, WHITE1397

59 UN7253001 1HEAD PROTECTION COVER, BLACK010

60 UN7254001 1LEVER SHAFT

61 UN7255001 1HEAD GUIDE SHAFT

62 UN7256001 2SPRING, COMPRESSION

63 UN7257001 1PROTECTION COVER SPRING

64 048030346 4RETAINING RING, E3

MODEL SC-2000 EU 5V5-641-045

-4-

1 . MECHANISM PT2000008

REF.NO. CODE Q'TY DESCRIPTION REMARKS

65 UN7828001 1LEVER HOOK RETURN SPRING

66 UN7693001 1THERMAL HEAD UNIT (SP)

67 060300506 2SCREW, BIND M3X5

68 UN7260001 1ROTATION SHAFT

69 UN7261001 1CASSETTE COVER, WHITE1397

70 UN7262001 1HEAD HOLDER SPRING R

71 UN7263001 1HEAD HOLDER SPRING L

72 UN7264001 1HEAD GUIDE SPRING

73 048040346 2RETAINING RING, E4

74 087310816 2TAPTITE, CUP B M3X8

75-85 UN7265001 1PRESSER UNIT ASSY

75 UN7266000 1PRESSER PLATE

76 UN7267000 1PRESSER LEVER

77 UN7268001 1PRESSER PLATE LOCK

78 UN7269001 1PRESSER PLATE LEVER SHAFT

79 UN7270001 1PRESSER PLATE LOCK SHAFT

80 UN7271001 1PRESSER PLATE LOCK SPRING

81 UN7272001 1PRESSER LEVER COVER, PURPLE6140

82 UN7273001 1POSITIONING PRESSER PLATE

83 UN7274001 1POSITIONING SHAFT

84 048050346 2RETAINING RING, E5

85 UN7826000 2PRESSER SHAFT HOLDER

86 UN7275001 1PRESSER FRAME SUB ASSY

87 UN7278001 1PRESSER PLATE HINGE SHAFT

88 UN7279001 1PRESSER FRAME SHAFT

89 UN7280001 1PRESSER PLATE HINGE SPRING

90 UN7281001 1SHUTTER FRONT, WHITE1397

91 UN7283001 1SHUTTER REAR, WHITE1397

92 UN7284001 1SHUTTER COVER, WHITE1397

93 UN7416001 1SHUTTER US LABEL

94 UN7409001 1SHIELD PLATE REAR

95 UN7285000 2PINION 14

96 UN7286001 2SHUTTER SPRING

97 UN7288001 1PRESSER PLATE COVER, PURPLE6140

98 048040346 6RETAINING RING, E4

99 087310816 3TAPTITE, CUP B M3X8

100 0A5300606 12SCREW, PAN (S/P WASHER) M3X6

101 060300506 1SCREW, BIND M3X5

102 UN7289000 1XENON LOCK CLAW

103 060301206 2SCREW, BIND M3X12

104 0A4201006 2SCREW, PAN (S/P WASHER) M2X10

105 UN7290001 1MOTOR HARNESS ASSY

106 UN7291001 1THERMAL HEAD HARNESS ASSY

107 UN7414000 1PAPER GUIDE

108 UN7415001 1CAUTION LABEL, (EXCEPT KOREA) CHNG

108 LB0839001 1HEAD CAUTION LABEL KOREAN, (KOR) ADD

109 060300506 1SCREW, BIND M3X5

110 UN7900000 1FREE BUSH 50

111 UN7901000 1FREE BUSH 15

112 UN7902000 1FREE BUSH 70

113 UN7903000 4FASTENING BAND L100

114 UN7904001 1PAPER EJECT ROLLER UNIT

115 087310816 2TAPTITE, CUP B M3X8

116 UN7229000 2BEARING

117 UN7230001 1FILM GUIDE, BLACK010

118 UN7981001 1FLASH CAUTION LABEL, (EXCEPT KOREA) CHNG

118 LB0840001 1FLASH CAUTION LABEL KOREAN, (KOR) ADD

119 UN7986001 1FLASH CAUTION LABEL EU, (EXCEPT AUS/HKG/KOR) CHNG

120 UN7152000 1ADJUSTING JIG

121 UN7937000 1GREASE G501, 1KG

122 LB0264001 1PAPER EJECT ROLLER SPRING

MODEL SC-2000 EU/AUS/HKG/KOR 5V5-641-045

-5-

MODEL SC-2000 EU/AUS 5V5-641-061

2 . COVERS PT2000001

-6-

2 . COVERS PT2001004

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1UN7292001 1BODY COVER, WHITE1397

2UT7030001 1BOTTOM COVER EU, WHITE1397

3UL5600001 6RUBBER FOOT

4UN7294001 1CONTROL PANEL

5UN7295001 1SLIDE LEVER, WHITE1397

6UN7297000 1CONTROL PANEL PCB HOLDER

7 060300506 1 SCREW, BIND M3X5

8 085311216 7 TAPTITE, BIND B M3X12

9 085310816 4 TAPTITE, BIND B M3X8

10 UN7401000 1PS PCB SHIELD PLATE

11 UN7408001 1EJECT COVER, WHITE1397

12 UN7411000 1SHIELD PLATE

13 UN7418001 1BODY COVER US LABEL A

14 UN7419001 1BODY COVER US LABEL B

15 0A4400806 4SCREW, PAN (S/P WASHER) M4X8

16 060300506 1 SCREW, BIND M3X5

17 060300806 2 SCREW, BIND M3X8

18 087311216 10 TAPTITE, CUP B M3X12

19 UT7029001 1BODY COVER EU LABEL D, (EUROPE)

19 UN7952001 1BODY COVER US LABEL D, (AUS/HKG)

20 UH3297001 1C-TICK MARK, (AUS)

20 LJ4421001 1MARKING LABEL N/S, NOR/SWE

21 LB0416001 1BODY COVER EU LABEL E, (EUROPE/AUS,HKG) CHNG

MODEL SC-2000 EU/AUS/HKG/KOR 5V5-641-061

-7-

MODEL SC-2000 5V5-641-101

3 . MAIN PCB
