Brother HL-1070 Bedienungsanleitung

Apr., '98

54U011BE0

PARTS REFERENCE LIST

MODEL:HL-1070

LASER PRINTER

NOTE FOR USING THIS PARTS REFERENCE LIST

1. In the case of ordering parts, it needs mentioning the following items:

(1) Code

(2) Q'ty

(3) Description

(4) Symbol ( PCB No., Revision , and Parts location mounted on the PCB.)

Note : No orders without Parts Code or Tool No. can be accepted.

< Example >

REF.NO.

CODE

Q’TY

DESCRIPTION

SYMBOL

REMARK

Revision No.: marked on the printed circuit board.

B48K056 - 201A

2. Design-changed parts :

If the parts are changed, any one of the following symbols is indicated in the REMARKS

column.

#A : compatible between old and new

#B : replaceable from old to new

#D : incompatible

# : newly established

3. The original of this list was made based on the information available in April, 1998.

4. Parts are subject to change in design without prior notice.

(1)

(4)

(3)

(2)

Design change indication

Specification No .

Pattern alteration No.

Circuit board No.

CONTENTS

1. DRIVE UNIT ..........................................................................................1

2. SCANNER UNIT....................................................................................1

3. MP SHEET FEEDER.............................................................................3

4. PAPER FEED UNIT...............................................................................3

5. FIXING UNIT .........................................................................................5

6. COVERS ...............................................................................................7

7. MAIN PCB .............................................................................................5

8. DRIVER PCB.......................................................................................10

9. POWER SUPPLY PCB........................................................................10

10. HIGH VOLTAGE POWER SUPPLY....................................................12

11. AC CORD............................................................................................12

12. ACCESSORIES...................................................................................14

13. PACKING MATERIALS.......................................................................14

1. DRIVE UNIT

REF.NO. CODE Q'TY DESCRIPTION REMARK

1UH3302001 1DRIVE UNIT Y (SP)

2UH3031000 1REGIST SOLENOID LEVER

3UH3032001 1REGIST SOLENOID

4UH3033001 1REGIST SOLENOID SPRING

5060300605 4SCREW, BIND M3X6

6060300605 4SCREW, BIND M3X6

7UH3036001 1MAIN MOTOR ASSY

8085320516 4TAPTITE, BIND S M3X5

9UH3037000 2GROUND PLATE SPRING

10 UH3038000 1STATIC REMOVAL PLATE SPRING

11 UK3584001 1MAIN MOTOR HARNESS ASSY

12 UH3040000 1HEATER HARNESS HOOK

13 087411215 6TAPTITE, CUP B M4X12

14 UH3046000 2PLATE SPRING FILM

15 UH3047000 2PLATE SPRING CAP

16 0A2300605 2SCREW, PAN (WASHER) M3X6B

MODEL HL-1070 54U-S03-010

2. SCANNER UNIT

REF.NO. CODE Q'TY DESCRIPTION SYMBOL REMARK

1-2 UH3301001 1SCANNER UNIT Y (SP) (B48K226)

1UL6614001 1S SHEET 1

2UL6615001 1S SHEET 2

3UK4221001 1TONER SENSOR PCB ASSY F B53K268

4087310815 2TAPTITE, CUP B M3X8

5UK3588001 1TONER SENSOR HARNESS ASSY

6085411215 3TAPTITE, BIND B M4X12

7UL6740001 1LASER CAUTION LABEL (EUR)

8UL6741001 1TONER CAUTION LABEL

MODEL HL-1070 54U-S03-020

- 1 -

13 13

1-2

MODEL HL-1070 54U-S03-010

1. DRIVE UNIT

MODEL HL-1070 54U-S03-020

2. SCANNER UNIT

- 2 -

3. MP SHEET FEEDER

REF.NO. CODE Q'TY DESCRIPTION REMARK

1UH3303001 1MP SHEET FEEDER 1 ASSY Y (SP)

1-1 UH3314001 1MP FEEDER 1 COVER ASSY HY (SP)

1-2 UH3078001 1PICK-UP ROLLER COVER 1, GRAY1227

1-3 UH3074001 1P PICK-UP ROLLER SHAFT ASSY Y

1-4 UH3077001 1REGIST SENSOR ACTUATOR 1Y

1-5 UD4742001 1REGIST SENSOR ACTUATOR FILM

2UH3304001 1MP SHEET FEEDER 2 ASSY Y (SP)

2-1 UD4344001 1MP FEEDER 2 COVER HY

2-2 UH3104001 1PICK-UP ROLLER COVER 2, GRAY1227

2-3 UH3074001 1P PICK-UP ROLLER SHAFT ASSY Y

MODEL HL-1070 54U-S03-040/041

T/I NO. PR98062

4. PAPER FEEDER UNIT

REF.NO. CODE Q'TY DESCRIPTION REMARK

1-10 UH3305001 1PAPER FEED UNIT Y (SP)

1UH3154001 1REGIST SENSOR ACTUATOR 2 YL

2UH3140001 1REGIST SENSOR LINK, BLACK

3UH3141001 1SPRING, EXTENSION

4UL6933001 1PAPER DUST REMOVING BRUSH S

5UH3145000 2PAPER PICK-UP SOLENOID LEVER

6087270815 2TAPTITE, CUP B M2.6X8

7UH3146001 1PAPER PICK-UP SOLENOID ASSY 1

8UH3147001 1PAPER PICK-UP SOLENOID ASSY 2

9087310815 2TAPTITE, CUP B M3X8

10 085411416 4TAPTITE, BIND B M4X14

11 085411216 2TAPTITE, BIND B M4X12

MODEL HL-1070 54U-S03-042

- 3 -

1-1

1-3 (2-3)

2-2

1-4

1-2

2-1

1-10

11 1

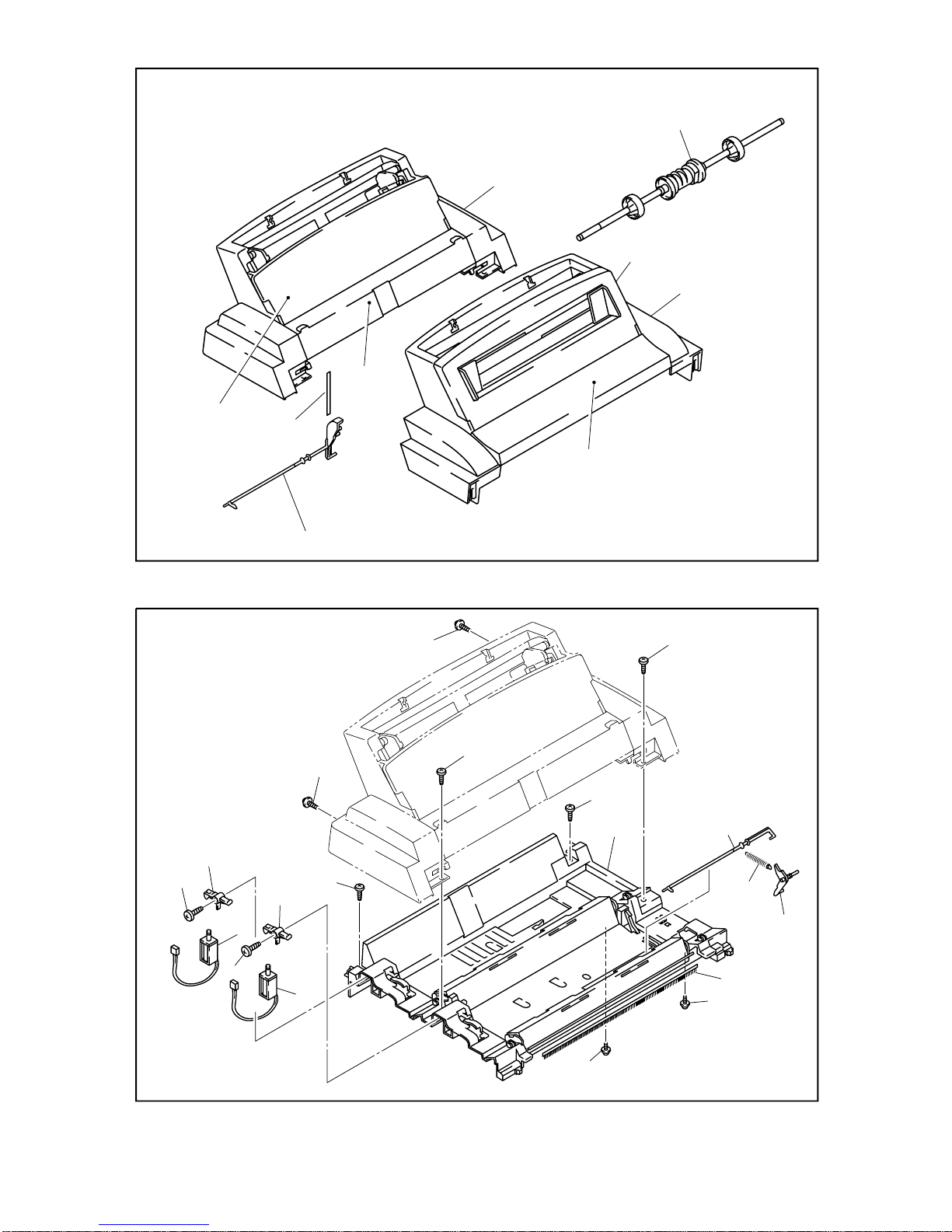

MODEL HL-1070 54U-S03-040/041

3. MP SHEET FEEDER

MODEL HL-1070 54U-S03-042

4. PAPER FEEDER UNIT

- 4 -

T/I NO. PR98062

1-5

5. FIXING UNITS

REF.NO. CODE Q'TY DESCRIPTION REMARK

1-9 UH3164001 1FIXING UNIT Y, 120V (SP)

1-9 UH3165001 1FIXING UNIT Y, 230V (SP)

1UH3306001 1HALOGEN LAMP Y, 120V (SP)

1UH3307001 1HALOGEN LAMP Y, 230V (SP)

2087411616 2TAPTITE, CUP B M4X16

3UH3196001 1THERMISTOR ASSY Y

4UH3188001 1CLEANER ASSY Y

5UH3178000 2H/R BEARING Y

6UH3419001 1HEAT ROLLER YS ASSY (SP)

7087311415 1TAPTITE, CUP B 3X14

8UH3323001 4EJECT PINCH ROLLER ASSY

9UL6682001 4PINCH SPRING

MODEL HL-1070 54U-S03-050/051

T/I NO. PR98292

7. MAIN PCB

REF.NO. CODE Q'TY DESCRIPTION SYMBOL REMARK

1UK3950001 1MAIN PCB ASSY B48K302-100C

2UH3542001 1CONDUCTIVE TAPE

MODEL HL-1070 54U-S03-101

T/I NO. PR98108

- 5 -

MODEL HL-1070 54U-S03-050/051

5. FIXING UNITS

MODEL HL-1070 54U-S03-101

7. MAIN PCB

- 6 -

1-9

T/I NO. PR98292

6. COVERS

REF.NO.

CODE Q'TY DESCRIPTION SYMBOL REMARK

1 087310815 1 TAPTITE, CUP B M3X8

2 087310815 1 TAPTITE, CUP B M3X8

3 087310815 2 TAPTITE, CUP B M3X8

4 087310815 2 TAPTITE, CUP B M3X8

5UL6721000 1LOCK LEVER

6UL6722001 1SPRING, COMPRESSION

7UH3244001 1SPRING, PR LOCK Y

8UH3207001 1PAPER EJECT ACTUATOR, BLACK

9UH3208000 1SENSOR LEVER

10 UH3245001 1SPRING,LEVER

11 UK3432001 1EL PCB UNIT Y B48K228

12 UH3245001 1SPRING,LEVER

13 UH3242001 1INTERLOCK LEVER

14 UK3632001 1RELAY PCB ASSY B48K282

15 UK4214001 1RELAY HARNESS ASSY

16 UK3633001 1TRANSFER PCB ASSY B48K283

18 UH3210001 1FAN MOTOR 80

19 UH3211000 1FAN HOLDER

20 083313515 2 TAPTITE, PAN B M3X35

21 085411215 1 TAPTITE, BIND B M4X12

22 UK3631001 1CONTROL PANEL PCB ASSY B48K281

23 UK3586001 1SW PANEL HARNESS ASSY

24 UH3212001 1REGIST SENSOR ACTUATOR,

BODY BLACK

25 UH3237001 1REGIST SENSOR SPRING

26 UH3213000 1GEAR COVER

27 087310815 4 TAPTITE, CUP B M3X8

28 UH3215001 1DENSITY DIAL Y, GRAY1252

29 UH3216000 1BASE PLATE

30 UH2208001 4RUBBER FOOT

31 085411215 1 TAPTITE, BIND B M4X12

32 085411215 1 TAPTITE, BIND B M4X12

33 085411215 1 TAPTITE, BIND B M4X12

34 085411215 5 TAPTITE, BIND B M4X12

35 0A5350605 1SCREW, PAN (S/P WASHER) M3.5X6

36 087320616 4 TAPTITE, CUP S M3X6

37 UF3043001 1TAPTITE, PAN (WASHER) 3X6DB

38-38 UH3651001 1I/F SHIELD ASSY

38 002300616 2 SCREW, PAN M3X6

39 087320616 2 TAPTITE, CUP S M3X6

40 002400616 4 SCREW, PAN M4X6

41 UH3219001 1TOP COVER

42 UH3313001 1OUTPUT TRAY ASSY (SP)

43 UH3401000 1EXTENSION SUPPORT WIRE LTR

43 UH3250000 1EXTENSION SUPPORT WIRE A4

44 UH3654001 1MODEL PLATE, HL-1070

45 UH0905001 1PATENT LABEL, US/CSA

47 UH3659001 1MYLAR LABEL, HL-1070 US

47 UH3660001 1MYLAR LABEL, HL-1070 CAN

47 UH3536001 1MYLAR LABEL, HL-1070 EUR

48 UH3225001 2PAPER SETTING LABEL Y

49 UH3227001 1PANEL COVER, GRAY1227

50 UH3228000 1PANEL RIGHT GUIDE Y

MODEL HL-1070 54U-S03-060

- 7 -
