LaserPrinterHL-1270N

Quick Network Setup Guide

PLEASENOTE:Beforeyouattempttoconfigurethenetworksettingsof

theprinterfollowtheinstructionsintheprinterQuickSetupGuideonhow

toinstallthedrumunit,papercassette,printerdriveretc.

BrotherrecommendsthatyouuseaCategory5UTP(unshieldedtwisted

pair10BaseT/100BaseTX)cablewhenconnectingtheHL-1270Ntoyour

network.

RESERVED

WindowsandWindowsNTareregisteredtrademarksofMicrosoftCorporationintheU.S.andothercountries.HP,HP/UX,JetDirectand

JetAdminaretrademarksofHewllet-PackardCompany.UNIXisatrademarkofUNIXSystemsLaboratories.PostScriptistrademarkof

AdobeSystemsIncorporated.NetwareisatrademarkofNovell,Inc.AppleMacintosh,iMac,LaserWriter,andAppleTalkare

trademarksofAppleComputer,Inc.BRAdmin32aretrademarkofBrotherIndustries,Ltd.

AllotherbrandandproductnamesmentionedinthisQuickNetworkSetupGuideanduser'sguideareregisteredtrademarksortrademarks

ofrespectivecompanies.

Table of Contents

TableofContents

ConnectingtoyourNetwork

Whereyoushouldlookforinformationinthe

NetworkUser’sGuide

Troubleshooting

Connecting to your Network

Step 1: Connect the Ethernet Cable

1. Turn the printer power off.

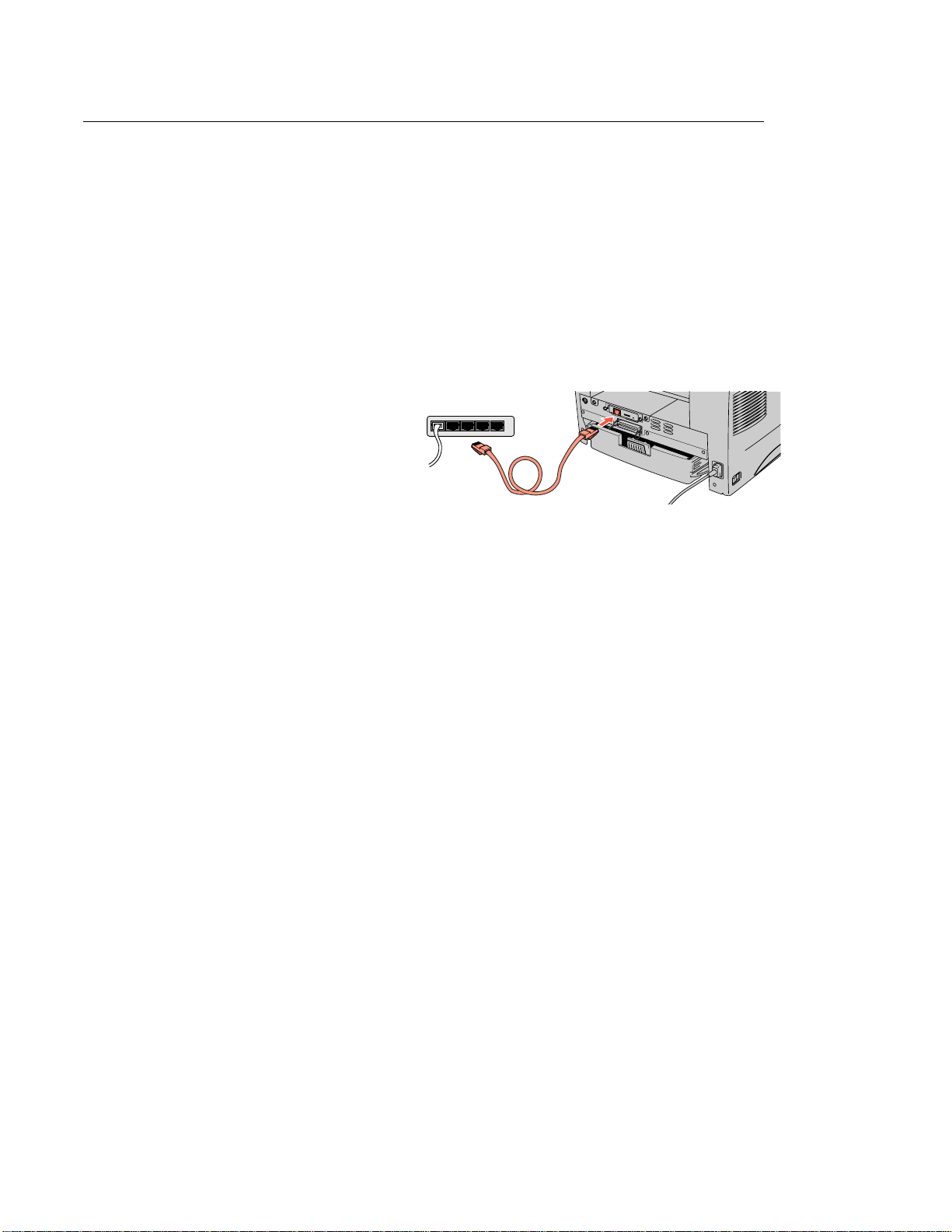

2. Connect one end of the Ethernet

cable to the 10/100Base TX port of

the HL-1270N.

Hub

3. Connect the other end of your

Ethernet cable to a free port on your

Ethernet hub.

4. Turn the printer power on.

Step 2: Installing the BRAdmin32: Configuration utility

(For Windows 95/98/NT 4.0 users only)

Note: If you use another operating system, refer to the Network User’s Guide on the

supplied CD-ROM.

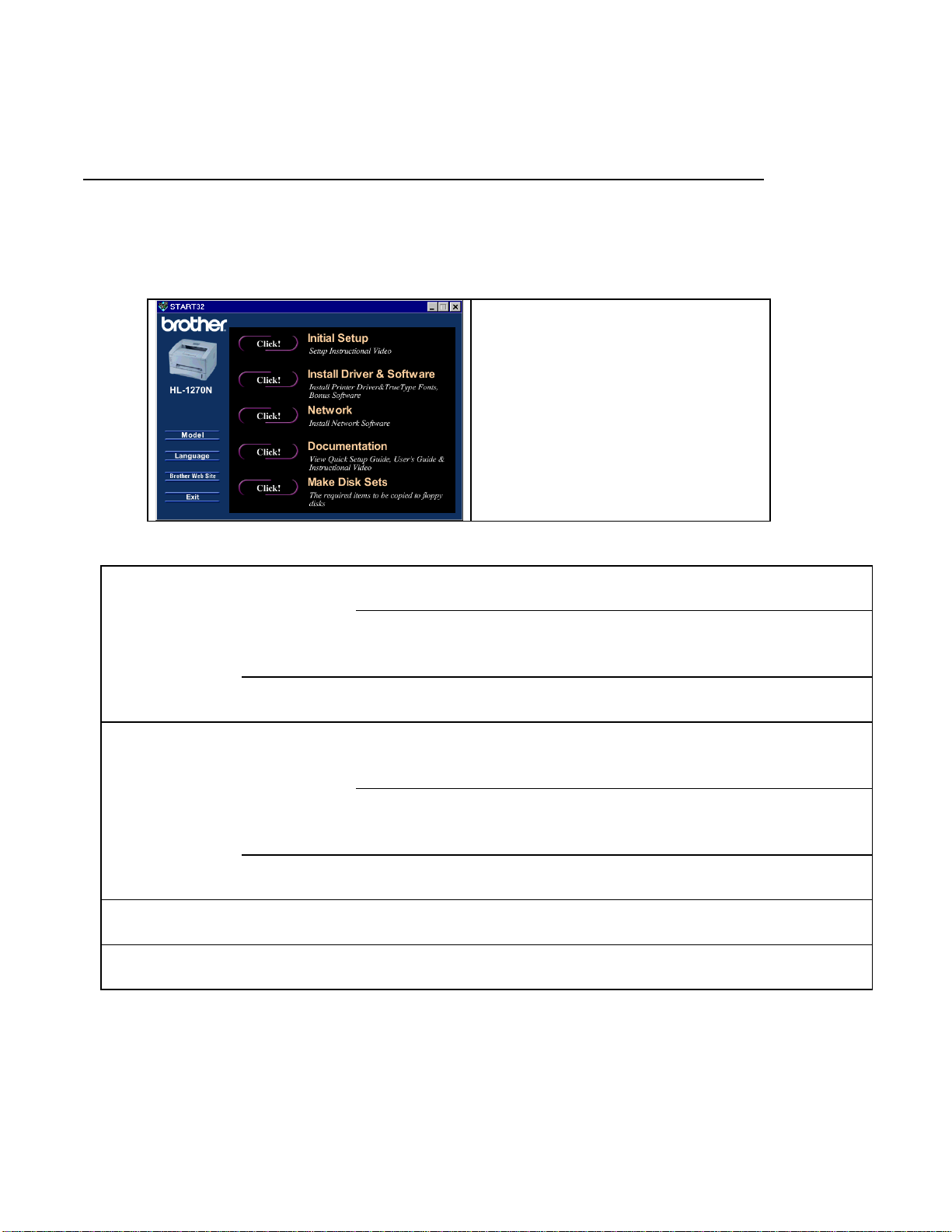

1. Insert the supplied CD-ROM into

your CD-ROM drive.

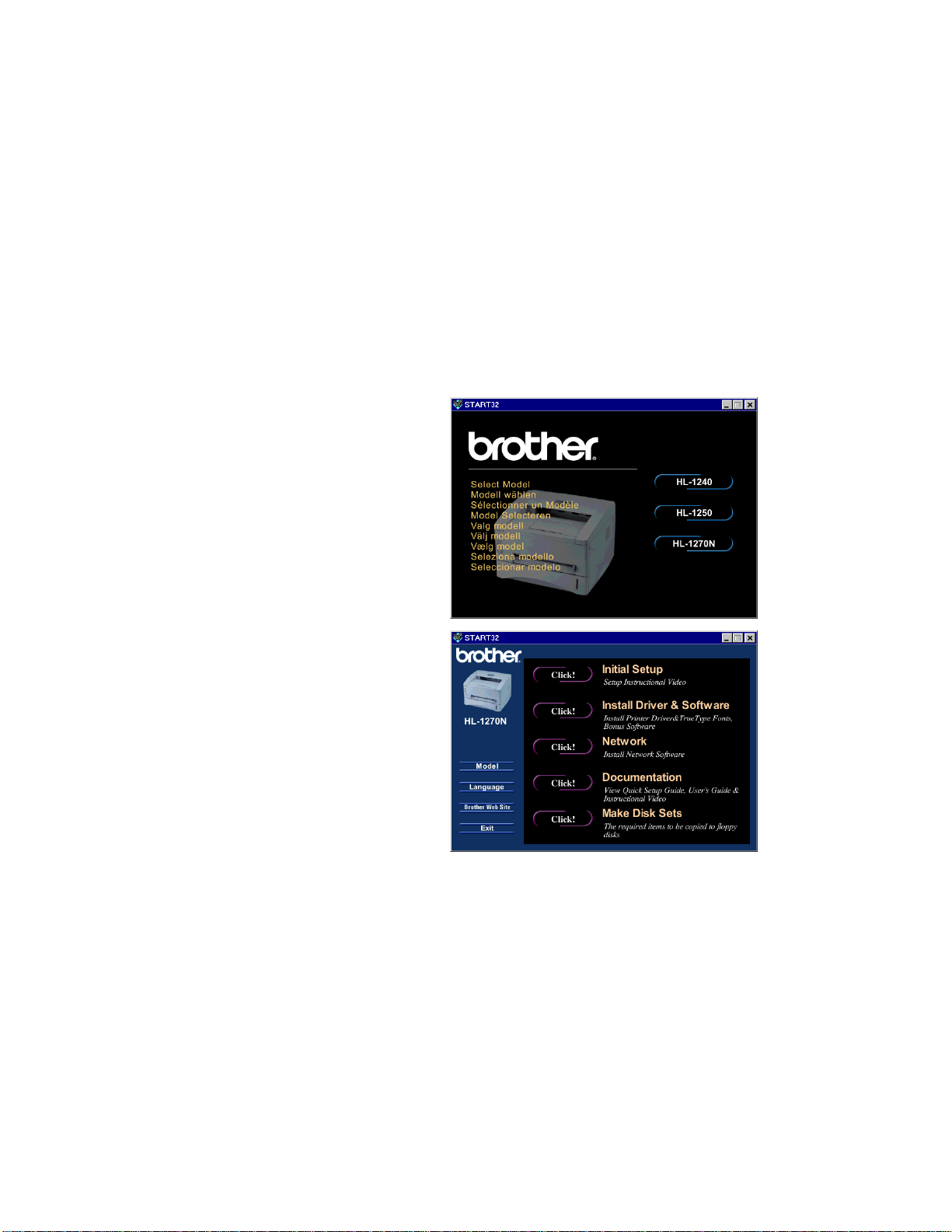

2. Select the HL-1270N model button

and follow the on-screen instructions.

3. The BRAdmin32 utility will then be

installed onto your computer. When

the software is installed, re-boot your

computer.

4. The Troubleshooting information

table on the right contains further

configuration details.

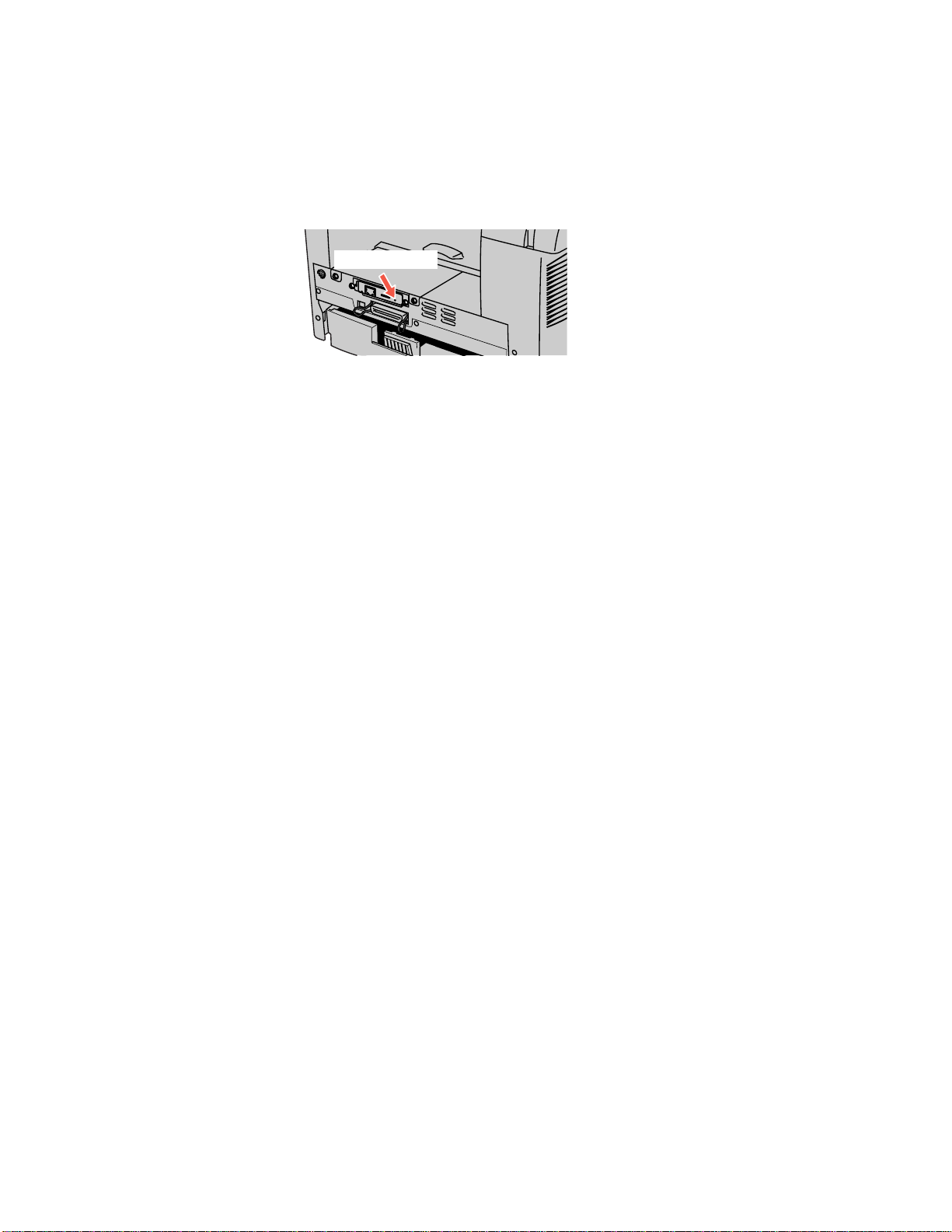

Print Configuration page

Press the Network Test Button for less than 5 seconds to print a configuration page.

Test Button

Factory default setting

If you wish to reset the print server back to its default factory settings (resetting all

information such as the password and IP address information), hold down the Network

Test Button for more than 5 seconds.

Where you should look for information in the

Network User’s Guide

How to refer to the User’s Guide

On the CD-ROM screen, click the

Documentation button.You can refer

to the User’s Guide for more

information.

Windows 95/98 Peer-to-Peer TCP/IP Chapter 3 : How to Configure Peer-to-Peer Printing

for Windows 95/98

NetBIOS Chapter 4 : How to Configure NetBIOS printing for

Windows 95/98/NT, LAN Server and

OS/2 Warp Server

Netware IPX/SPX Chapter 6 : How to Configure Novell Netware

printing using IPX/SPX

Windows NT

(3.5x or 4.0) Peer-to-Peer TCP/IP Chapter 2 : How to Configure TCP/IP Printing for

Windows NT, LAN Server and OS/2

Warp Server

NetBIOS Chapter 4 : How to Configure NetBIOS printing for

Windows 95/98/NT, LAN Server and

OS/2 Warp Server

Netware IPX/SPX Chapter 6 : How to Configure Novell Netware

printing using IPX/SPX

UNIX TCP/IP Chapter 1 : How to Configure TCP/IP Printing for

UNIX Systems

Macintosh AppleTalk Chapter 7 : How to Configure Macintosh printing

using AppleTalk

LAN Server

OS/2 Wrap

Server

TCP/IP Chapter 2 : How to Configure TCP/IP Printing for

Windows NT, LAN Server and OS/2

Warp Server

NetBIOS Chapter 4 : How to Configure NetBIOS printing for

Windows 95/98/NT, LAN Server and

OS/2 Warp Server

Brother Internet

Print TCP/IP Chapter 5 : How to Configure Brother Internet Print

for Windows 95/98/NT

Web Browser

Management

Function

TCP/IP Chapter 8 : How to use the Web based management

function

Troubleshooting

1.Make sure that the printer is powered on, is on-line and ready to print.

2.Check the printer settings by printing the configuration page.

3.If you are still unable to print, check the following:

a.Verify that the cabling and network connection are good. If possible, try connecting

the printer to a different port of your hub using a different piece of cabling.

b.Check the configuration page and look at the Network STATISTICS information to

see if bytes are being transmitted or received. If the values do not increase, your

printer is not receiving or transmitting any data, which suggests a possible network

cable/hub or printer problem.

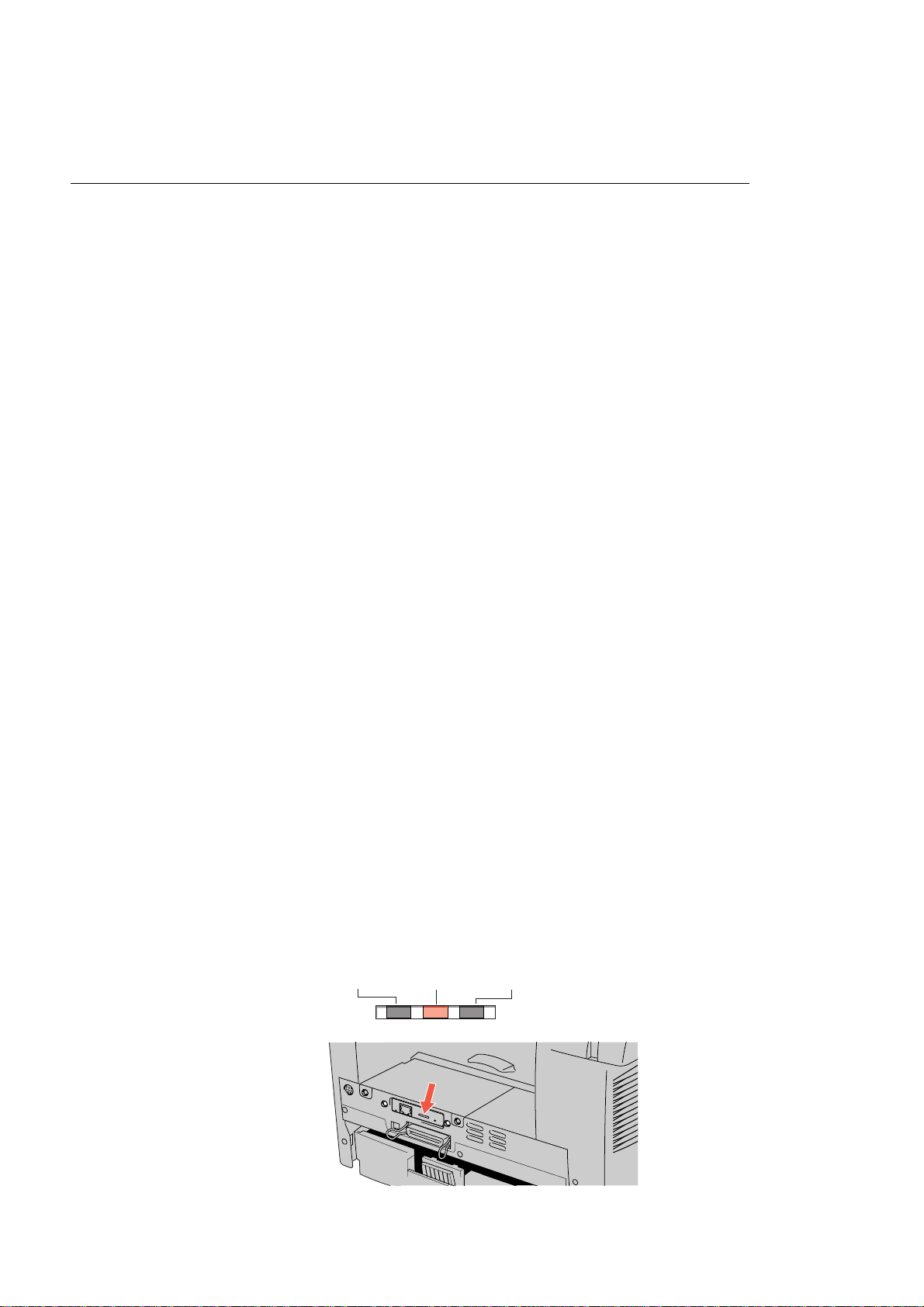

c.Check to see if there is any LED activity. The print server has three LEDs. These

can be used to diagnose problems.

L-LED (green): Link activity

This LED is on if there is a valid connection to the network (either 10BaseT or

100BaseTX). It is off if no network is detected.

F-LED (orange): Fast Ethernet

This LED will be on if the print server is connected to a 100BaseTX Fast Ethernet

network. It is off if the print server is connected to a 10BaseT network.

A-LED (green): Transmission Activity

This LED will blink as the print server receives or transmits data.

L-LED

(green)

F-LED

(orange)

A-LED

(green)
