PARTS REFERENCE LIST
MODEL:HL-2400C
R
COLOR LASER PRINTER
Jan. '98
54S001BE0
NOTE FOR USING THIS PARTS REFERENCE LIST
1. In the case of ordering parts, it needs mentioning the following items:
(1) Code
(2) Q'ty
(3) Description
(4) Symbol ( PCB No., Revision , and Parts location mounted on the PCB.)
Note : No orders without Parts Code or Tool No. can be accepted.
< Example >
REF.NO. CODE Q’TY DESCRIPTION SYMBOL REMARK
Revision No.: marked on the main printed circuit board.
B48K056 - 201A
Revision No.: marked on the power supply PCB.
Rev: 0B
2. Design-changed parts :
If the parts are changed, any one of the following symbols is indicated in the REMARKS
column.
#A : compatible between old and new
#B : replaceable from old to new
#D : incompatible
# : newly established
3. The original of this list was made based on the information available in November, 1997.
4. Parts are subject to change in design without prior notice.
(1) (4)
(3)
(2)
Design change indication
Specification No .
Pattern alteration No.
Circuit board No.
Design change indication
CONTENTS
1. DRIVE...................................................................................................1
2. FRAME..................................................................................................3
3. SCANNER UNIT...................................................................................5
4. MEDIA CASSETTE...............................................................................5
5. TRANSFER UNIT.................................................................................7
6. PAPER EXIT UNIT................................................................................7
7. FUSING UNIT.......................................................................................9
8. MAIN PCB.............................................................................................9
9. COVER...............................................................................................11
10.MCTL PCB..........................................................................................13
11.IOD PCB.............................................................................................13
12.POWER SUPPLY PCB.......................................................................15
13.HIGH VOLTAGE POWER SUPPLY....................................................15
14.AC CORDS.........................................................................................17
15.ACCESSORIES..................................................................................17
16.PACKING MATERIALS.......................................................................19
17.PERIODICAL REPLACEMENT PARTS..............................................19
HL2400CPL
1. DRIVE
REF.NO.
CODE Q'TY DESCRIPTION REMARK
1UH3500001 1MAIN MOTOR
2UH1941001 1MAIN GEAR UNIT
3UH1942001 1DEVELOPER DRIVE MOTOR
4UH1943001 1DEVELOPER DRIVE UNIT
5UH3494001 1PAPER FEEDING CLUTCH
6UH3495001 1REGISTRATION CLUTCH
7UH3496001 1FUSER CLUTCH
8UH3497001 5DEVELOPER CLUTCH
9UH3498001 1TRANSFER SOLENOID
10 UH3499001 1DRUM CLEANER SOLENOID
MODEL HL-2400C 54S-301
-1-
-2-

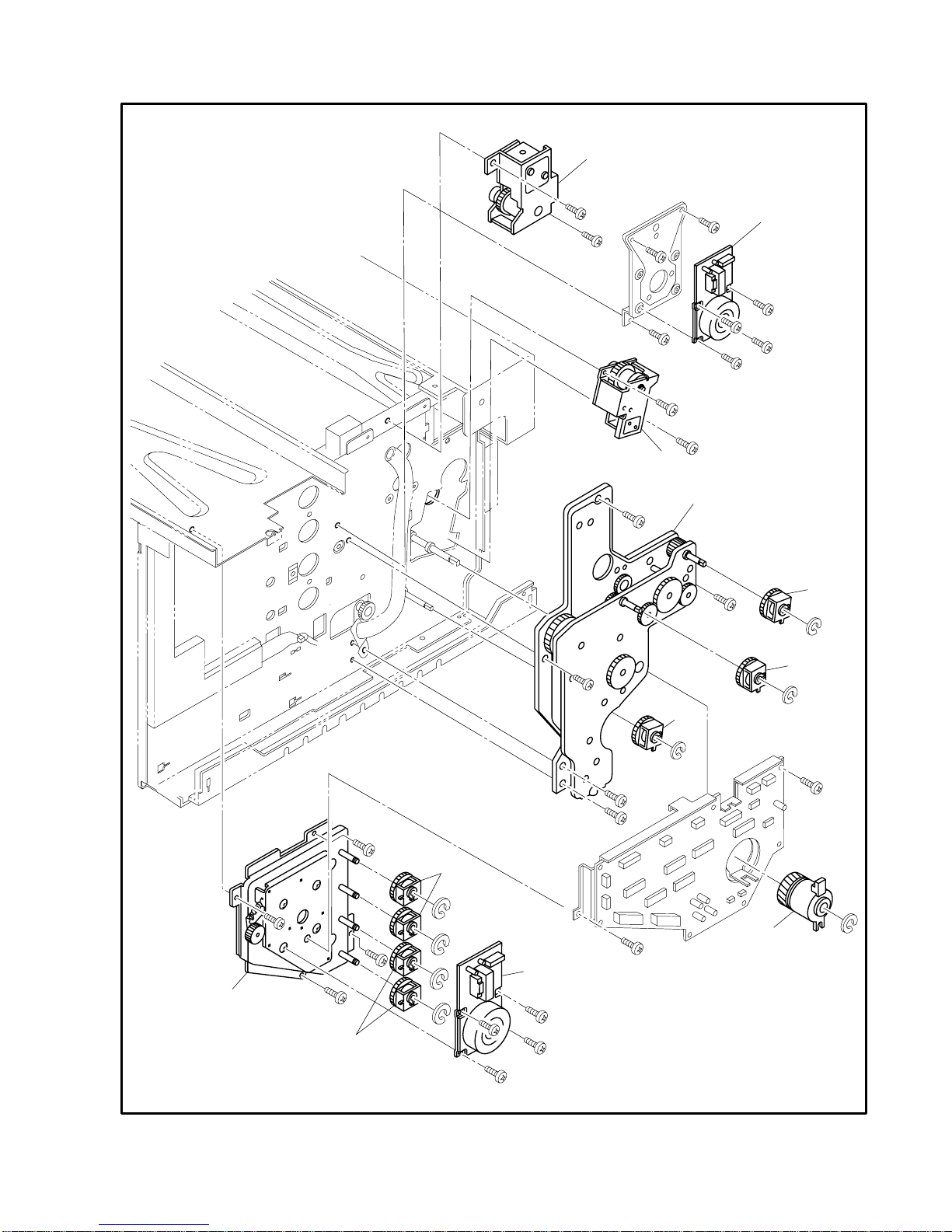

1 . DRIVE
MODEL HL-2400C 54S-301
1
9
2
43
5
7
8
8
6
8
10
HL2400CPL
2. FRAME
REF.NO. CODE Q'TYDESCRIPTION REMARK
1UH1944001 2COOLING FAN MOTOR
2UH1946001 3INTERLOCK SWITCH
3UH1947001 1PAPER SIZE SENSOR
4UH1948001 4PAPER SENSOR
5UH1949001 2BELT SENSOR
6UH1950001 1TONER SENSOR ASSY
7UH1996001 1OHP SENSOR
8UH3469001 1WASTE TONER FEEDER (U)
9UH3483001 1DRUM CLEANER
10 UH3484001 1TRANSFER DRUM
11 UH3485001 1PAPER FEEDING ROLLER
12 UH3486001 1SEPARATOR PAD
13 UH3487001 1ERASE LAMP
14 UH3488001 1OIL SENSOR
15 UH3492001 1FUSER CONNECTOR
MODEL HL-2400C 54S-301
T/I NO. PR98003
-3-
6
-4-

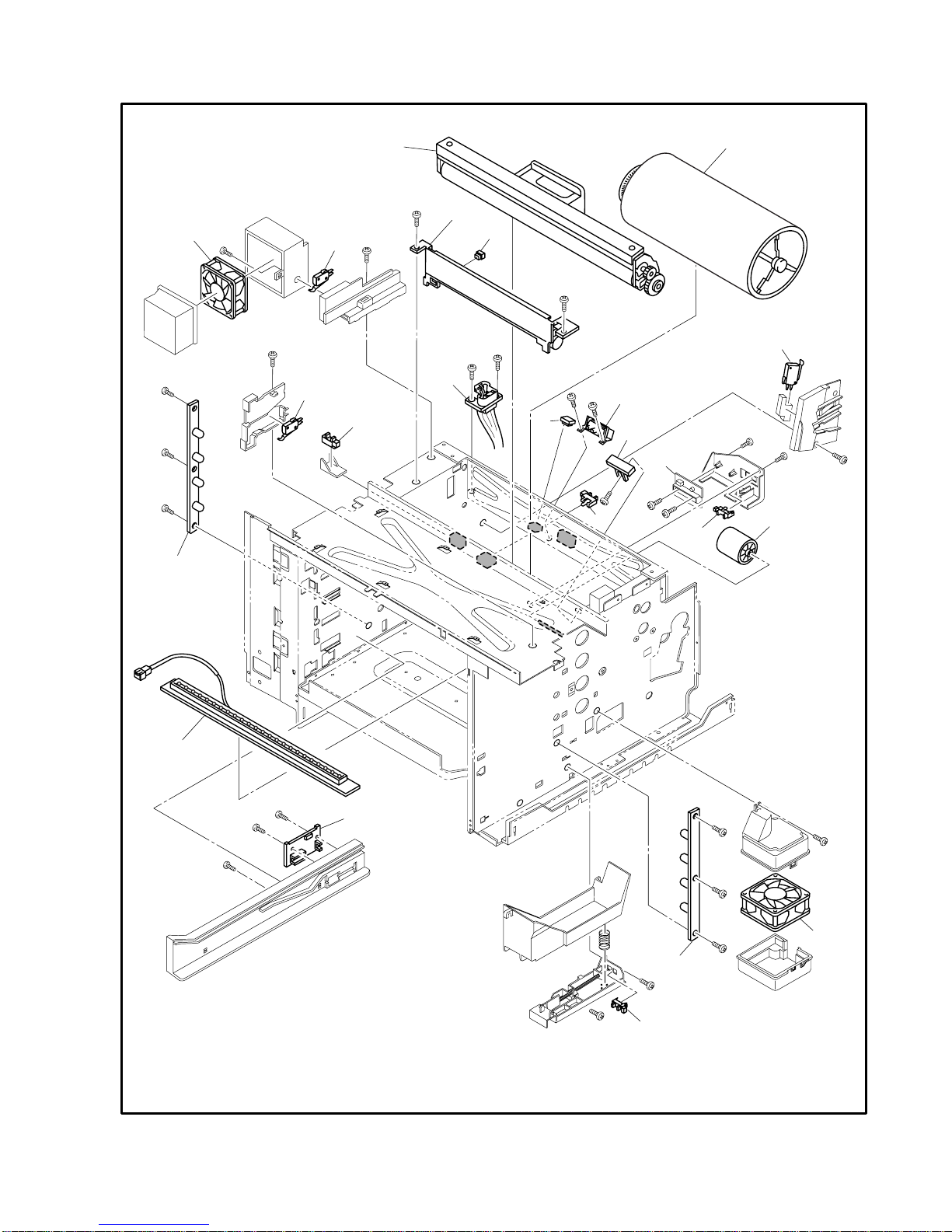

2 . FRAME
MODEL HL-2400C 54S-301
10
13
8
9
2
24
11
12
14
5
7
4
4
15
5
1
2
3
4
1
6
HL2400CPL
3. SCANNER UNIT
REF.NO.
CODE Q'TY DESCRIPTION REMARK
1UH3482001 1OPTICAL UNIT
MODEL HL-2400C 54S-301
4. MEDIA CASSETTE
REF.NO.
CODE Q'TY DESCRIPTION REMARK
1UH3493001 1PAPER CASSETTE
MODEL HL-2400C 54S-301
-5-
-6-
MODEL HL-2400C 54S-301
4 . MEDIA CASSETTE
3 . SCANNER UNIT
1
1
MODEL HL-2400C 54S-301
HL2400CPL
5. TRANSFER UNIT
REF.NO. CODE Q'TYDESCRIPTION REMARK
1UH3547001 1TRANSFER UNIT2
1-1 UH3480001 1TRANSFER ROLLER
1-2 UH3548001 1PAPER DISCHARGER2
MODEL HL-2400C 54S-301
T/I NO. PR98173
6. PAPER EXIT UNIT
REF.NO. CODE Q'TYDESCRIPTION REMARK
1UH3459001 1PAPER EXIT UNIT
1-1 UH3460001 1PAPER EXIT UNIT COVER
1-2 UH3461001 1PAPER EXIT FRONT COVER
1-3 UH3462001 1PAPER EXIT ROLLER
1-4 UH3463001 1DISCHARGING BRUSH
1-5 UH1994001 1COOLING FAN MOTOR
1-6 UH1948001 2PAPER SENSOR
MODEL HL-2400C 54S-301
-7-
