PARTS REFERENCE LIST

MODEL:LW-810icBL

REVISED EDITION

NOTES FOR USING THIS PARTS REFERENCE LIST

1. In the case of ordering parts, it needs mentioning the following items:

(1) Code

(2) Q'ty

(3) Description

(4) Symbol (PCB No., Revision , and Parts location mounted on the PCB.)

Note : No orders without Parts Code or Tool No. can be accepted.

[ Example ]

(4) (1) (2) (3)

REF. NO. SYMBOL CODE Q’TY DESCRIPTION REMARKS

Revision No. : marked on the printed circuit board.

B48J300 - 101 A

Design change indication

Specification No.

Pattern alteration No.

Circuit board No.

2. Design-changed parts:

When the parts are changed, any one of the following symbols is indicated in the REMARKS column.

CHNG#A : compatible between old and new

CHNG#B : replaceable from old to new

CHNG#D : incompatible

ADD : newly established

3. The original of this list was made based on the information available in February, '98.

4. Parts are subject to change in design without prior notice.

CONTENTS

1 . PRINT HEAD ASSEMBLY........................................................................1

2 . CHASSIS ATTACHMENTS.......................................................................3

3 . COVERS ..................................................................................................7

4 . DETECTOR SWITCHES..........................................................................9

5 . AC ADAPTER.........................................................................................11

6 . MAIN PCB.............................................................................................13

7 . POWER SUPPLY PCB...........................................................................17

8 . LCD........................................................................................................19

9 . FLOPPY DISK DRIVE ............................................................................21

10 . ACCESSARY........................................................................................23

11 . PRINTED MATTERS............................................................................25

12 . PACKING MATERIALS.........................................................................27

13 . KEYBOARD UNIT(LIST).......................................................................29

13-1 . KEYBOARD UNIT/GERMAN.............................................................31

13-2 . KEYBOARD UNIT/UK........................................................................32

13-3 . KEYBOARD UNIT/FRENCH..............................................................33

13-4 . KEYBOARD UNIT/HOLLAND............................................................34

13-5 KEYBOARD UNIT/SWISS.................................................................35

13-6 . KEYBOARD UNIT/BELGIAN .............................................................38

1MODEL LW810icBL 53T-411-017

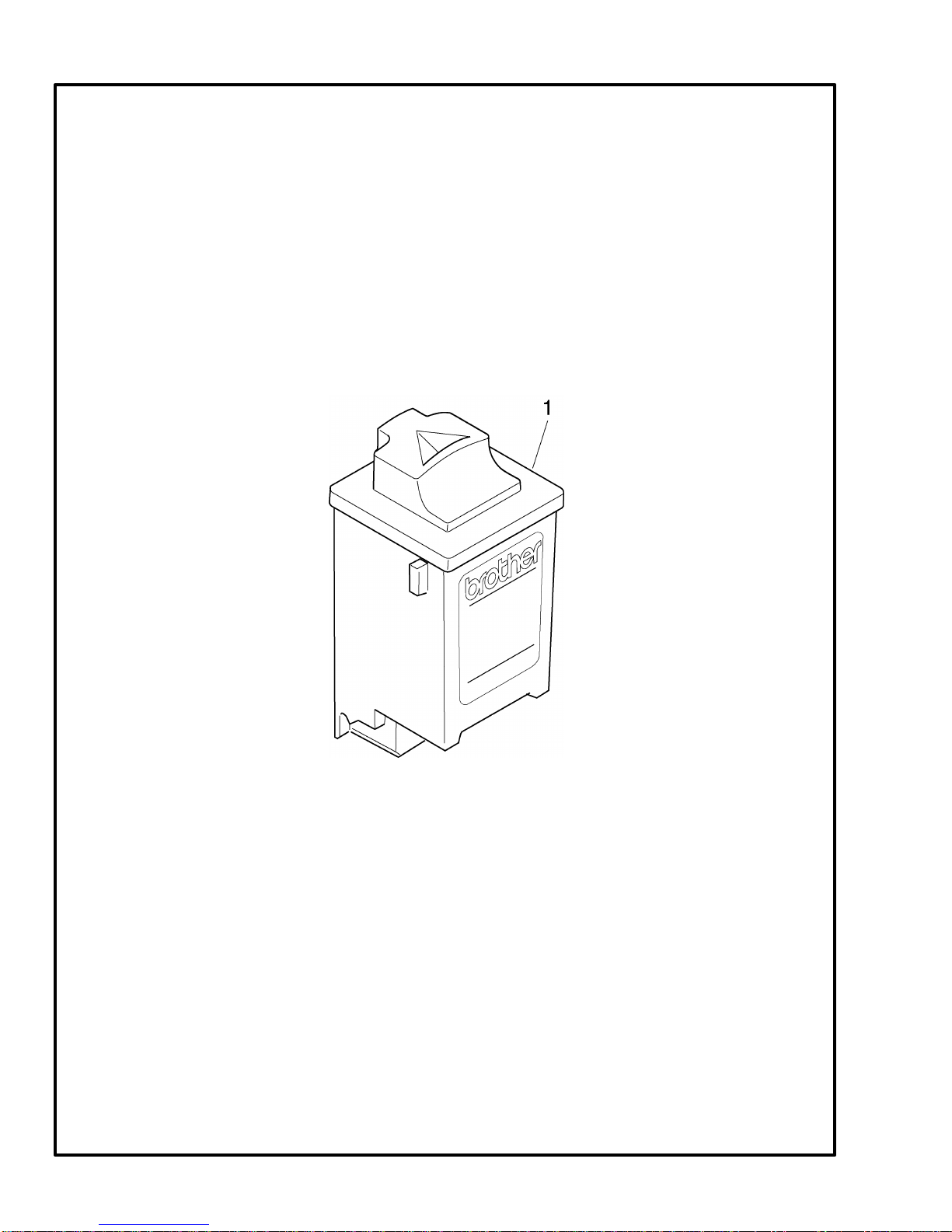

1 . PRINT HEAD ASSEMBLY

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1US3362001 1PRINT HEAD ASSY 2, MONO

1US3363001 1PRINT HEAD ASSY 2, COLOR

MODEL LW-810icBL 53T-411-017

3MODEL LW810icBL 53T-411-033

2 . CHASSIS ATTACHMENTS

4MODEL LW810icBL 53T-411-033

2 . CHASSIS ATTACHMENTS

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1-54 US2886001 1PF UNIT

1US2887001 1PF BASE ASSY

2US2970001 1PE SENSOR

3US2971001 1SENSOR HARNESS

4US2890001 1PF STOPPER

5US2891001 1STOPPER SPRING

6US2892001 1PF MOTOR FRAME ASSY

7US3198001 1PF MOTOR

8 000300515 2 SCREW, BIND M3X5

9U06923001 1TAPTITE, BIND B M3X10

10 085312015 1 TAPTITE, BIND B M3X20

11 US2898001 1PF ROLLER ASSY

12 US2900000 1PF ROLLER GEAR

13 048040346 2 RETAINING RING, E4

14 US2902001 1SPRING R

15-16 US2903001 1CHANGE LEVER 2 ASSY

15 US2904000 1CHANGE LEVER 2

16 US2905000 1IDLE GEAR 3

17 US2906000 1IDLE GEAR 2

18-20 US2907001 1CHANGE LEVER 1 ASSY

18 US2908000 1CHANGE LEVER 1

19 US2905000 1IDLE GEAR 3

20 US2909001 1WASHER, SPRING

21 US2910000 1IDLE GEAR 5

22 US2911000 1IDLE GEAR 6

23 US2912000 1IDLE GEAR 1

24 048030346 1 RETAINING RING, E3

25-26 US2913001 1EJECT ROLLER ASSY

25 US2914001 1EJECT ROLLER SHAFT

26 US2915001 4EJECT ROLLER

27 US2916000 1EJECT ROLLER GEAR

28 US2925000 1HOLDER PLATE

29 US2926001 1ROLLER HOLDER R

30 US2927001 2ROLLER HOLDER M

31 US2928001 1ROLLER HOLDER L

32 US3153001 4PRESSURE ROLLER

33 US2929001 1PRESSURE ROLLER SPRING A

34 US2930000 1IDLE GEAR 4

35 US2931001 1ACF SHAFT ASSY

36 US2936001 1SPRING

37 US2937000 1ACF SHAFT STOPPER

38 U06923001 1TAPTITE, BIND B M3X10

39 US2938000 1ACF SHAFT LOCKER

40 US2939001 1LOCKER SPRING

41 US2940001 1RELEASE SHAFT

42 US2941021 1RELEASE LEVER, GRAY1251

43 US2942001 1RELEASE SPRING

44 US2944001 1FORM

45 US2945001 1SPACER

46 U06923001 1TAPTITE, BIND B M3X10

47-49 US2917021 1HOPPER ASSY

47 US2918021 1HOPPER, GRAY1251

48 US2919001 2SEPARATE PAD

49 US2923021 1PAPER GUIDE, GRAY1251

50 US2920001 1ACF CHANGE SHAFT

51 US2921021 1ACF CHANGE LEVER, GRAY1251

52 US2922001 1CHANGE SPRING

53 US2924001 2HOPPER SPRING

54 US3468001 3PRESSURE ROLLER SPRING B

55-73 US2946001 1CA UNIT

55 US2947000 1CA FRAME

56 US2948001 1CARRIAGE ASSY

57 US2955001 1TIMING BELT

58 US2956001 1GUIDE SHAFT

59 US0727000 1MAIN SHAFT STOPPER

60 085280515 1 TAPTITE, BIND S M2.6X5

61 US2957001 1CA MOTOR

MODEL LW-810icBL 53T-411-033

2 . CHASSIS ATTACHMENTS

REF.NO. CODE Q'TY DESCRIPTION REMARKS

62 US0468001 1TAPPING SCREW, PAN S M3X6

63 US2959000 1IDLE PULLEY HOLDER

64 US2960000 1IDLE PULLEY

65 US2961001 1PULLEY HOLDER SPRING

66 U22702001 1SCREW, PAN (S/P WASHER) M3X10

67 US2962000 1FPC LOCKER

68 US2963001 1MS HOLDER ASSY

69 US0468001 1TAPPING SCREW, PAN S M3X6

70 US2965001 1STAR WHEEL HOLDER ASSY

71 US2972001 1LEAF SWITCH ASSY

72 US2973001 1LEAF SWITCH COVER

73 000261215 1 SCREW, BIND M2.6X12

74 US2969001 1EARTH SPRING

75 U06923001 2TAPTITE, BIND B M3X10

76 U08740001 2TAPTITE, BIND B M4X12

MODEL LW-810icBL 53T-411-033

7MODEL LW810icBL 53T-411-061

3 . COVERS
