Brunswick 51906535000 Installationsanleitung

ASSEMBLY

INSTRUCTION MANUAL

CORNER KICK

FOOSBALL TABLE

ITEM NO. 51906535000

REV.1 DATE: March 2021

1) Your table is designed for use indoor only. Damage can occur if the table is

exposed to water, dampness, high humidity, freezing temperatures, etc.

2) The foosball table is heavy. Two or more people are required for assembly.

3) Only use the table for its intended purpose.

4) Damaged or worn parts may be dangerous for users and the integrity of the table.

will void the warranty.

6) Check all screws, bolts, etc. on a regular basis to ensure that they are in good working

p.1

Please keep the balls, lubricant and other parts out of reach of children and pets.

9) Please use care when pushing or pulling the rods so people or objects nerby do not get

injured or damaged.

This is not a toy. Adult supervision is recommended when being used by children.

Congratulations! we hope you will have many hours to use

your new Foosball table and enjoy the pleasure it brings to

you!

Supplier

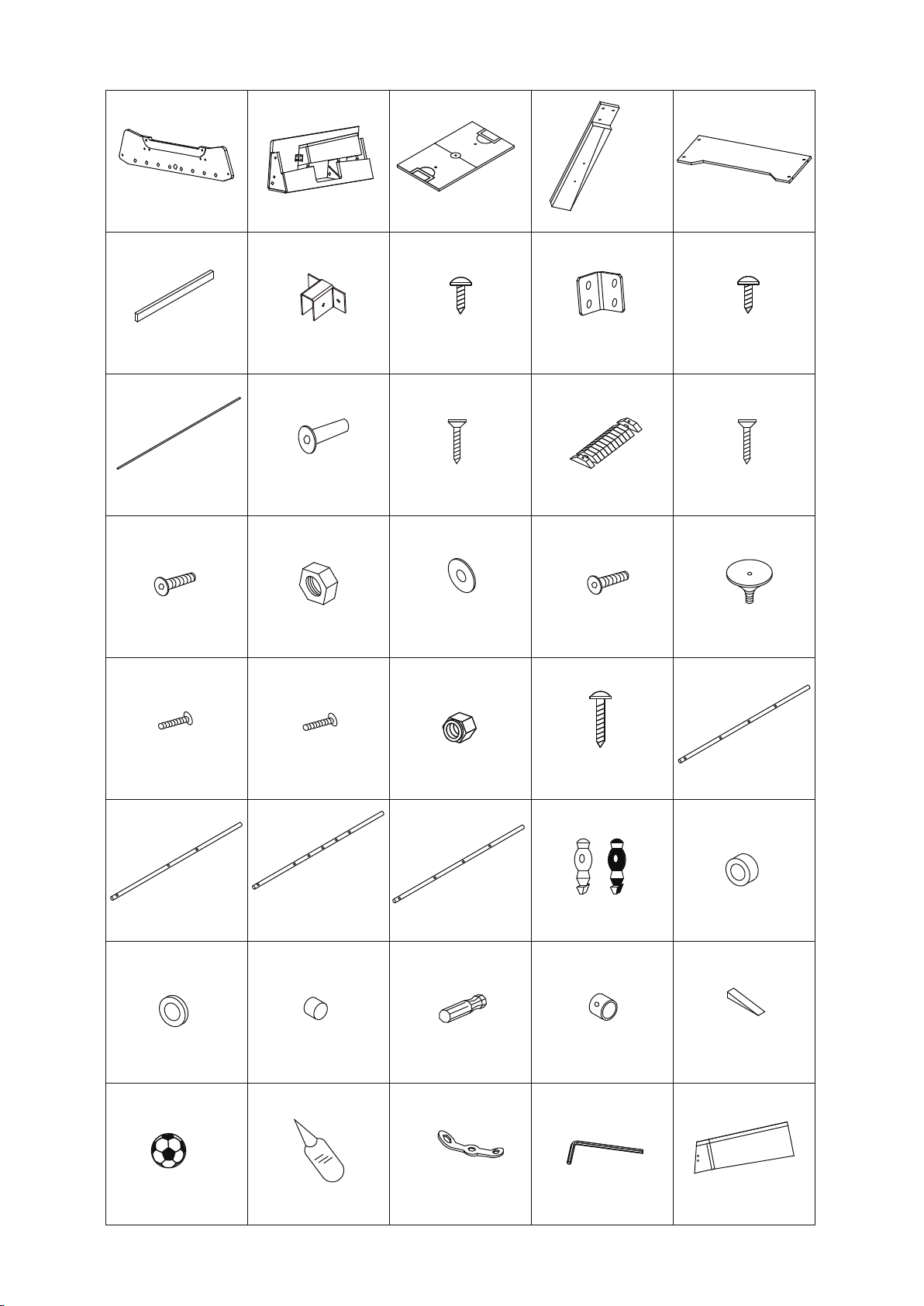

Part List

#1 #2 #3 #4 #5

#6 #7 #8 #9 #10

#11 #12 #13 #14 #15

Legs

4PCS

#16

#21

#26

5/16”*3/4”Washers

20PCS

2PCS

Side Apron

2PCS

End Apron

2PCS

Playfield

1PC

5/16”*1-3/8”Bolts

8PCS

F3.5*35mm Screws

8PCS

5/16“*2-1/4”mm Bolts

12PCS

Counters

2PCS

p.2

Connecting Long Bolt

720mm 2PCS

2PCS

#18 #19 #20

#17

#23 #24 #25

#22

#28

#27

8#*1-1/4" Bolts

22PCS

3-Man Rods 1142mm

#29 #30

#31 #32 #33

8#*1" Bolts

4PCS

#34 #35

#36

5-Man Rods 1028mm

Goalie Rods 1097mm

2PCS

2PCS 2PCS 2PCS

2-Man Rods 1271mm

5/16” Nuts

12PCS

Bumpers

16PCS

Plastic Washers

16PCS

Bushings

4PCS

Triangle Blocks

4PCS

Rod Handles

8PCS

Wrench

1PC

Leg Levelers

4PCS

Rod End Caps

8PCS

5mm Allen Keys

2PCS

Ball Collectors

2PCS

8PCS

Bracket

Leg Panels

8PCS

WP4*65mm White

M8*22mm Bolts

4PCS

Nuts

26PCS

Players

22PCS

#37 #38 #39 #40

1PC

Lubricant

F4*1” Screws

4PCS

T4x15mm Screws

16PCS

T4*12 mm Screws

32PCS

Bracket

4PCS

Soccer Balls

4PCS

Playfield Support Beam

Attach the other #1 Side Apron and #2 End Apron using #19 Bolts and #18 Flat Washer

as shown in FIGURE 1. Using #39 Wrench to tighten all #19 Bolts on this time.

p.3

#19

#18

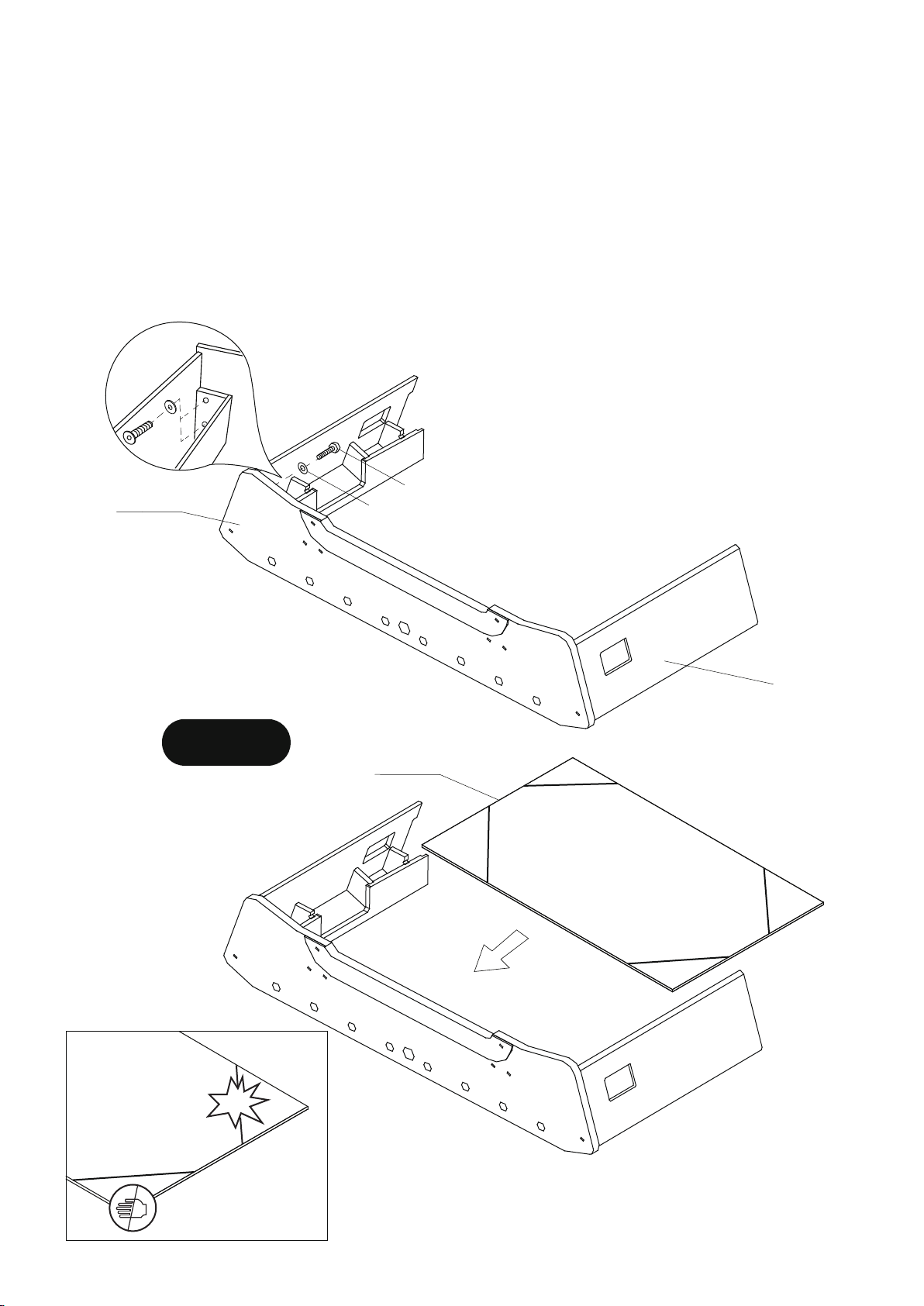

STEP 1

Attach #1 Side Apron onto #2 End Apron using # 19 Bolt and #18 Flat Washer as shown

in FIGURE 1. Using #39 Wrench to tighten the #19 Bolt. Do not overtighten #19 Bolt on this time.

Attach #3 Playfield onto the #1 Side Apron and #2 End Apron as shown in FIGURE 1.

Find a clean, level place to begin the assembly of your foosball table. We recommend building the

table on the box top to protect the parts during assembly.

It is very important to assemble table on a level and flat surface. This will keep the end aprons and

side aprons “FLUSH” on the top and bottom edges.

FIGURE 1

p.4

#13

#35

#13

STEP 2

Attach #1 Side Apron onto #2 End Apron using #10 Bracket and pre-drilled holes with #9 Screws

as shown in FIGURE 2.

Attach #3 Playfield onto #2 End Apron using #13 Screws as shown in FIGURE 2.

Attach #3 Playfield onto #1 Side Apron using #35 Triangle Blocks as shown in FIGURE 2.

FIGURE 2

#11

#12

#11

#12

Attach #11 Connecting Long Bolts onto the table cabinet using #12 Bolts as shown in FIGURE 2.

Using #39 Allen wench to tinghten the #12 Bolts.

#10

p.5

STEP 3

FIGURE 3

#10

#40

Attach #6 Playfield Support Beam onto the table cabinet using #7 Bracket and #8 Screws as

shown in FIGURE 3.

Attach #40 Ball Collectors onto the table cabinet using #9 Bracket and #10 Screws as shown

in FIGURE 3.

p.6

STEP 4

THIS STEP REQUIRES FOUR OR MORE ADULTS.

VERY CAREFULLY TURN THE TABLE OVER AND SET IT ON

ITS LEGS. BE CAREFUL. THE TABLE IS VERY HEAVY.

DO NOT LEAN THE

TABLE ON ITS LEGS

HOLD TABLE

CABINET DO NOT HOLD THE LEGS

Attach the #4 Legs onto the #1 Side Apron using #16 Bolts, #18 Washers and #17 Nuts as shown

in FIGURE 4.Use #38 Wrench and #39 Allen Wrench to tighten all legs.

Attach the #5 Leg panels onto the #4 Legs using #24 Screws as shown in FIGURE 4.

#20

#24

#16

#17

#18

Screw #20 Leg Levelers into the bottom of each leg as shown in FIGURE 4.

Very carefully turn the table over and set it on its legs.

FIGURE 4

p.7

STEP 5

Attach the #29 Players on to the Player Rods(#25-28), using #21 Bolts and #23 Nuts as

shown in FIGURE5.

Attach the #34 Bushings onto the #25 Player Rods, using #22 Bolts and #23 Nuts as

shown in FIGURE5.

FIGURE 5

Slide the Player Rods (#25-28) through the table bushings at one side of the table in the

order shown in FIGURE 5.

#25

Length Comparison

#28

#30

#31

#21

#23

#29

#27

#25

#26

#28

#22

#34

#23

Hole

Short

Long

Hole

Place one #30 Bumper, and one #31 Plastic washer on either side of each Player

Rod (#25-28) shown in FIGURE 5.

Now slide the Player Rods (#25-28) through the bushings at the other side of the table.

p.8

STEP 6

FIGURE 6

#33

#32

#15

#14

TABLE MAINTENANCE

TABLE

SURFACE

Keep your table covered. If there is dust on the playﬁeld or the aprons, use a vacuum or wipe

RODS or press the rods too aggressively, as this may cause damage . We recommend the use of

lubricant to wipe the Player Rods and Bearings from the outside of the game so as not to drip

onto the playﬁeld.

LEGS

METHOD hit by external force or used rough.

down squarely on the legs, do not drag the table.

#37 b c

DETAIL A

Attach the #14 Counters onto #2 END Aprons using #15 Screws. Tighten but DO NOT Strip out

screws.

Insert the #33 Rod Handles onto the rods end.

Insert the #32 Rod Ende Cape onto the rods end.

Spray the #37 lubricant into a clean, soft cloth and then use the cloth to wipe the player rods

where they come into contact with the bearings as shown in DETAIL A.

p.9

Flip A Coin

is scored, the rule is that the team who was last scored on gets to serve the next ball. This rule keeps the

game fair for both opponents. The foosball must be touched by a man before the ball goes into a goal for

a legal goal to occur.

No Spinning

This is deemed an illegal move in the rules of foosball.

No Jarring - Jarring is a rule for when a player slams his or her rods against the wall of the foosball table in

no jarring allowed at any point during a game. This is not the same as when a player on the opposite team

player hits the wall of the table with enough force to jar the ball or distract the opponent. That is why this

Dead Balls - If a foosball stops in the middle of two opposing team rods, the ball must be picked up and

reserved. The serve goes back to the team that was last scored on. If a dead ball occurs on the defensive

side of the table behind the defensive 2 bar, the defensive player must move the ball back into playing

Out of Play - If a ball comes oﬀ the table area or hits a top rail and comes back into the table area, the

ball is ruled out of play and must be reserved by the team that was last scored on.

5 Bar Passing

These passing rules do not apply to the other foosball rods, just the 5 bar. You are required to pass the ball

serve,

you then are allowed 15 seconds to pass from the 5 bar. A ball cannot be completely stopped on the

5 bar and passed forward to the 3 bar, it must be moving and touch 2 men on the 5 bar before being

GAME RULES:

---

the
